Promise Vess - NVR - 16 x 10 TB
MSRP$24,959.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

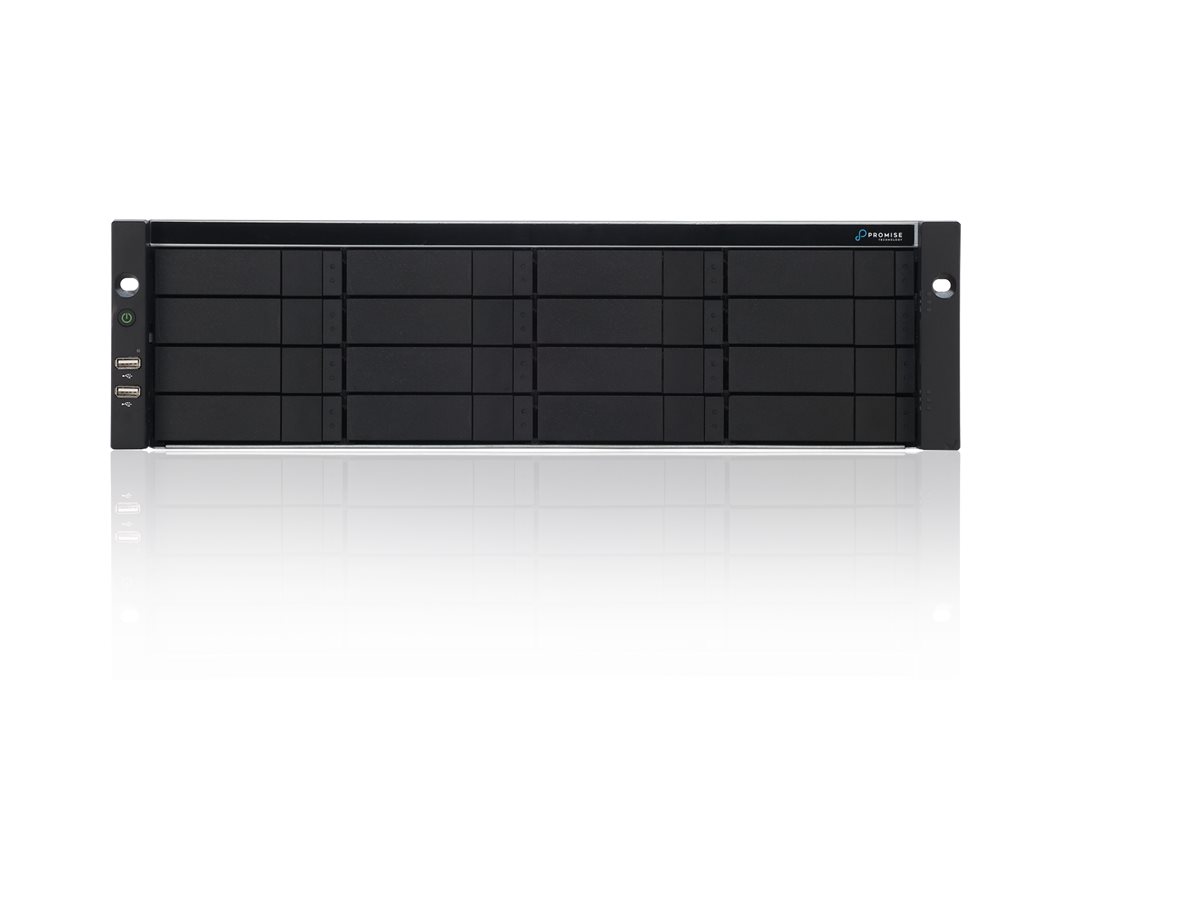

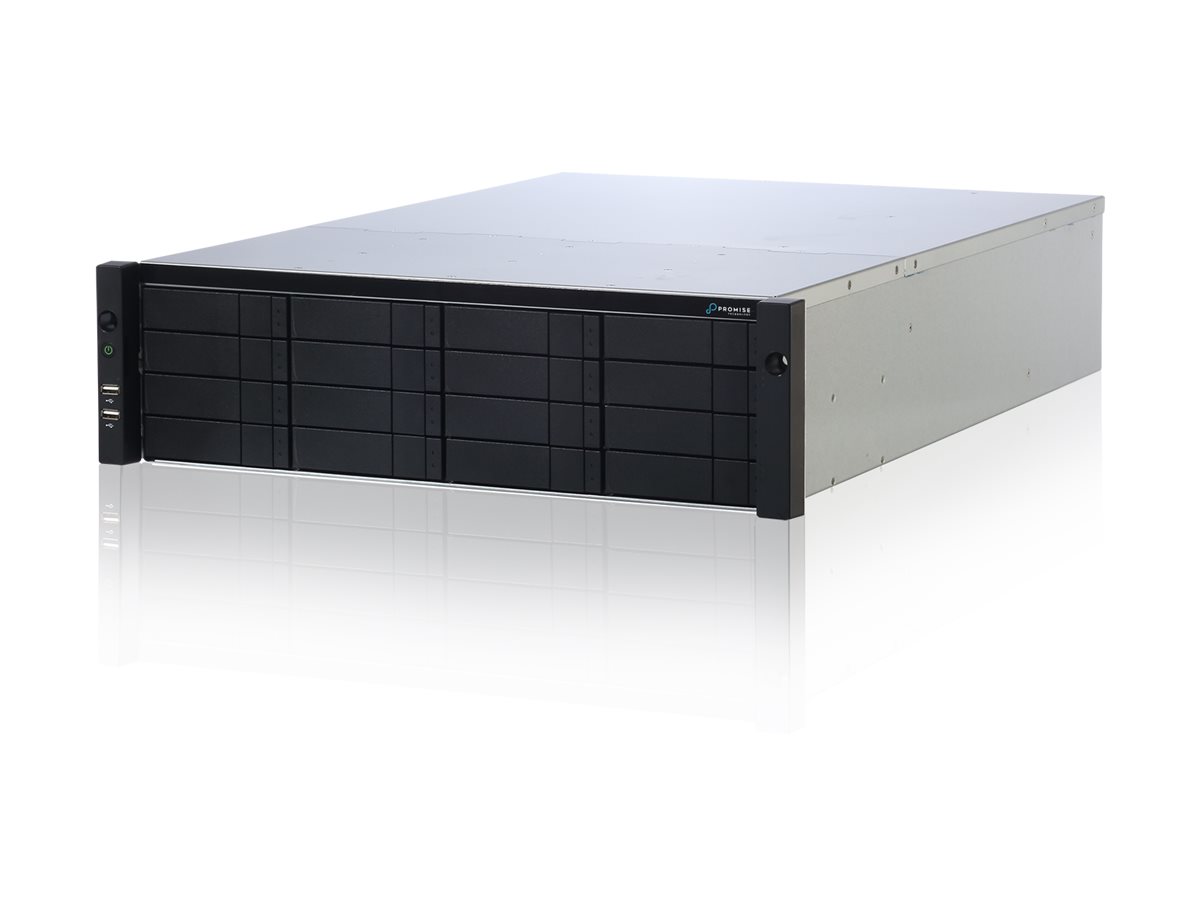

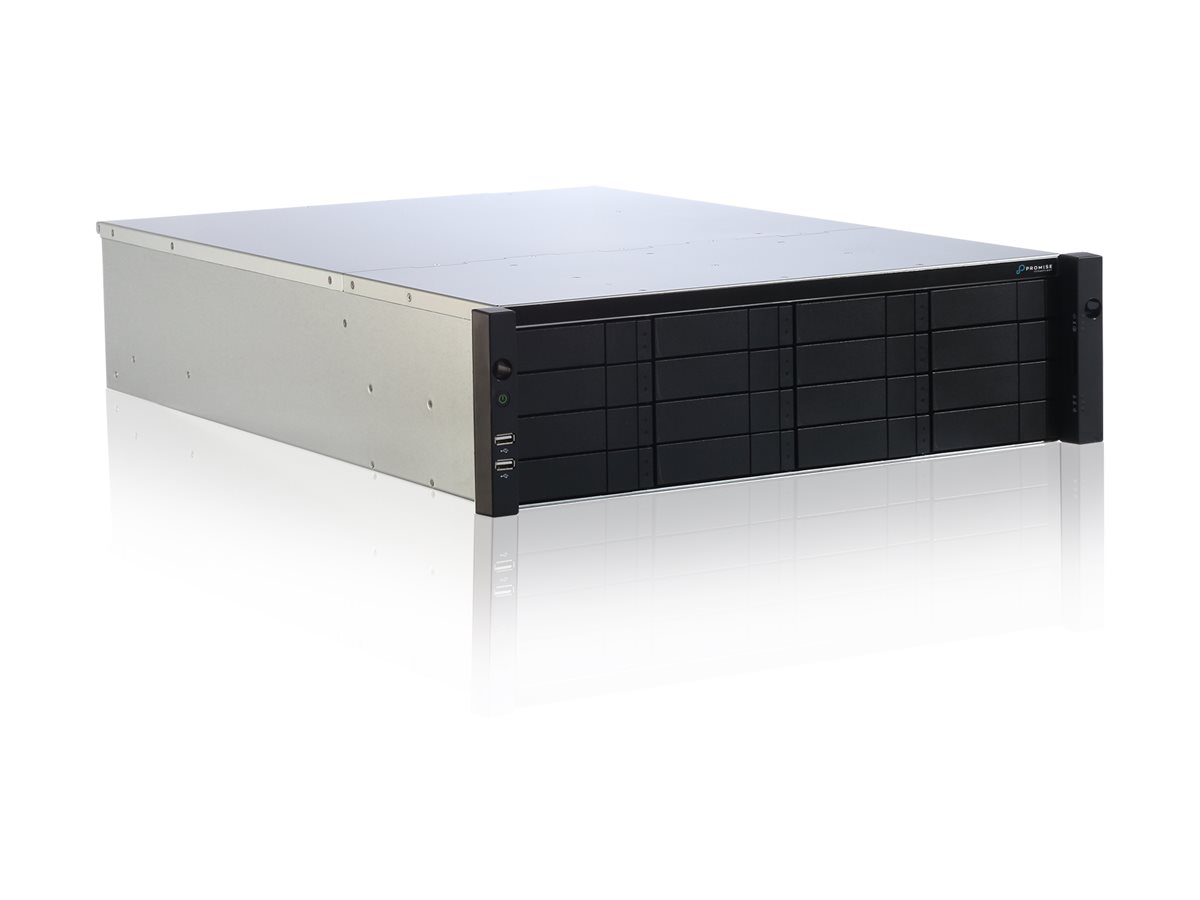

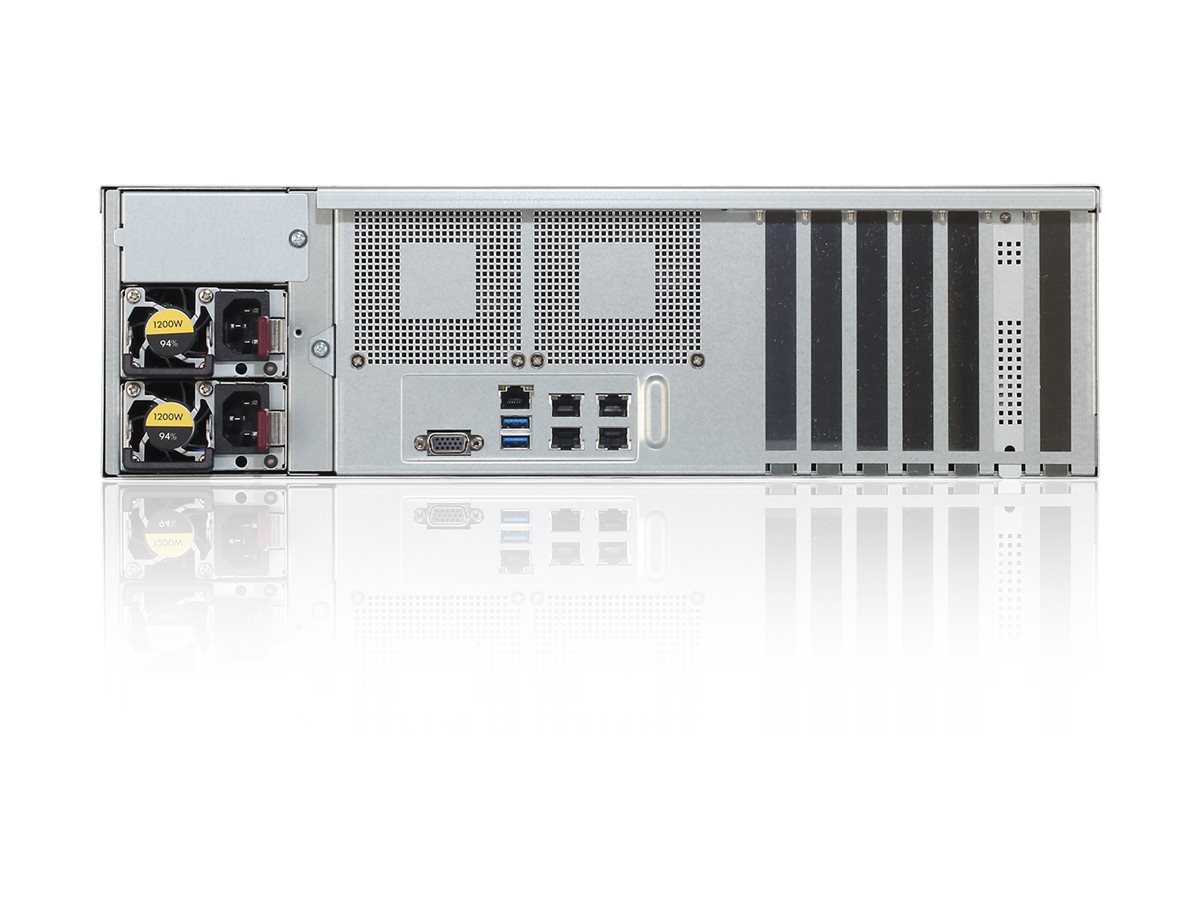

Promise Vess - NVR - 16 x 10 TB
- 160 TB
- networked
- 3U
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $24,959.00 |
| Mfr Part #: | VA8600RW2210TT |
| SHI Part #: | 46723326 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | Promise Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Promise Vess - NVR - 16 x 10 TB - 160 TB - networked - 3U - rack-mountable |
| Manufacturer | Promise Technology |
| MSRP | $24,959.00 |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 66.5 cm |
| Dimensions & Weight / Height | 13.1 cm |
| Dimensions & Weight / Weight |
|
| Dimensions & Weight / Width | 48.2 cm |
| Hard Drive / Capacity | 10 TB |
| Hard Drive / Interface | iSCSI |
| Hard Drive / Interface Type | iSCSI |
| Header / Brand | Promise |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface | iSCSI |
| Storage / HDD Array External Interface Class | iSCSI |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Total Array Capacity | 160.256 TB |
| Storage / Type | Hard drive array |
| Connections | |
| Audio Input Ports | Mini-phone 3.5 mm x 3 |
| Audio Output Ports | Mini-phone 3.5 mm x 3 |
| Network Port | 10/100/1000Base-T x 4 |
| Other Ports | USB 3.0 x 2, PCIe 3.0 x16 x 4, PCIe 3.0 x8 |
| Video Output Ports | VGA x 1 |
| Dimensions & Weight | |
| Depth | 66.5 cm |
| Height | 13.1 cm |
| Weight | 33.5 kg |
| Width | 48.2 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| General | |
| Compliant Standards | 80Plus compliant |
| Device Type | NVR - rack-mountable - 3U |
| IP Cameras Supported | 170 |
| OS Provided | Microsoft Windows Server 2022 |
| Warranty | 3 years |
| Hard Drive | |
| Capacity | 10 TB |
| Interface | Serial ATA |
| Quantity Installed | 16 |
| Quantity Supported | 16 |
| Removable | Yes |
| Supported Max Total Capacity | 320 TB |
| Networking | |
| Features | Manageable, e-mail notification, SNMP support, IPMI over LAN, event notification |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | SNMP |
| Power | |
| Frequency | 50 - 60 Hz |
| Power Consumption | 1200 Watt |
| Redundant Power Supply | Included |
| Voltage | 100 - 240 V |
| Security DVR | |
| Features | SmartBoost, RAID 0 support, RAID 1 support, RAID 10 support, RAID 1E support, RAID 3 support, RAID 30 support, RAID 5 support, RAID 50 support, RAID 6 support, RAID 60 support, 80 Plus Platinum power device, GreenBoost technology |
| Networked | Yes |
| Video Server | |
| CPU | Intel Xeon Silver 4210R |
| Flash Memory | 256 GB |
| HDD | 160 TB |
| RAM | 64 GB |
