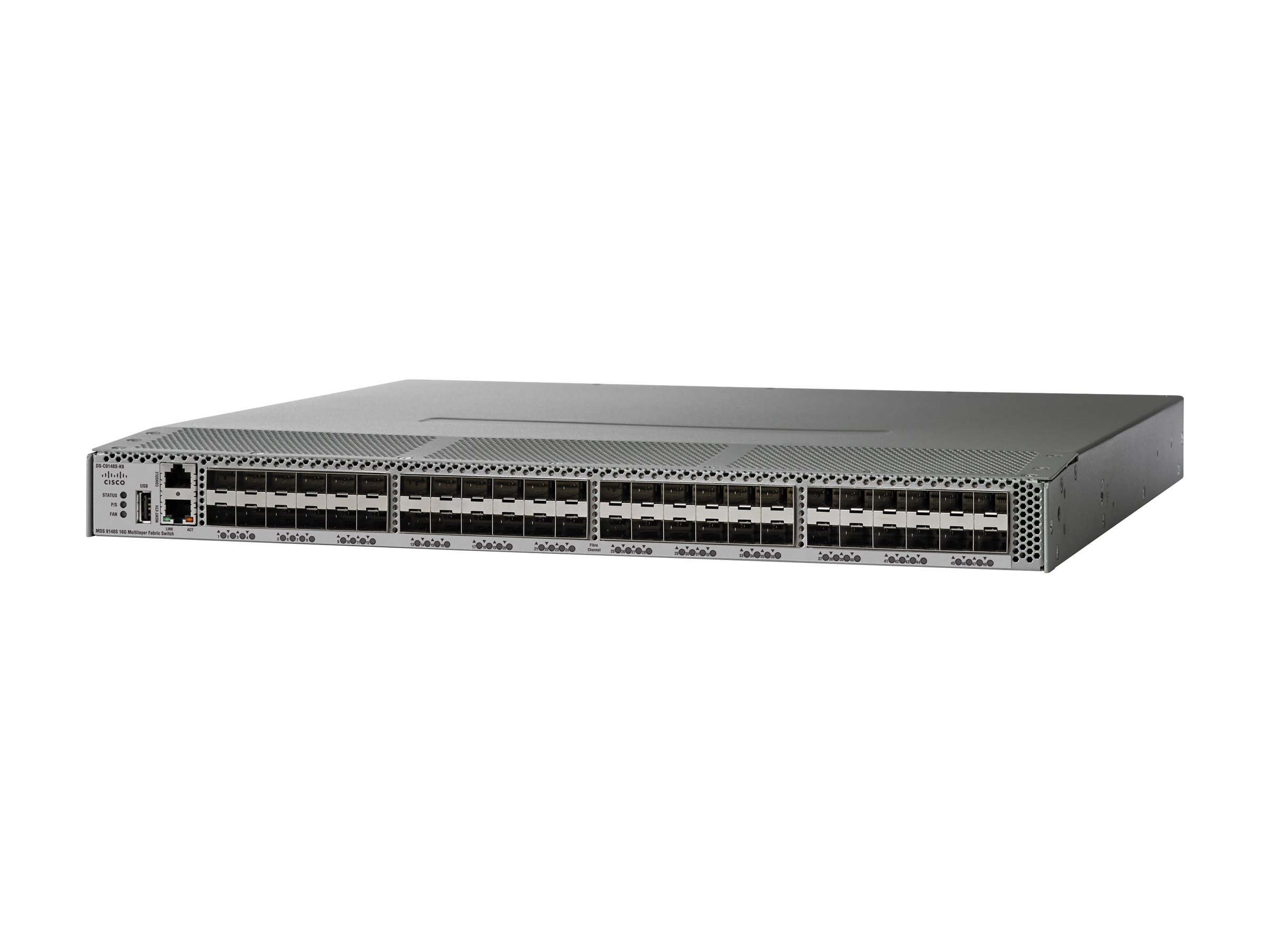

HPE SN6010C 16GB 12P 16GB SFP+FC SWCH PL-1Y
In Stock
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE SN6010C 16GB 12P 16GB SFP+FC SWCH PL-1Y
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | R0Q97A#ABA |
| SHI Part #: | 46537842 |
| Category: | System administrators |
| UNSPSC: | 81111800 |
| Manufacturer: | HPE - STORAGE |
| Product Type: | Other |
| Product Line: | HPE - Storage |
| General Information | |
|---|---|
| Category | System administrators |
| Description | HPE SN6010C 16GB 12P 16GB SFP+FC SWCH PL-1Y |
| Manufacturer | HPE - STORAGE |
| MSRP | $13,300.00 |
| UNSPSC | 81111800 |
| Main Specifications | |
| Height | 7.00 |
| Length | 25.50 |
| UPC | 0190017354118 |
| Width | 24.25 |
| Dimensions & Weight | |
| Depth | 41.5 cm |
| Height | 4.37 cm |
| Weight | 9 kg |
| Width | 43.59 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Device Type | Switch - 12 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | AES |
| Features | Trunking, Syslog support, LUN zoning, QoS, redundant hot swappable fans, MAC and IP-based ACLs support |
| Fibre Channel | FC-AL, FC-AL-2, FC-BB, FC-DA, FC-FLA, FC-FS, FC-GS, FC-GS-3, FC-GS-4, FC-IP, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5 |
| Performance | Aggregate bandwidth: 192 Gbps |
| Ports | 12 x 16Gb Fibre Channel SFP+ |
| Remote Management Protocol | SNMP, SNMP 3, SMI-S, SSH-2, CLI |
| Subtype | Fibre Channel |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year - on-site - response time: next business day |
| Miscellaneous | |
| Compliant Standards | ETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 55022 Class A, EN50082-1, EN 61000-6-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, AS/NZS 60950, IEC 60825, VCCI Class A, KN24, AS/NZS CISPR 22, ETSI 300 019, CAN/CSA-C22.2 No. 60950-1 |
| Included Accessories | 12 x 16Gb Fibre Channel SFP+ Short Wave Transceiver |
| Localization | English / United States |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Consumption Operational | 101 Watt |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 300 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Required | Cisco MDS 9000 NX-OS 6.2(9) or later |
| Software Included | Cisco Data Center Network Manager |
