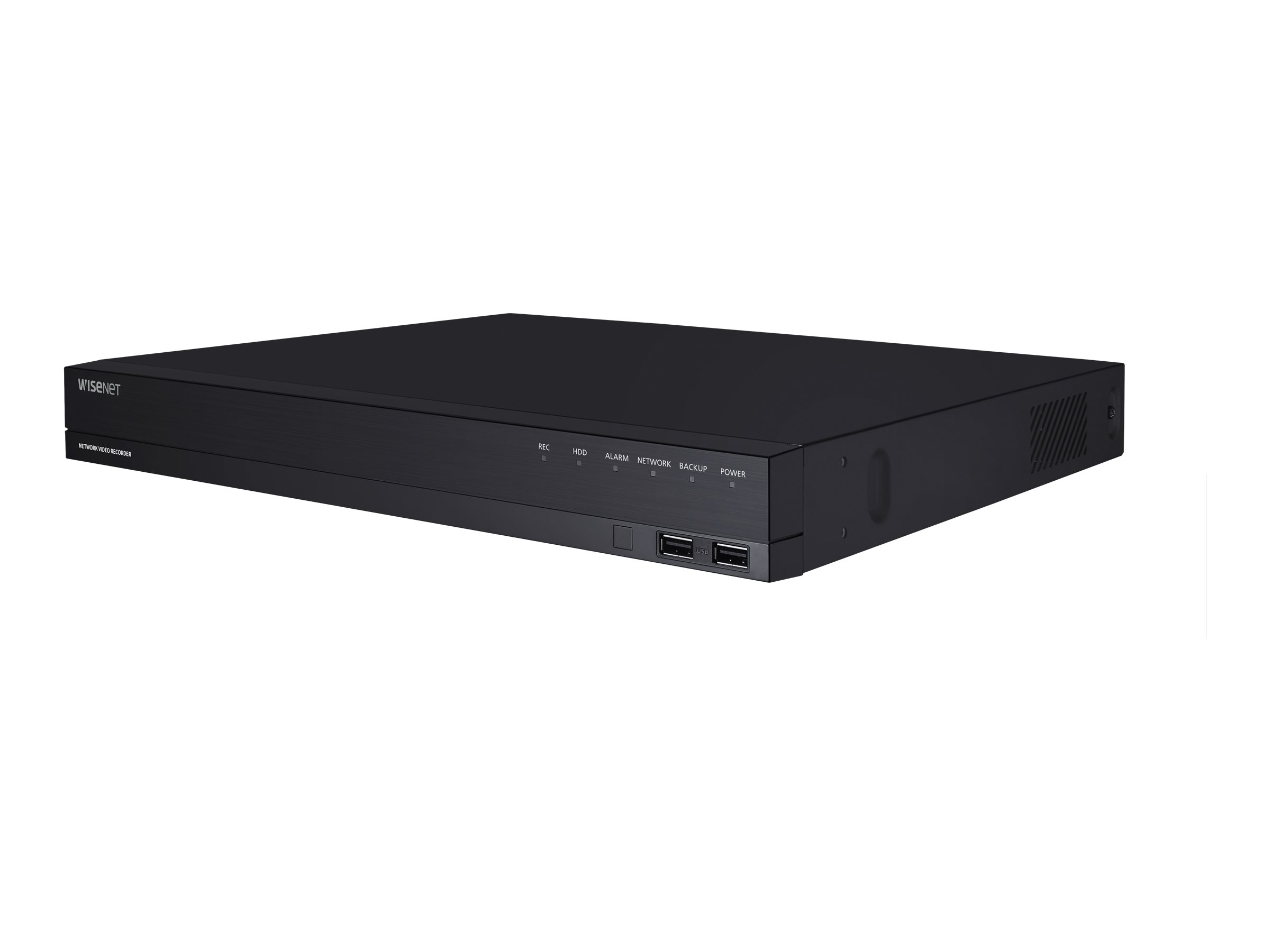

Hanwha Vision WiseNet ARN-1610S
MSRP$1,698.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet ARN-1610S
- NVR
- 16 channels 6 TB
- networked
- 1U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,698.00 |
| Mfr Part #: | ARN-1610S-6TB |
| SHI Part #: | 46462296 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Hanwha Vision WiseNet ARN-1610S - NVR - 16 channels 6 TB - networked - 1U |
| Manufacturer | HANWHA VISION |
| MSRP | $1,698.00 |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 32 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 2.88 kg |
| Dimensions & Weight / Width | 37 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Connections | |
| Network Port | 10/100Base-TX x 16 (PoE) / 1000Base-T x 1 |
| Other Ports | USB 2.0 x 2 |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Dimensions & Weight | |
| Depth | 32 cm |
| Height | 4.4 cm |
| Weight | 2.88 kg |
| Width | 37 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Audio Channels | 16 |
| Color | Black |
| Compliant Standards | Plug and Play, FCC, cULus, EAC, NDAA |
| Compression Format | H.265, H.264, MJPEG, G.711, G.726, AAC |
| Device Type | NVR - 1U |
| Image Resolution | 3840x2160, 1920x1080, 1280x720 |
| IP Cameras Supported | 16 |
| OS Provided | Linux |
| Video Channels | 16 |
| Hard Drive | |
| Capacity | 6 TB |
| Interface | Serial ATA |
| Quantity Supported | 2 |
| Supported Max Total Capacity | 12 TB |
| Networking | |
| DDNS Support | Yes |
| Features | ONVIF support, Hanwha DDNS, IP address filtering, 802.1x authentication, GOP control, Hallway view |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTSP, NTP, HTTP, DHCP, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP |
| Power | |
| Frequency | 50/60 Hz |
| Power Consumption | 188.2 Watt |
| Voltage | 100 - 240 V |
| Security DVR | |
| Display Modes | 2 split screens, 3 split screens, 4 split screens, 6 split screens, 8 split screens, 9 split screens, 13 split screens, 16 split screens, sequence |
| Features | Pan/Tilt/Zoom support, 300 PTZ position presets, Auto Recovery Backup (ARB), Webviewer |
| Frame Rate (Playback) | 30 fps, 120 fps |
| Networked | Yes |
| Playback Search | Date/time, event, text, smart search |
| Record Events | Alarm, video loss, sensor, motion detection, defocus detection, audio detection |
| Video Recording Resolution | 8 Megapixels, CIF |
