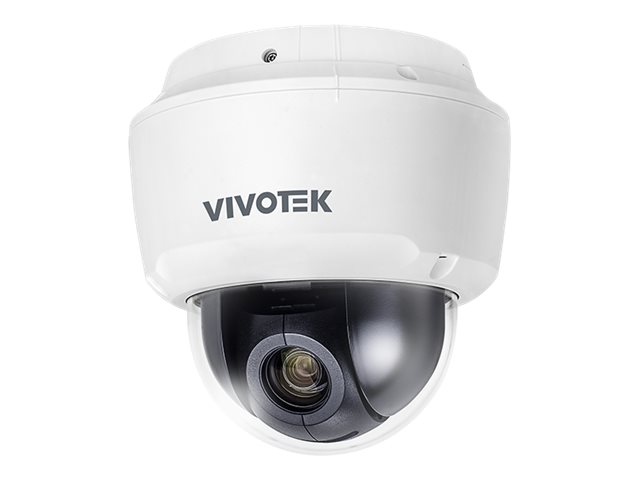

Vivotek V Series SD9161-H-V2


Vivotek V Series SD9161-H-V2

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • PTZ
  • dome
  • color (Day&Night)
  • 2 MP
Vivotek V Series SD9161-H-V2
  • Network surveillance camera
  • PTZ
  • dome
  • color (Day&Night)
  • 2 MP
  • 1920 x 1080
  • 1080p
  • auto iris
  • motorized
  • audio
  • LAN 10/100
  • H.265, H.264, MJPEG
  • DC 24 V / PoE
  Additional Details
Mfr Part #: SD9161-H-V2
SHI Part #: 46435926
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: Vivotek
Product Type: Hardware
General Information
CategoryDigital cameras
DescriptionVivotek V Series SD9161-H-V2 - Network surveillance camera - PTZ - dome - color (Day&Night) - 2 MP - 1920 x 1080 - 1080p - auto iris - motorized - audio - LAN 10/100 - H.265, H.264, MJPEG - DC 24 V / PoE
ManufacturerVivotek
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth17.2 cm
Dimensions & Weight / Height15.7 cm
Dimensions & Weight / Weight1 kg
Dimensions & Weight / Width17.2 cm
Header / BrandVivotek
Miscellaneous / Product Color
  • Black
  • White
Packaged Quantity1
System Requirements / OS Required
  • Apple macOS 10.12
  • Microsoft Windows 7 / 8 / 10
Camera
Digital Video Capture Resolution1920 x 1080
Digital Video FormatH.265, H.264, MJPEG
Digital Zoom32
Exposure Range1/8 sec - 1/30000 sec
FeaturesRemote focus, remote zoom, image flip, image mirror, white balance, brightness control, contrast control, saturation control, sharpness control, gamma control, Defog, 3D digital noise reduction (DNR), Electronic Image Stabilizer (EIS), scene modes, exposure control, Gain Control, AE speed adjustment, Wide Dynamic Range (WDR), Privacy Mask Function, Pixel Calculator, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People Detection, Vehicle Detection, people analytics, vehicle analytics, deep learning function, Smart VCA, Audio Detection, Tampering detection
Flash Memory8 GB
Frame Rate (max)60 frames per second
Max Digital Video Resolution1920 x 1080
Minimum Illumination
  • 0.14 lux - color - F1.6
  • 0.005 lux - B&W - F1.6
Motion DetectionYes
RAM2 GB
TypeColor - Day&Night - pan / tilt / zoom
Video Modes1080p
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature-10 °C
Relative Humidity (operating)98% RH (non-condensing)
Expansion / Connectivity
Ports
  • LAN/power - RJ-45
  • Audio line in
  • Audio line out
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.711, G.726, AAC
Audio SupportYes: two-way audio capability
Camera Mount TypeWall mount
Connectivity TechnologyWired
Depth17.2 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height15.7 cm
Weight1 kg
Width17.2 cm
Image Sensor
Type2 MP CMOS 1/2.8"
Interfaces
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsARP, Bonjour, CIFS, SMB, DDNS, DHCP, DNS, FTP, SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QOS, CoS, DSCP, RTSP, RTP, RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
Lens Construction
Diagonal Field of View (degree)8.1 - 62.8
Focal Length5.1 mm - 51 mm
Horizontal Field of View (degree)7.1 - 55.2
Lens IrisF/1.6-1.8 auto iris (DC Iris)
Optical Zoom10 x
TypeMotorized zoom
Vertical Field of View (degree)4.1 - 31.8
Miscellaneous
Cables Included1 x power cable
Compliant StandardsEN 55032 Class A, EN 55035, BS EN 55032, BS EN 55035, FCC Part 15 Subpart B, ICES-003 Issue 7: 2020 Class A, AS/NZS CISPR 32 Class A, VCCI-CISPR 32 Class A, EN 62368-1:2020+A11:2020, UL 62368-1, IEC/EN 62368-1, IS 13252, BSMI
Included AccessoriesMounting kit, alignment sticker, L-shaped wrench
Panning
Range (degree)360
Speed (degree/sec)Up to 360
Power
Power Device17 Watt
Power RequirementsDC 24 V / PoE
Software / System Requirements
OS RequiredMicrosoft Windows 7 / 8 / 10, Apple macOS 10.12
Tilting
Range (degree)180
Speed (degree/sec)Up to 360
