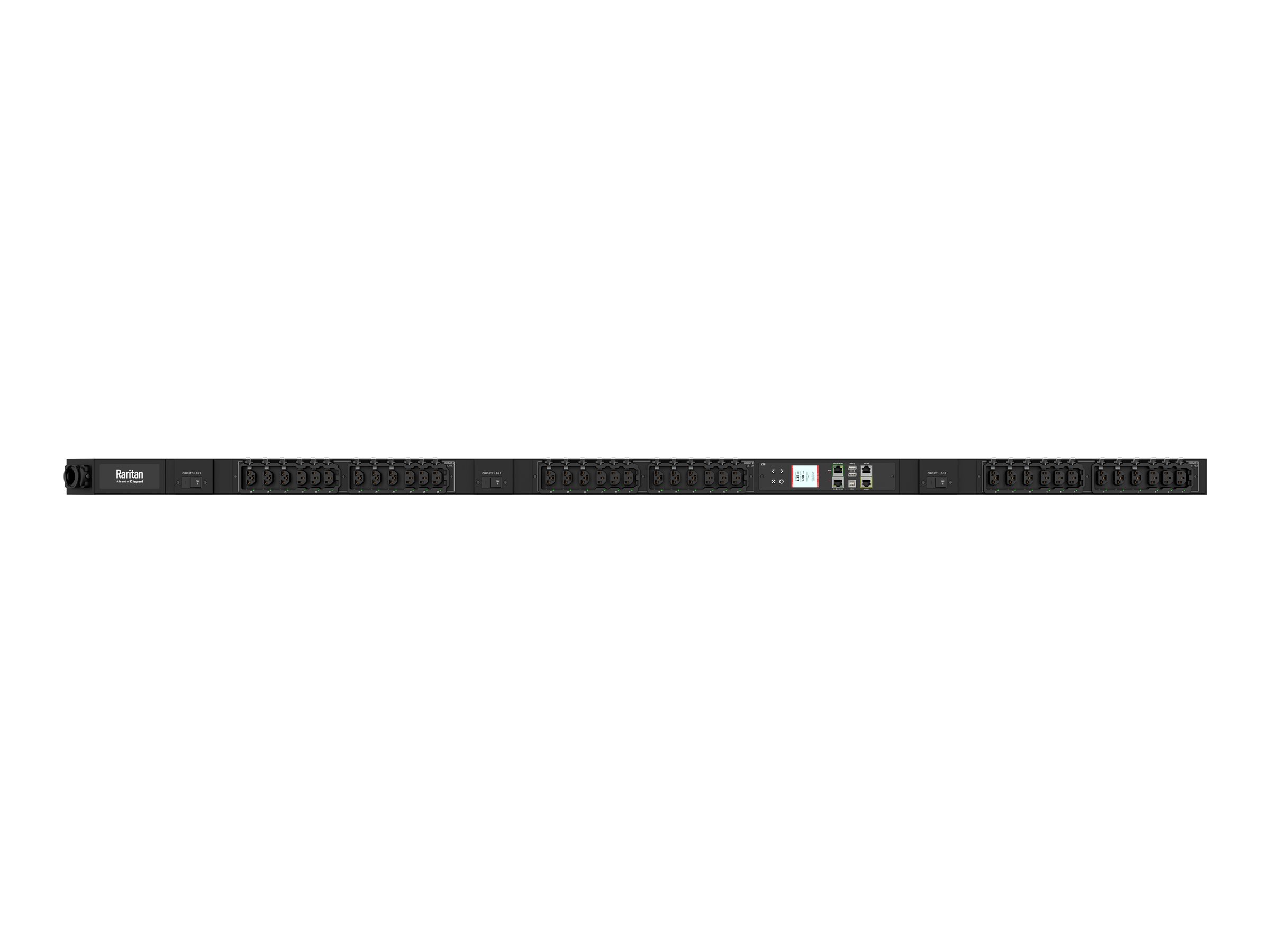

Raritan PX4-534A-E7 - Power distribution strip (rack-mountable)
MSRP$3,036.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Raritan PX4-534A-E7 - Power distribution strip (rack-mountable)
- AC 208 V
- 8600 VA
- 3-phase delta
- Ethernet 10/100/1000, RS-232, USB
- input: NEMA L15-30P
- output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx)
- 0U
- 3 m cord
- red
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $3,036.00 |
| Mfr Part #: | PX4-534A-E7K1 |
| SHI Part #: | 46414387 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Legrand |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Raritan PX4-534A-E7 - Power distribution strip (rack-mountable) - AC 208 V - 8600 VA - 3-phase delta - Ethernet 10/100/1000, RS-232, USB - input: NEMA L15-30P - output connectors: 36 (18 x IEC 60320 C13, 18 x IEC 60320 Cx) - 0U - 3 m cord - red |
| Manufacturer | Legrand |
| MSRP | $3,036.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.5 cm |
| Dimensions & Weight / Height | 178 cm |
| Dimensions & Weight / Width | 5.6 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Raritan |
| Miscellaneous / Product Color | Red |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 36 |
| Power Device / Power Capacity (VA) | 8600 VA |
| Power Device / Voltage Required | AC 208 V |
| Product Type | Power distribution strip |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 6.5 cm |
| Height | 178 cm |
| Width | 5.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Red |
| Cord Length | 3 m |
| Device Type | Power distribution strip - rack-mountable |
| Height (Rack Units) | 0U |
| Image Color Disclaimer | The displayed product image may be a different color |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | Redfish API, UL, ICES-003, FCC Part 15 A, RoHS |
| Features | Vertical orientation, extruded aluminum housing, tool-less button mount, voltage meter, current meter, active power meter, real power meter, energy meter, power factor meter, LCD display, Auto-Flip Current Display, metering per input line, metering per branch circuit breaker, metering per output receptacle, remote outlet switching, replaceable controller, environmental sensor ready, cascadable, bottom-front feed cord entry, Raritan SecureLock Ready, 3 x J62-X0 overload protection, LED indicators |
| Networking | |
| Remote Management Interface | Ethernet 10/100/1000, RS-232, USB |
| Remote Management Protocol | HTTP, HTTPS, SSH, Telnet, SNMP 2, SNMP 3, SMTP, JSON-RPC, Modbus TCP |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power NEMA L15-30P |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 208 - 240 V |
| Input Wiring | 3-phase delta |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V |
| Power Capacity | 8600 VA |
| Power Capacity Details | 8.6 kVA at 208 V, 10.0 kVA at 240 V |
| Power Output Connectors Details |
|
