Hanwha Vision WiseNet X XNZ-6320A
MSRP$1,500.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

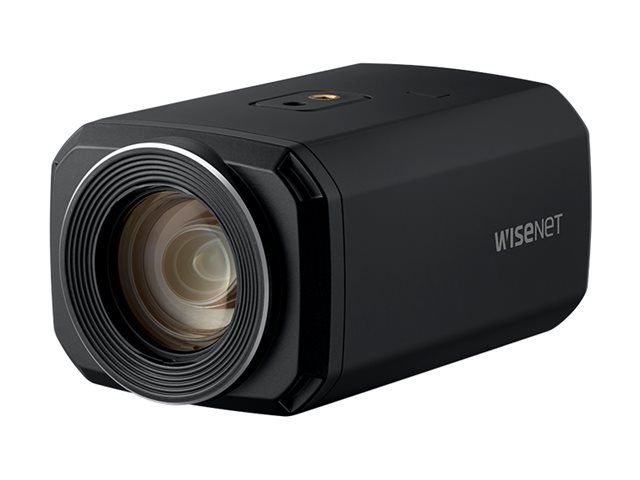

Hanwha Vision WiseNet X XNZ-6320A
- Network surveillance camera
- color (Day&Night)
- 2 MP
- 1920 x 1080
- auto iris
- motorized
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,500.00 |
| Mfr Part #: | XNZ-6320A |
| SHI Part #: | 46400399 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNZ-6320A - Network surveillance camera - color (Day&Night) - 2 MP - 1920 x 1080 - auto iris - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,500.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.6 cm |
| Dimensions & Weight / Height | 14.35 cm |
| Dimensions & Weight / Weight | 578 g |
| Dimensions & Weight / Width | 7.6 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 32 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), face detection, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Highlight Compensation (HLC), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, entrance / exit detection, appearing / disappearing detection, Samsung Super Noise Reduction (SSNRV), IP address filtering, fog detection, motion detection, ONVIF (Profile T) support, direction detection, Virtual Line detection |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed |
| Video Capture | 1920 x 1080 @ 60 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, AAC-LC, U-LAW, G.711, ADPCM |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 9.6 cm |
| Device Type | Network surveillance camera |
| Height | 14.35 cm |
| Weight | 578 g |
| Width | 7.6 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |

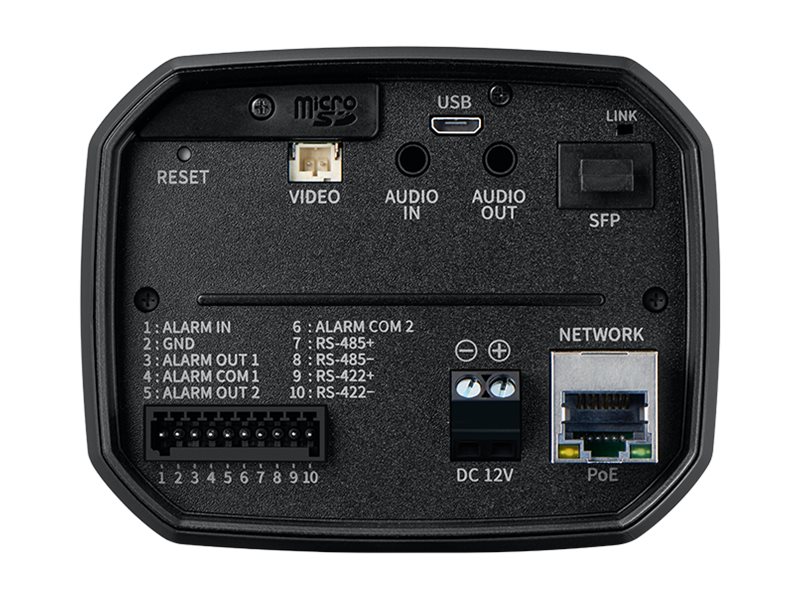

| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, SRTP, EAP, LLDP |
| Lens Construction | |
| Focal Length | 4.44 mm - 142.6 mm |
| Horizontal Field of View (degree) | 2.19 - 61.8 |
| Lens Iris | F/1.6-4.4 auto iris (DC) |
| Min Focus Distance | 1.5 m |
| Optical Zoom | 32 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 1.24 - 36.2 |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | FCC, cULus, EAC, IEEE 802.3af, IEEE 802.1x |
| Power | |
| Power Device | 7.5 Watt |
| Power Requirements | DC 12 V / PoE Class 3 |
