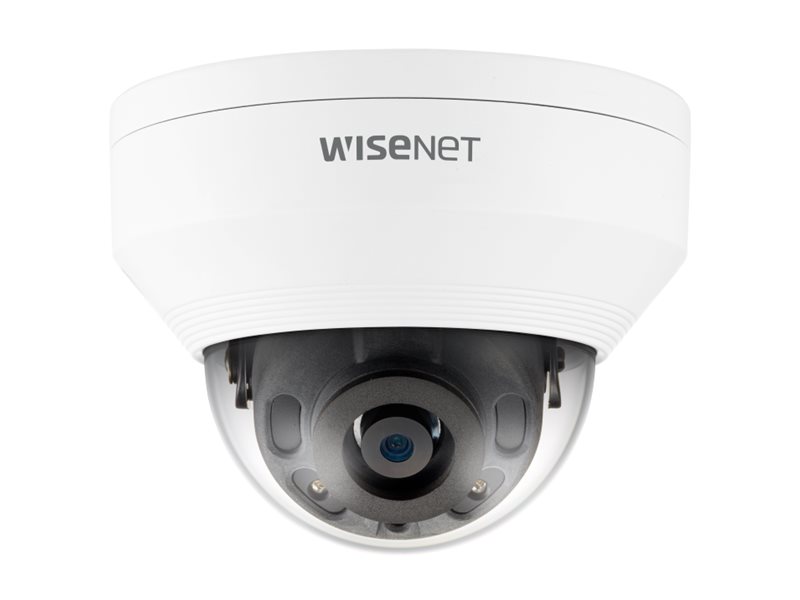

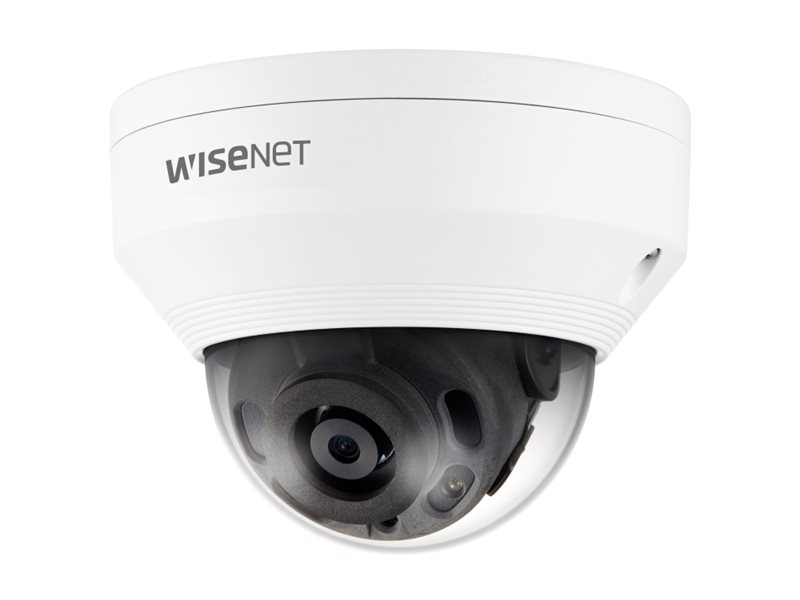

Hanwha Vision WiseNet Q QNV-6022R1
MSRP$410.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet Q QNV-6022R1
- Network surveillance camera
- dome
- outdoor
- dustproof / waterproof / vandal-proof
- color (Day&Night)
- 2 MP
- 1920 x 1080
- fixed focal
- composite
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $410.00 |
| Mfr Part #: | QNV-6022R1 |
| SHI Part #: | 46400351 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet Q QNV-6022R1 - Network surveillance camera - dome - outdoor - dustproof / waterproof / vandal-proof - color (Day&Night) - 2 MP - 1920 x 1080 - fixed focal - composite - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $410.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.03 cm |
| Dimensions & Weight / Height | 9.17 cm |
| Dimensions & Weight / Weight | 510 g |
| Dimensions & Weight / Width | 12.03 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, infrared cut filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, IP address filtering, Hallway View, Handover, ONVIF (Profile T) support, Virtual Line detection |
| Infrared Distance | 25 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
| Video Capture | 1920 x 1080 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 12.03 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 9.17 cm |
| Weight | 510 g |
| Width | 12.03 cm |
| Image Sensor | |
| Effective Pixels | 1920 x 1080 |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 104.5 |
| Focal Length | 4 mm |
| Horizontal Field of View (degree) | 87.6 |
| Lens Iris | F/1.6 |
| Type | Fixed focal |
| Vertical Field of View (degree) | 46.4 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IK10, IP66, IEEE 802.3af, IEEE 802.1x |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Device | 7.4 watt |
| Power Requirements | DC 12 V / PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 67 |
