Hanwha Vision WiseNet Q QNO-7032R
MSRP$470.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

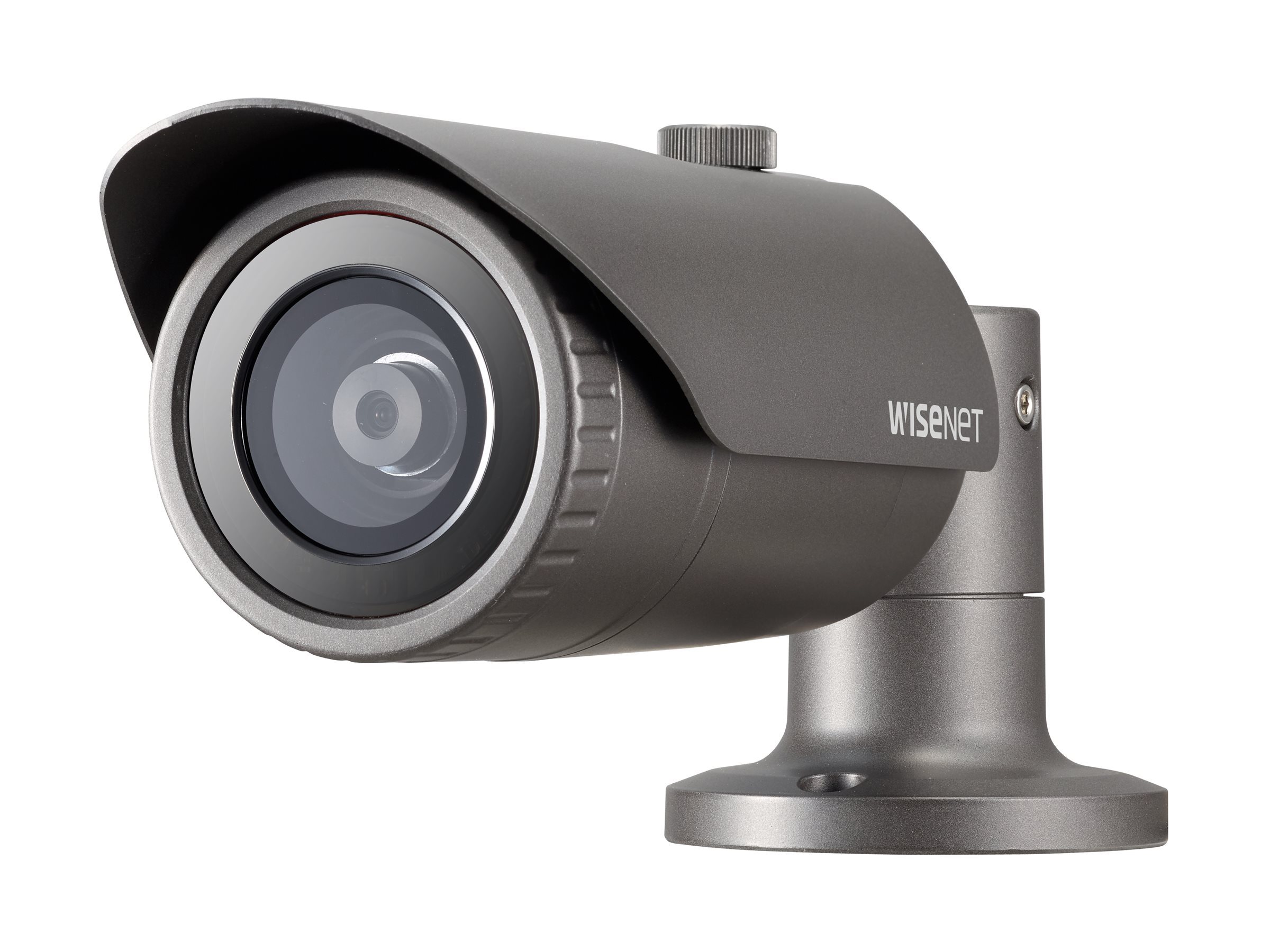

Hanwha Vision WiseNet Q QNO-7032R
- Network surveillance camera
- outdoor
- dustproof / waterproof / impact resistant
- color (Day&Night)
- 4 MP
- 2560 x 1440
- fixed focal
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $470.00 |
| Mfr Part #: | QNO-7032R |
| SHI Part #: | 46400350 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet Q QNO-7032R - Network surveillance camera - outdoor - dustproof / waterproof / impact resistant - color (Day&Night) - 4 MP - 2560 x 1440 - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $470.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.6 cm |
| Dimensions & Weight / Height | 7 cm |
| Dimensions & Weight / Weight | 700 g |
| Dimensions & Weight / Width | 7 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Samsung Super Noise Reduction (SSNR), Motion Detection Technology, Privacy Mask Function, auto gain control, auto white balance, Lens Distortion Compensation (LDC), Hallway View, anti-flicker, Defocus Detection, direction detection, entrance / exit detection, tamper-detection, Virtual Line detection, notification picture to E-mail, notification picture to FTP, Handover, alarm function, auto ICR, WiseStream II support, WiseStream Smart Codec, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, Multicast Streaming, digest authentication, IP address filtering, user access log, Unicast Streaming |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2560 x 1440 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | Color - Day&Night - fixed - outdoor - dustproof / waterproof / impact resistant |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, G.711u |
| Audio Support | Yes |
| Connectivity Technology | Wired |
| Depth | 24.6 cm |
| Device Type | Network surveillance camera |
| Height | 7 cm |
| Weight | 700 g |
| Width | 7 cm |
| Image Sensor | |
| Type | 4 MP CMOS 1/3" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, PIM-SM, UPnP, Bonjour, LLDP, PPPoE, UDP/IP |
| Lens Construction | |
| Diagonal Field of View (degree) | 55.6 |
| Focal Length | 6 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 49 |
| Lens Iris | F/2.0 |
| Type | Fixed focal |
| Vertical Field of View (degree) | 27.6 |
| Miscellaneous | |
| Color | Dark gray |
| Compliant Standards | IEEE 802.1x, IEEE 802.3af, IP66, IK10, NDAA |
| Power | |
| Power Device | 8 watt |
| Power Requirements | DC 12 V / PoE Class 3 |
