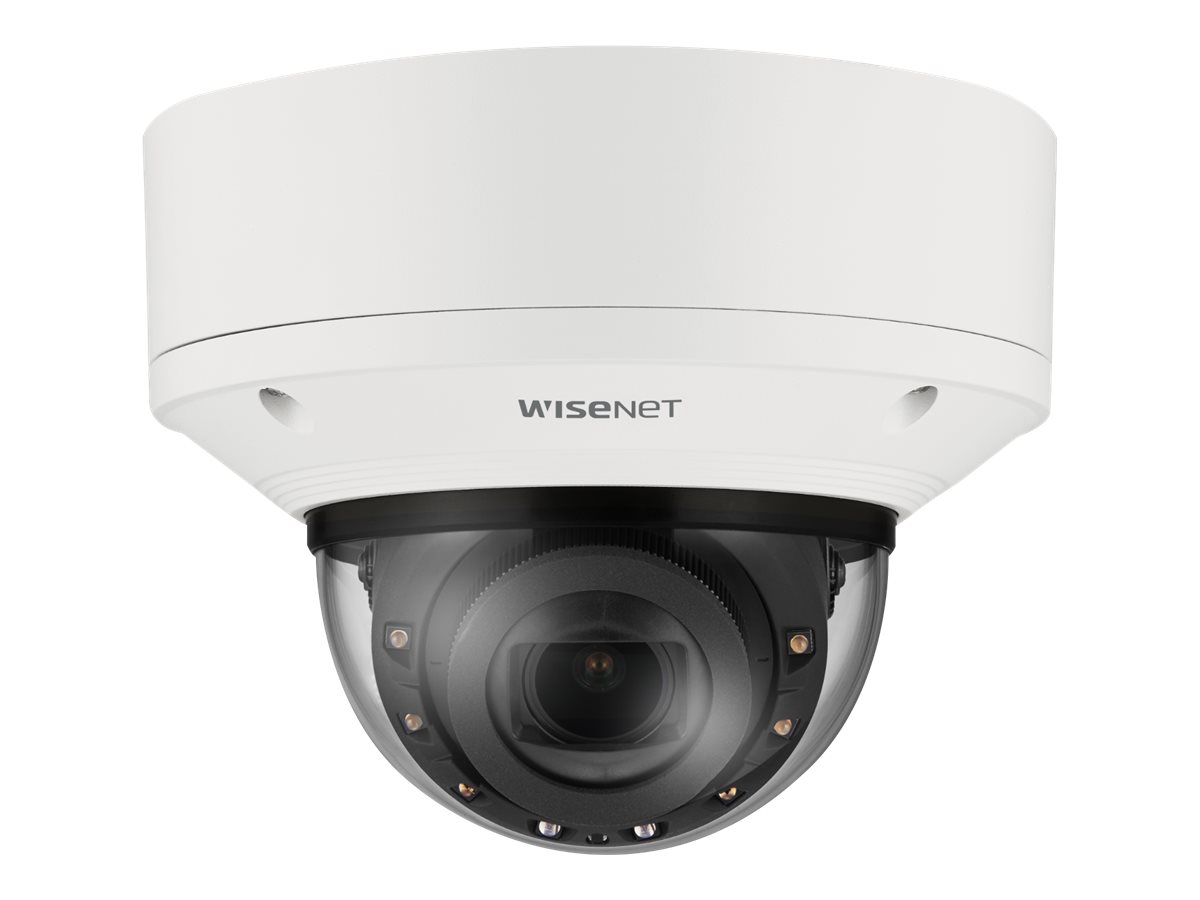

Hanwha Vision WiseNet X XND-8083RV
MSRP$1,650.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet X XND-8083RV
- Network surveillance camera
- PTZ
- dome
- color (Day&Night)
- 6 MP
- 3328 x 1872
- auto iris
- audio
- composite
- GbE
- MJPEG, H.264, H.265
- DC 12 V / PoE Plus
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,650.00 |
| Mfr Part #: | XND-8083RV |
| SHI Part #: | 46400321 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XND-8083RV - Network surveillance camera - PTZ - dome - color (Day&Night) - 6 MP - 3328 x 1872 - auto iris - audio - composite - GbE - MJPEG, H.264, H.265 - DC 12 V / PoE Plus |
| Manufacturer | HANWHA VISION |
| MSRP | $1,650.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 12.5 cm |
| Dimensions & Weight / Weight | 1.6 kg |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 3328 x 1872, 3072 x 1728, 2592 x 1944, 2688 x 1520, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), white balance, image flip, image mirror, Wide Dynamic Range (WDR), Highlight Compensation (HLC), Samsung Super Dynamic Range (SSDR), Extreme WDR, WiseNR II, Samsung Super Noise Reduction (SSNRV), Digital Image Stabilization (DIS), built-in gyroscope, Defog, Privacy Mask Function, Gain Control, Lens Distortion Compensation (LDC), anti-flicker, Hallway View, Person Detection, face detection, Vehicle Detection, license plate detection, Object Detection, Virtual Line detection, loitering detection, intrusion detection, entrance / exit detection, Defocus Detection, motion detection, tamper-detection, fog detection, Audio Detection, sound classification, shock detection, appearing / disappearing detection, people counting, queue management, Heat Map, notification picture to E-mail, notification picture to FTP, Handover, Unicast Streaming, Multicast Streaming, Constant Bitrate (CBR), Variable Bitrate (VBR), ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, IP address filtering, Trusted Platform Module (TPM), WiseStream II support, WiseStream III support, digest authentication, user access log |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 50 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 3328 x 1872 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - pan / tilt / zoom |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -25 °C |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711, U-LAW, G.726, ADPCM, AAC-LC |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 16 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 12.5 cm |
| Weight | 1.6 kg |
| Width | 16 cm |
| Image Sensor | |
| Type | 6 MP CMOS 1/1.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, EAP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 54.6 - 137.5 |
| Focal Length | 4.4 mm - 9.3 mm |
| Focus Adjustment | Manual, automatic |
| Horizontal Field of View (degree) | 47.5 - 112.1 |
| Lens Iris | F/1.3-2.15 auto iris (DC, P-Iris) |
| Min Focus Distance | 50 cm |
| Optical Zoom | 2.1 x |
| Vertical Field of View (degree) | 26.6 - 58 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | IP52, IK10, IEEE 802.1x, IEEE 802.3at, NDAA, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, IEC/EN 63000, IEC/EN 60529 IP52, IEC/EN 62262 IK10, FIPS 140-2 Level 2 |
| Panning | |
| Range (degree) | 0 to 360 |
| Power | |
| Power Device | Power adapter / PoE |
| Power Requirements | DC 12 V / PoE Plus |
| Tilting | |
| Range (degree) | -45 to +85 |
