Hanwha Vision XNB-9003
MSRP$1,150.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

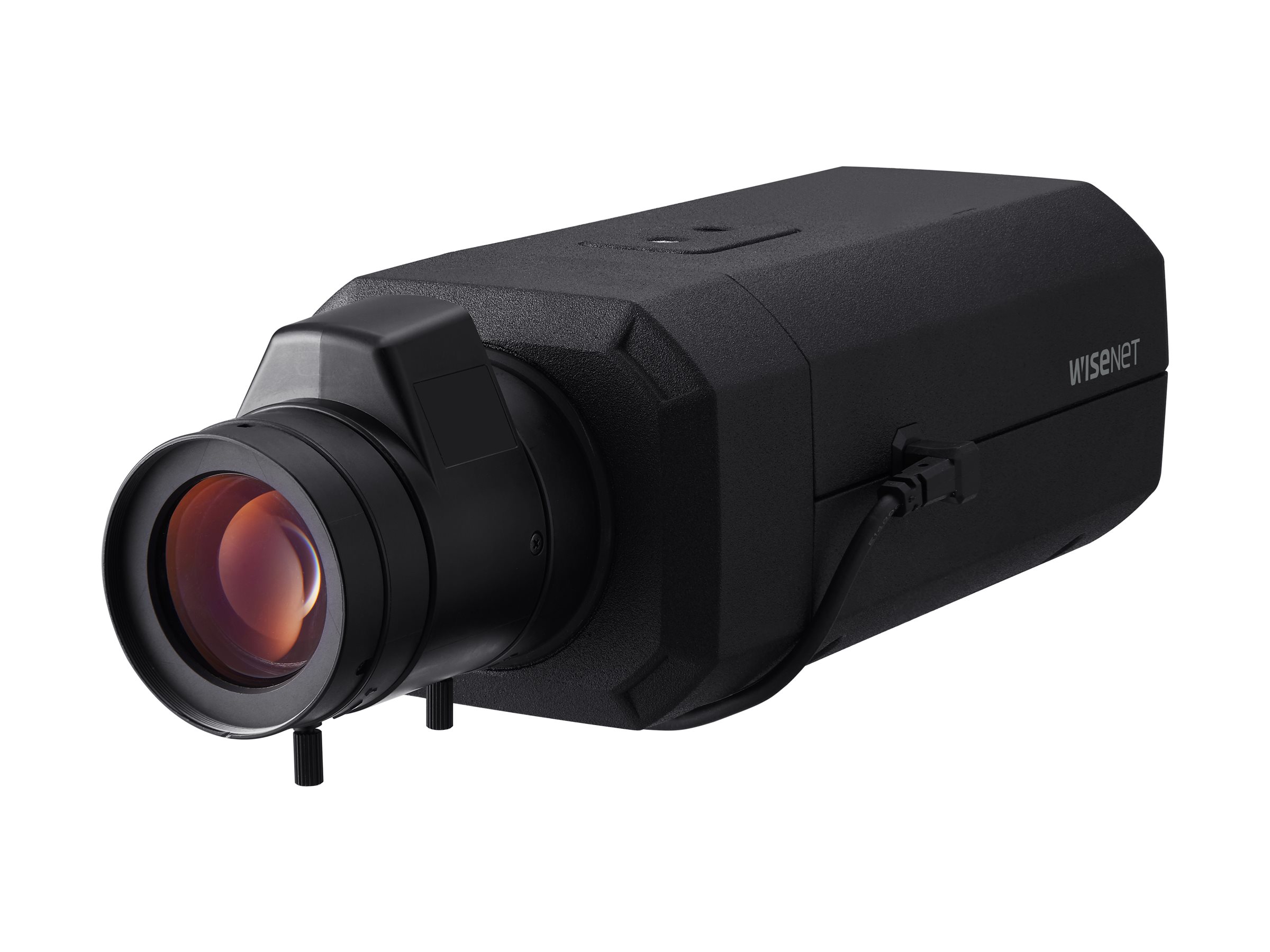

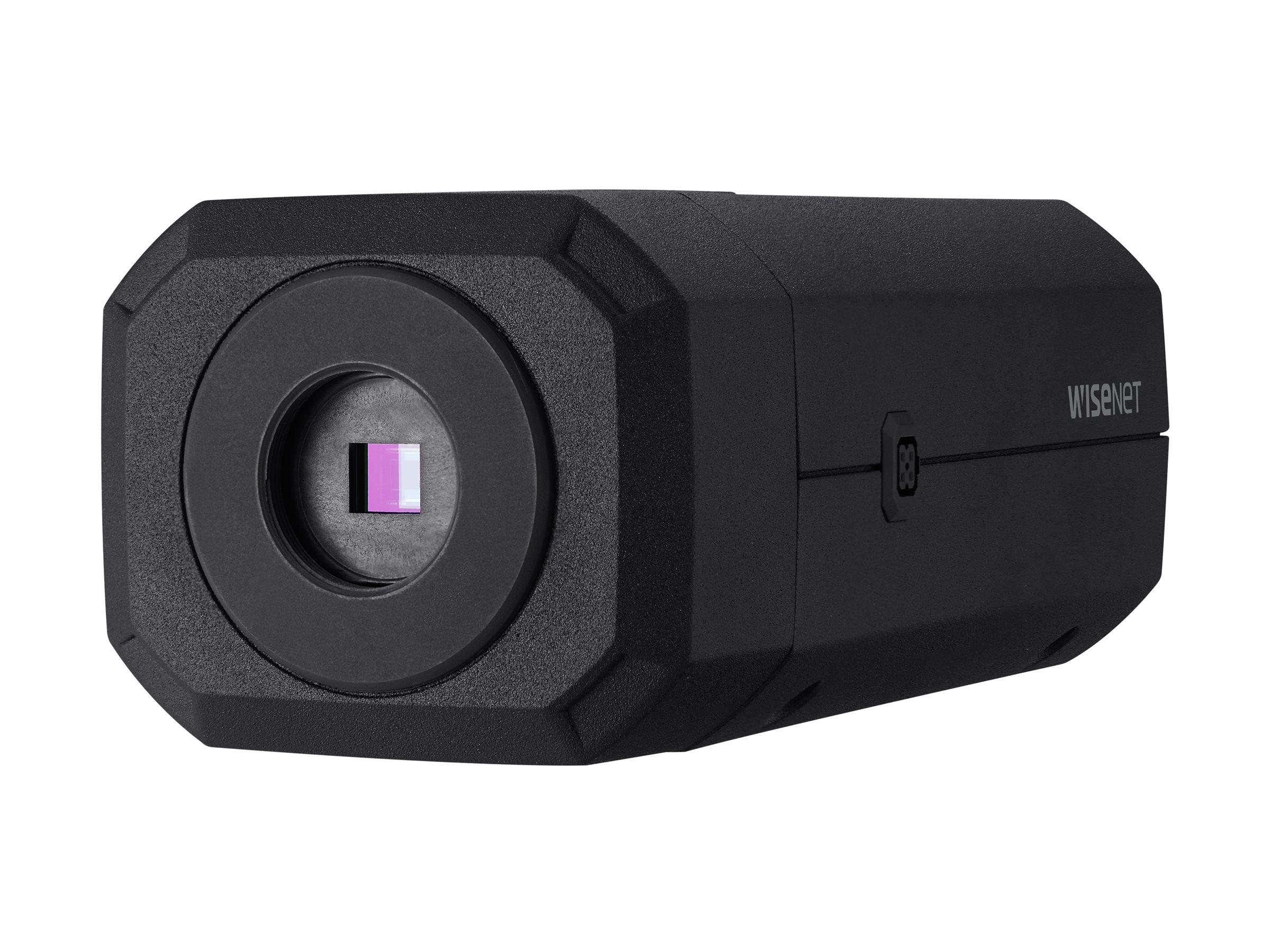

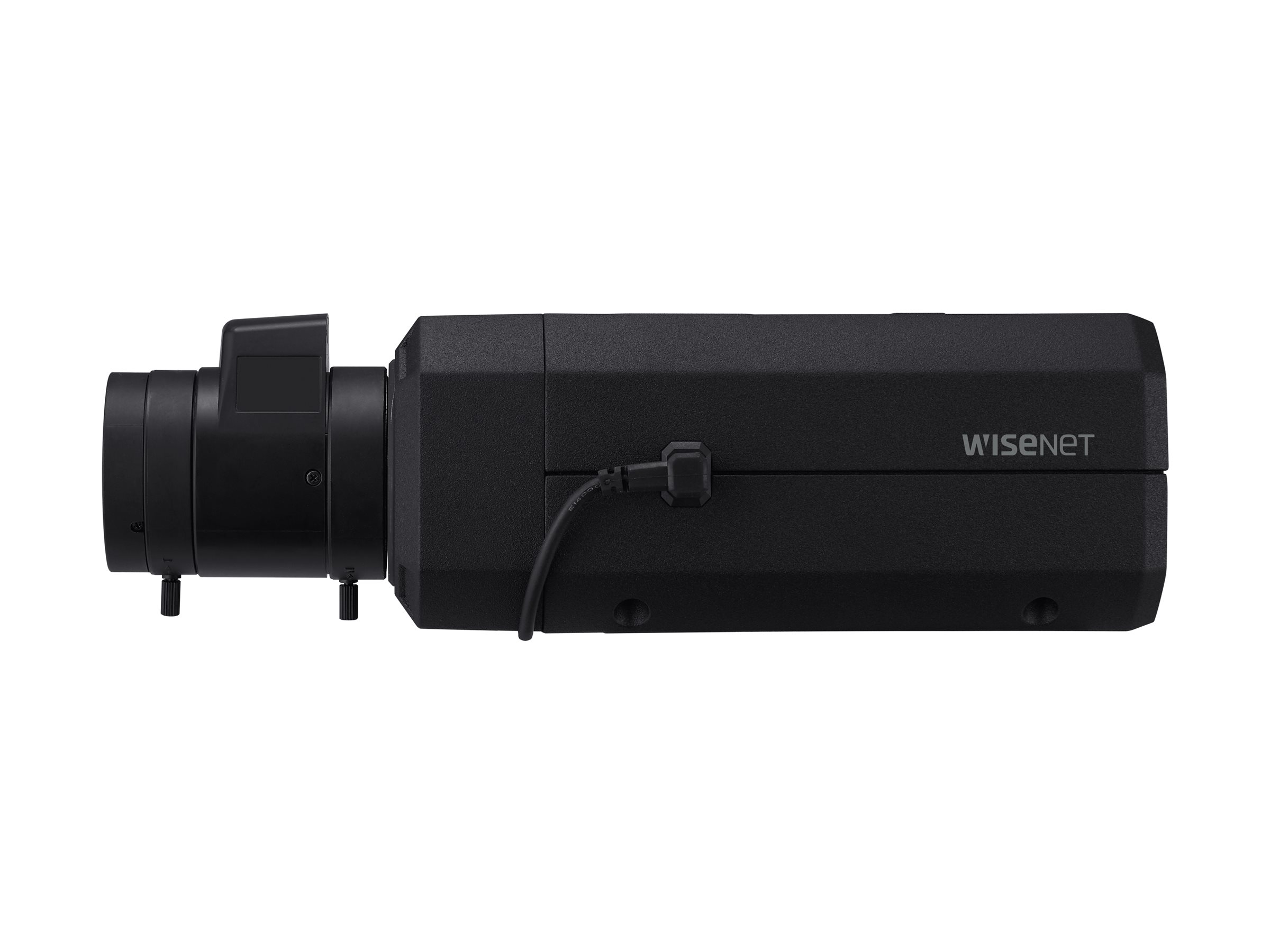

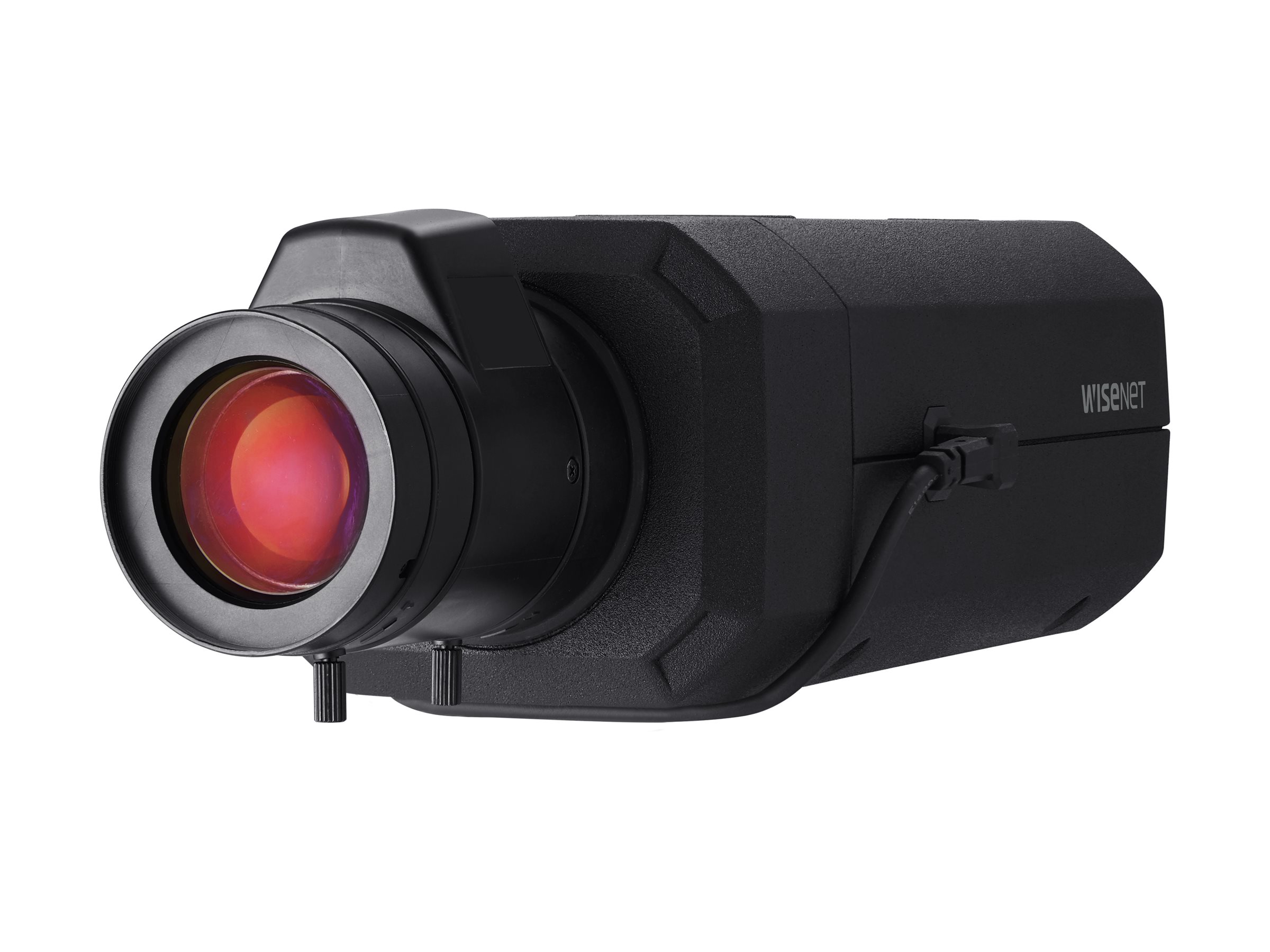

Hanwha Vision XNB-9003
- Network surveillance camera
- box
- color (Day&Night)
- 3840 x 2160
- C/CS-mount
- auto iris
- fixed focal
- audio
- CVBS, USB
- GbE
- MJPEG, H.264, H.265
- DC 12 V / PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,150.00 |
| Mfr Part #: | XNB-9003 |
| SHI Part #: | 46400319 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision XNB-9003 - Network surveillance camera - box - color (Day&Night) - 3840 x 2160 - C/CS-mount - auto iris - fixed focal - audio - CVBS, USB - GbE - MJPEG, H.264, H.265 - DC 12 V / PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $1,150.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.5 cm |
| Dimensions & Weight / Height | 6.7 cm |
| Dimensions & Weight / Weight | 880 g |
| Dimensions & Weight / Width | 8.1 cm |
| Header / Brand | Hanwha Vision |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 3328 x 1872, 3072 x 1728, 2592 x 1944, 2688 x 1520, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | I-CS lens, auto ICR, Backlight Compensation (BLC), Highlight Compensation (HLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), Extreme Wide Dynamic Range (E-WDR), Samsung Super Noise Reduction (SSNR) V, Digital Image Stabilization (DIS), Defog, image masking, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Lens Distortion Compensation (LDC), vertical flip and mirror, Hallway View, Defocus Detection, loitering detection, direction detection, digital auto tracking, appearing / disappearing detection, entrance / exit detection, tamper-detection, fog detection, Virtual Line detection, Audio Detection, sound classification, shock detection, face detection, body detection, people counting, queue management, Heat Map, network disconnection trigger, Handover, notification picture to E-mail, notification picture to FTP, WiseStream II support, Variable Bitrate (VBR), Constant Bitrate (CBR), Unicast Streaming, Multicast Streaming, digest authentication, signed firmware, firmware encryption, secure boot, IP address filtering, aluminum housing, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Smart Codec, Trusted Platform Module (TPM), built-in gyroscope, vehicle classification, license plate detection, object classification, WiseStream III support, 2 microSD card slots |
| Flash Memory | 512 MB |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 3840 x 2160 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 4 GB |
| Type | Color - Day&Night - fixed |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Relative Humidity (operating) | 0 - 95% RH (non-condensing) |
| Expansion / Connectivity | |
| Encryption Algorithm | EAP-TLS, LEAP, PEAP, MSCHAPv2 |

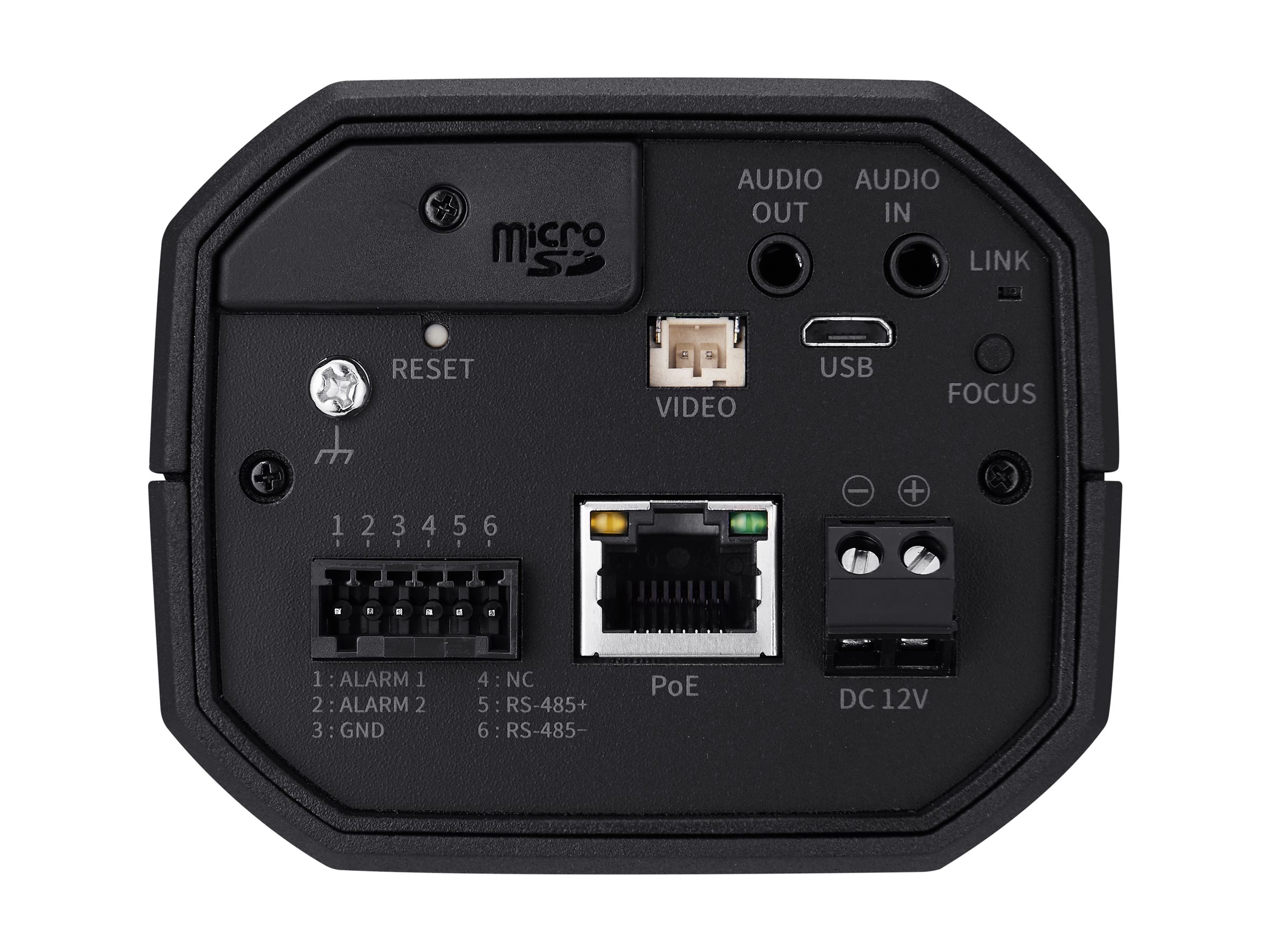

| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711 u-law, G.726, ADPCM, AAC-LC |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired |
| Depth | 16.5 cm |
| Device Type | Network surveillance camera |
| Form Factor | Box |
| Height | 6.7 cm |
| Weight | 880 g |
| Width | 8.1 cm |
| Image Sensor | |
| Type | CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Control Interface | RS-485 |
| Network Interface | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Network Protocols | MQTT, IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, LLDP, SRTP, CDP |
| Video | CVBS, USB |
| Lens Construction | |
| Lens Iris | Auto iris (DC, P-Iris) |
| Type | C/CS-mount - fixed focal |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | IEEE 802.1x, IEEE 802.3af Class 3, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), UKCA, EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI-CISPR 32 Class A, RCM, AS/NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, IEC/EN 62471, NDAA |
| Power | |
| Power Device | 19 watt |
| Power Requirements | DC 12 V / PoE Class 3 |
