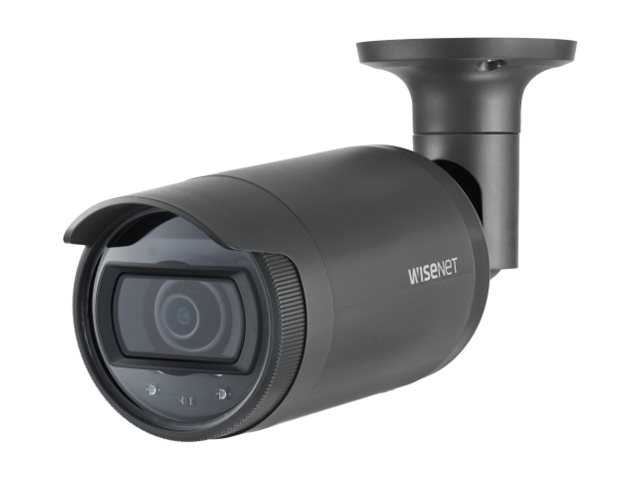

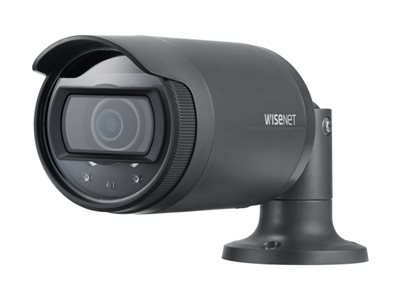

Hanwha Vision WiseNet L LNO-6012R
MSRP$271.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet L LNO-6012R
- Network surveillance camera
- outdoor
- color (Day&Night)
- 2 MP
- 1920 x 1080
- fixed focal
- LAN 10/100
- MJPEG, H.264
- PoE Class 2
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $271.00 |
| Mfr Part #: | LNO-6012R |
| SHI Part #: | 46400216 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet L LNO-6012R - Network surveillance camera - outdoor - color (Day&Night) - 2 MP - 1920 x 1080 - fixed focal - LAN 10/100 - MJPEG, H.264 - PoE Class 2 |
| Manufacturer | HANWHA VISION |
| MSRP | $271.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 7.8 cm |
| Dimensions & Weight / Height | 26.2 cm |
| Dimensions & Weight / Weight | 390 g |
| Dimensions & Weight / Width | 7.8 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Gray |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MJPEG, H.264 |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, auto gain control, auto white balance, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), plastic housing, digest authentication, WiseStream II support, IP address filtering, Hallway View, Unicast Streaming, ONVIF (Profile T) support |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - outdoor |
| Video Capture | 1920 x 1080 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 7.8 cm |
| Device Type | Network surveillance camera |
| Height | 26.2 cm |
| Weight | 390 g |
| Width | 7.8 cm |
| Image Sensor | |
| Effective Pixels | 1945 x 1097 |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, EAP |
| Lens Construction | |
| Diagonal Field of View (degree) | 134.4 |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 113.7 |
| Lens Iris | F/2.0 |
| Min Focus Distance | 50 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 61.5 |
| Miscellaneous | |
| Color | Dark gray |
| Compliant Standards | IP66, IEEE 802.3af, IEEE 802.1x |
| Power | |
| Power Device | 6.4 Watt |
| Power Requirements | PoE Class 2 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Windows 10, Apple macOS 10.12, Apple macOS 10.13, Apple macOS 10.14 |
