Hardware Cameras and Camcorders Security Cameras
Add to My Favorites
Security Cameras

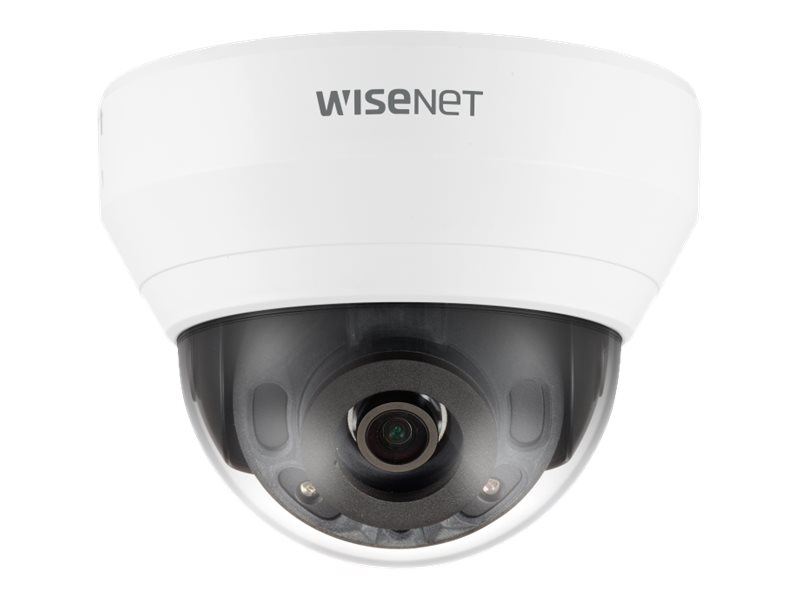

WISENET Q NETWORK INDOOR DOME CAMERA, 2MP @ 30FPS, 4.0MM FIXED FOCAL LENS (87 ),

MSRP$320.00
$268.00
WISENET Q NETWORK INDOOR DOME CAMERA, 2MP @ 30FPS, 4.0MM FIXED FOCAL LENS (87 ),
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
WISENET Q NETWORK INDOOR DOME CAMERA, 2MP @ 30FPS, 4.0MM FIXED FOCAL LENS (87 ),
  Additional Details
Price: $268.00
MSRP: $320.00
Mfr Part #: QND-6022R
SHI Part #: 46400131
Category: Security cameras
UNSPSC: 46171610
Manufacturer: HANWHA VISION
Product Type: Hardware
General Information
CategorySecurity cameras
DescriptionWISENET Q NETWORK INDOOR DOME CAMERA, 2MP @ 30FPS, 4.0MM FIXED FOCAL LENS (87 ),
ManufacturerHANWHA VISION
MSRP$320.00
UNSPSC46171610
Main Specifications
Dimensions & Weight / Depth11 cm
Dimensions & Weight / Height8.6 cm
Dimensions & Weight / Weight255 g
Dimensions & Weight / Width11 cm
Header / BrandHanwha Techwin
Miscellaneous / Product ColorWhite
Packaged Quantity1
System Requirements / OS Required
  • Apple macOS 10.12
  • Apple macOS 10.13
  • Apple macOS 10.14
  • Microsoft Windows 7
  • Windows 10
  • Windows 8.1
Camera
Digital Video FormatMJPEG, H.264, H.265
Exposure Range1/5 sec - 1/12000 sec
FeaturesBacklight Compensation (BLC), image flip, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, infrared cut filter, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Lens Distortion Compensation (LDC), tamper-detection, Variable Bitrate (VBR), Constant Bitrate (CBR), Multicast Streaming, Smart Codec, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Samsung Super Noise Reduction (SSNR), WiseStream II support, anti-flicker, IP address filtering, Hallway View, Unicast Streaming, Handover, ONVIF (Profile T) support, Virtual Line detection
Flash Memory256 MB
Infrared Distance20 m
Infrared LEDsYes
Max Digital Video Resolution1920 x 1080
Minimum Illumination
  • 0.1 lux - color - F1.6 - shutter 1/30 sec
  • 0 lux - B&W - infrared LEDs on
Motion DetectionYes
RAM512 MB
TypeColor - Day&Night - fixed
Video Capture1920 x 1080 @ 30 fps
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature-10 °C
Relative Humidity (operating)0 - 90%
Expansion / Connectivity
Ports
  • Composite video
  • LAN/power - RJ-45
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.726, ADPCM, G.711, G.711u
Audio SupportYes: built-in microphone
Connectivity TechnologyWired
Depth11 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height8.6 cm
Weight255 g
Width11 cm
Image Sensor
Effective Pixels1920 x 1080
Type2 MP CMOS 1/2.8"
Interfaces
Alarm Inputs Qty1
Alarm Outputs Qty1
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsDDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, IGMP, SSL, QOS, EAP, LLDP
VideoComposite video
Lens Construction
Diagonal Field of View (degree)104.5
Focal Length4 mm
Horizontal Field of View (degree)87.6
Lens IrisF/1.6
TypeFixed focal
Vertical Field of View (degree)46.4
Miscellaneous
ColorWhite, RAL 9003
Compliant StandardsIEEE 802.3af, IEEE 802.1x
Panning
Range (degree)0 to 350
Power
Power Device7.4 Watt
Power RequirementsDC 12 V / PoE Class 3
Software / System Requirements
OS RequiredMicrosoft Windows 7, Windows 8.1, Windows 10, Apple macOS 10.12, Apple macOS 10.13, Apple macOS 10.14
Tilting
Range (degree)0 to 67
