Hanwha Vision WiseNet HD+ HCD-6010
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

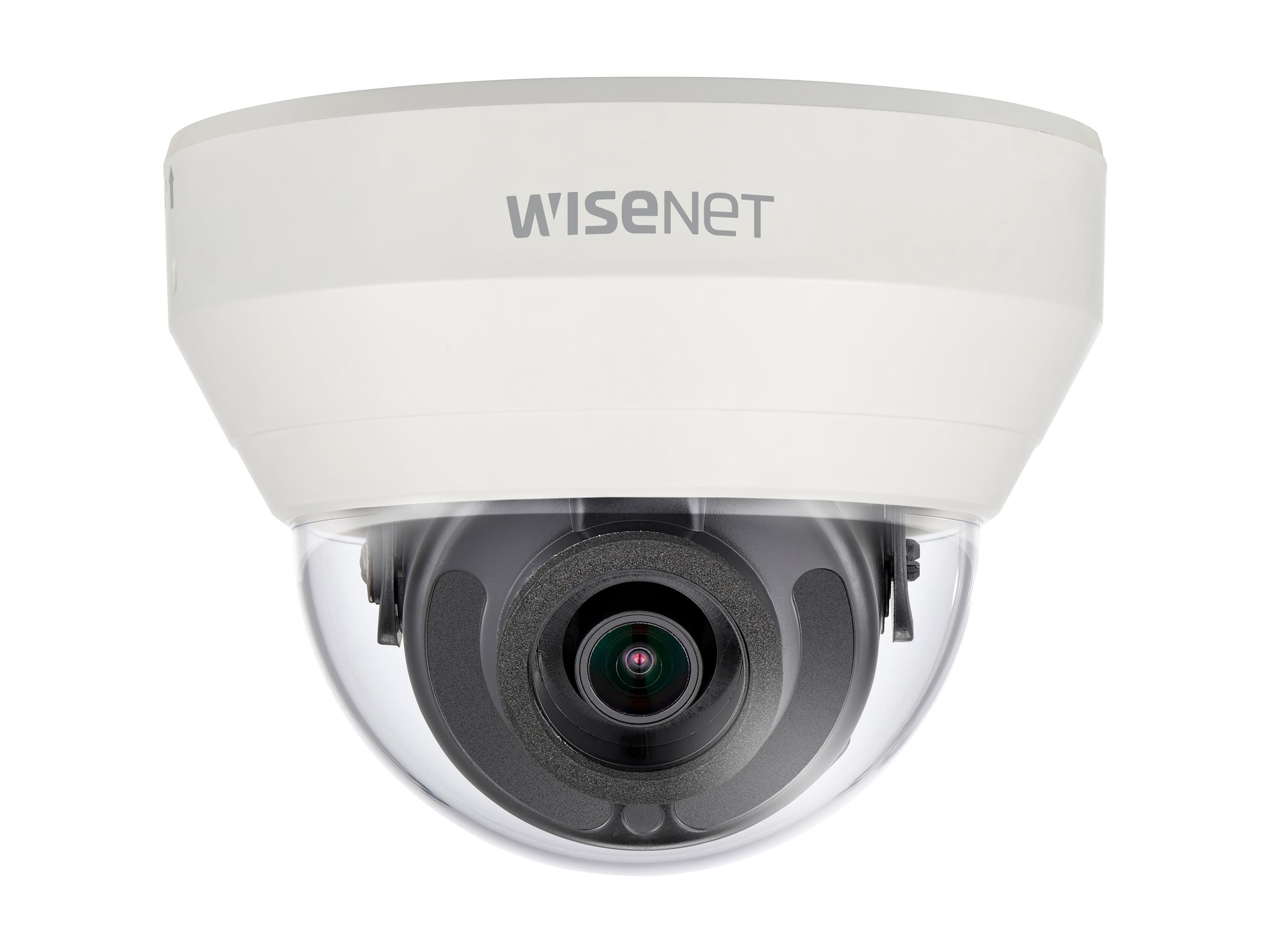

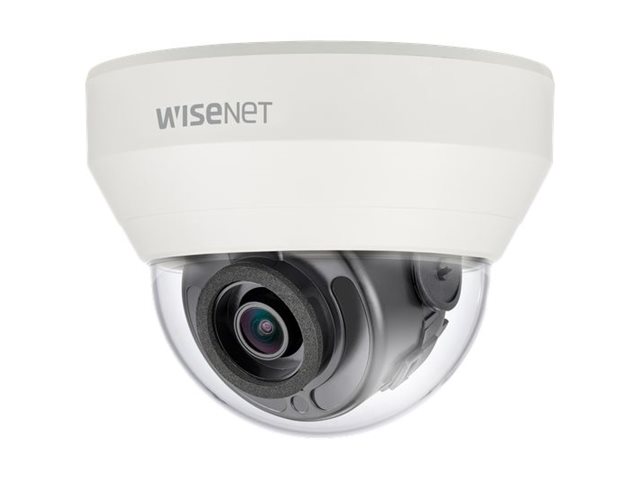

Hanwha Vision WiseNet HD+ HCD-6010
- Surveillance camera
- dome
- color (Day&Night)
- 2 MP
- 1920 x 1080
- 1080p
- auto iris
- fixed focal
- composite, AHD, CVI, TVI
- DC 12 V
| Additional Details | |
|---|---|
| Mfr Part #: | HCD-6010 |
| SHI Part #: | 46400115 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet HD+ HCD-6010 - Surveillance camera - dome - color (Day&Night) - 2 MP - 1920 x 1080 - 1080p - auto iris - fixed focal - composite, AHD, CVI, TVI - DC 12 V |
| Manufacturer | HANWHA VISION |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 221 g |
| Dimensions & Weight / Width | 11 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Beige |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 1920 x 1080 |
| Exposure Range | 1 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Highlight Compensation (HLC), Defog, Samsung Super Noise Reduction (SSNRIV), auto gain control, auto white balance |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed |
| Video Format | NTSC, PAL |
| Video Modes | 1080p |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Ports | Composite video/AHD/TVI/CVI - BNC |
| General | |
| Connectivity Technology | Wired |
| Depth | 11 cm |
| Device Type | Surveillance camera |
| Form Factor | Dome |
| Height | 8.6 cm |
| Weight | 221 g |
| Width | 11 cm |
| Image Sensor | |
| Effective Pixels | 1945 x 1097 |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Video | Composite video, AHD, CVI, TVI |
| Lens Construction | |
| Diagonal Field of View (degree) | 134.5 |
| Focal Length | 2.8 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 113.7 |
| Lens Iris | F/2.0 auto iris |
| Min Focus Distance | 50 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 61.5 |
| Miscellaneous | |
| Color | Ivory |
| Panning | |
| Range (degree) | 0 to 350 |
| Power | |
| Power Device | 3.6 Watt |
| Power Requirements | DC 12 V |
| Tilting | |
| Range (degree) | 0 to 67 |
