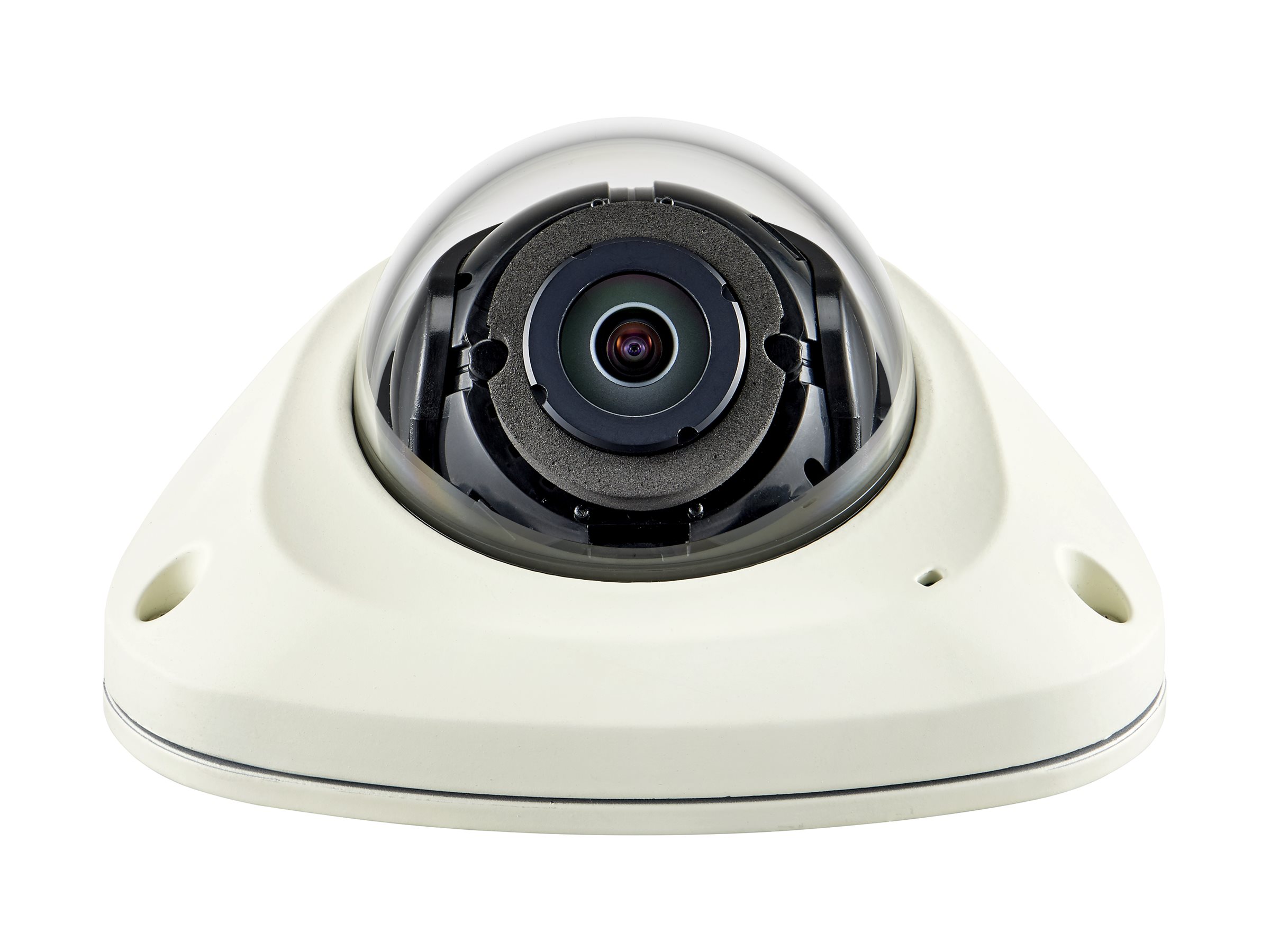

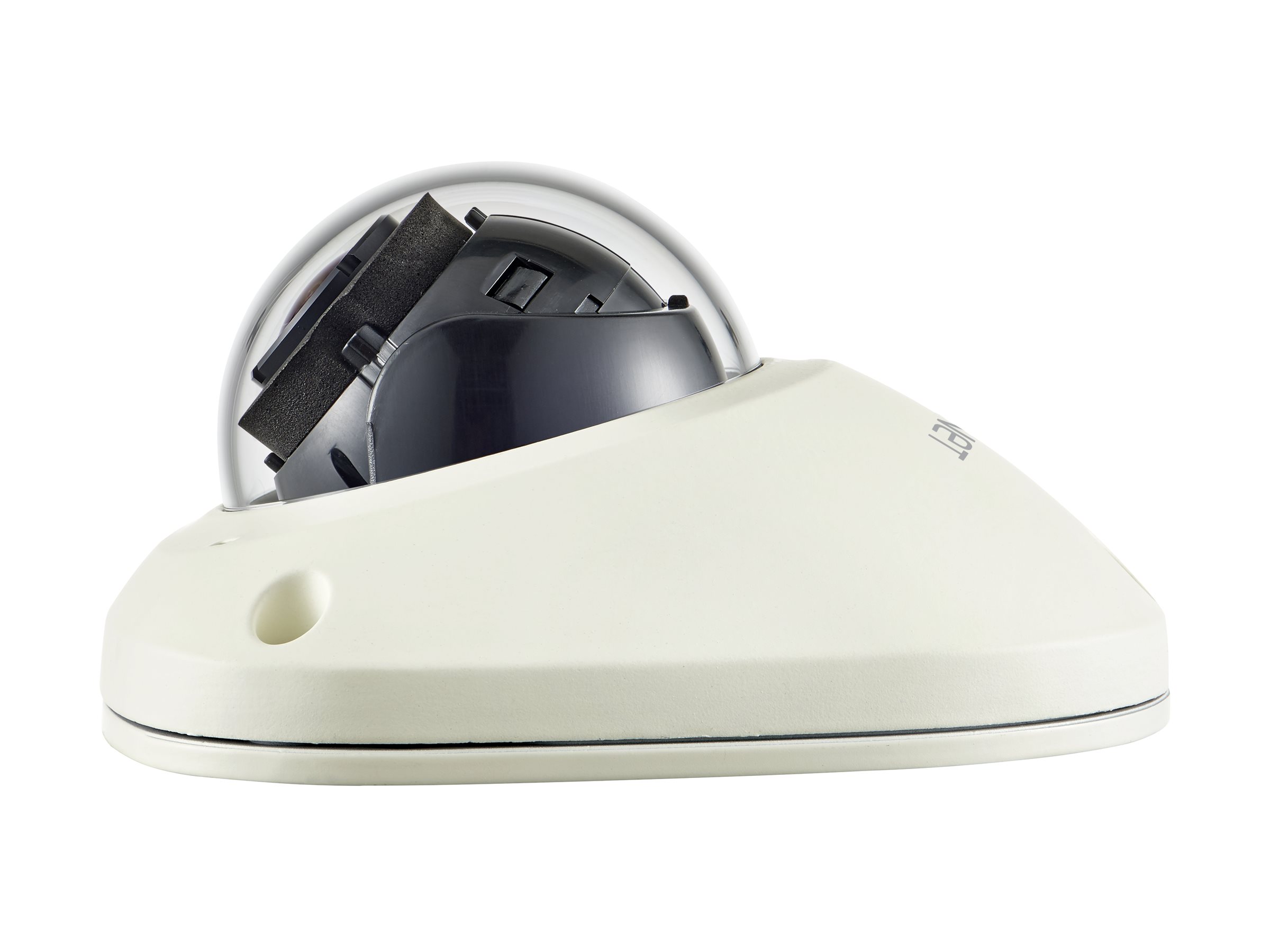

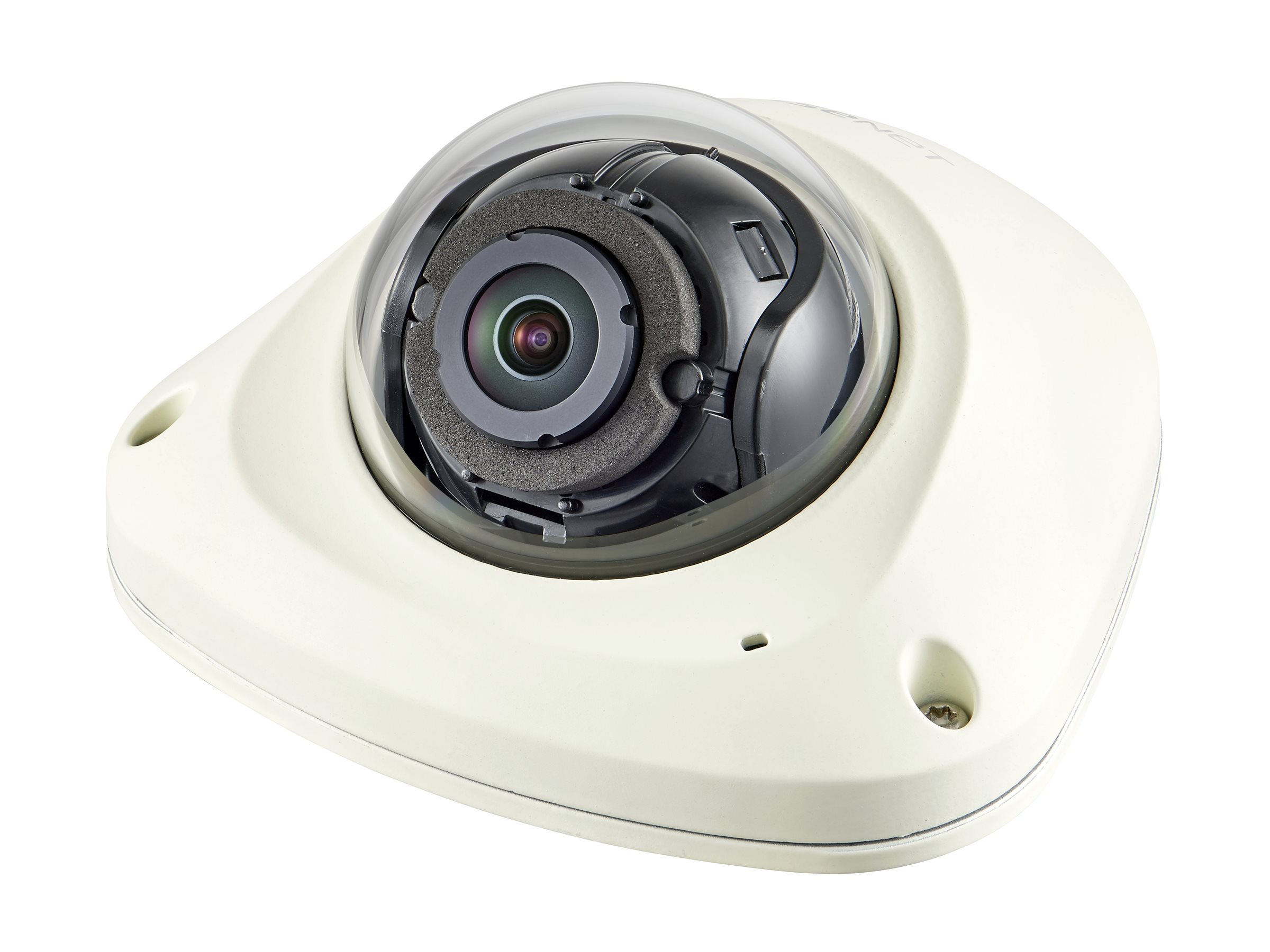

Hanwha Vision WiseNet X XNV-6012
MSRP$800.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet X XNV-6012
- Network surveillance camera
- dome
- outdoor
- vandal-proof
- color (Day&Night)
- 2.2 MP
- 1920 x 1080
- fixed focal
- audio
- LAN 10/100
- MPEG-4, MJPEG, H.264, AVC, H.265
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $800.00 |
| Mfr Part #: | XNV-6012 |
| SHI Part #: | 46400072 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet X XNV-6012 - Network surveillance camera - dome - outdoor - vandal-proof - color (Day&Night) - 2.2 MP - 1920 x 1080 - fixed focal - audio - LAN 10/100 - MPEG-4, MJPEG, H.264, AVC, H.265 - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $800.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 cm |
| Dimensions & Weight / Height | 5.2 cm |
| Dimensions & Weight / Weight | 295 g |
| Dimensions & Weight / Width | 9.89 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, digital PTZ function, 3D Noise Filtering, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, loitering detection, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Directional Motion Detection, IP address filtering, Hallway View, fog detection, Audio Noise Reduction |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - outdoor - vandal-proof |
| Video Capture | 1920 x 1080 @ 60 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Formats | G.726, ADPCM, AAC-LC, G.711 |
| Audio Support | Yes: two-way audio capability, built-in microphone |
| Connectivity Technology | Wired |
| Depth | 10 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 5.2 cm |
| Weight | 295 g |
| Width | 9.89 cm |
| Image Sensor | |
| Effective Pixels | 1945 x 1097 |
| Total Pixels | 1945 x 1109 |
| Type | 2.2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, SSM, EAP |
| Lens Construction | |
| Diagonal Field of View (degree) | 161.6 |
| Focal Length | 2.4 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 135.4 |
| Lens Iris | F/2.0 |
| Type | Fixed focal |
| Vertical Field of View (degree) | 71.2 |
| Miscellaneous | |
| Color | Ivory |
| Compliant Standards | NEMA Type 4X, IK10, IP66, EN 50581:2012, EN 61000-4-2:2009, EN 61000-4-6:2009, EN 61000-4-5:2014, EN 61000-4-3:2006+A2:2010, EN 55011:2009+A1:2010, EN 50121-3-2:2015, EN 61000-4.4:2012, EN 50155:2007, IEEE 802.3af, IEEE 802.1x |
| Panning | |
| Range (degree) | -5 to +5 |
| Power | |
| Power Device | 6.5 Watt |
| Power Requirements | PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Tilting | |
| Range (degree) | 0 to 67 |
