WISENET X POWERED BY WISENET 5 NETWORK I
MSRP$1,500.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

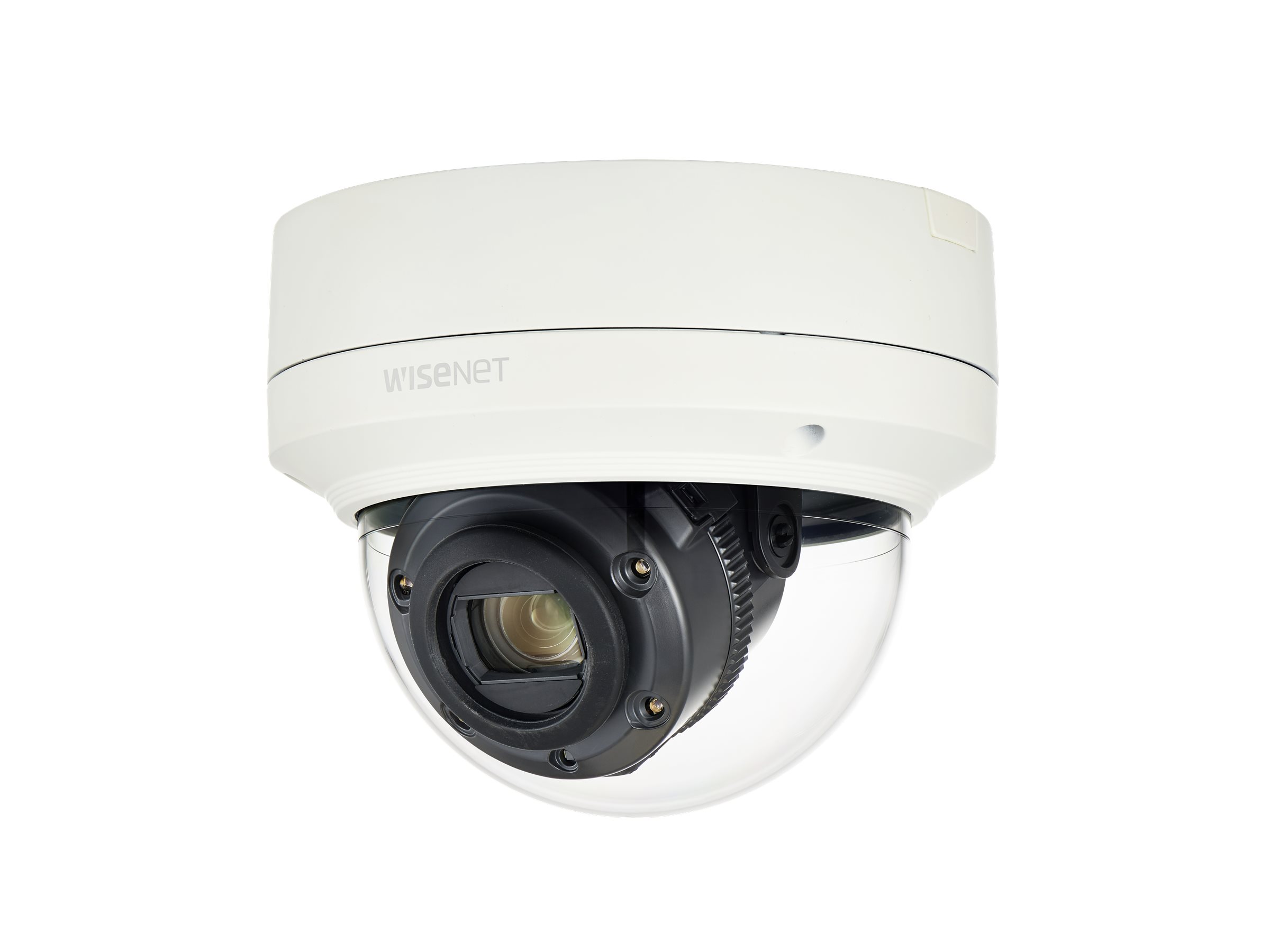

WISENET X POWERED BY WISENET 5 NETWORK I
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,500.00 |
| Mfr Part #: | XNV-6120R |
| SHI Part #: | 46400032 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | WISENET X POWERED BY WISENET 5 NETWORK I |
| Manufacturer | HANWHA VISION |
| MSRP | $1,500.00 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16 cm |
| Dimensions & Weight / Height | 12.845 cm |
| Dimensions & Weight / Weight | 995 g |
| Dimensions & Weight / Width | 16 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Format | MPEG-4, MJPEG, H.264, AVC, H.265 |
| Digital Zoom | 24 |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), progressive scanning, image flip, image mirror, Wide Dynamic Range (WDR), face detection, Motion Detection Technology, Privacy Mask Function, Samsung Super Dynamic Range (SSDR), Digital Image Stabilization (DIS), Lens Distortion Compensation (LDC), tamper-detection, 3D Noise Filtering, Gyroscopic Image Stabilizer, Variable Bitrate (VBR), Constant Bitrate (CBR), Audio Detection, Multicast Streaming, Defog, Smart Codec, auto gain control, video analytics, auto white balance, Defocus Detection, ONVIF (Profile S) support, ONVIF (Profile G) support, 2D Digital Noise Reduction Technology, Pixel Counter Support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, IP address filtering, Hallway View |
| Infrared Distance | 70 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - outdoor - vandal-proof |
| Video Capture | 1920 x 1080 @ 60 fps |
| Video Format | NTSC, PAL |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | SD Memory Card, SDXC Memory Card, SDHC Memory Card |
| General | |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 16 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 12.845 cm |
| Weight | 995 g |
| Width | 16 cm |
| Image Sensor | |
| Effective Pixels | 1945 x 1097 |
| Total Pixels | 1945 x 1109 |
| Type | 2.2 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, EAP, PIM-SM |
| Video | Composite video |
| Lens Construction | |
| Focal Length | 5.2 mm - 62.4 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 5.3 - 54.58 |
| Lens Iris | F/1.6-3.0 auto iris (DC) |
| Min Focus Distance | 2.1 m |
| Optical Zoom | 12 x |
| Type | Vari-focal |
| Vertical Field of View (degree) | 3 - 32.19 |
| Miscellaneous | |
| Color | Ivory |
| Compliant Standards | NEMA Type 4X, IP67, IK10, IP66 |
| Panning | |
| Range (degree) | 0 to 354 |
| Power | |
| Power Device | 14 Watt |
| Power Requirements | DC 12 V / AC 24 V / PoE Class 3 |
| Software / System Requirements | |
| OS Required | Microsoft Windows 7, Windows 8.1, Apple MacOS X 10.10, Windows 10, Apple MacOS X 10.11, Apple macOS 10.12 |
| Tilting | |
| Range (degree) | 0 to 75 |
