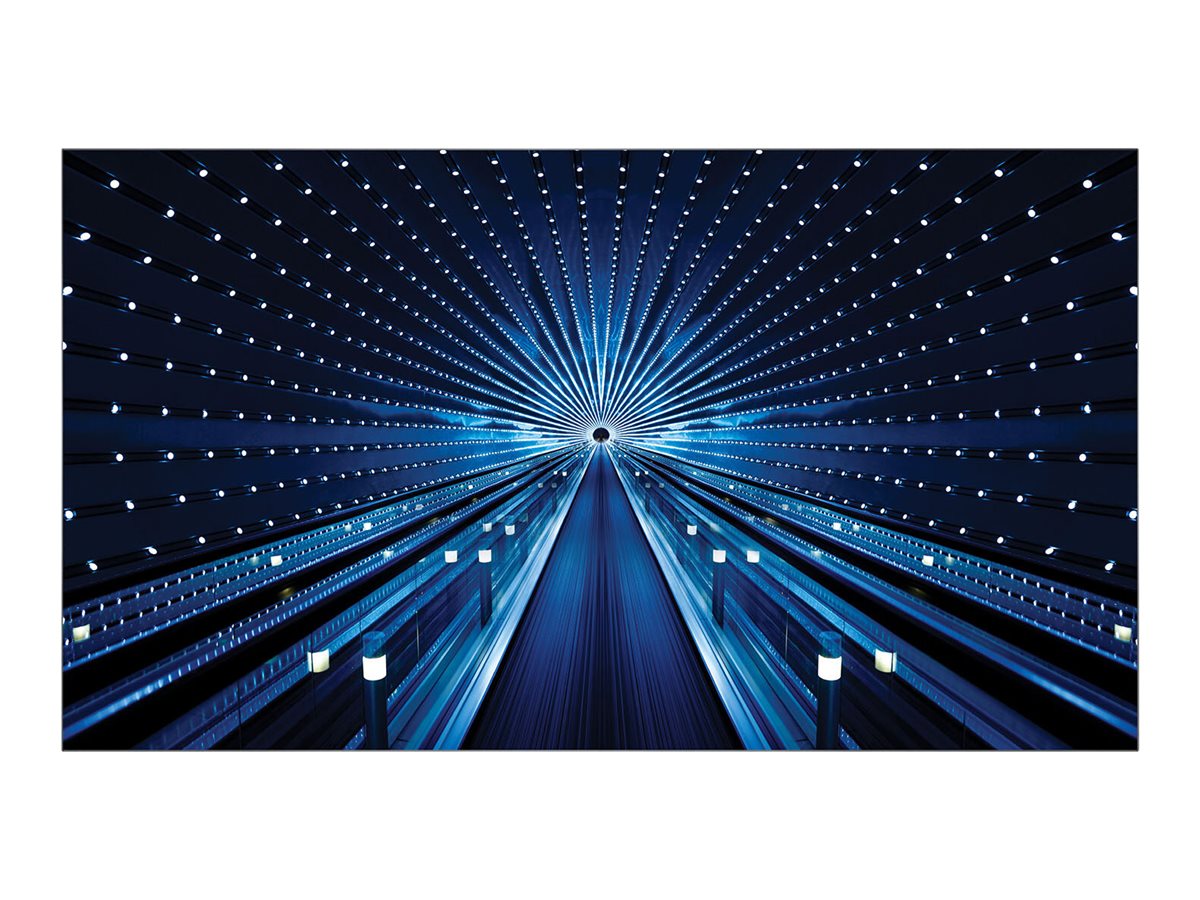

Samsung The Wall All-In-One IAB-N 146 2K
MSRP$123,200.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Samsung The Wall All-In-One IAB-N 146 2K
- IAB Series LED video wall
- digital signage
- 1920 x 1080 146"
- Flip-chip RGB LED (182*93)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $123,200.00 |
| Mfr Part #: | LH016IABMHG/GO |
| SHI Part #: | 46294596 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Samsung |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Samsung The Wall All-In-One IAB-N 146 2K - IAB Series LED video wall - digital signage - 1920 x 1080 146" - Flip-chip RGB LED (182*93) |
| Manufacturer | Samsung |
| MSRP | $123,200.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Header / Brand | Samsung |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 500 cd/m² |
| Television / Image Contrast Ratio | 8000:1 |
| Television / PC Interface | DisplayPort |
| Television / Type | LED video wall |
| Television / Viewing Angle | 170° |
| Audio System | |
| Additional Features | Enhanced Audio Return Channel (eARC) |
| Connections | |
| Connector Type |
|
| Display | |
| Brightness | 500 cd/m² |
| Color Temperature | 6500K |
| Frame Rate & Enhancement Technology | 120 Hz Video Rate, 7680 Hz Refresh Rate |
| Image Contrast Ratio | 8000:1 |
| Viewing Angle | 170° |
| Viewing Angle (Vertical) | 155° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Commercial Use | Yes - digital signage |
| HDMI Ports Qty | 2 ports |
| PC Interface | DisplayPort |
| Picture Enhancements | Ultra Chroma Technology, Black Seal Technology |
| Product Type | LED video wall |
| Series | IAB Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| Miscellaneous | |
| Compliant Standards | CB, IEC 60950-1 / EN 60950-1CCC, GB4943.1-2001, NOM-001-SCFI-1993 IRAM, NOM-001-SCFI-1993, NOM-019-SCFI-1998 KC, K60950-1, INMETRO, AS/NZS 60950-1, cUL No.60950, EMC, FCC Part 15 A, KCC, EK, KN32, KN35, EN55032:2012, EN55024, EN 55035:2017, VCCI, CISPR 32:2016, CCC, GB/T9254-2008, GB 17625.1-2012, BSMI, CNS 13438, CNS14336-1, CNS 15663, RoHS, C-Tick, CISPR 32:2015, GOST, ROCT CISPR 24-2013, ROCT CISPR 22:2005 |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Ethernet |
| Power | |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Device | Power supply |
| Video Wall | |
| Diagonal Size | 146" |
| Resolution | 1920 x 1080 |
| Video Wall Display Unit | |
| LED Type | Flip-chip RGB LED (182*93) |
| Pixel Configuration | 1 red, 1 green, 1 blue |
| Pixel Pitch | 1.68 mm |
