Middle Atlantic NEXSYS Series
MSRP$852.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

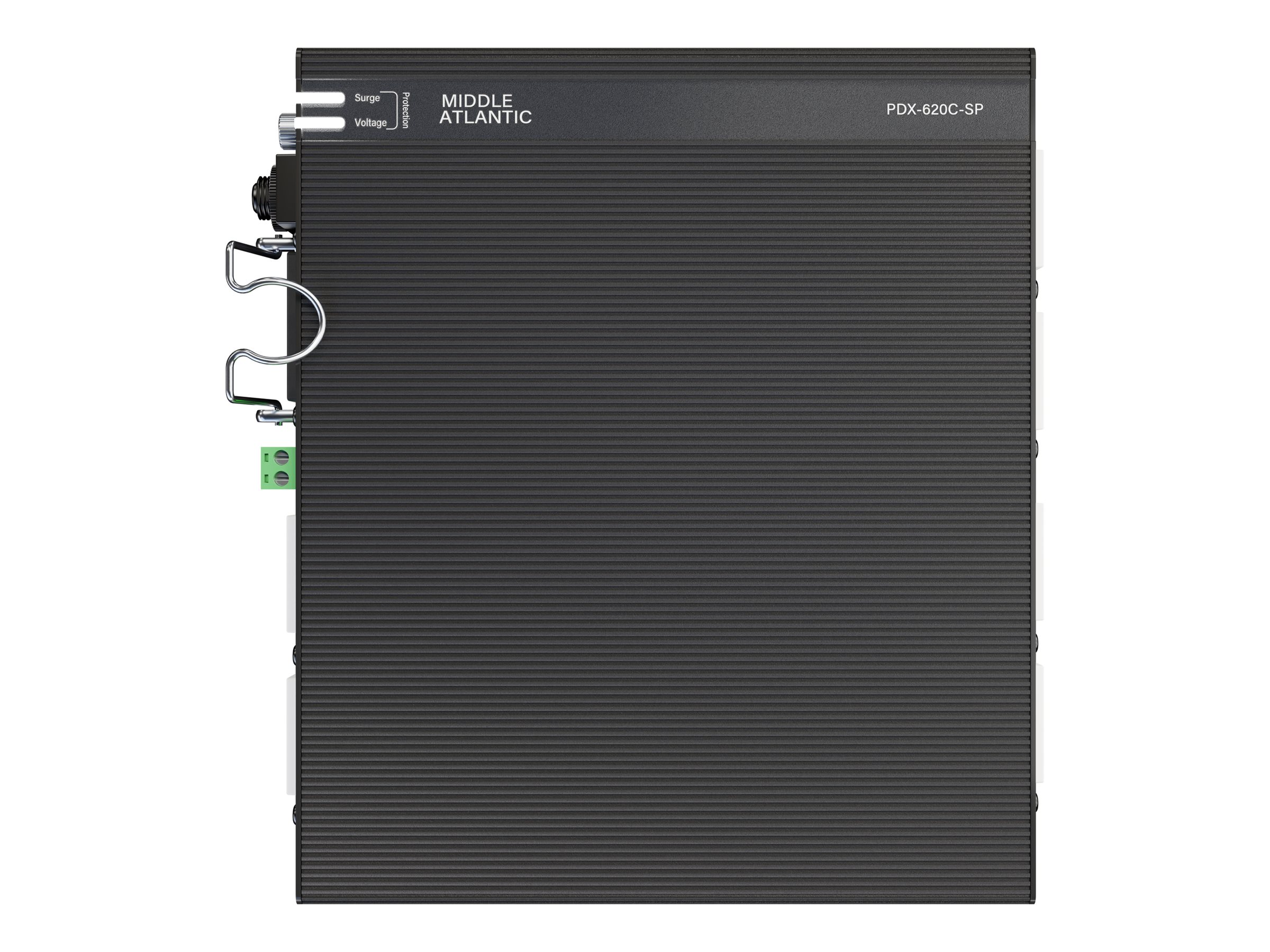

Middle Atlantic NEXSYS Series
- Power distribution unit (rack-mountable)
- AC 120 V
- input: IEC 60320 C20
- output connectors: 6 (NEMA 5-20R)
- 60 cm cord
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $852.00 |
| Mfr Part #: | PDX-620C-SP |
| SHI Part #: | 46240989 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Middle Atlantic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | Middle Atlantic NEXSYS Series - Power distribution unit (rack-mountable) - AC 120 V - input: IEC 60320 C20 - output connectors: 6 (NEMA 5-20R) - 60 cm cord |
| Manufacturer | Middle Atlantic |
| MSRP | $852.00 |
| UNSPSC | 24102001 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17.8 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 1.9 kg |
| Dimensions & Weight / Width | 20.7 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Middle Atlantic |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 6 |
| Power Device / Voltage Required | AC 120 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 12-year warranty |
| Dimensions & Weight | |
| Depth | 17.8 cm |
| Height | 4.4 cm |
| Weight | 1.9 kg |
| Width | 20.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.1 kg |
| General | |
| Cord Length | 60 cm |
| Device Type | Power distribution unit - rack-mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 12 years |
| Miscellaneous | |
| Cables Included | Power cable 60 cm |
| Compliant Standards | UL 62368, UL 1449, FCC Class B certified, ICES-003 issue 7, RoHS |
| Features | Horizontal orientation, reset button, LED indicators, voltage protection, overvoltage protection, undervoltage protection, overload protection |
| Included Accessories | Mounting bracket set |
| Rack Mounting Kit | Included |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Required | 60 Hz |
| Input Connectors | Power IEC 60320 C20 |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 80 - 140 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 120 V |
| Power Output Connectors Details | 6 x power NEMA 5-20R |
| Surge Suppression | Yes |
