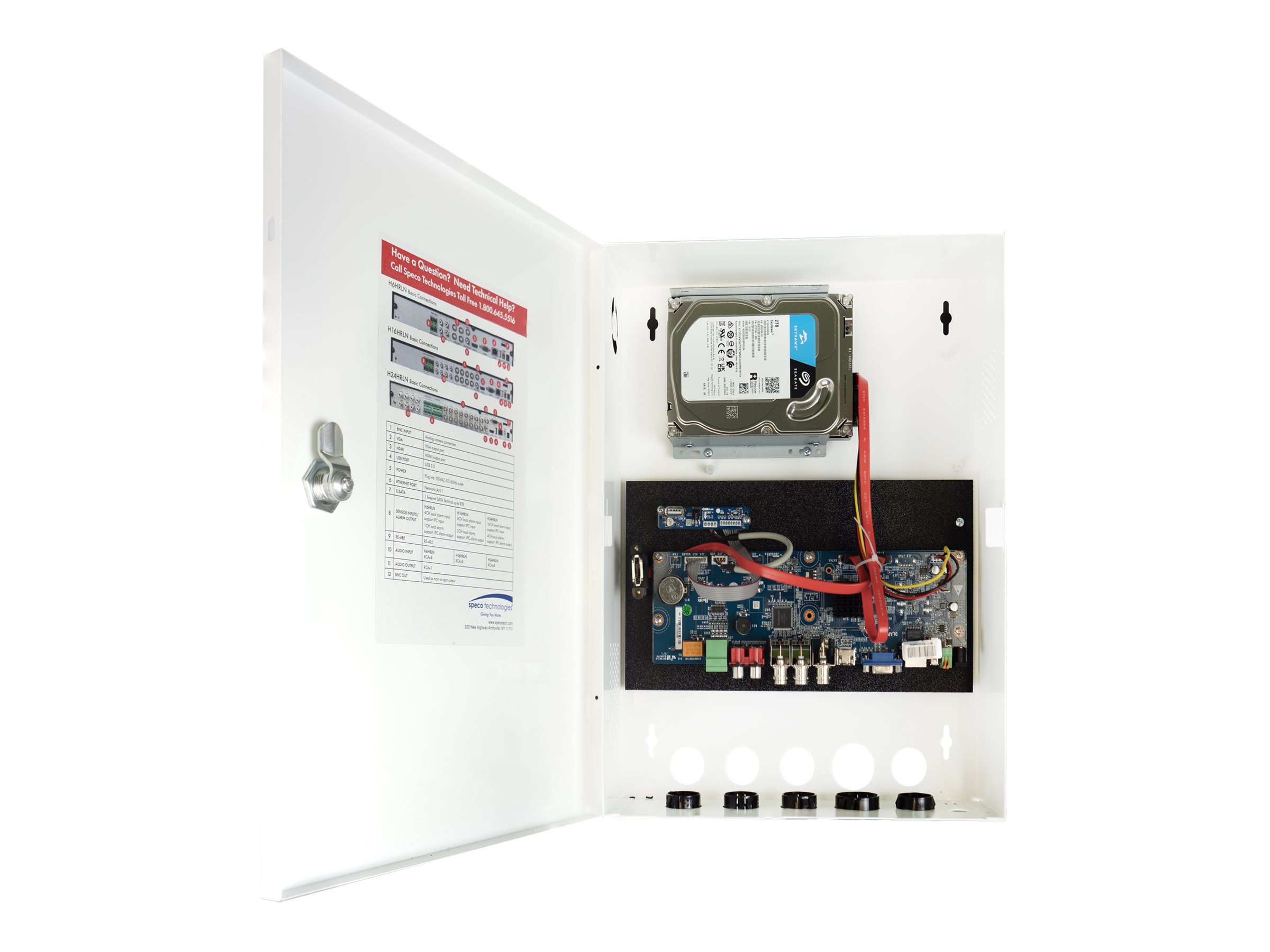

16 CH. WALL MOUNT HYBRID RECORDER
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
16 CH. WALL MOUNT HYBRID RECORDER
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | H16WHRLN8TB |
| SHI Part #: | 46214536 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Component Specialties |
| Product Type: | Hardware |
| Product Line: | COMPONENT SPECIALTIES, INC. DB |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | 16 CH. WALL MOUNT HYBRID RECORDER |
| Manufacturer | Component Specialties |
| UNSPSC | 46171610 |
| Main Specifications | |
| ABC Code | A |
| Height | 13.70 |
| Length | 20.00 |
| One Source Flag | NNN N |
| Serialized Flag | N |
| SKU Created Date | 230503 |
| Width | 4.40 |
| Connections | |
| Alarm Ports | Alarm output x 1, alarm input x 4 |
| Audio Input Ports | RCA x 8 |
| Audio Output Ports | RCA x 1 |
| Camera Control Interface (PTZ) | RS-485 |
| Network Port | 10/100Base-T |
| Other Ports | USB x 2 |
| Video Input Ports | BNC x 8 |
| Video Output Ports | HDMI x 1, VGA x 1 |
| Dimensions & Weight | |
| Depth | 26.8 cm |
| Height | 4.5 cm |
| Width | 38 cm |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| General | |
| Audio Channels | 8 |
| Compliant Standards | NDAA Section 889 |
| Compression Format | H.264, G.711, H.265, JPEG, AVI |
| Device Type | Standalone DVR |
| Image Resolution | 1920x1080, 1280x1024, 1024x768 |
| Video Channels | 16 |
| Warranty | 5 years |
| Hard Drive | |
| Capacity | 8 TB |
| Interface | Serial ATA |
| Quantity Installed | 1 |
| Quantity Supported | 2 |
| Supported Max Total Capacity | 40 TB |
| Networking | |
| DDNS Support | Yes |
| Features | 1080p resolution support, 960p resolution support, 720p resolution support |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | DDNS, DNS |
| Power | |
| Power Consumption | 15 Watt |
| Security DVR | |
| Features | Wall-mountable, Line Crossing Detection, object left detection |
| Frame Rate (Playback) | 30 fps, 25 fps |
| Frame Rate (Record) | 30 fps, 25 fps |
| Networked | Yes |
| Playback Search | Smart search, time, event, bookmark, snapshot, museum |
| Record Events | Manual, scheduled, motion detection, sensor, smart recording |
| Video Recording Resolution | 1920x1080, 1280x1024, 1024x768 |
