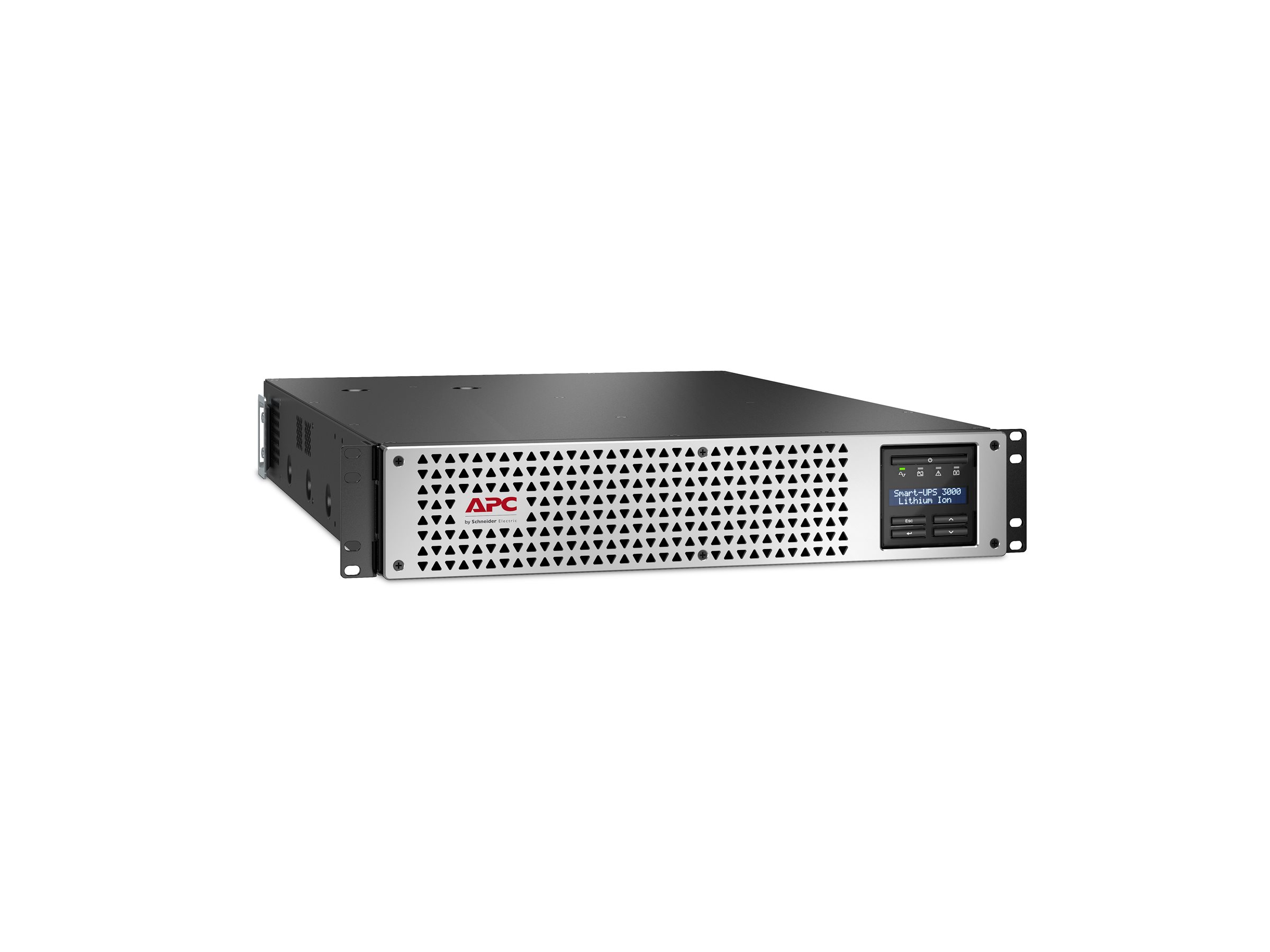

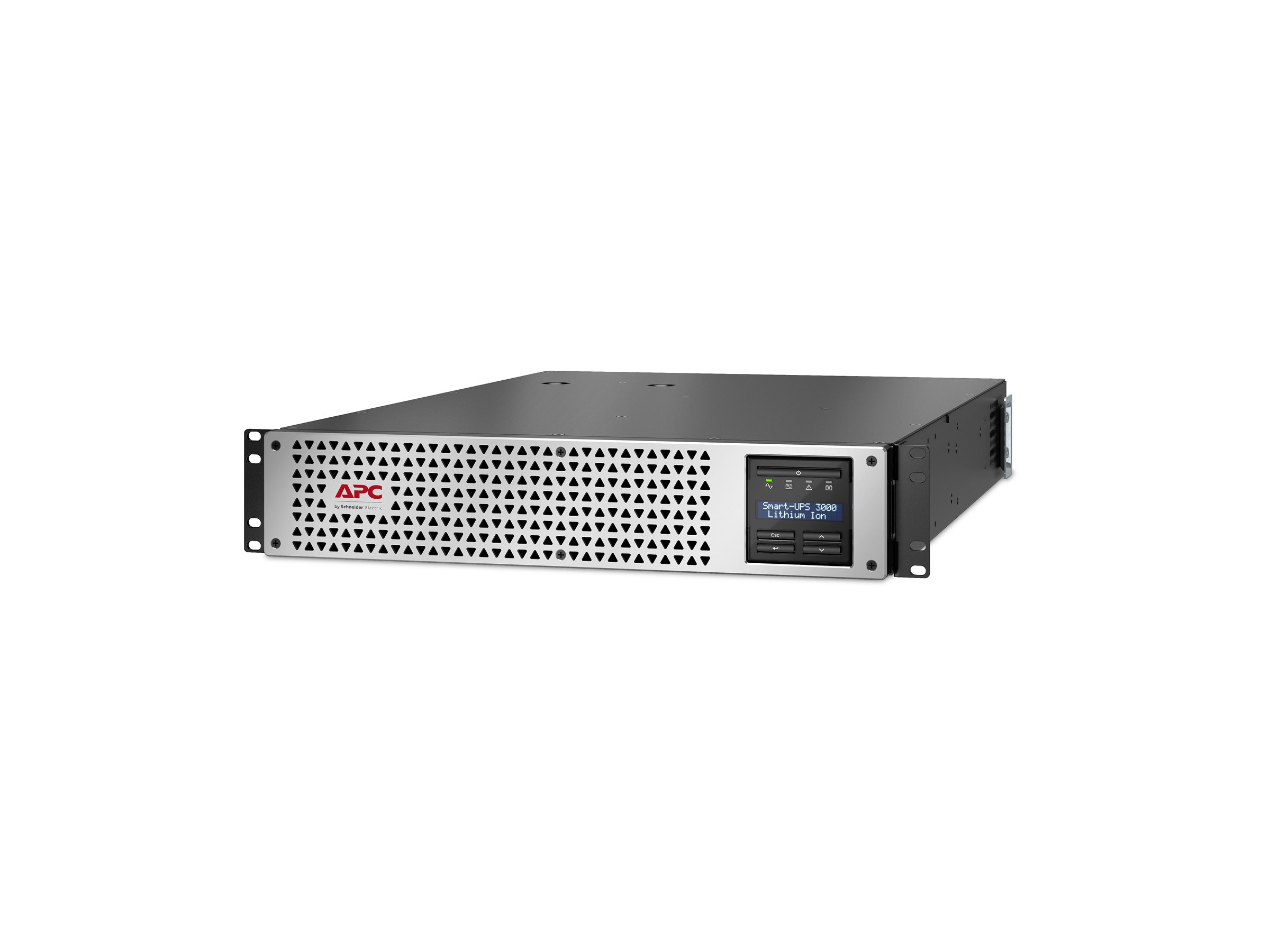

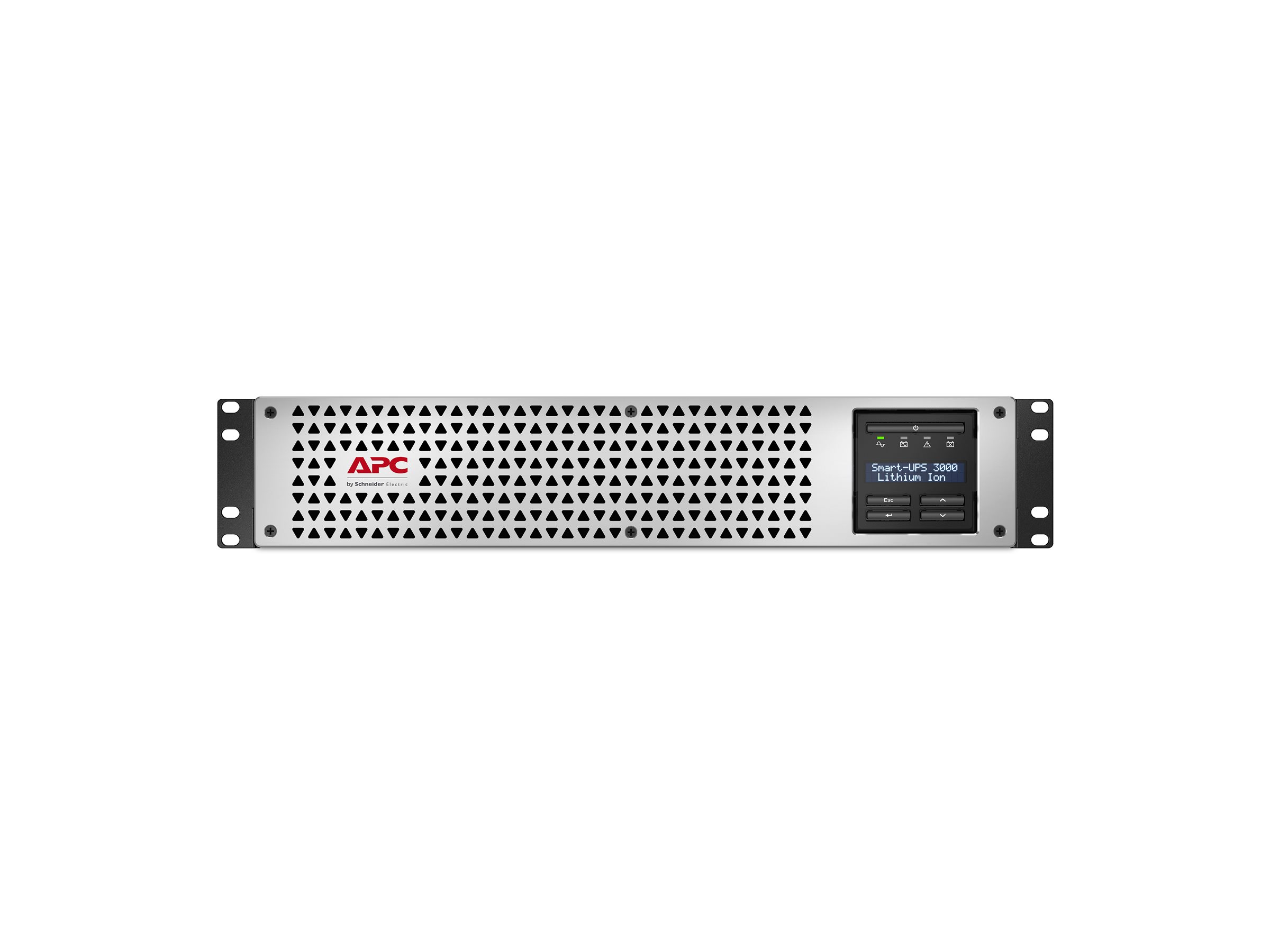

APC Smart-UPS - UPS (rack-mountable)
MSRP$6,120.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
APC Smart-UPS - UPS (rack-mountable)

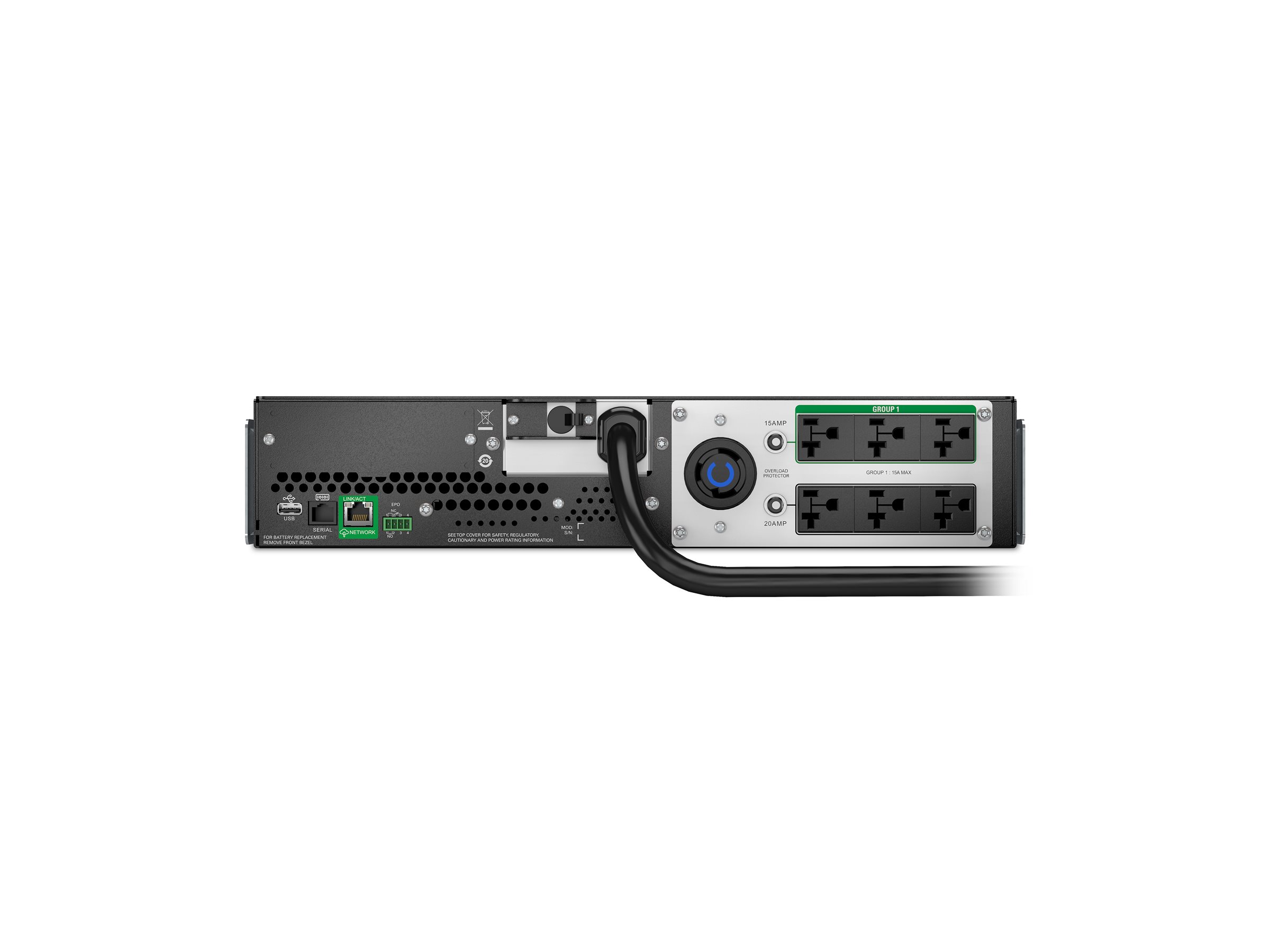

- line Interactive, lithium-ion, 1x NEMA L5-30R+6x NEMA 5-20R outlets, SmartConnect port+SmartSlot, AVR, LCD
- AC 120 V
- 2700 watt
- 3000 VA
- 1-phase
- Ethernet, USB, serial
- output connectors: 7
- 2U
- black with silver bezel
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $6,120.00 |
| Mfr Part #: | SMTL3KRM2UCL |
| SHI Part #: | 46200401 |
| Category: | Rechargeable batteries |
| UNSPSC: | 26111701 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Rechargeable batteries |
| Description | APC Smart-UPS - UPS (rack-mountable) - line Interactive, lithium-ion, 1x NEMA L5-30R+6x NEMA 5-20R outlets, SmartConnect port+SmartSlot, AVR, LCD - AC 120 V - 2700 watt - 3000 VA - 1-phase - Ethernet, USB, serial - output connectors: 7 - 2U - black with silver bezel |
| Manufacturer | APC by Schneider Electric |
| MSRP | $6,120.00 |
| UNSPSC | 26111701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 68.3 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Weight | 34.22 kg |
| Dimensions & Weight / Width | 43.2 cm |
| Header / Brand | APC |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 7 |
| Power Device / Power Capacity (VA) | 3000 VA |
| Power Device / UPS Technology | Line interactive |
| Power Device / Voltage Required |
|
| Product Type | UPS |
| Service & Support / Type | 5-year warranty |
| Battery | |
| Recharge Time | 2 hours |
| Run Time (Up To) | 5.3 min at full load |
| Technology | Lithium ion |
| Transfer Time | 10 ms |
| Dimensions & Weight | |
| Depth | 68.3 cm |
| Height | 8.6 cm |
| Weight | 34.22 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 61 cm |
| Shipping Height | 25.4 cm |
| Shipping Weight | 42.66 kg |
| Shipping Width | 98 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Color | Black with silver bezel |
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replace or repair - 5 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | cULus, IP20, Energy Star 2.0 |
| Equipment Protection Value | 150000 US Dollars |
| Features | E-mail notification, user-replaceable removable battery, audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), firmware upgradable, visible alarm, Auto-Sensing Technology, SmartConnect port |
| Included Accessories | Rack mounting rails, rack mounting brackets, mounting screw, washer |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet, USB, serial |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.3% at 100% Load, 98.9% at 50% Load, 98.6% at 75% Load, 98.8% at 25% Load |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz ± 3Hz |
| Input Connectors | 1 x power NEMA L5-30P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 144 V |
| Input Wiring | 1-phase |
| Output Voltage | AC 120 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 2700 watt / 3000 VA |
| Power Output Connectors Details |
|
| Surge Energy Rating | 459 joules |
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 5 % |
| UPS Technology | Line interactive |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
