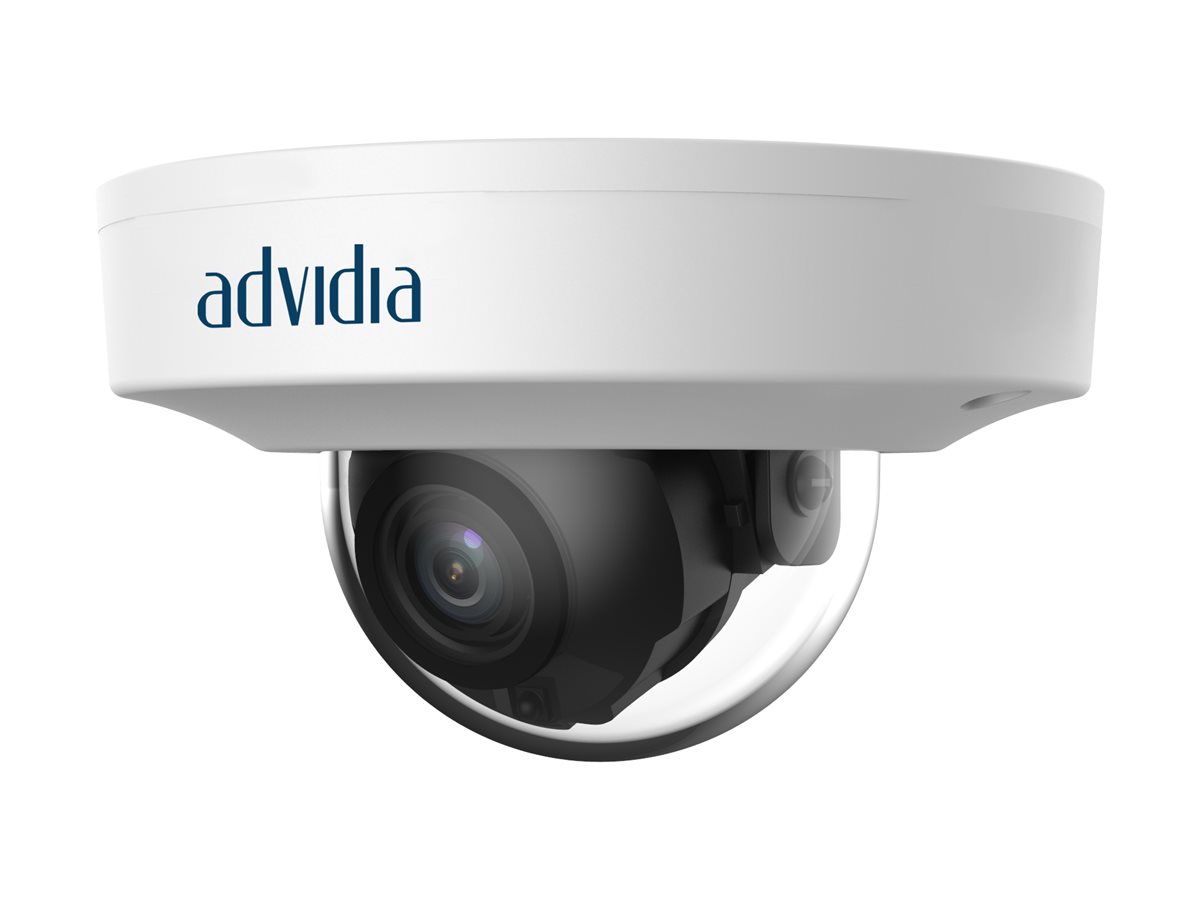

Advidia M-45-FW-V2 - Network surveillance camera
MSRP$359.34
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Advidia M-45-FW-V2 - Network surveillance camera
- pan / tilt
- dome
- indoor
- color (Day&Night)
- 4 MP
- 2688 x 1520
- fixed focal
- audio
- LAN 10/100
- H.264, H.265, MJPEG, Ultra 265
- DC 12 V / PoE
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $359.34 |
| Mfr Part #: | M-45-FW-V2 |
| SHI Part #: | 46199481 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | i-Pro Americas Inc. |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Advidia M-45-FW-V2 - Network surveillance camera - pan / tilt - dome - indoor - color (Day&Night) - 4 MP - 2688 x 1520 - fixed focal - audio - LAN 10/100 - H.264, H.265, MJPEG, Ultra 265 - DC 12 V / PoE |
| Manufacturer | i-Pro Americas Inc. |
| MSRP | $359.34 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.9 cm |
| Dimensions & Weight / Height | 6.2 cm |
| Dimensions & Weight / Weight | 220 g |
| Dimensions & Weight / Width | 10.9 cm |
| Header / Brand | Advidia |
| Header / Country Kits |
|
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 2688 x 1520 |
| Digital Video Format | H.264, H.265, MJPEG, Ultra 265 |
| Exposure Range | 1 sec - 1/100000 sec |
| Features | 3-Axis Adjustment, human body detection, motion detection, intrusion detection, tampering alarm, Audio Detection, white balance, digital noise reduction, Smart IR, Backlight Compensation (BLC), Highlight Compensation (HLC), Region of Interest (ROI), Defog, 0 - 346° rotation range |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 30 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2688 x 1520 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - pan / tilt - indoor |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | = 95% RH (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card |
| General | |
| Audio Support | Yes: built-in microphone |
| Connectivity Technology | Wired |
| Depth | 10.9 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 6.2 cm |
| Localization | United States, Rest of APAC |
| Weight | 220 g |
| Width | 10.9 cm |
| Image Sensor | |
| Type | 4 MP Progressive Scan CMOS 1/2.7" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IGMP, IPv4, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QOS |
| Lens Construction | |
| Diagonal Field of View (degree) | 111.1 |
| Focal Length | 2.8 mm |
| Horizontal Field of View (degree) | 101.1 |
| Lens Iris | F/2.7 |
| Type | Fixed focal |
| Vertical Field of View (degree) | 55.3 |
| Miscellaneous | |
| Compliant Standards | IEC 62368-1, EN 62368-1, UL 62368-1, FCC CFR47 Part 15, EN 55032:2015, EN 55024:2010, EN 61000-3-2:2014, EN 61000-3-3:2013, IEEE 802.3af |
| Panning | |
| Range (degree) | 0 to 348 |
| Power | |
| Power Device | 4.5 watt |
| Power Requirements | DC 12 V / PoE |
| Software / System Requirements | |
| Software Included | Video Insight VMS License |
| Tilting | |
| Range (degree) | -66 to +66 |
