Hardware Cameras and Camcorders Digital Cameras and Camcorders
Add to My Favorites
Digital Cameras and Camcorders

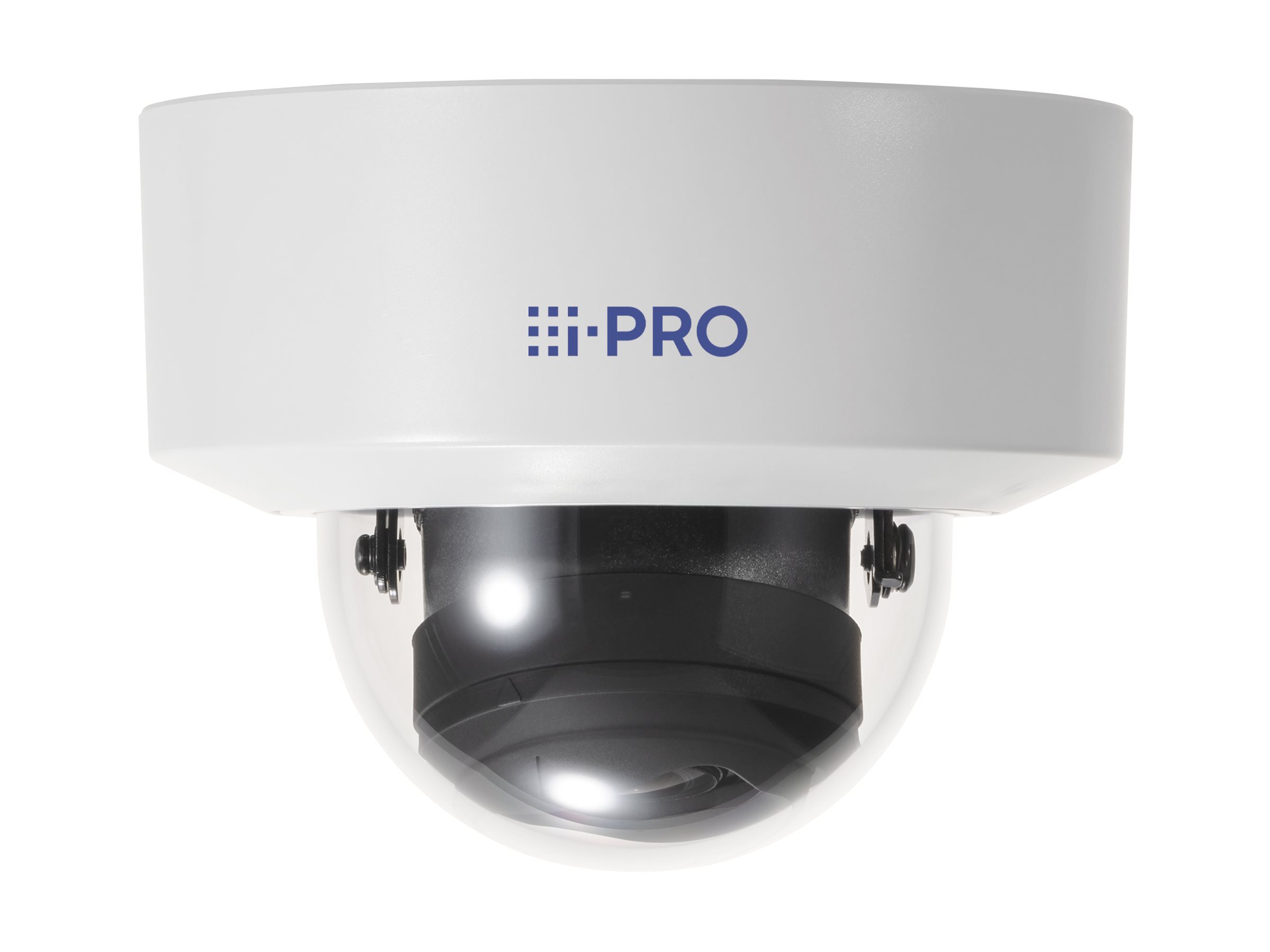

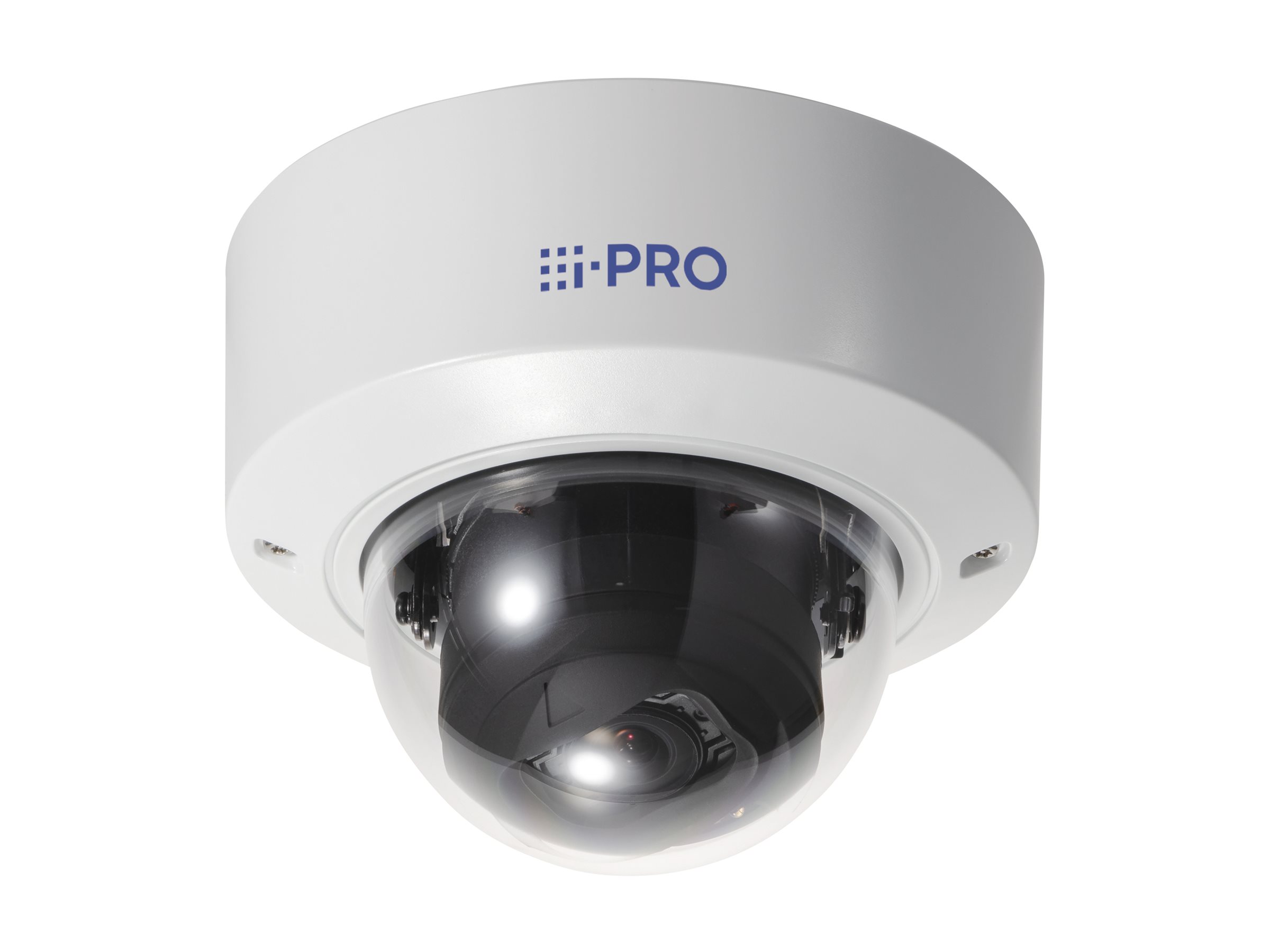

i-PRO S-Series WV-S2236LA

MSRP$978.50
$698.00
i-PRO S-Series WV-S2236LA
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • dome
  • indoor
  • shock resistant / vandal-proof
  • color (Day&Night)
i-PRO S-Series WV-S2236LA
  • Network surveillance camera
  • dome
  • indoor
  • shock resistant / vandal-proof
  • color (Day&Night)
  • 2 MP
  • 2048 x 1536
  • 1080p
  • motorized
  • audio
  • LAN 10/100
  • MJPEG, H.264, H.265
  • DC 12 V / PoE Class 0
  Additional Details
Price: $698.00
MSRP: $978.50
Mfr Part #: WV-S2236LA
SHI Part #: 46117368
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: i-Pro Americas Inc.
Product Type: Hardware
General Information
CategoryDigital cameras
Descriptioni-PRO S-Series WV-S2236LA - Network surveillance camera - dome - indoor - shock resistant / vandal-proof - color (Day&Night) - 2 MP - 2048 x 1536 - 1080p - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Class 0
Manufactureri-Pro Americas Inc.
MSRP$978.50
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth12.95 cm
Dimensions & Weight / Height10.25 cm
Dimensions & Weight / Weight570 g
Dimensions & Weight / Width12.95 cm
Header / Brandi-Pro
Miscellaneous / Product ColorWhite
Packaged Quantity1
Camera
Digital Video Capture Resolution1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 1280 x 960, 2048 x 1536
Digital Video FormatMJPEG, H.264, H.265
Exposure Range1/60 sec - 1/10000 sec
FeaturesONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Intelligent Auto (iA), AI Engine, Super Dynamic technology, Color Night Vision, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Adaptive Black Stretch (ABS), Backlight Compensation (BLC), Highlight Compensation (HLC), fog compensation, digital noise reduction, Scene Change Detection (SCD), Audio Detection, AI Sound Classification, AI Analytics, 32 privacy zones, Variable Image Quality on Specified area (VIQS), 256 preset positions, auto tracking, auto pan function, preset sequence, Patrol Mode, self return, Group of Pictures (GOP), Device Certificate GlobalSign pre-installed, digest authentication, host authentication, brute force delay protection, alteration detection, signed firmware, e-mail alerts
Frame Rate (max)60 frames per second
Infrared Distance70 m
Infrared LEDsYes
Max Digital Video Resolution2048 x 1536
Minimum Illumination
  • 0.007 lux - color - F1.3 - 30 IRE - shutter 1/30 sec
  • 0.009 lux - color - F1.3 - 50 IRE - shutter 1/30 sec
  • 0.0006 lux - color - F1.3 - 50 IRE - shutter 16/30 sec
  • 0 lux - IR - F1.3 - 50 IRE - shutter 1/30 sec
  • 0.0004 lux - B&W - F1.3 - 50 IRE - shutter 16/30 sec
  • 0.006 lux - B&W - F1.3 - 50 IRE - shutter 1/30 sec
Motion DetectionYes
Supported Image FormatsJPEG
TypeColor - Day&Night - fixed - indoor - shock resistant / vandal-proof
Video FormatNTSC, PAL
Video Modes1080p
Environmental Parameters
Max Operating Temperature50 °C
Min Operating Temperature-10 °C
Relative Humidity (operating)10 - 90% (non-condensing)
Expansion / Connectivity
Encryption AlgorithmFIPS 140-2 Level 3
Ports
  • LAN - RJ-45
  • Audio line in - 3.5 mm stereo jack
  • Audio line out - 3.5 mm stereo jack
  • Video output - 3.5 mm stereo jack
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.726, ADPCM, G.711, AAC-LC
Audio SupportYes: two-way audio capability
Connectivity TechnologyWired
Depth12.95 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height10.25 cm
Weight570 g
Width12.95 cm
Image Sensor
Type2 MP CMOS 1/2.8"
Interfaces
Alarm Inputs Qty3
Network InterfaceEthernet 10Base-T/100Base-TX
Network ProtocolsIPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, TLS, SMTP, DNS, NTP, SNMP 1, SNMP 2, SNMP 3, DHCPv6, RTP, MLD, ICMP, ARP, SFTP, MQTT, LLDP, RTSP, RTCP, DHCP, DDNS, UPnP, IGMP, SRTP, NTCIP
Lens Construction
Focal Length2.9 mm - 9 mm
Focus AdjustmentMotorized
Horizontal Field of View (degree)27 - 114
Lens IrisF/1.3-2.5
Min Focus Distance0.3 m
Optical Zoom3.1 x
TypeMotorized zoom
Vertical Field of View (degree)20 - 60
Miscellaneous
ColorWhite
Compliant StandardsFIPS 140-2 Level 3, NDAA, UL 62368-1, CSA C22.2 No. 62368-1, IEC 62368-1, FCC Part 15 A, ICES-003 issue 7 Class A, EN 55032 Class A, EN 55035, IEEE 802.3bt, IEEE 802.3at, IEC 60529 IP66, IEC 60529 IP67, UL 50E Type 4X, NEMA Type 4X, IEC 62262 IK10, NEMA TS-2 (2.2.7-2.2.9)
Power
Power RequirementsDC 12 V / PoE Class 0
