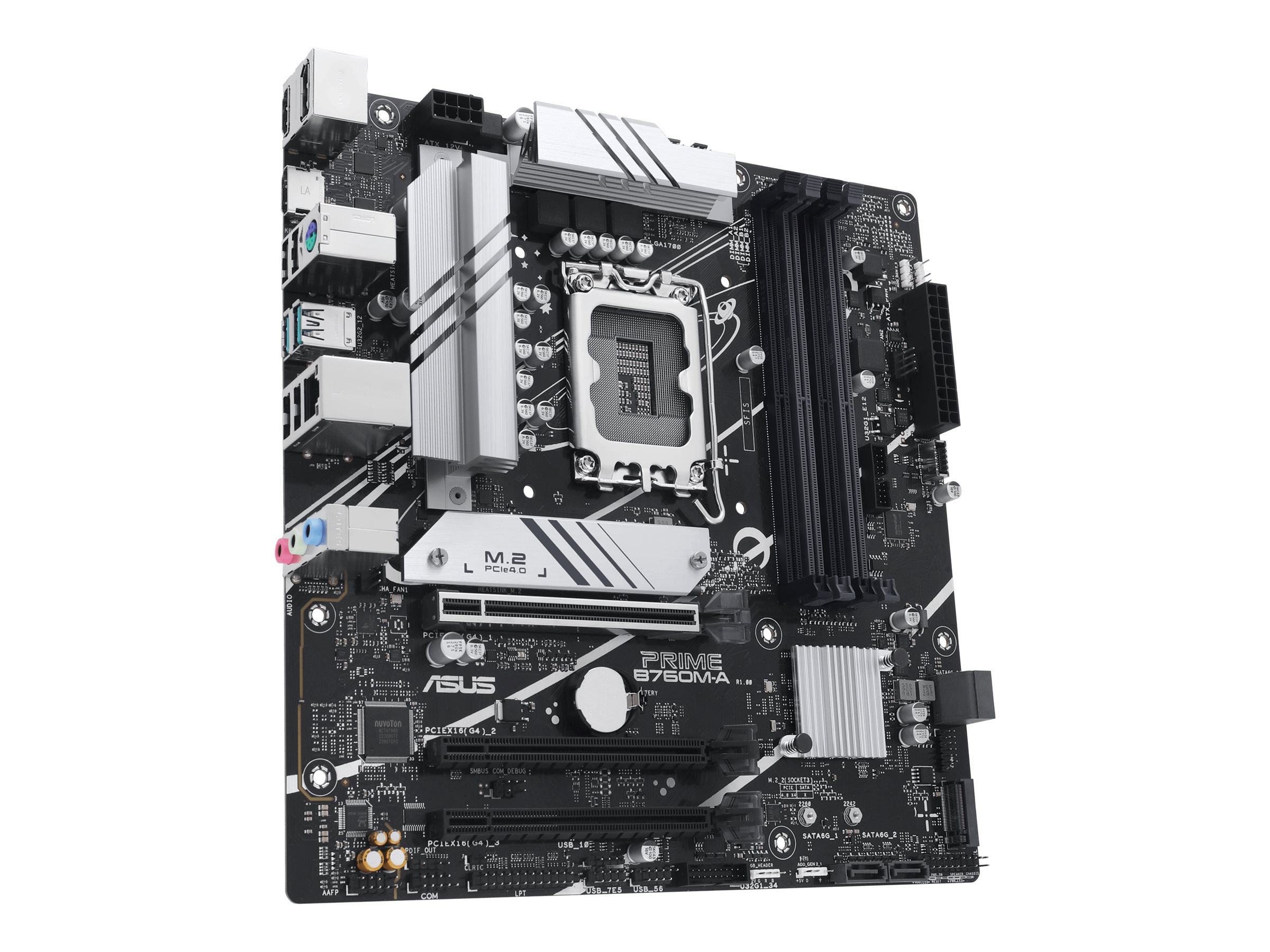

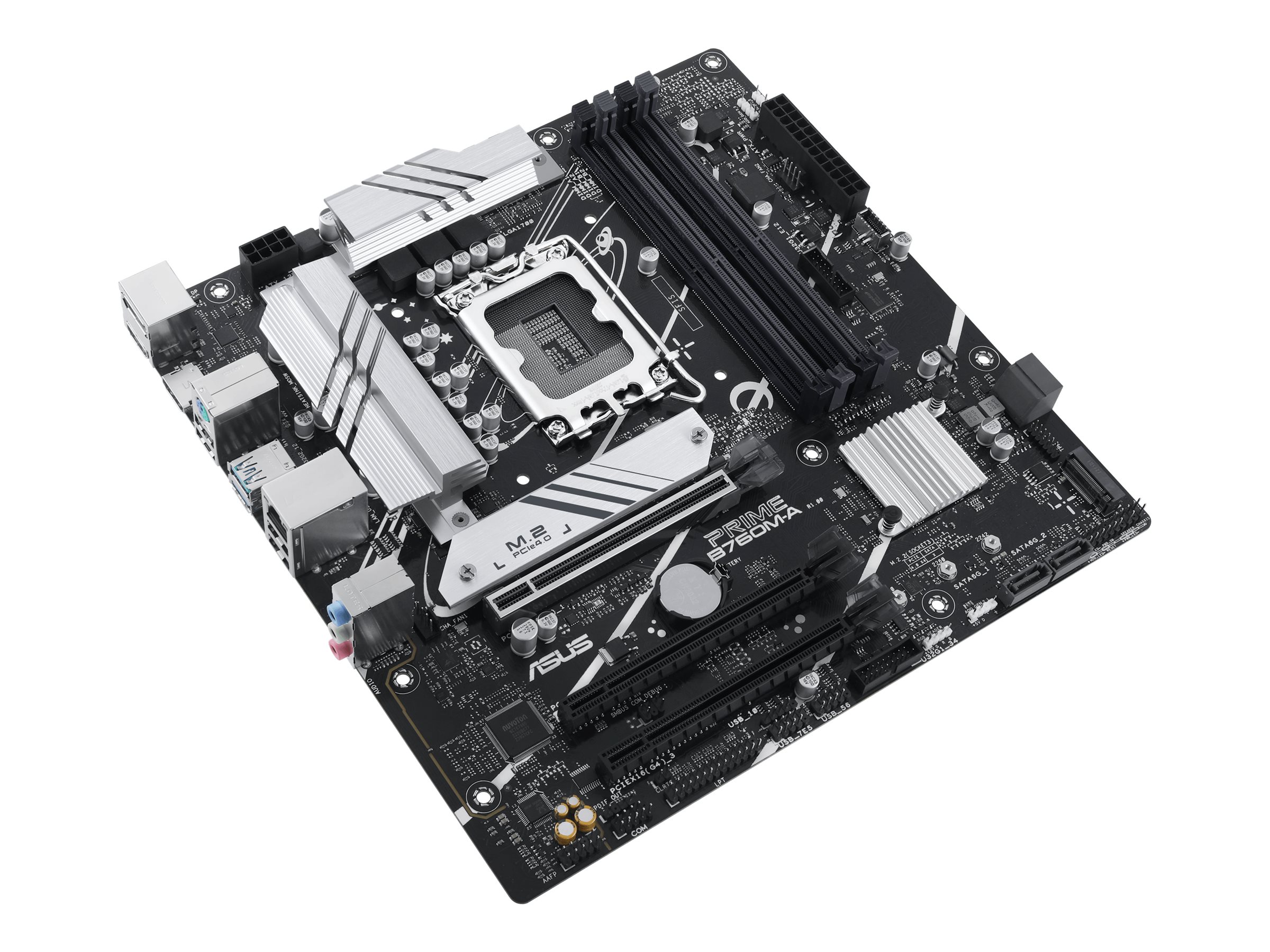

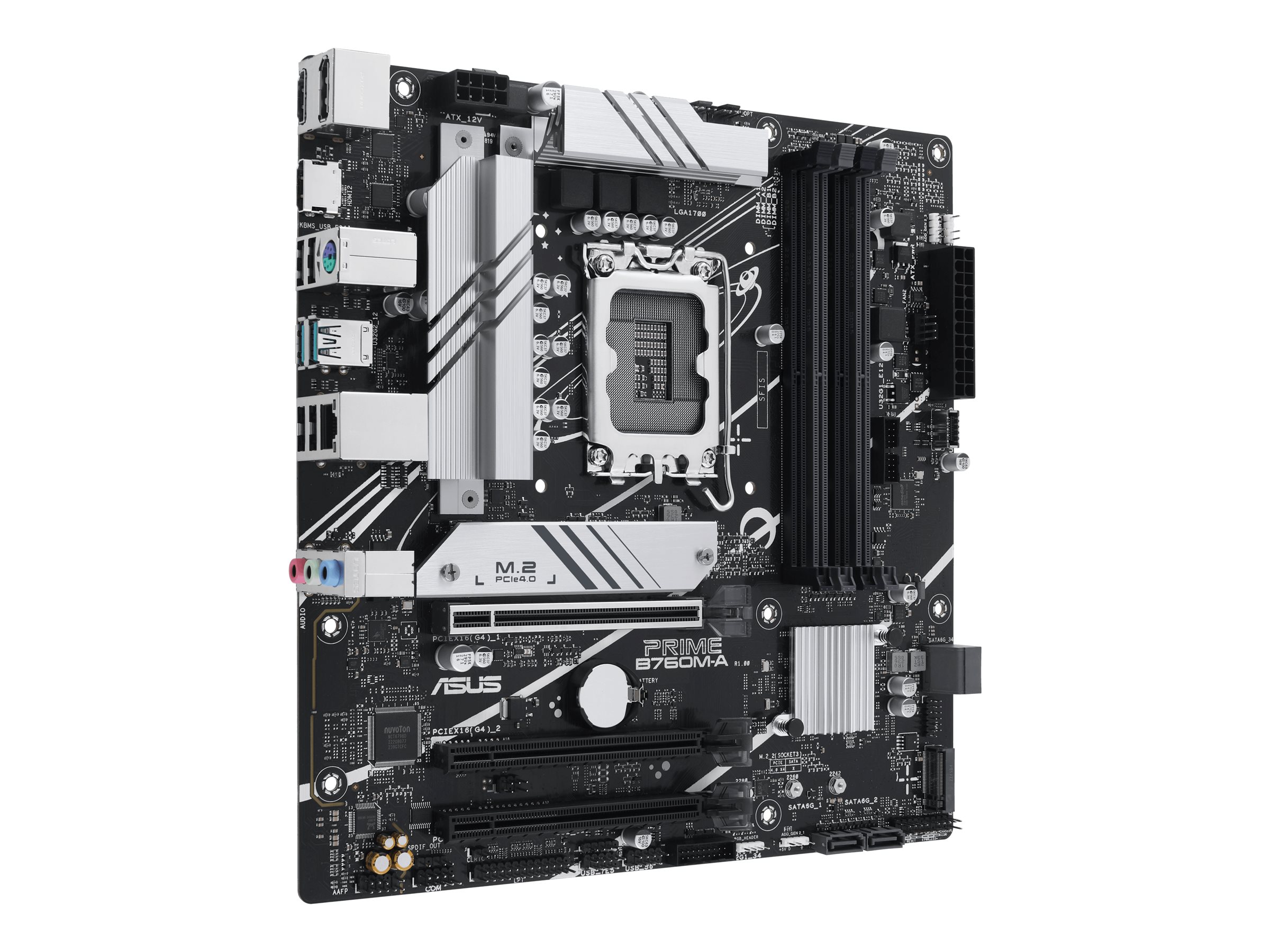

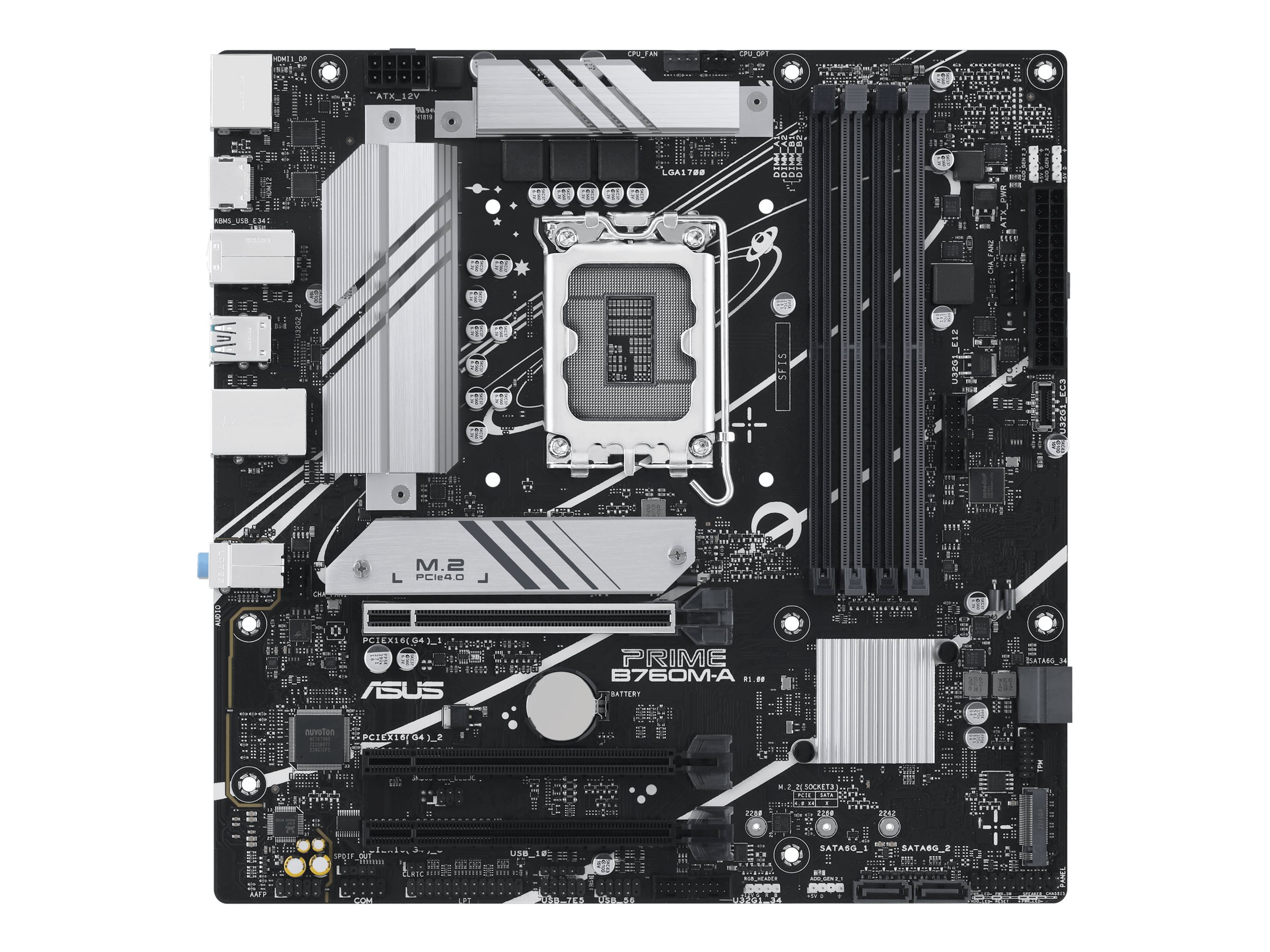

ASUS PRIME B760M-A - Motherboard


$146.00
ASUS PRIME B760M-A - Motherboard

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • micro ATX
  • LGA1700 Socket
  • B760 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
  • 2.5 Gigabit LAN
ASUS PRIME B760M-A - Motherboard
  • micro ATX
  • LGA1700 Socket
  • B760 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
  • 2.5 Gigabit LAN
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $146.00
Mfr Part #: PRIME B760M-A
SHI Part #: 46112677
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS PRIME B760M-A - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP$124.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width24.4 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel B760
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Ethernet
  • Gigabit Ethernet
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Compliant StandardsHigh Definition Audio
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 4.0 x16
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
  • 1 x PCIe 4.0 x16 (x1 mode)

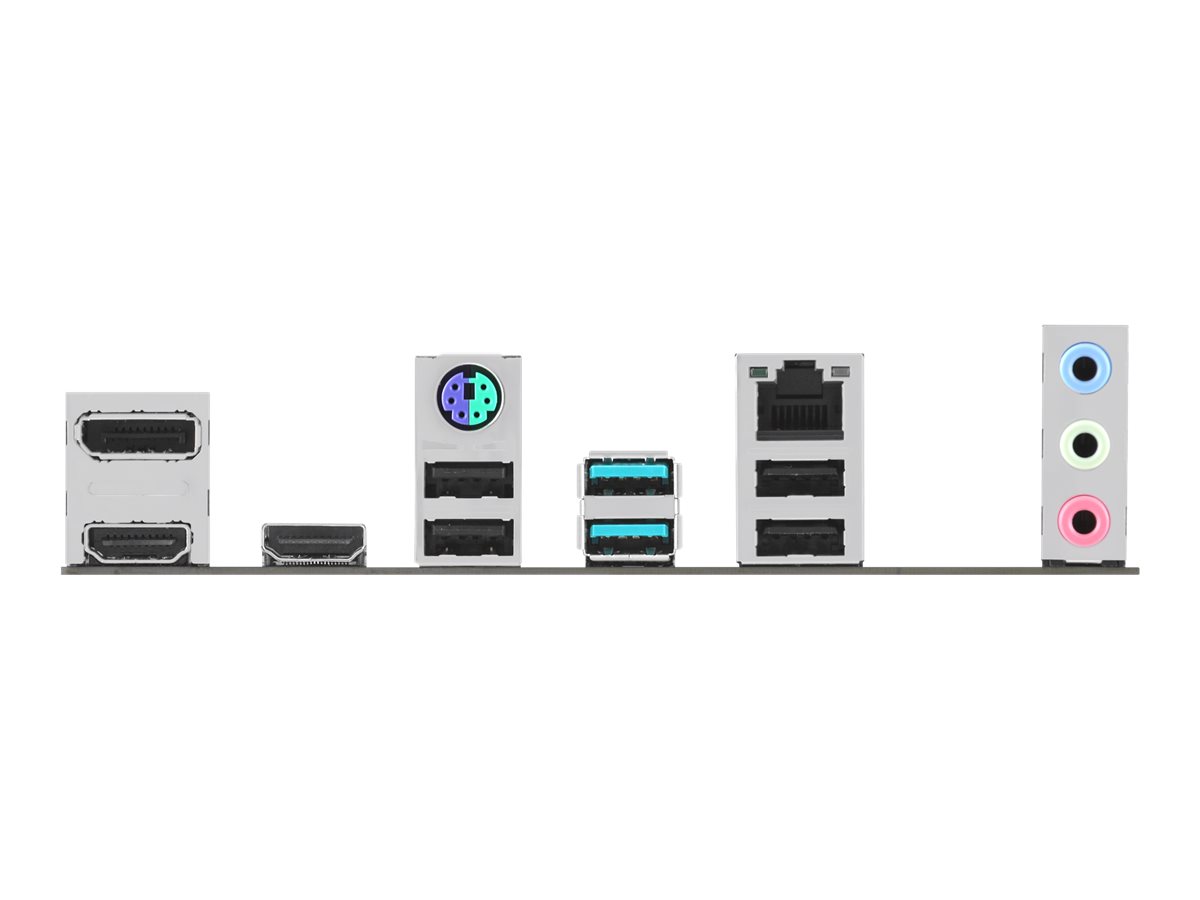

Interfaces
  • 2 x HDMI
  • 1 x DisplayPort
  • 2 x USB 3.2 Gen 2
  • 4 x USB 2.0
  • 1 x PS/2 keyboard / mouse
  • 1 x LAN (2.5Gigabit Ethernet)
  • 1 x microphone - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x audio line-out - mini-jack
Internal Interfaces
  • 5 x USB 2.0 - header
  • 4 x USB 3.2 Gen 1 - header
  • 1 x USB-C 3.2 Gen 1 - header
  • 1 x serial - header
  • 1 x SPI - header
  • 1 x SPDIF out - header
  • 1 x audio - header
Power Connectors24-pin main power connector, 8-pin ATX12V connector
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 2 x M.2
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware FeaturesASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, overvoltage protection, ASUS 5X Protection III, ASUS ProCool, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, Windows 11 compatible, Q-LED Core, VRM heatsink design
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel B760
Compatible Processors(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - micro ATX
LAN
Network Interfaces2.5 Gigabit Ethernet
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsVCCI Class B ITE, JATE, FCC Part 15 Class B, DisplayPort 1.4
Depth24.4 cm

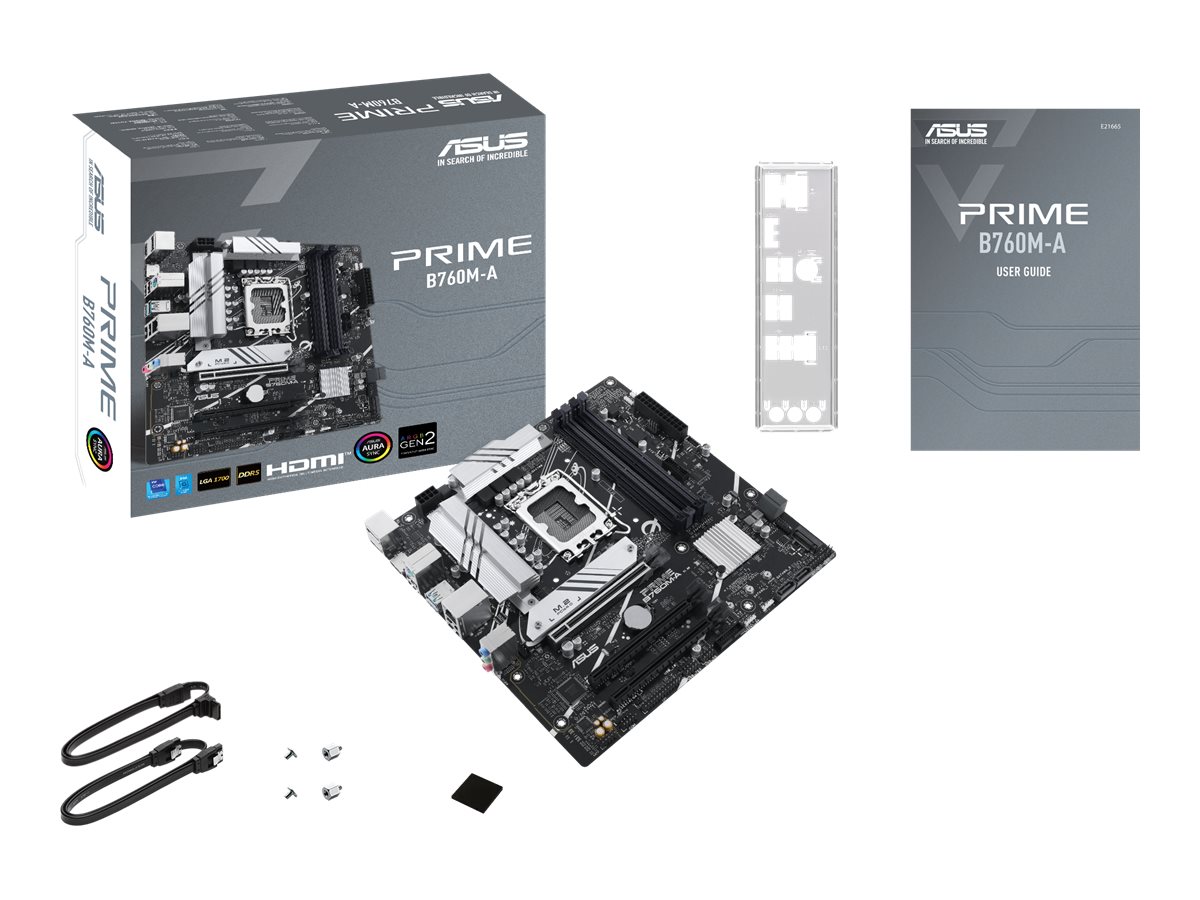

Included AccessoriesIO shield, 1 x M.2 rubber package, M.2 screw package
Software IncludedASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+
Width24.4 cm
Supported RAM
Bus Clock5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, on-die ECC
TechnologyDDR5
