CPI Switched eConnect PDU EA-5012-E
MSRP$2,061.08
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

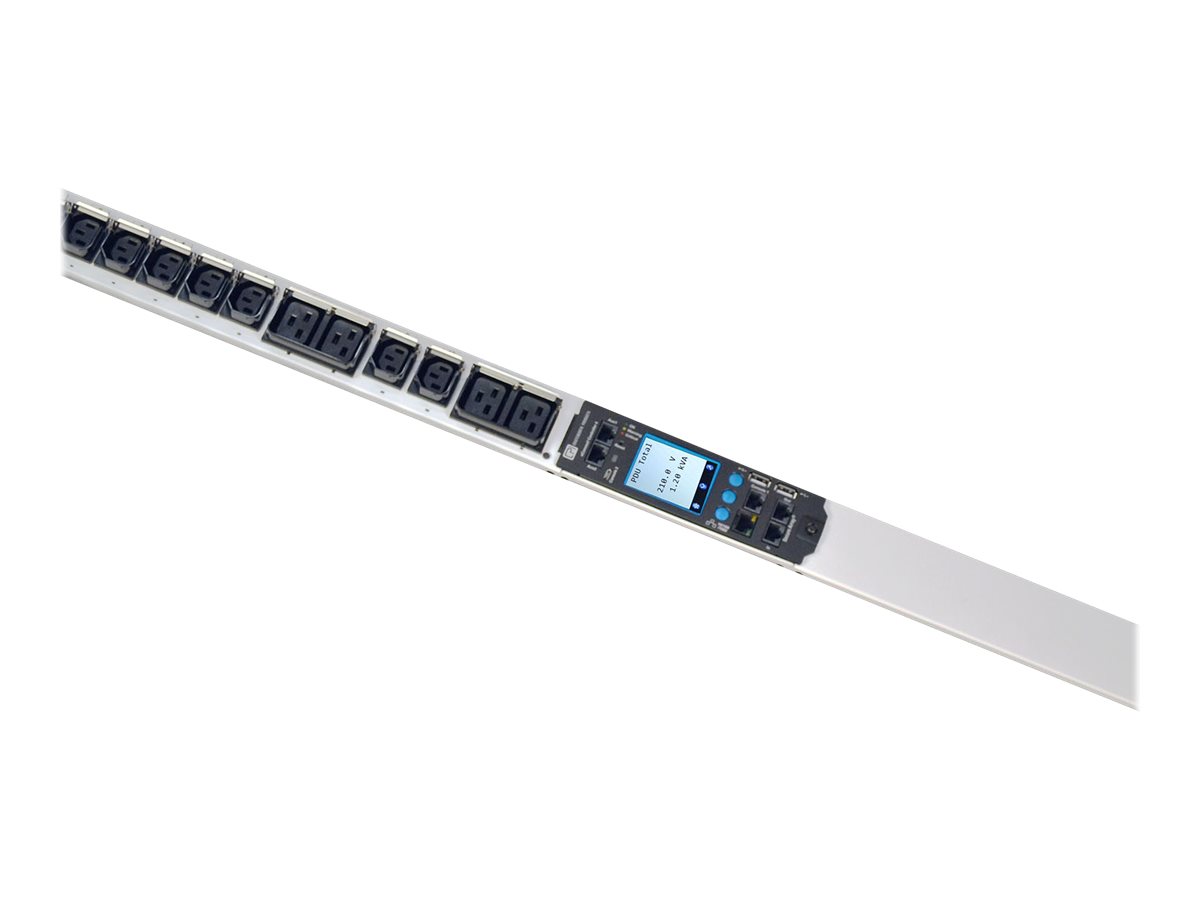

CPI Switched eConnect PDU EA-5012-E
- Power distribution unit (rack-mountable)
- AC 220-240 V
- 5 kW
- 1-phase
- USB, Ethernet 10/100/1000, serial
- input: NEMA L6-30P
- output connectors: 24 (6 x IEC 60320 C19, 18 x IEC 60320 C13)
- 42U
- 3 m cord
- glacier white
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,061.08 |
| Mfr Part #: | EA-5012-E |
| SHI Part #: | 46111761 |
| Category: | Rack systems for rack mount electroni... |
| UNSPSC: | 24102001 |
| Manufacturer: | Chatsworth |
| Product Type: | Hardware |
| Product Line: | Chatsworth Products |
| General Information | |
|---|---|
| Category | Rack systems for rack mount electroni... |
| Description | CPI Switched eConnect PDU EA-5012-E - Power distribution unit (rack-mountable) - AC 220-240 V - 5 kW - 1-phase - USB, Ethernet 10/100/1000, serial - input: NEMA L6-30P - output connectors: 24 (6 x IEC 60320 C19, 18 x IEC 60320 C13) - 42U - 3 m cord - glacier white |
| Manufacturer | Chatsworth |
| MSRP | $2,061.08 |
| UNSPSC | 24102001 |
| Main Specifications | |
| General / Subcategory | Power distribution devices |
| Header / Brand | CPI |
| Miscellaneous / Product Color | White |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 220-240 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 12 kg |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 65 °C |
| Min Operating Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Glacier white |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 42U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 3 years |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | cUL, EN55022, RoHS, FCC Part 15 A, UL 489, IEC/UL 62368 |
| Features | Password security, vertical orientation, for indoor use, LCD display, LED indicators, firmware upgradable, thermal protection, individually switchable sockets, grounded, Secure Array technology, locking outlets, remote metered, Hydraulic-Magnetic breakers, environmental sensor ready, bistable latching relays, simplified load balancing, electronic lock integration, outlet grouping, field-replaceable module, SD-card transfers PDU identity, color-coded labels, Zero Touch Provisioning (ZTP) |
| Networking | |
| Remote Management Interface | USB, Ethernet 10/100/1000, serial |
| Remote Management Protocol | SNMP 1, SNMP 2, SNMP 3, HTTP, HTTPS, SSH, CLI, LDAP, RADIUS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA L6-30P |
| Input Voltage | AC 220-240 V |
| Input Wiring | 1-phase |
| Max Electric Current | 30 A |
| Output Voltage | AC 208 V 50/60 Hz |
| Power Capacity | 5 kW |
| Power Output Connectors Details |
|
