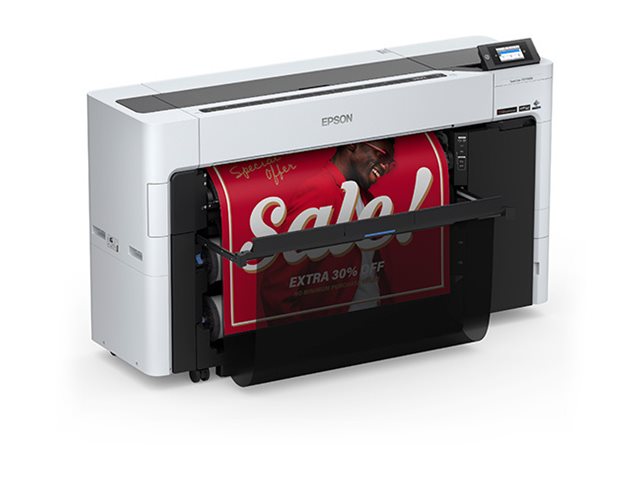

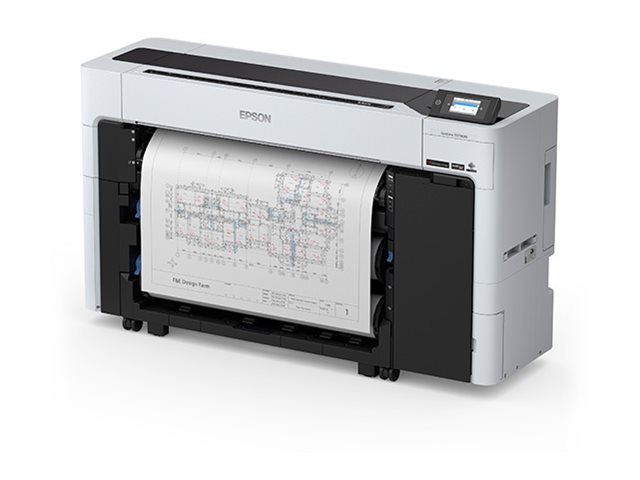

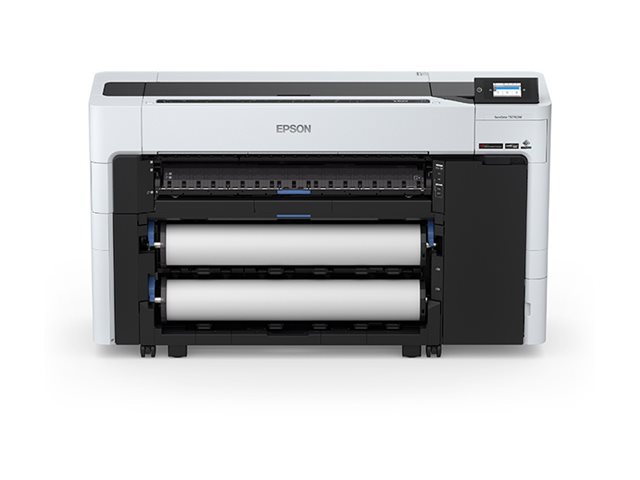

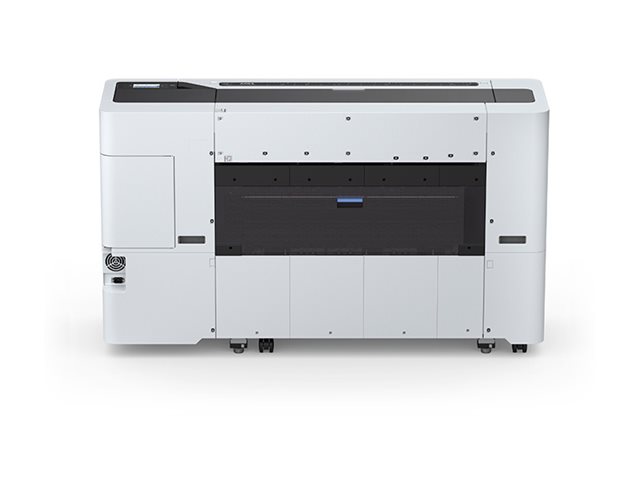

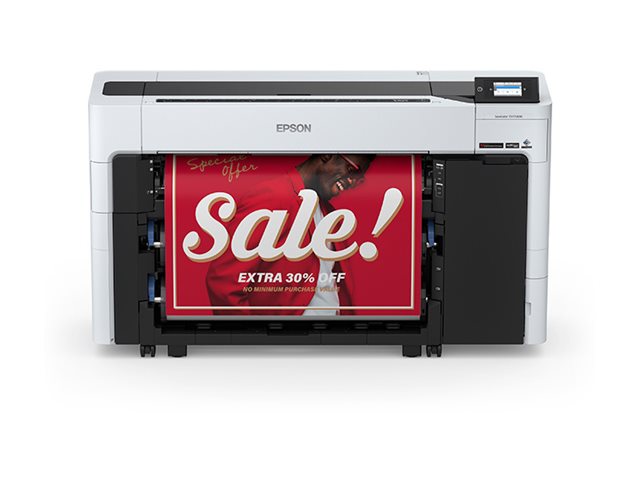

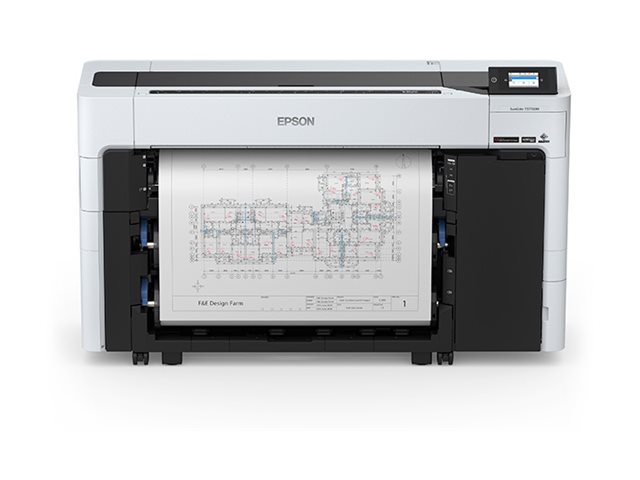

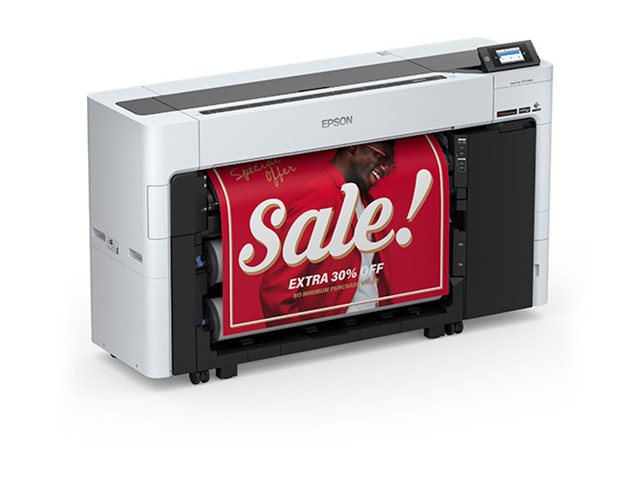

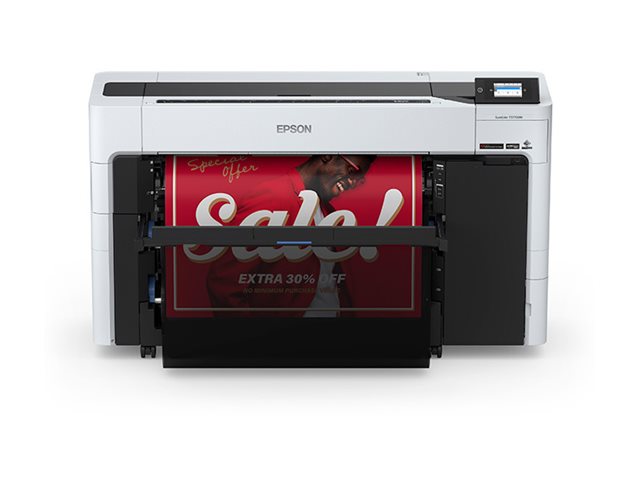

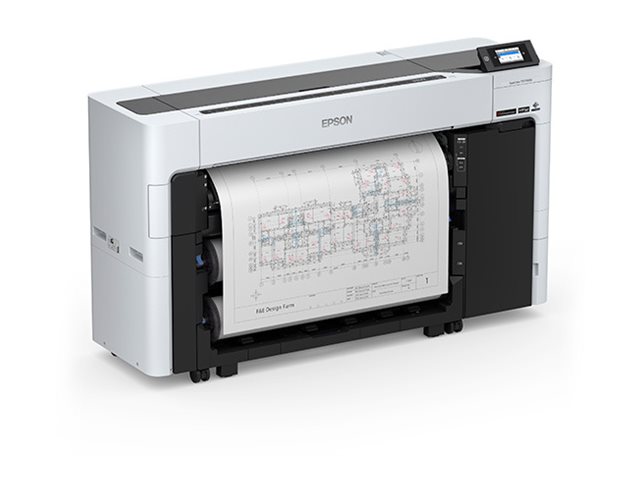

Epson SureColor T5770DM
MSRP$10,295.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Epson SureColor T5770DM
- 36" multifunction printer
- color
- ink-jet
- Roll (91.4 cm x 91 m) (media)
- Gigabit LAN, USB 3.0, USB host, Wi-Fi(ac)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $10,295.00 |
| Mfr Part #: | SCT5770DM |
| SHI Part #: | 46065338 |
| Category: | Multifunction machines |
| UNSPSC: | 44101503 |
| Manufacturer: | Epson |
| Product Type: | Hardware |
Ink/Toner
- for SureColor P6570, P8570, SC-P8500, T3770, T5770, T7770
- red
- original
- blister with RF/acoustic alarm
- ink cartridge
- for SureColor T3770DR, T3770E, T5770DM, T5770DR, T7770D, T7770DM
MSRP $196.00
$177.00
- photo black
- original
- blister with RF/acoustic alarm
- ink cartridge
- for SureColor T3770DE, T3770DR, T3770E, T5770DM, T5770DR, T7770D, T7770DM
MSRP $196.00
$177.00
| General Information | |
|---|---|
| Category | Multifunction machines |
| Description | Epson SureColor T5770DM - 36" multifunction printer - color - ink-jet - Roll (91.4 cm x 91 m) (media) - Gigabit LAN, USB 3.0, USB host, Wi-Fi(ac) |
| Manufacturer | Epson |
| MSRP | $10,295.00 |
| UNSPSC | 44101503 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.8 cm |
| Dimensions & Weight / Height | 99.1 cm |
| Dimensions & Weight / Weight | 150 kg |
| Dimensions & Weight / Width | 165 cm |
| Document & Media Handling / Large Format Printer Size | 36" |
| Header / Brand | Epson |
| Miscellaneous / Product Color |
|
| Office Machine / Functions |
|
| Office Machine / Printing Output Type | Color |
| Office Machine / Printing Technology | Ink-jet |
| Office Machine / Type | Printer / copier / scanner |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| PC Connectivity / PC Connection Availability | Yes |
| Service & Support / Type | 1-year warranty |
| Connections | |
| Interfaces |
|
| Operating System Support | Apple Mac OS X 10.9.5 or later, Apple Mac OS X 11 or later, MS Windows 7, MS Windows Server 2003 R2, MS Windows Server 2003 SP2 or later, MS Windows Server 2008, MS Windows Server 2008 R2, MS Windows Server 2012, MS Windows Server 2012 R2, MS Windows Server 2016, MS Windows Server 2019, MS Windows Vista, MS Windows XP (32/64 bits), Windows 10, Windows 8, Windows 8.1 |
| Software Included | Drivers & utilities, EpsonNet Config, EpsonNet Print, EpsonNet Setup, LFP Accounting Tool |
| Copying | |
| Max Copying Resolution | Up to 600 dpi (mono) / up to 600 dpi (color) |
| Max Document Enlargement | 755% |
| Max Document Reduction | 25% |
| Maximum Copies | 99 |

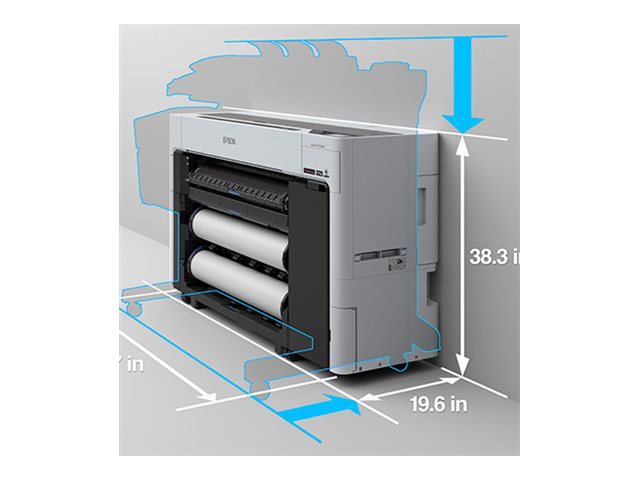

| Dimensions & Weight | |
| Depth | 50.8 cm |
| Height | 99.1 cm |
| Weight | 150 kg |
| Width | 165 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 76.2 cm |
| Shipping Height | 122 cm |
| Shipping Weight | 178 kg |
| Shipping Width | 180 cm |
| Document & Media Handling | |
| Borderless Photo Sizes | Roll (25.4 cm), Roll (30 cm), Roll (40.6 cm), Roll (43.2 cm), Roll (50.8 cm), Roll (61 cm), Roll (91.4 cm) |
| Document & Media Handling Details | Input tray - 2 rolls |
| Max Media Size | Other |
| Max Media Weight (lb) | 27 lbs |
| Media Thickness Range | Up to 1.5 mm |
| Speed Details |
|
| Supported Media Sizes | A0 (841 x 1189 mm), A1 (594 x 841 mm), Roll (25.4 cm), Roll (91.4 cm), 203.2 x 203.2 mm, Roll (91.4 cm x 91 m) |
| Supported Media Type | Plain paper, photo paper, bond paper, glossy paper, matte paper, poster board, coated paper, film, recycled paper, tracing paper |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Sound Emission | 6.6 dBA (idle) / 49.6 dBA (operating) |
| Environmental Standards | |
| ENERGY STAR Certified | Yes |
| General | |
| Connection Availability | Yes |
| Device Type | 36" multifunction printer |
| Display Diagonal Size | 4.3" |
| Display Features | Touch screen |
| Interface | Gigabit LAN, USB 3.0, USB host, Wi-Fi(ac) |

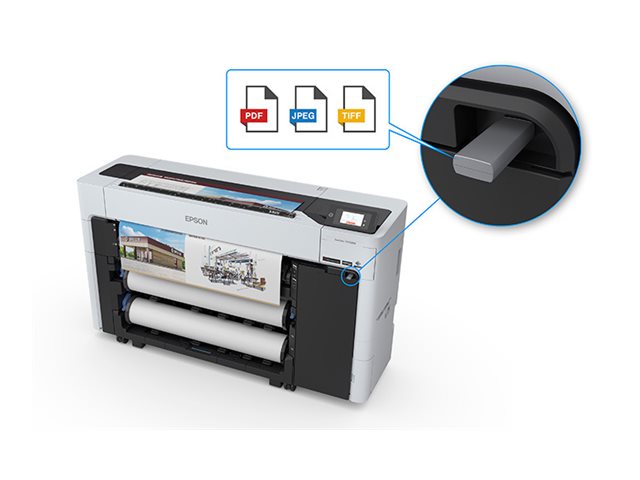

| Office Machine Features | Auto take up reel, scan to USB host, scan to mobile device, scan to network folder, scan to PC |
| Printing Technology | Ink-jet - color |
| Manufacturer Warranty | |
| Service & Support |
|
| Memory | |
| Standard Memory | 9 GB |
| Miscellaneous | |
| Compliant Standards | UL/CSA 62368-1, FCC Class B certified, NRTL, RoHS |
| Consumables Included |
|
| Included Accessories | 2 roll media adapters, maintenance box |
| Power | |
| Power Consumption Operational | 90 Watt |
| Power Consumption Sleep | 2 Watt |
| Power Consumption Standby | 44 Watt |
| Voltage Required | AC 120/230 V (50/60Hz) |
| Printing | |
| Color | 6-ink |
| Image Enhancement Technology | Variable Sized Droplet Technology |
| Ink Cartridge Configuration | 6 cartridges (1 each: cyan, magenta, yellow, red, photo black, matte black) |
| Ink Palette Supported (Colors) | Cyan, magenta, yellow, red, photo black, matte black |
| Ink Type | Epson UltraChrome XD3 Ink |
| Inkjet Technology | Epson PrecisionCore MicroTFP |
| Max Printing Resolution | Up to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (color) |
| Max Printing Resolution Class | Up to 2400 x 1200 dpi (mono) / up to 2400 x 1200 dpi (color) |
| Minimum Ink Droplet Size | 3.5 pl |
| Nozzle Configuration | 6 x 1600 nozzles |
| Printer Drivers / Emulations | EPSON ESC/P-R, Adode PostScript 3, PDF 1.7 |
| Scanning | |
| Interpolated Resolution | 2400 x 2100 dpi |
| Optical Resolution | 600 dpi |
| Scan Element | CIS |
