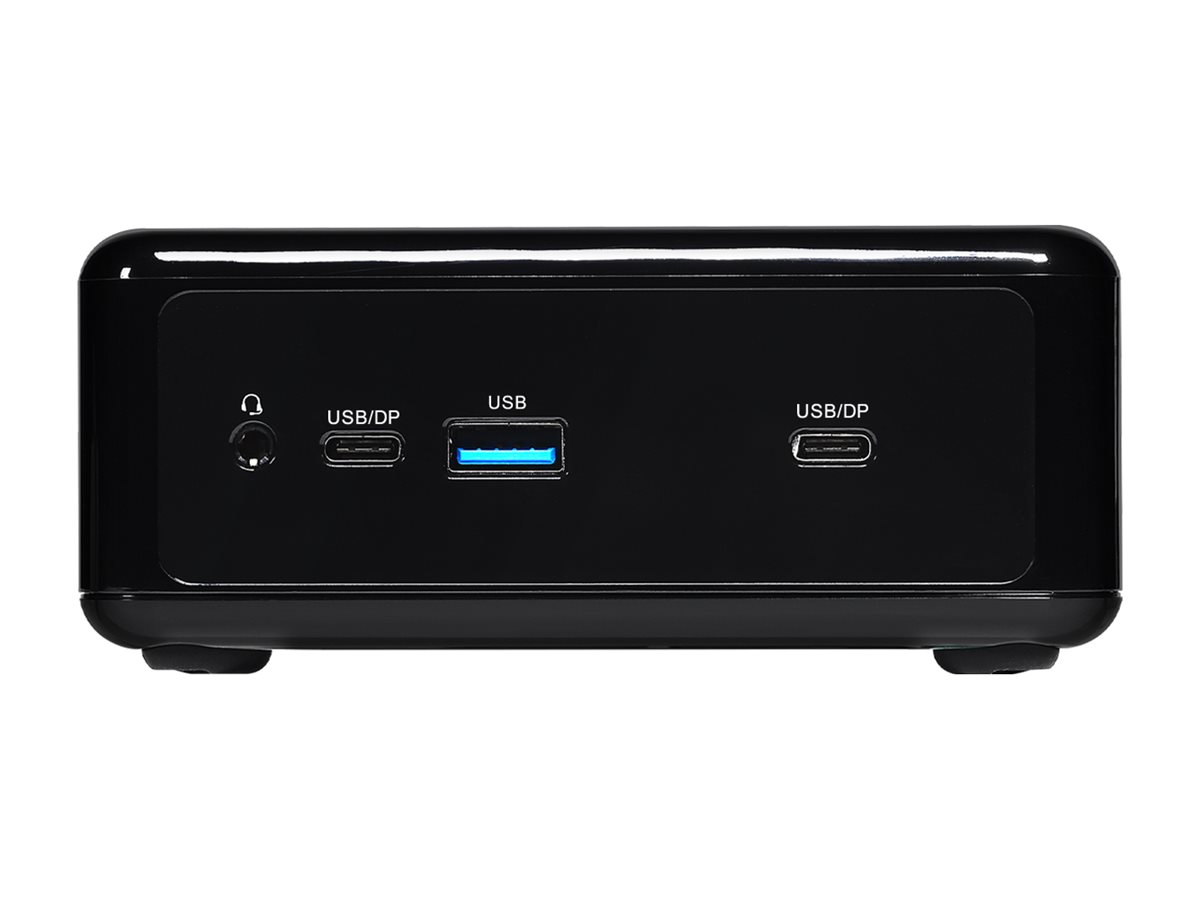

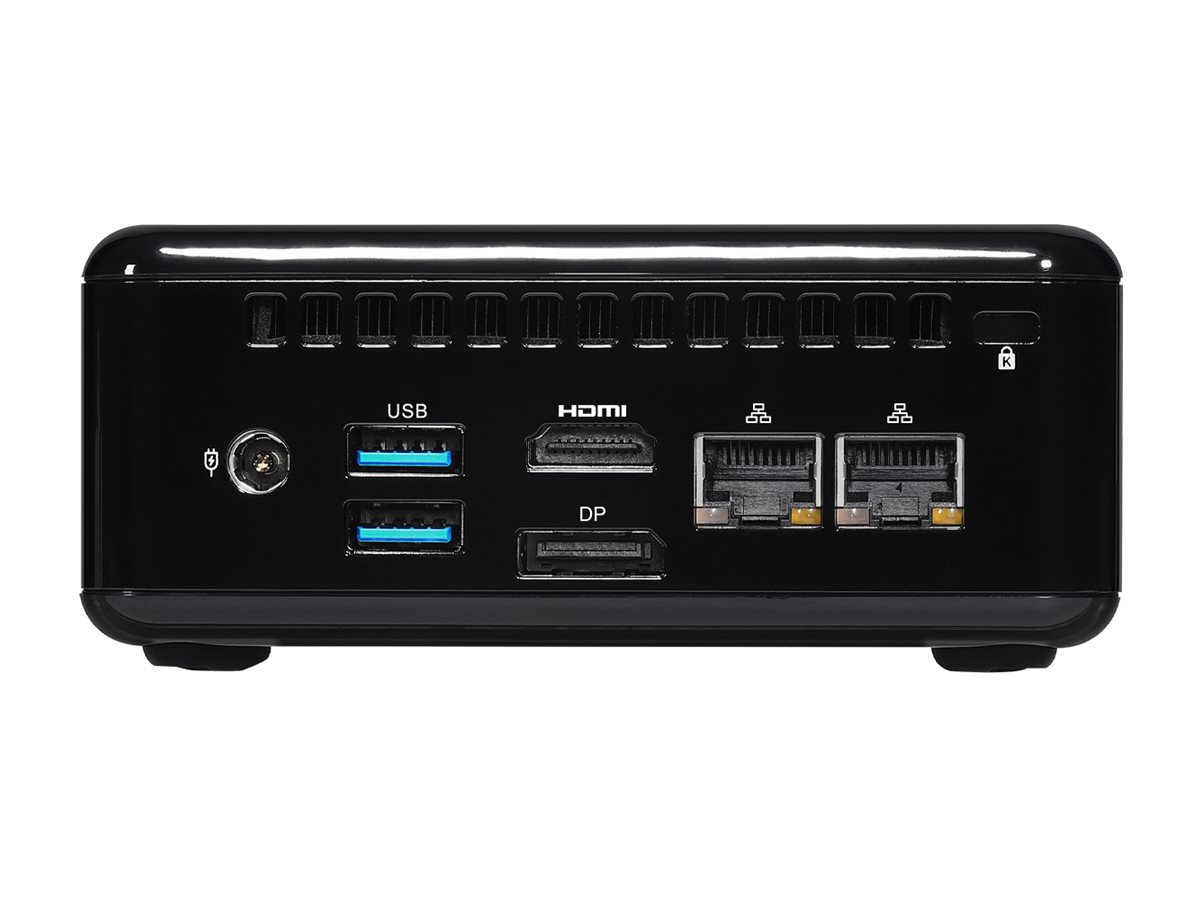

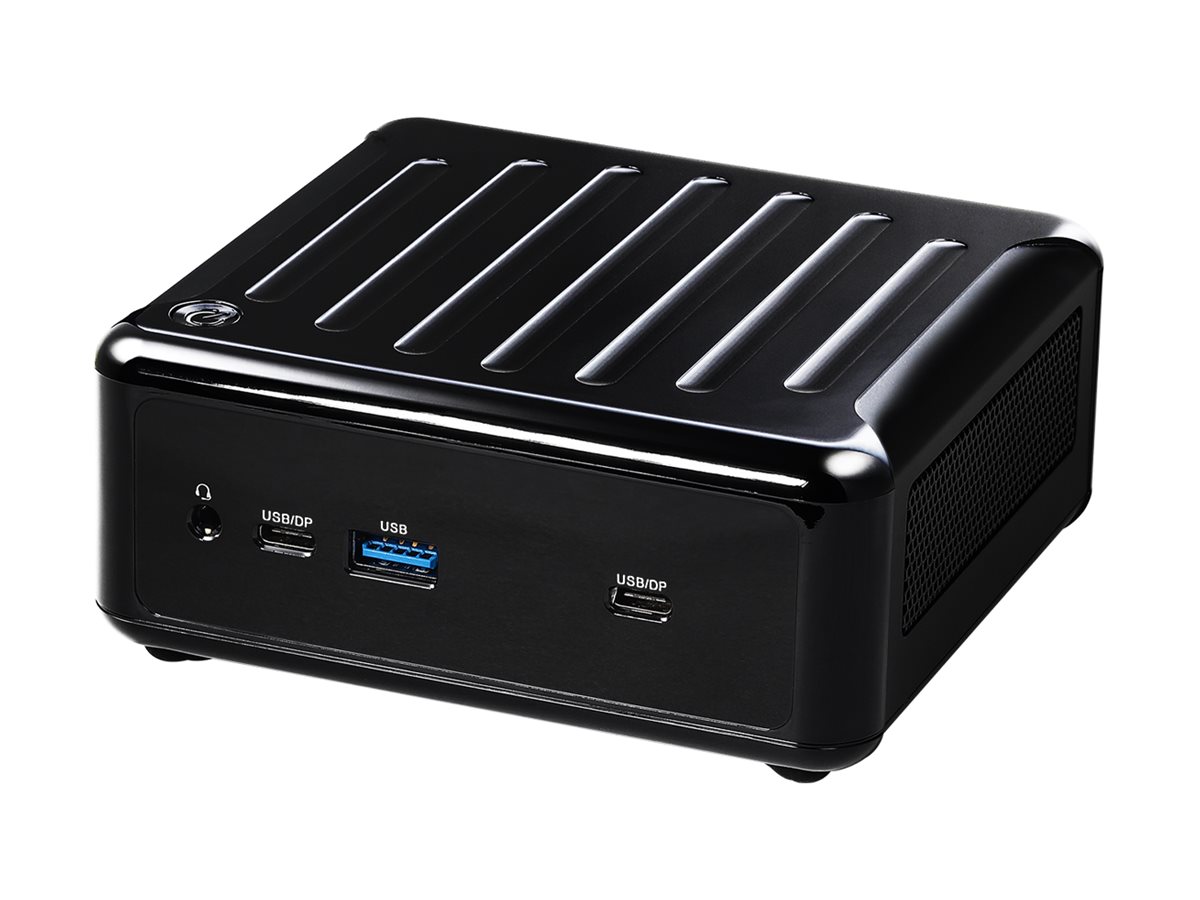

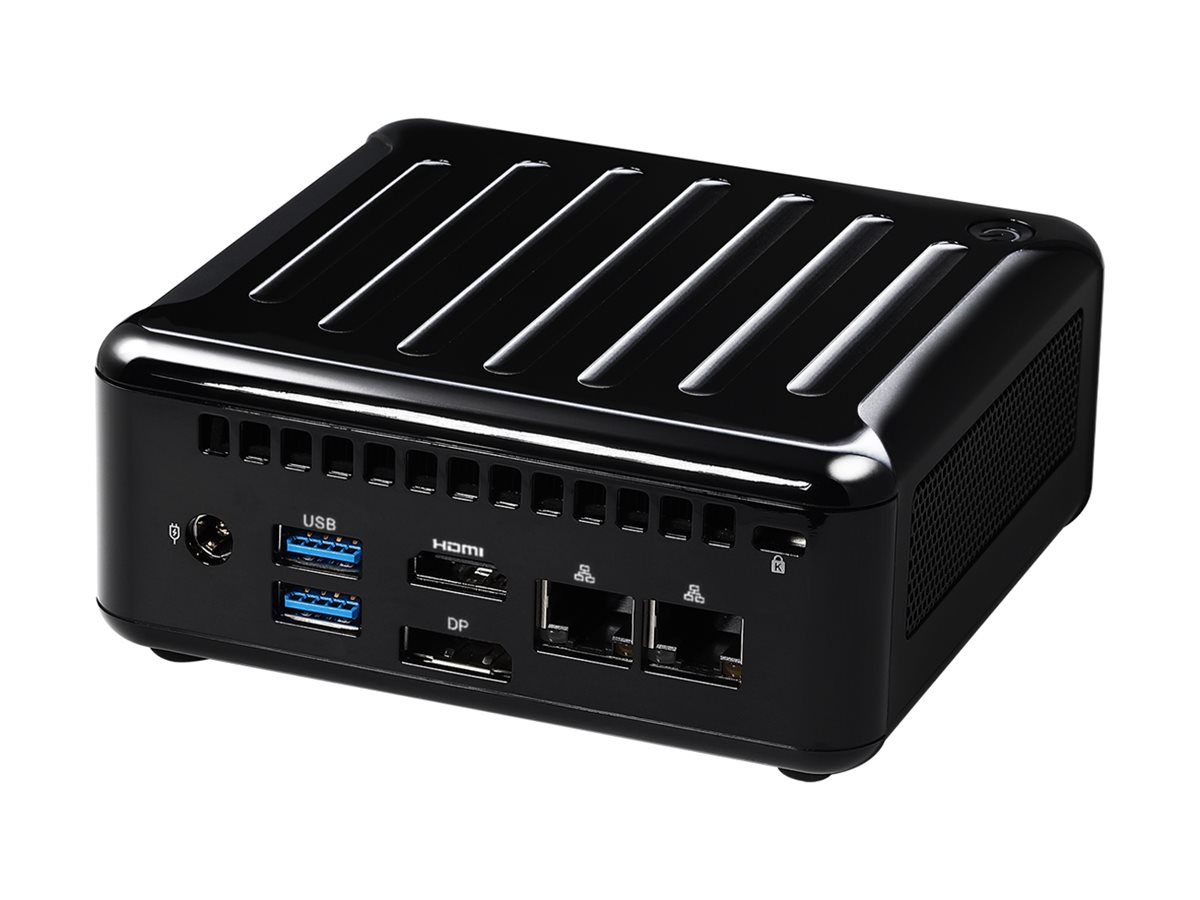

ASRock NUC BOX-1340P/D5
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
ASRock NUC BOX-1340P/D5
- USFF Core i5 1340P / up to 4.6 GHz
- RAM 0 GB
- no HDD
- Intel Iris Xe Graphics
- IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, Gigabit Ethernet, 2.5 Gigabit Ethernet
- no OS
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | NUC BOX-1340P/D5 |
| SHI Part #: | 46063567 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | ASRock NUC BOX-1340P/D5 - USFF Core i5 1340P / up to 4.6 GHz - RAM 0 GB - no HDD - Intel Iris Xe Graphics - IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, Gigabit Ethernet, 2.5 Gigabit Ethernet - no OS - monitor: none |
| Manufacturer | ASRock |
| MSRP | $0.00 |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor |
|
| Dimensions & Weight / Depth | 11.75 cm |
| Dimensions & Weight / Height | 4.78 cm |
| Dimensions & Weight / Weight | 1 kg |
| Dimensions & Weight / Width | 11 cm |
| Display / Type | None. |
| Header / Brand |
|
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | No operating system |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.9 GHz |
| Processor / Generation | 13 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 12-core |
| Processor / Processor Number | I5-1340P |
| Processor / Type |
|
| RAM / Form Factor |
|
| RAM / Technology | DDR4 SDRAM |
| System / Hard Drive Capacity | 0 GB |
| System / Type |
|
| Video Output / Graphics Processor | Intel Iris Xe Graphics |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Sound Output Mode | 7.1 channel surround |
| Cache Memory | |
| Cache Per Processor | 12 MB |
| Installed Size | 12 MB |
| Dimensions & Weight | |
| Depth | 11.75 cm |
| Height | 4.78 cm |
| Weight | 1 kg |
| Width | 11 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 |
| General | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | USFF |
| Type | Personal computer |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Hard Drive | |
| Type | No HDD |
| Miscellaneous | |
| Compliant Standards | FCC |
| Included Accessories | Power adapter, VESA bracket |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | IEEE 802.11g, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11b, Bluetooth 5.3, Ethernet, Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Operating System / Software | |
| OS Provided | No operating system |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power supply |
| Power Provided | 90 Watt |
| Processor / Chipset | |
| Clock Speed | 1.9 GHz (P-core) / 1.4 GHz (E-core) |
| CPU | Intel Core i5 (13th Gen) 1340P |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.6 GHz (P-core) / 3.4 GHz (E-core) |
| Number of Cores | 12-core |
| RAM | |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 0 GB (installed) / 32 GB (max) |
| Slots | 2 (total) / 2 (empty) |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Channel Qty | 1 |
| Controller Interface Type | SATA 6Gb/s |
| Type | SATA - integrated |
