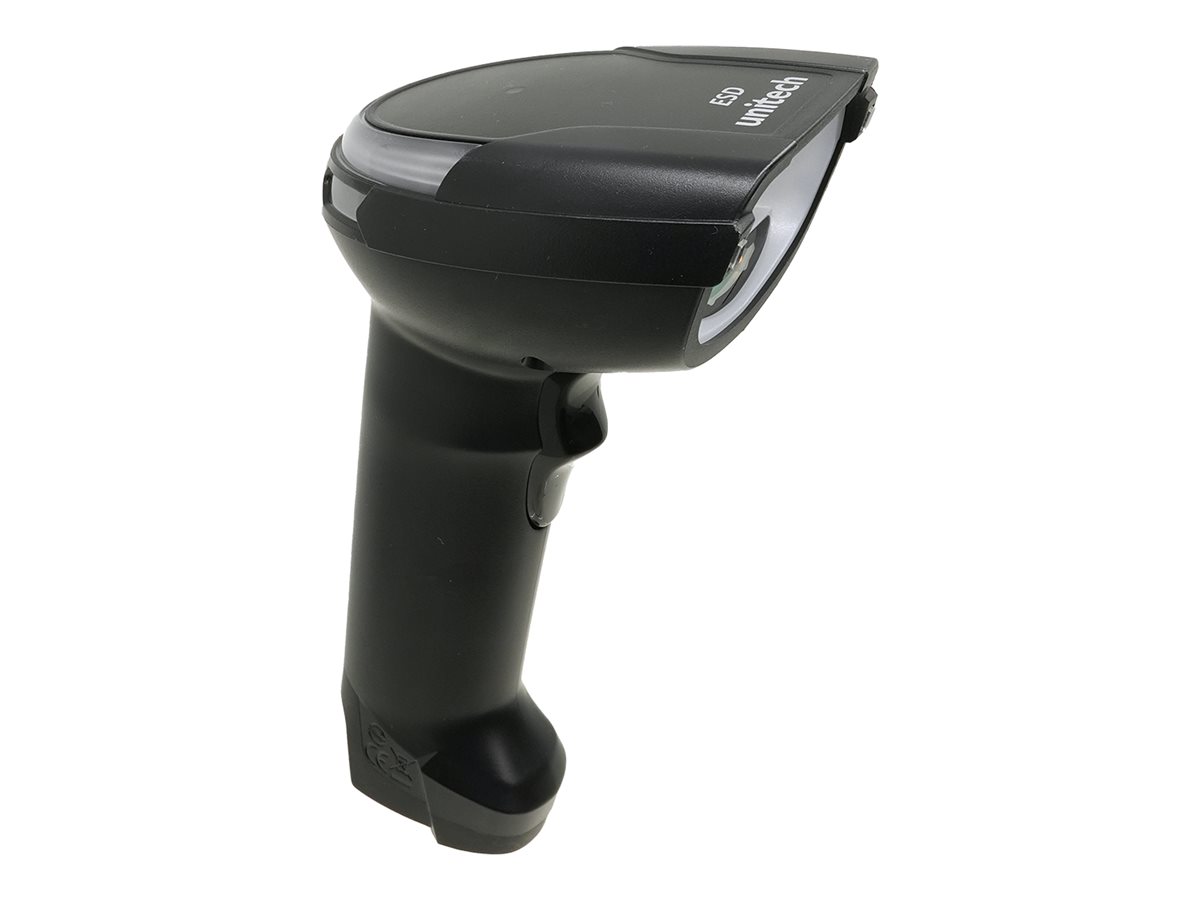

Unitech MS852 DPM ESD
MSRP$379.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Unitech MS852 DPM ESD
- Barcode scanner
- handheld
- 2D imager
- 60 frames / sec
- decoded
- USB
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $379.00 |
| Mfr Part #: | MS852-JUCB00-LG |
| SHI Part #: | 46056998 |
| Category: | Bar code equipment |
| UNSPSC: | 43211701 |
| Manufacturer: | Unitech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Bar code equipment |
| Description | Unitech MS852 DPM ESD - Barcode scanner - handheld - 2D imager - 60 frames / sec - decoded - USB - TAA Compliant |
| Manufacturer | Unitech |
| MSRP | $379.00 |
| UNSPSC | 43211701 |
| Main Specifications | |
| Dimensions & Weight / Depth | 8.78 cm |
| Dimensions & Weight / Height | 17.77 cm |
| Dimensions & Weight / Weight | 165 g |
| Dimensions & Weight / Width | 7.16 cm |
| Header / Brand | Unitech |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Scanner / Type | Barcode scanner |
| Service & Support / Type | 5-year warranty |
| Barcode | |
| Connectivity Technology | Wired |
| Decode Capability | Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, GS1 DataBar, QR code, Aztec code, Code 32, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Code 11, Interleaved 2 of 5, PDF417, Data Matrix, Micro QR code, GS1 DataBar Expanded, GS1 DataBar Limited, EAN-8, EAN-13, GS1-128, RSS-14 |
| Features | Triggered, rugged, Direct Part Mark (DPM), 15 kV ESD protection (air discharge), 8 kV ESD protection (contact discharge), laser aimer |
| Frame Rate | 60 frames / sec |
| Interface Type | USB |
| Light Source Wave Length | 625 nm |
| Minimum Bar Width | 5 mil |
| OK Notification | Beeper, LED indicator |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 90% |
| Scan Element Type | 2D imager - white LED |
| Scan Field Width | 40 mm - 32 cm |
| Scan Mode | Single-pass |
| Sensor Resolution | 1280 x 800 |
| Skew (Degrees) | 60 |
| TTL Decoding | Decoded |
| Dimensions & Weight | |
| Depth | 8.78 cm |
| Height | 17.77 cm |
| Weight | 165 g |
| Width | 7.16 cm |
| Environmental Parameters | |
| Drop Specification | 2.1 m to concrete |
| Humidity Range Operating | 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -10 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x USB |
| General | |
| Type | Barcode scanner - handheld |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Cables Included | 1 x USB cable |
| Compliant Standards | VCCI, BSMI, FCC, IP42 |
| TAA Compliant | Yes |
| Power | |
| Electric Current Required | 252 mA (operating), 77 mA (standby) |
| Voltage | DC 4 - 5.5 V |
