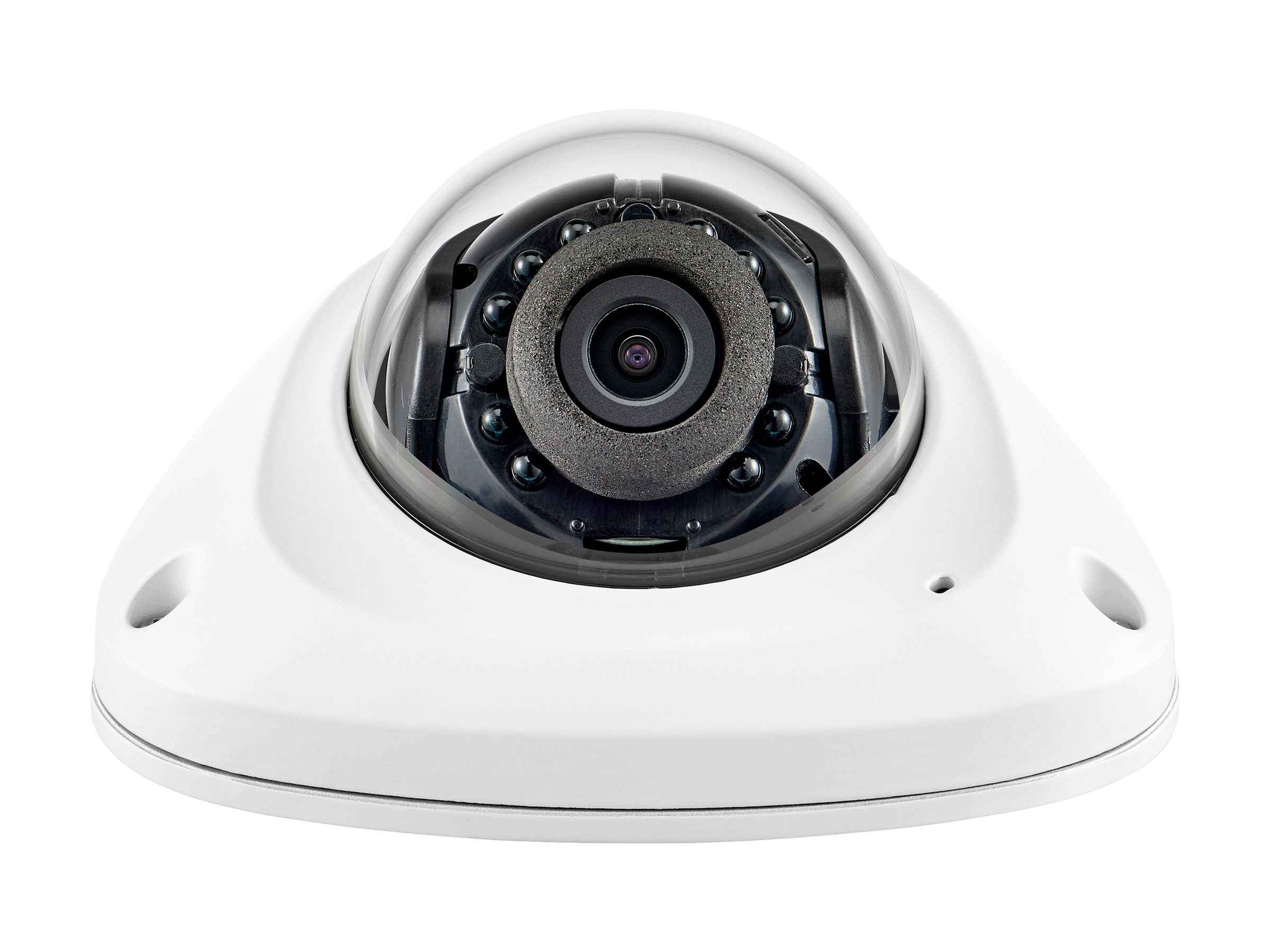

Hanwha Vision WiseNet ANV-L6023R
MSRP$299.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet ANV-L6023R
- Network surveillance camera
- pan / tilt
- dome
- vandal-proof
- color (Day&Night)
- 2 MP
- 1920 x 1080
- fixed focal
- audio
- composite
- LAN 10/100
- H.264, H.265, MJPEG
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $299.00 |
| Mfr Part #: | ANV-L6023R |
| SHI Part #: | 45978058 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet ANV-L6023R - Network surveillance camera - pan / tilt - dome - vandal-proof - color (Day&Night) - 2 MP - 1920 x 1080 - fixed focal - audio - composite - LAN 10/100 - H.264, H.265, MJPEG - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $299.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 cm |
| Dimensions & Weight / Height | 5.2 cm |
| Dimensions & Weight / Weight | 295 g |
| Dimensions & Weight / Width | 9.89 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Capture Resolution | 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Digital Video Format | H.264, H.265, MJPEG |
| Exposure Range | 1/5 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), auto ICR, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNR), Motion Detection Technology, Privacy Mask Function, Lens Distortion Compensation (LDC), auto gain control, auto white balance, image flip, image mirror, Hallway View, tamper-detection, Virtual Line detection, entrance / exit detection, notification picture to FTP, notification picture to E-mail, trigger recording, WiseStream II support, Unicast Streaming, Multicast Streaming, digest authentication, IP address filtering, user access log, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, Constant Bitrate (CBR), Variable Bitrate (VBR) |
| Flash Memory | 256 MB |
| Frame Rate (max) | 30 frames per second |
| Infrared Distance | 15 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 1920 x 1080 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| RAM | 512 MB |
| Type | Color - Day&Night - pan / tilt - vandal-proof |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 0 - 95% RH |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.711u, G.726, ADPCM, G.711 |
| Audio Support | Yes |
| Camera Mount Type | Ceiling mount |
| Connectivity Technology | Wired |
| Depth | 10 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 5.2 cm |
| Weight | 295 g |
| Width | 9.89 cm |
| Image Sensor | |
| Type | 2 MP CMOS 1/2.8" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv4, IPv6, TCP/IP, UDP/IP, RTP, RTCP, RTSP, NTP, HTTP, HTTPS, SSL, TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMP 1, SNMP 2c, SNMP 3, ARP, DNS, DDNS, QOS, UPnP, Bonjour, EAP, LLDP |
| Video | Composite video |
| Lens Construction | |
| Diagonal Field of View (degree) | 114.3 |
| Focal Length | 3.6 mm |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 94.8 |
| Lens Iris | F/2.0 |
| Min Focus Distance | 50 cm |
| Type | Fixed focal |
| Vertical Field of View (degree) | 49.3 |
| Miscellaneous | |
| Color | White |
| Compliant Standards | IP66, IK10, NEMA Type 4X, IEEE 802.3af, IEEE 802.1x, NDAA, EAC |
| Panning | |
| Range (degree) | -5 to +5 |
| Power | |
| Power Device | 5 watt |
| Power Requirements | PoE Class 3 |
| Tilting | |
| Range (degree) | 0 to 67 |
