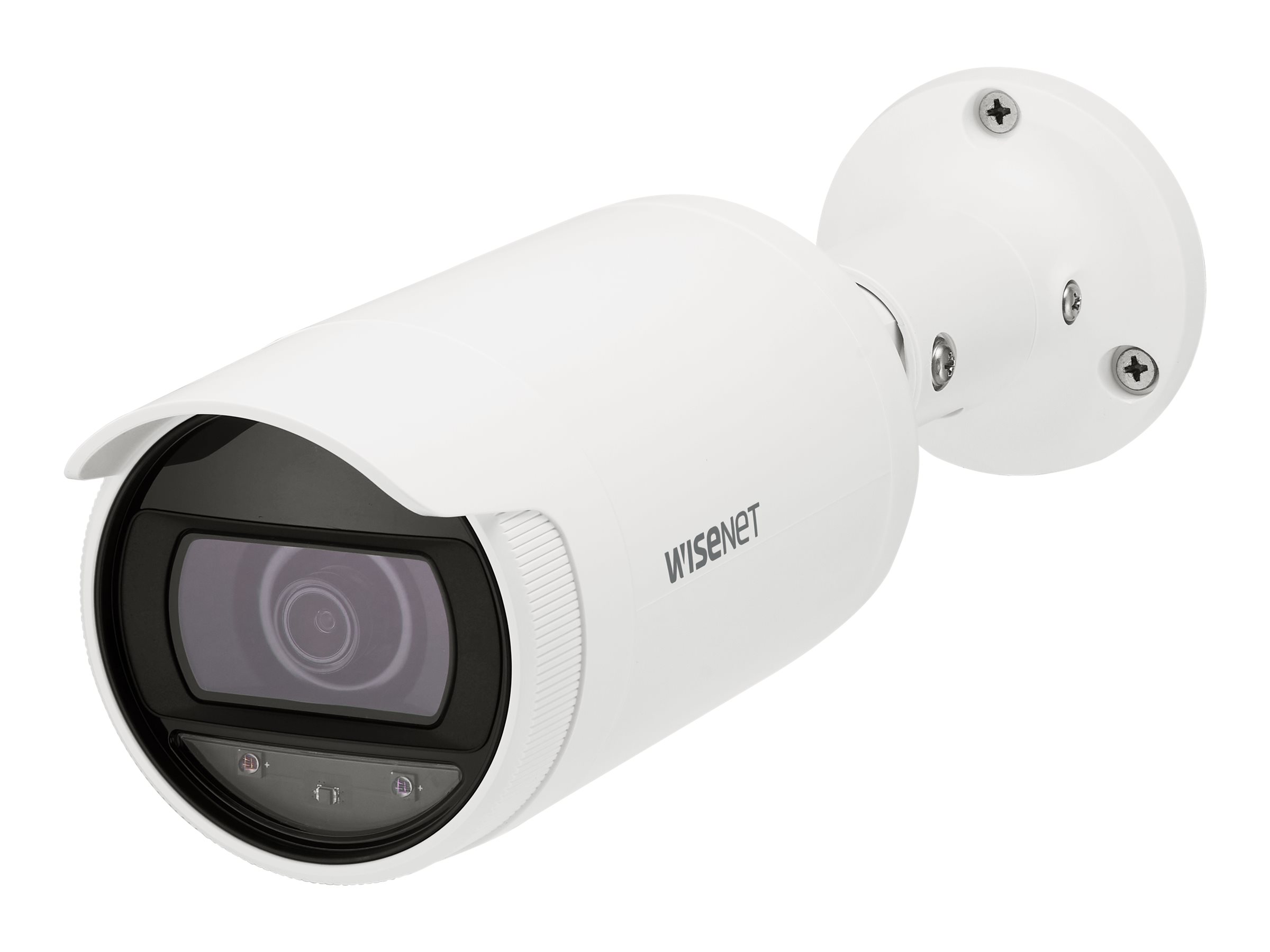

Hanwha Vision WiseNet ANO-L7022R
MSRP$253.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet ANO-L7022R
- Network surveillance camera
- bullet
- outdoor
- dustproof / waterproof / vandal-proof
- color (Day&Night)
- 3.7 MP
- 2560 x 1440
- fixed focal
- LAN 10/100
- H.264, H.265, MJPEG
- PoE Class 3
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $253.00 |
| Mfr Part #: | ANO-L7022R |
| SHI Part #: | 45978055 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | Hanwha Vision WiseNet ANO-L7022R - Network surveillance camera - bullet - outdoor - dustproof / waterproof / vandal-proof - color (Day&Night) - 3.7 MP - 2560 x 1440 - fixed focal - LAN 10/100 - H.264, H.265, MJPEG - PoE Class 3 |
| Manufacturer | HANWHA VISION |
| MSRP | $253.00 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 26.2 cm |
| Dimensions & Weight / Height | 7.8 cm |
| Dimensions & Weight / Weight | 390 g |
| Dimensions & Weight / Width | 7.8 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Camera | |
| Digital Video Format | H.264, H.265, MJPEG |
| Exposure Range | 2 sec - 1/12000 sec |
| Features | Backlight Compensation (BLC), Wide Dynamic Range (WDR), Samsung Super Dynamic Range (SSDR), digital noise reduction, ONVIF (Profile S) support, ONVIF (Profile G) support, ONVIF (Profile T) support, Samsung Super Noise Reduction (SSNRV), WiseStream II support, Defocus Detection, direction detection, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Virtual Line detection |
| Flash Memory | 256 MB |
| Infrared Distance | 25 m |
| Infrared LEDs | Yes |
| Max Digital Video Resolution | 2560 x 1440 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Type | Color - Day&Night - fixed - outdoor - dustproof / waterproof / vandal-proof |
| Video Capture | 2560 x 1440 @ 30 fps |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 0 - 90% RH |
| Expansion / Connectivity | |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Connectivity Technology | Wired |
| Depth | 26.2 cm |
| Device Type | Network surveillance camera |
| Form Factor | Bullet |
| Height | 7.8 cm |
| Weight | 390 g |
| Width | 7.8 cm |
| Image Sensor | |
| Type | 3.7 MP CMOS 1/3" |
| Interfaces | |
| Alarm Inputs Qty | 1 |
| Alarm Outputs Qty | 1 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, TLS, IPv4, IPv6, Bonjour, RTCP, PPPoE, IGMP, SSL, QOS, EAP |
| Lens Construction | |
| Diagonal Field of View (degree) | 91.2 |
| Focal Length | 4 mm |
| Focus Adjustment | Manual |
| Horizontal Field of View (degree) | 78.3 |
| Lens Iris | F/1.6 |
| Min Focus Distance | 1.7 m |
| Type | Fixed focal |
| Vertical Field of View (degree) | 42.9 |
| Miscellaneous | |
| Color | White, RAL 9003 |
| Compliant Standards | NEMA Type 4X, IK10, IP66, IEEE 802.3af, IEEE 802.1x |
| Power | |
| Power Device | 5.7 Watt |
| Power Requirements | PoE Class 3 |
