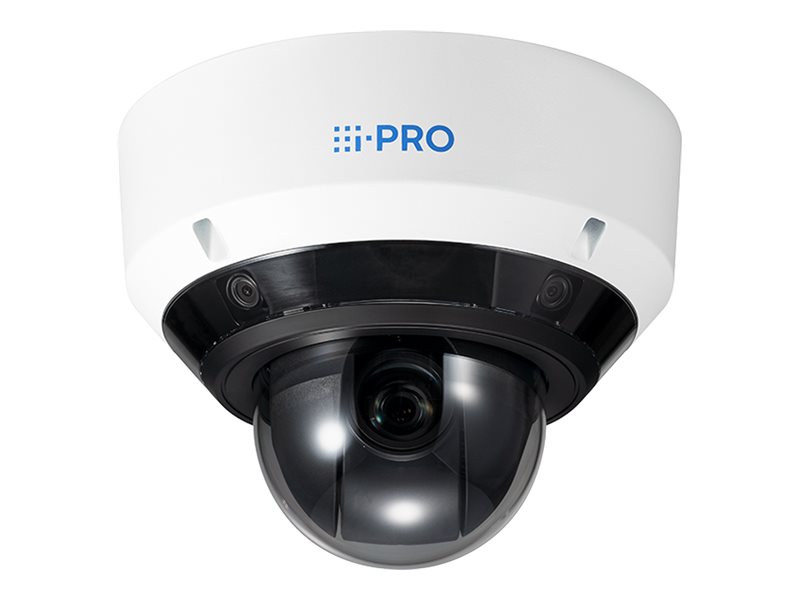

i-PRO WV-X86531-Z2 - Network surveillance camera

MSRP$6,430.12
$4,582.00
i-PRO WV-X86531-Z2 - Network surveillance camera
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • PTZ
  • dome
  • outdoor
  • tamper-proof / weatherproof
  • color (Day&Night)
i-PRO WV-X86531-Z2 - Network surveillance camera
  • PTZ
  • dome
  • outdoor
  • tamper-proof / weatherproof
  • color (Day&Night)
  • 3072 x 2304
  • audio
  • GbE
  • H.264, H.265, MJPEG
  • DC 54 V / PoE++ Class 5
  Additional Details
Price: $4,582.00
MSRP: $6,430.12
Mfr Part #: WV-X86531-Z2
SHI Part #: 45890452
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: Panasonic
Product Type: Hardware
General Information
CategoryDigital cameras
Descriptioni-PRO WV-X86531-Z2 - Network surveillance camera - PTZ - dome - outdoor - tamper-proof / weatherproof - color (Day&Night) - 3072 x 2304 - audio - GbE - H.264, H.265, MJPEG - DC 54 V / PoE++ Class 5
ManufacturerPanasonic
MSRP$6,430.12
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth25 cm
Dimensions & Weight / Height19.5 cm
Dimensions & Weight / Weight3.8 kg
Dimensions & Weight / Width25 cm
Header / Brandi-Pro
Miscellaneous / Product ColorWhite
Packaged Quantity1
Camera
Digital Video Capture Resolution3072 x 2304, 2560 x 1920, 1280 x 960, 3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 2048 x 1536
Digital Video FormatH.264, H.265, MJPEG
Exposure Range1/30 sec - 1/10000 sec
FeaturesAuto tracking, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Intelligent Auto (iA), Super Dynamic technology, Adaptive Black Stretch (ABS), Backlight Compensation (BLC), Highlight Compensation (HLC), fog compensation, auto ICR, Automatic Gain Control (AGC), digital noise reduction, Scene Change Detection, Audio Detection, AI Sound Classification, AI Analytics, AI face detection, People Detection, AI vehicle detection, AI non mask detection, AI occupancy detection, 32 privacy zones, Variable Image Quality on Specified area (VIQS), digital image rotation, image stabilizer, DORI coverage, Ambarella CV2 CPU, Ambarella CV25M CPU, 256 preset positions, auto pan function, preset sequence, Patrol Mode, 16:9 aspect ratio, 4:3 aspect ratio, self return, Constant Bitrate (CBR), Variable Bitrate (VBR), Group of Pictures (GOP), user authentication, Device Certificate GlobalSign pre-installed, digest authentication, host authentication, system log, image transmission log, brute force delay protection, alteration detection, signed firmware, e-mail alerts, temish element, die-cast aluminium housing, polycarbonate bubble
Frame Rate (max)60 frames per second
Max Digital Video Resolution3072 x 2304
Minimum Illumination
  • 0.011 lux - color - F1.6 - 30 IRE - shutter 1/30 sec
  • 0.015 lux - color - F1.6 - 50 IRE - shutter 1/30 sec
  • 0.006 lux - B&W - F1.6 - 50 IRE - shutter 1/30 sec
  • 0.12 lux - color - F2.0 - 30 IRE - shutter 1/30 sec
  • 0.17 lux - color - F2.0 - 50 IRE - shutter 1/30 sec
  • 0.1 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec
Motion DetectionYes
Supported Image FormatsJPEG
TypeColor - Day&Night - pan / tilt / zoom - outdoor - tamper-proof / weatherproof
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature-40 °C
Relative Humidity (operating)10 - 100% (non-condensing)
Expansion / Connectivity
Encryption AlgorithmFIPS 140-2 Level 3
Ports
  • 2 x LAN - RJ-45
  • Audio line in - 3.5 mm stereo jack
  • Audio line out - 3.5 mm stereo jack
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.726, ADPCM, G.711, AAC-LC
Audio SupportYes: two-way audio capability
Connectivity TechnologyWired
Depth25 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height19.5 cm
Weight3.8 kg
Width25 cm
Image Sensor
Type
  • 1 x 2 MP 1/2.8"
  • 4 x 5 MP 1/2.7"
Interfaces
Alarm Inputs Qty3
Network InterfaceEthernet 10Base-T/100Base-TX/1000Base-T
Network ProtocolsIPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, TLS, SMTP, DNS, NTP, SNMP 1, SNMP 2, SNMP 3, DHCPv6, RTP, MLD, ICMP, ARP, LLDP, MQTT
Lens Construction
Lens System
  • 1 x motorized zoom - 4 mm - 84.6 mm - automatic adjustment (min distance 1.5 m) - f/1.6-4.5
  • 4 x 3.2 mm (min distance 1 m) - f/2.0
Optical Zoom21 x
Miscellaneous
ColorWhite
Compliant StandardsIEC 60529 IP67, IEC 62262 IK10, IEC 60529 IP66, NDAA, IEEE 802.1x, UL 62368-1, CSA C22.2 No. 62368-1, IEC 62368-1, FCC Part 15 A, ICES-003 Class A, EN 55032 Class A, EN 55035, IEEE 802.3bt, NEMA TS-2 (2.2.7-2.2.9), UL 50E Type 4X, NEMA Type 4X
Panning
Range (degree)360
Speed (degree/sec)Up to 500
Power
Power Device35.6 watt
Power RequirementsDC 54 V / PoE++ Class 5 - 0.66 A
Tilting
Range (degree)-15 to +195
Speed (degree/sec)Up to 500
