i-PRO WV-X86530-Z2 - Network surveillance camera

Login for Price

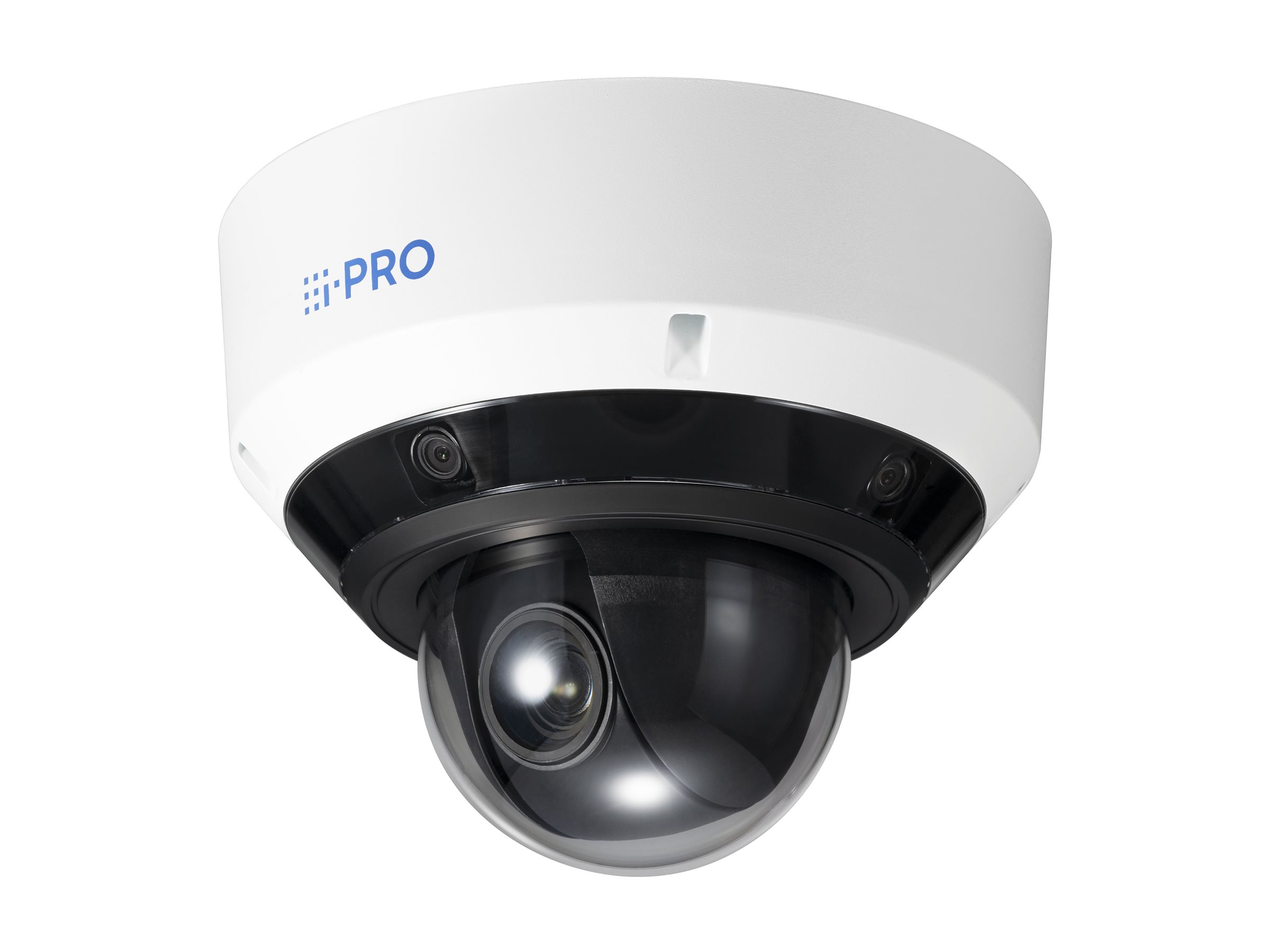

i-PRO WV-X86530-Z2 - Network surveillance camera
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • multi-sensor + pan / tilt / zoom
  • dome
  • outdoor
  • dust resistant / water resistant / shock resistant / wind resistant
  • color (Day&Night)
i-PRO WV-X86530-Z2 - Network surveillance camera
  • multi-sensor + pan / tilt / zoom
  • dome
  • outdoor
  • dust resistant / water resistant / shock resistant / wind resistant
  • color (Day&Night)
  • 3 x 5 MP + 2 MP
  • 3072 x 2304
  • 1080p
  • audio
  • GbE
  • H.264, H.265, MJPEG
  • DC 54 V / PoE ++
  Additional Details
Mfr Part #: WV-X86530-Z2
SHI Part #: 45890450
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: Panasonic
Product Type: Hardware
General Information
CategoryDigital cameras
Descriptioni-PRO WV-X86530-Z2 - Network surveillance camera - multi-sensor + pan / tilt / zoom - dome - outdoor - dust resistant / water resistant / shock resistant / wind resistant - color (Day&Night) - 3 x 5 MP + 2 MP - 3072 x 2304 - 1080p - audio - GbE - H.264, H.265, MJPEG - DC 54 V / PoE ++
ManufacturerPanasonic
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth25 cm
Dimensions & Weight / Height19.5 cm
Dimensions & Weight / Weight3.8 kg
Dimensions & Weight / Width25 cm
Header / Brandi-Pro
Miscellaneous / Product ColorWhite
Packaged Quantity1
Service & Support / Type7-year warranty
Camera
Digital Video Capture Resolution3072 x 2304, 2560 x 1920, 1280 x 960, 3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 2048 x 1536
Digital Video FormatH.264, H.265, MJPEG
Exposure Range16/30 sec - 1/10000 sec
FeaturesAuto tracking, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Intelligent Auto (iA), Super Dynamic technology, Adaptive Black Stretch (ABS), Backlight Compensation (BLC), Highlight Compensation (HLC), fog compensation, Automatic Gain Control (AGC), digital noise reduction, Scene Change Detection, Audio Detection, AI Sound Classification, AI Privacy Guard, AI face detection, AI Person Detection, AI vehicle detection, AI non mask detection, AI occupancy detection, 32 privacy zones, Variable Image Quality on Specified area (VIQS), image stabilizer, Ambarella CV2 CPU, Ambarella CV25M CPU, 256 preset positions, auto pan function, Patrol Mode, preset sequence, self return, Group of Pictures (GOP), half duplex audio, full duplex audio, Device Certificate GlobalSign pre-installed, alteration detection, temish element
Frame Rate (max)60 frames per second
Max Digital Video Resolution3072 x 2304
Minimum Illumination
  • 0.12 lux - color, multi-part - F2.0 - 30 IRE - shutter 1/30 sec
  • 0.17 lux - color, multi-part - F2.0 - 50 IRE - shutter 1/30 sec
  • 0.1 lux - B&W, multi-sensor - F2.0 - 50 IRE - shutter 1/30 sec
  • 0.011 lux - color, PTZ - F1.6 - 30 IRE - shutter 1/30 sec
  • 0.015 lux - color, PTZ - F1.6 - 50 IRE - shutter 1/30 sec
  • 0.006 lux - B&W, PTZ - F1.6 - 50 IRE - shutter 1/30 sec
Motion DetectionYes
Supported Image FormatsJPEG
TypeColor - Day&Night - multi-sensor + pan / tilt / zoom - outdoor - dust resistant / water resistant / shock resistant / wind resistant
Video Modes1080p
Environmental Parameters
Max Operating Temperature55 °C
Min Operating Temperature-40 °C
Relative Humidity (operating)10 - 100% (non-condensing)
Expansion / Connectivity
Ports
  • Audio line in - 3.5 mm stereo jack
  • Audio line out - 3.5 mm stereo jack
  • LAN - RJ-45
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.726, G.711, ADPCM, AAC-LC
Audio SupportYes: two-way audio capability
Connectivity TechnologyWired
Depth25 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height19.5 cm
Weight3.8 kg
Width25 cm
Image Sensor
Type
  • 3 x 5 MP CMOS 1/2.7"
  • 1 x 2 MP CMOS 1/2.8"
Interfaces
Alarm Inputs Qty3
Alarm Outputs Qty1
Network InterfaceEthernet 10Base-T/100Base-TX/1000Base-T
Network ProtocolsIPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, TLS, SMTP, DNS, NTP, SNMP 1, SNMP 2, SNMP 3, DHCPv6, RTP, MLD, ICMP, ARP, LLDP, MQTT
Lens Construction
Lens System
  • 3 x fixed focal - 3.2 mm (min distance 1 m) - f/2.0 - 97° (H) / 71° (V)
  • 1 x motorized zoom - 4 mm - 84.6 nm - automatic adjustment (min distance 1.5 m) - f/1.6-4.5 - 3.7-77° (H) / 2.2-44° (V)
Optical Zoom21 x
Manufacturer Warranty
Service & SupportLimited warranty - 7 years
Miscellaneous
ColorWhite
Compliant StandardsIP66, IP67, IK10, FIPS 140-2 Level 3, NDAA, UL 62368-1, CSA C22.2 No. 62368-1, IEC 62368-1, FCC Part 15 A, ICES-003 Class A, EN 55032 Class A, EN 55035, IEEE 802.3bt, IEC 60529 IP67, IEC 60529 IP66, UL 50E Type 4X, NEMA Type 4X, IEC 62262 IK10, NEMA TS-2 (2.2.7-2.2.9)
Panning
Range (degree)360
Speed (degree/sec)Up to 500
Power
Power Device35.6 watt
Power RequirementsDC 54 V / PoE ++ - 0.66 A
Tilting
Range (degree)-15 to +195
Speed (degree/sec)Up to 500
