Hardware Cameras and Camcorders Digital Cameras and Camcorders
Add to My Favorites
Digital Cameras and Camcorders

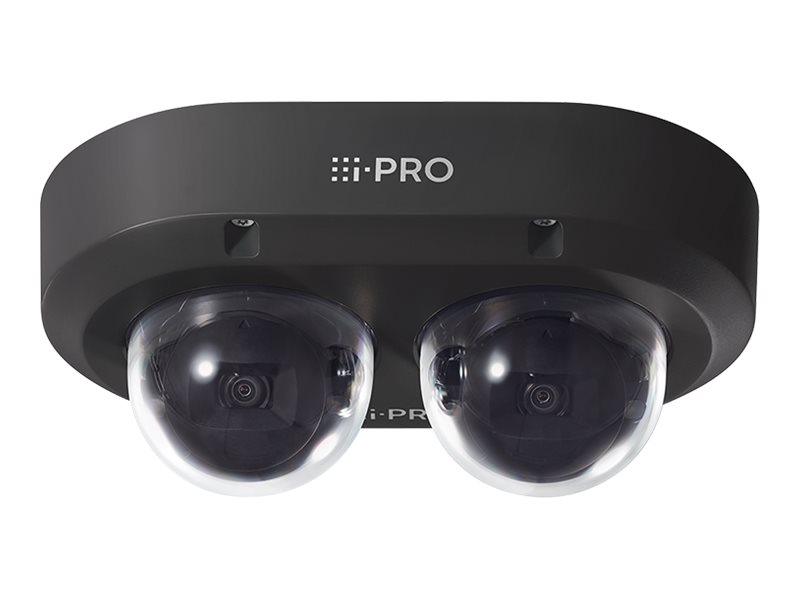

i-PRO WV-U85402-V2L1

MSRP$1,726.72
$1,231.00
i-PRO WV-U85402-V2L1
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Network surveillance camera
  • PTZ
  • dome
  • outdoor
  • dust resistant / water resistant
i-PRO WV-U85402-V2L1
  • Network surveillance camera
  • PTZ
  • dome
  • outdoor
  • dust resistant / water resistant
  • color (Day&Night)
  • 8 MP
  • 2688 x 1520
  • motorized
  • audio
  • GbE
  • H.264, H.265, MJPEG
  • DC 54 V / PoE Plus Class 4
  Additional Details
Price: $1,231.00
MSRP: $1,726.72
Mfr Part #: WV-U85402-V2L1
SHI Part #: 45883799
Category: Digital cameras
UNSPSC: 45121504
Manufacturer: i-Pro Americas Inc.
Product Type: Hardware
General Information
CategoryDigital cameras
Descriptioni-PRO WV-U85402-V2L1 - Network surveillance camera - PTZ - dome - outdoor - dust resistant / water resistant - color (Day&Night) - 8 MP - 2688 x 1520 - motorized - audio - GbE - H.264, H.265, MJPEG - DC 54 V / PoE Plus Class 4
Manufactureri-Pro Americas Inc.
MSRP$1,726.72
UNSPSC45121504
Main Specifications
Dimensions & Weight / Depth15 cm
Dimensions & Weight / Height10.5 cm
Dimensions & Weight / Weight1.8 kg
Dimensions & Weight / Width25 cm
Header / Brandi-Pro
Miscellaneous / Product ColorBlack
Packaged Quantity1
Camera
Digital Video Capture Resolution2688 x 1520, 2560 x1440, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180
Digital Video FormatH.264, H.265, MJPEG
Exposure Range1/10000 sec
Features16:9 aspect ratio, Ambarella CV22 SoC, Super Dynamic technology, 45.1m detect distance (wide), 136.5m detect distance (tele), 18m observe distance (wide), 54.6m observe distance (tele), 9m recognize distance (wide), 27.3m recognize distance (tele), 4.5m identify distance (wide), 13.6m identify distance (tele), extra zoom 10.5x, Scene Change Detection (SCD), + / -90° YAW, Group of Pictures (GOP), Auto VIQS, temish element, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Highlight Compensation (HLC), Intelligent Auto (iA), digital noise reduction, Audio Detection, Corridor mode, fog compensation, Automatic Gain Control (AGC), 180° image rotation, 90° image rotation, 270° image rotation
Infrared Distance40 m
Infrared LEDsYes
Max Digital Video Resolution2688 x 1520
Minimum Illumination
  • 0.21 lux - color - F2.0 - 30 IRE - shutter 1/30 sec
  • 0.3 lux - color - F2.0 - 50 IRE - shutter 1/30 sec
  • 0.019 lux - color - F2.0 - 50 IRE - shutter 16/30 sec
  • 0 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec
  • 0.12 lux - B&W - F2.0 - 50 IRE - shutter 1/30 sec
  • 0.0075 lux - B&W - F2.0 - 50 IRE - shutter 16/30 sec
Motion DetectionYes
Supported Image FormatsJPEG
TypeColor - Day&Night - pan / tilt / zoom - outdoor - dust resistant / water resistant
Environmental Parameters
Max Operating Temperature60 °C
Min Operating Temperature-40 °C
Relative Humidity (operating)10 - 100% (non-condensing)
Expansion / Connectivity
Ports
  • LAN - RJ-45
  • Audio line in - 3.5 mm stereo jack
  • Audio line out - 3.5 mm stereo jack
Supported Memory CardsmicroSD Card, microSDHC Card, microSDXC Card
General
Audio FormatsG.726, ADPCM, G.711, AAC-LC
Audio SupportYes
Connectivity TechnologyWired
Depth15 cm
Device TypeNetwork surveillance camera
Form FactorDome
Height10.5 cm
Weight1.8 kg
Width25 cm
Image Sensor
Type8 MP CMOS 2 x 1/2.7"
Interfaces
Alarm Inputs Qty3
Network InterfaceEthernet 10Base-T/100Base-TX/1000Base-T
Network ProtocolsIPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, TLS, SMTP, DNS, NTP, SNMP 1, SNMP 2, SNMP 3, DHCPv6, RTP, MLD, ICMP, ARP, RTSP, RTCP, DHCP, DDNS, UPnP, IGMP, SRTP, MQTT
Lens Construction
Focal Length2.9 mm - 7.3 mm
Focus AdjustmentMotorized
Horizontal Field of View (degree)43 - 100
Lens IrisF/2.0-3.0
Min Focus Distance1 m
Optical Zoom2.5 x
TypeMotorized zoom
Vertical Field of View (degree)24 - 56
Miscellaneous
ColorBlack
Compliant StandardsIEC 60529 IP66, IEC 60529 IP67, UL 50E Type 4X, NEMA Type 4X, IK10, IEEE 802.1x, NEMA TS-2 (2.2.7-2.2.9), FCC Part 15 A, ICES-003 Class A, EN 55032 Class A, EN 55035, UL, C-UL, IEC 62368-1, FIPS 140-2 Level 3, NDAA
Panning
Range (degree)-50 to +230
Power
Power RequirementsDC 54 V / PoE Plus Class 4
Tilting
Range (degree)+10 to +105
