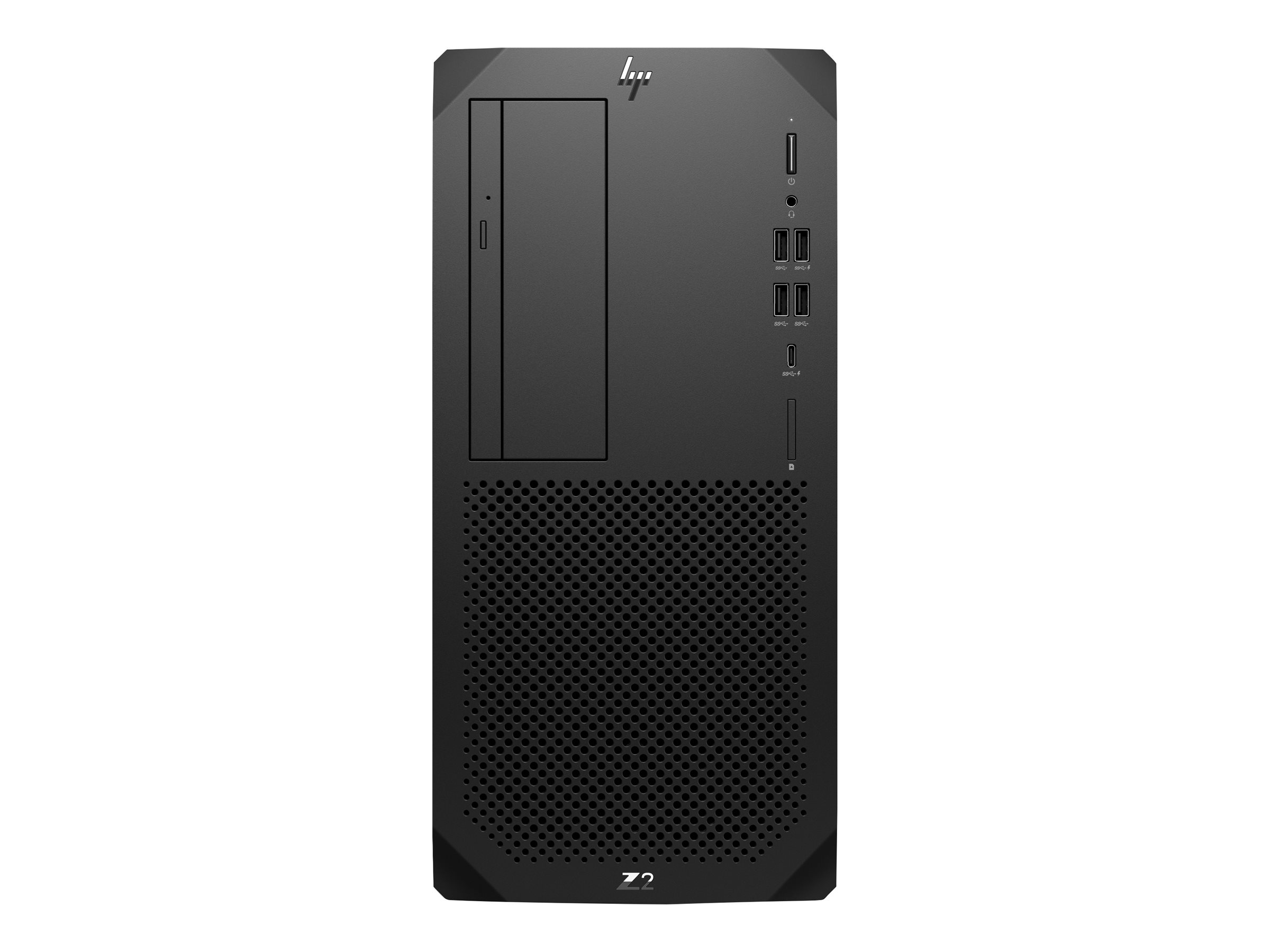

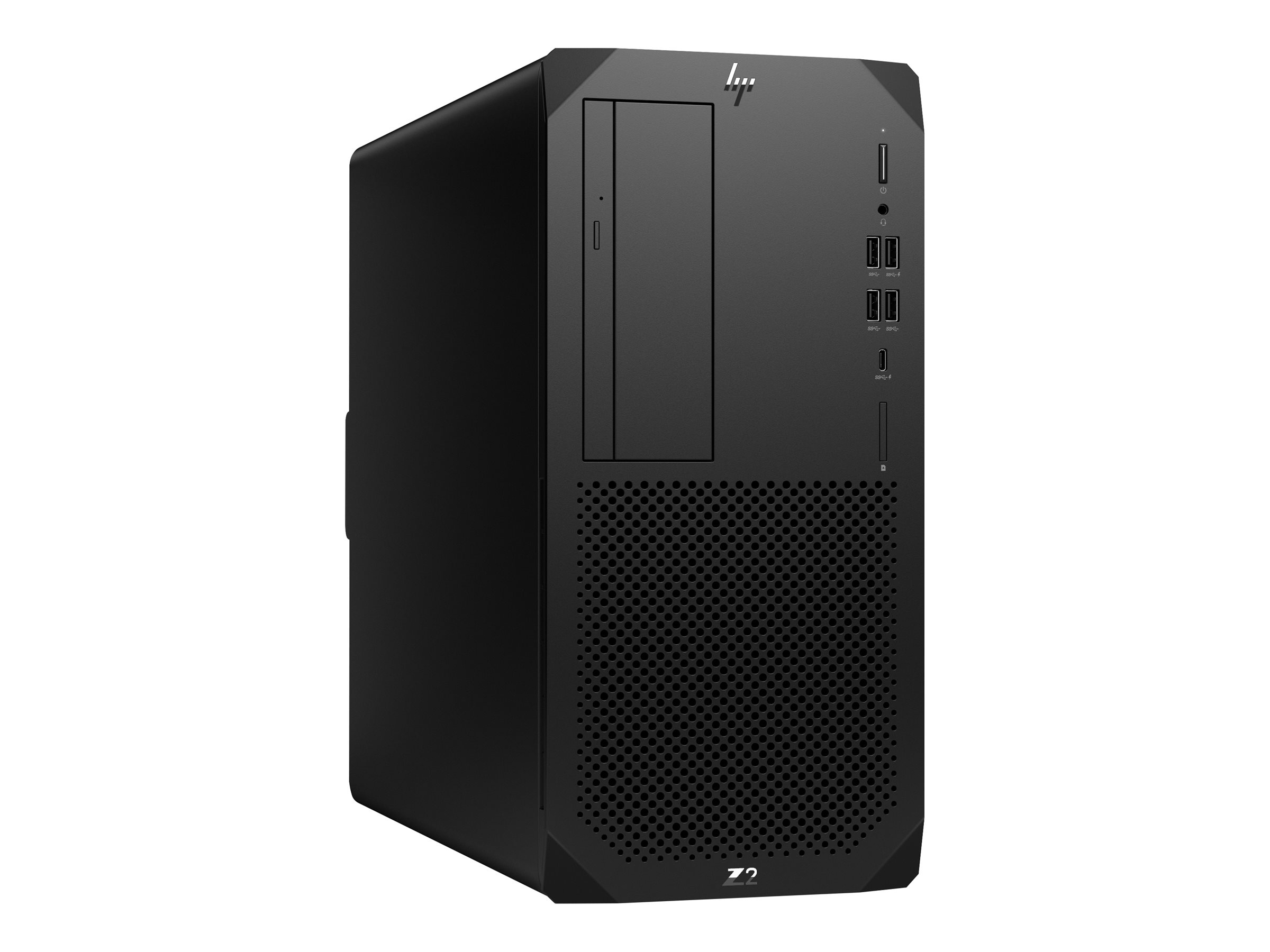

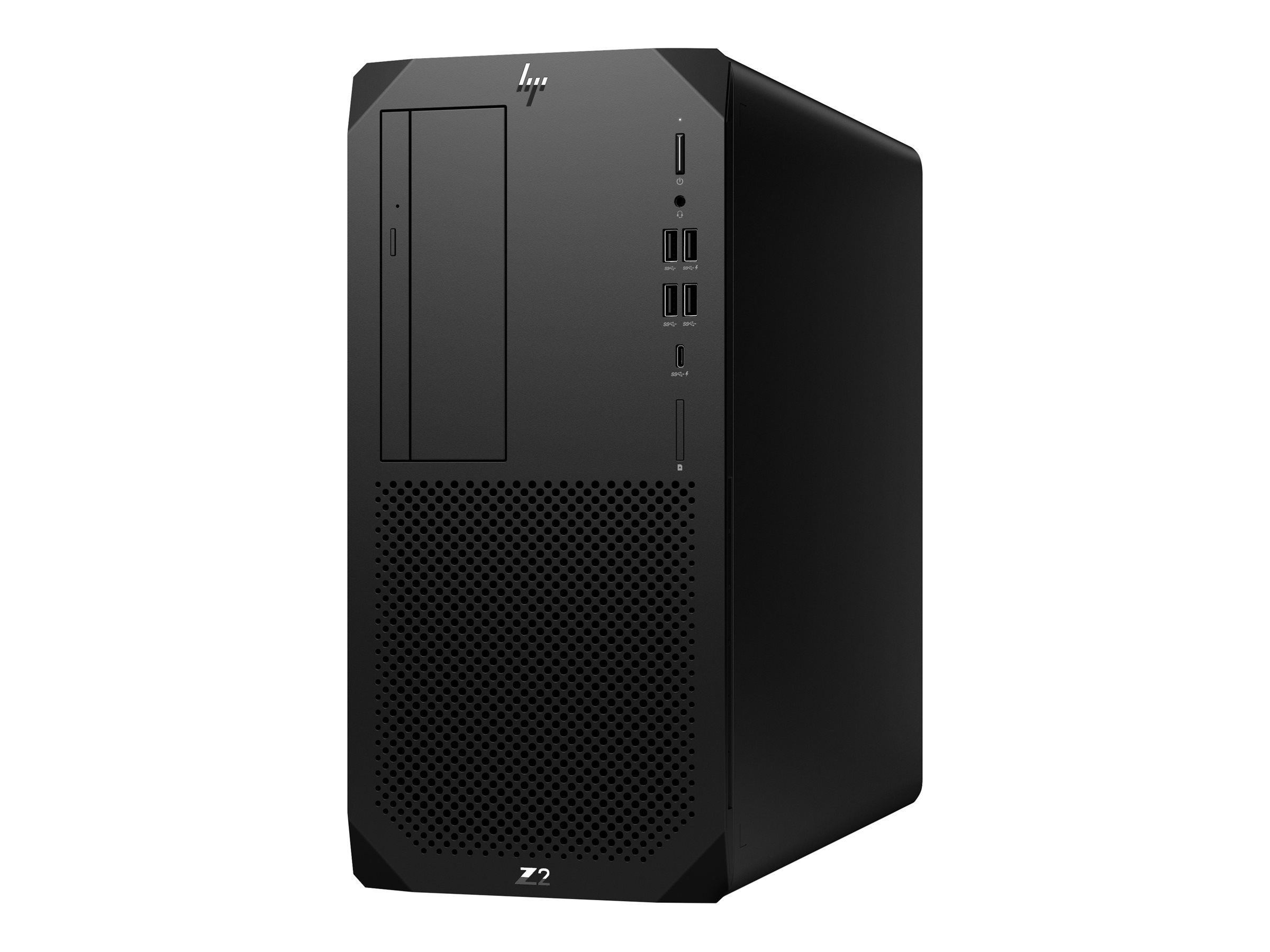

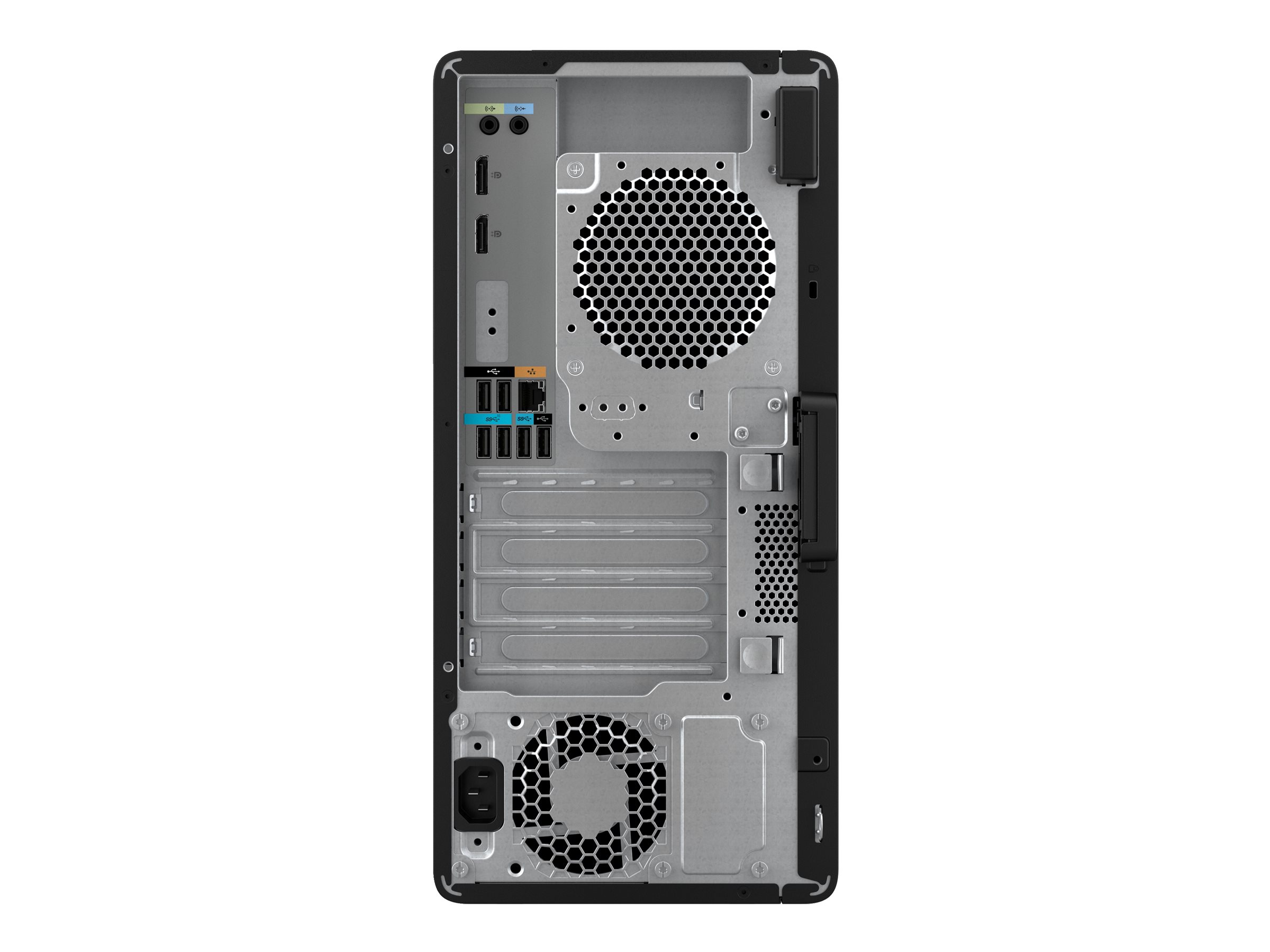

HP Workstation Z2 G9

Login for Price
HP Workstation Z2 G9
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • AI Workstation
  • tower 4U
  • 1 x Core i5 12400 / up to 4.4 GHz
  • RAM 16 GB
  • SSD 512 GB
HP Workstation Z2 G9
  • AI Workstation
  • tower 4U
  • 1 x Core i5 12400 / up to 4.4 GHz
  • RAM 16 GB
  • SSD 512 GB
  • NVMe
  • AMD Radeon Pro WX 3200 / Intel UHD Graphics 730
  • Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E)
  • Win 11 Pro
  • monitor: none
  • keyboard: US
  • black
  Additional Details
Mfr Part #: 7P2B8UA#ABA
SHI Part #: 45837797
Category: Desktop computers
UNSPSC: 43211507
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryDesktop computers
DescriptionHP Workstation Z2 G9 - AI Workstation - tower 4U - 1 x Core i5 12400 / up to 4.4 GHz - RAM 16 GB - SSD 512 GB - NVMe - AMD Radeon Pro WX 3200 / Intel UHD Graphics 730 - Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) - Win 11 Pro - monitor: none - keyboard: US - black
ManufacturerHP, Inc.
UNSPSC43211507
Main Specifications
Chassis / Form FactorTower
Dimensions & Weight / Depth38.5 cm
Dimensions & Weight / Height35.6 cm
Dimensions & Weight / Weight7.2 kg
Dimensions & Weight / Width16.9 cm
Display / TypeNone.
Hard Drive / Capacity512 GB
Hard Drive / InterfacePCI Express 4.0 x4
Hard Drive / Interface TypePCI Express 4.0 x4
Header / BrandHP
Header / Country KitsUnited States
Header / LocalizationEnglish
Mainboard / Chipset TypeIntel W680
Mainboard / Processor SocketLGA1700 Socket
Miscellaneous / Product ColorBlack
Networking / Data Link Protocol
  • Bluetooth 5.2
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Networking / Wireless LAN SupportedYes
Networking / Wireless Protocol
  • 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
  • Bluetooth 5.2
Optical Storage / Drive TypeNo optical drive
Optical Storage / TypeNone
OS Provided / TypeWindows 11 Pro
Packaged Quantity1
Processor / Clock Speed2.5 GHz
Processor / Generation12
Processor / ManufacturerIntel
Processor / Number of Cores6-core
Processor / Processor NumberI5-12400
Processor / TypeCore i5
RAM / Data Integrity CheckNon-ECC
RAM / Form FactorDIMM 288-pin
RAM / Memory Speed4800 MHz
RAM / TechnologyDDR5 SDRAM
Service & Support / Type3-year warranty
System / Hard Drive Capacity512 GB
System / TypeWorkstation
Video Memory / TechnologyGDDR5 SDRAM
Video Output / Graphics ProcessorAMD Radeon Pro WX 3200 / Intel UHD Graphics 730
Audio Output
Compliant StandardsHigh Definition Audio
Cache Memory
Cache Per Processor18 MB
Installed SizeL3 cache - 18 MB
Dimensions & Weight
Depth38.5 cm
Height35.6 cm
Weight7.2 kg
Width16.9 cm
Dimensions & Weight (Shipping)
Shipping Depth49 cm
Shipping Height51.8 cm
Shipping Width29.5 cm
Environmental Parameters
Humidity Range Operating10 - 85% RH (non-condensing)
Max Operating Temperature35 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Bays
  • 1 (total) / 1 (free) x external 5.25"
  • 1 (total) / 1 (free) x external 5.25" Slim Line
  • 2 (total) / 2 (free) x internal 3.5"
  • 1 (total) / 1 (free) x internal 2.5"
Interfaces
  • 1 x headphones/microphone (1 in front) (CTIA and OMTP headset support)
  • 6 x USB 3.2 Gen 2 (4 front, 2 rear) (one of them is charging)
  • 1 x audio line-in
  • 1 x audio line-out
  • 2 x DisplayPort 1.4
  • 1 x LAN (Gigabit Ethernet)
  • 3 x USB 2.0
  • 1 x USB 3.2 Gen 1
Slots
  • 1 (total) / 0 (free) x PCIe 5.0 x16
  • 1 (total) / 1 (free) x PCIe 3.0 x4 (x1 mode)
  • 1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode)
  • 1 (total) / 1 (free) x PCIe 3.0 x4
  • 3 (total) / 2 (free) x M.2 Card - 2280 (PCIe 4.0 x4 mode)
  • 1 (total) / 1 (free) x M.2 Card - 2230 (PCIe 3.0 x1 mode and Intel CNVi wireless module)
General
AI LevelAI Workstation
ColorBlack
Embedded SecurityTrusted Platform Module (TPM 2.0) Security Chip
LocalizationLanguage: English / region: United States
Product Form FactorTower - 4U
TypeWorkstation
Graphics Controller
Graphics ProcessorAMD Radeon Pro WX 3200 / Intel UHD Graphics 730
Multi-GPU Configuration1 single GPU card / integrated GPU
Video InterfacesDisplayPort
Video Memory4 GB GDDR5 SDRAM
Hard Drive
Capacity1 x 512 GB
FeaturesNVM Express (NVMe)
Interface TypePCI Express 4.0 x4
TypeSSD - M.2 2280
Input Device
TypeMouse, keyboard
Keyboard
Keyboard NameHP 125
Localization & LayoutUS
Manufacturer Warranty
Service & Support
  • Limited warranty - parts and labor - 3 years - on-site
  • Technical support - phone consulting - 3 years - response time: next business day
Miscellaneous
Compliant StandardsRoHS, FIPS 140-2, WEEE, Energy-Related Products (ErP) Lot 6, CECP, SEPA, low halogen
Security Slot TypeKensington security slot
Theft/Intrusion ProtectionSecurity lock slot (cable lock sold separately), padlock loop
Monitor
Monitor TypeNone.
Mouse
Mouse NameHP 125
Networking
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1as, IEEE 802.3az
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E)
Ethernet ControllerIntel I219-LM
FeaturesWake on LAN (WoL), ACPI support, auto-uplink (auto MDI/MDI-X), PXE 2.1 support
Interface (Bus) TypeM.2 2230 (CNVi)
Wireless LAN SupportedYes
Wireless NICIntel Wi-Fi 6E AX 211
Operating System / Software
OS ProvidedWindows 11 Pro English
SoftwareHP Support Assistant, HP PC Hardware Diagnostics UEFI, HP Secure Erase, HP BIOS Configuration Utility (free download), HP Driver Packs, HP Image Assistant, HP PC Hardware Diagnostics, HP System Software Manager (free download), HP Sure Click, HP Manageability Integration Kit, HP Sure Admin, HP Client Security Manager Gen6, HP BIOSphere Gen6, HP ZCentral Remote Boost, HP Sure Recover Gen4, HP Management Integration Kit for Microsoft System Center Configuration Manager Gen 4, HP Performance Advisor 3.0, HP Sure Sense Gen2, HP Sure Run Gen5, HP Sure Start Gen7
Optical Storage
TypeNo optical drive
Power
Device TypePower supply
Efficiency90%
Power Factor CorrectionYes (active)
Power Provided450 watt
Processor / Chipset
Chipset TypeIntel W680
Clock Speed2.5 GHz
CPUIntel Core i5 (12th Gen) 12400
CPU Qty1
CPU SocketLGA1700 Socket
CPU UpgradabilityUpgradable
L2 cache7.5 MB
Max CPU Qty1
Max Turbo Speed4.4 GHz
Number of Cores6-core
Processor Main FeaturesHyper-Threading Technology, Intel Turbo Boost Technology 2, Intel Smart Cache
RAM
Configuration Features1 x 16 GB
Effective Memory Speed4800 MHz
FeaturesUnbuffered, dual channel memory architecture
Form FactorDIMM 288-pin
Installed Size16 GB (installed) / 128 GB (max)
Rated Memory Speed4800 MHz
Slots4 (total) / 3 (empty)
TechnologyDDR5 SDRAM - non-ECC
Storage Controller
Channel Qty4
Controller Interface TypeSATA 6Gb/s / PCIe 4.0 x4 (NVMe)
RAID LevelRAID 0, RAID 1
Type1 x SATA/NVMe
Sustainability Information
EPEAT CompliantEPEAT Gold
