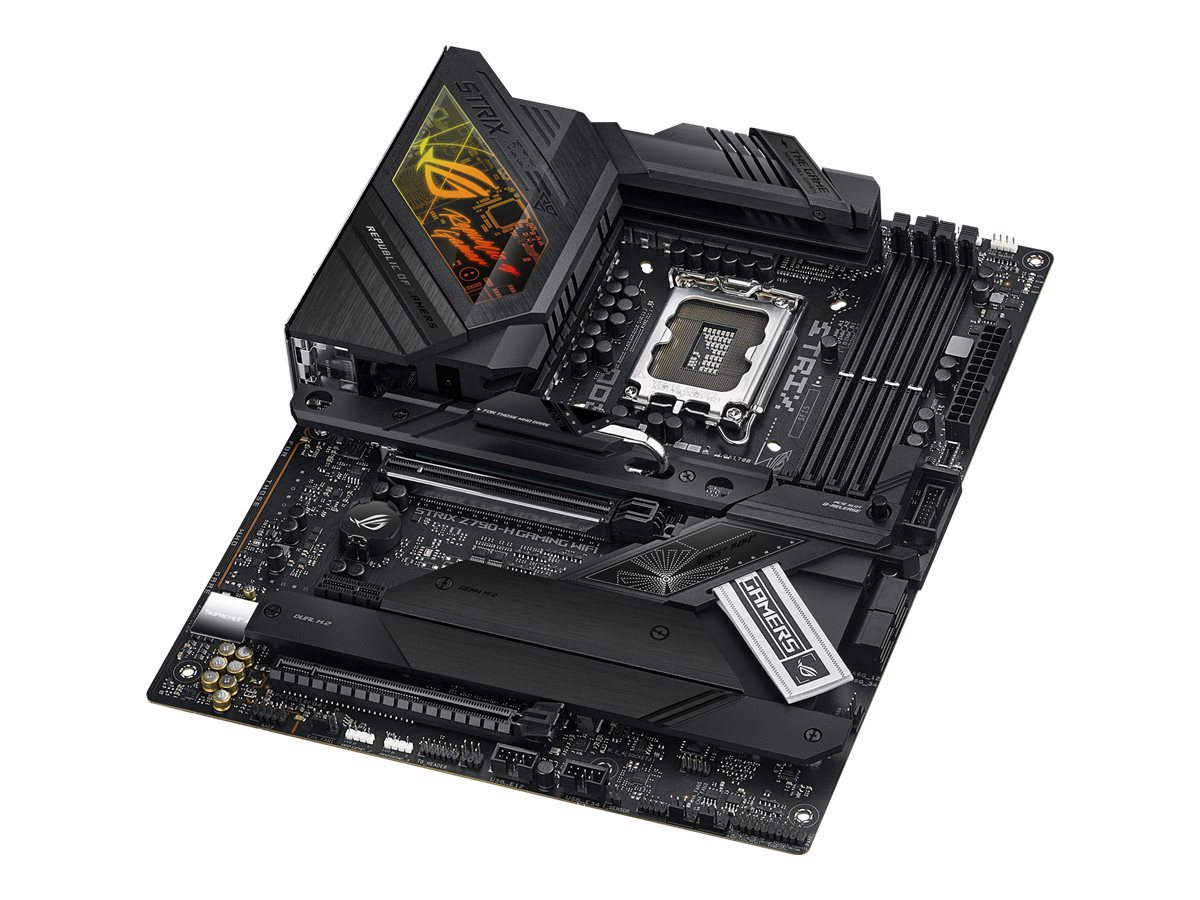

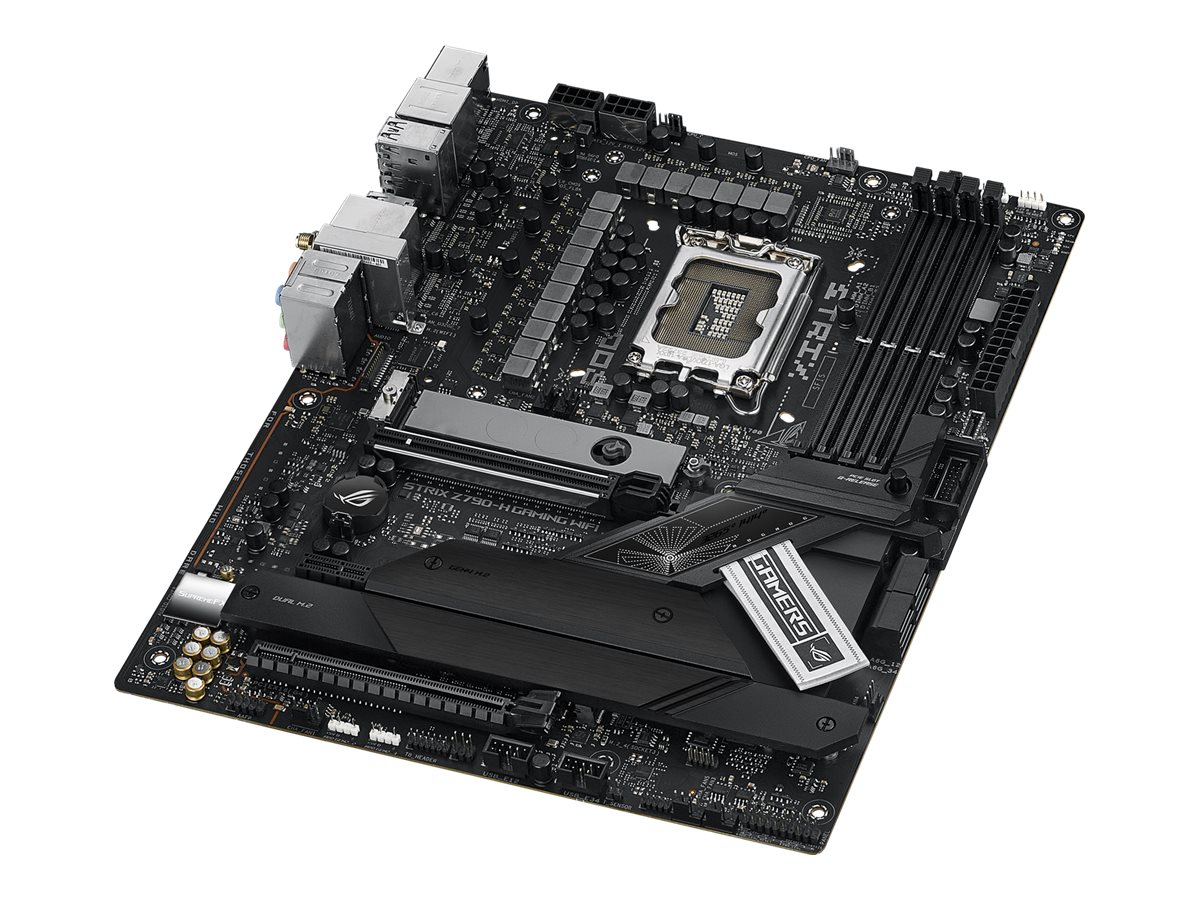

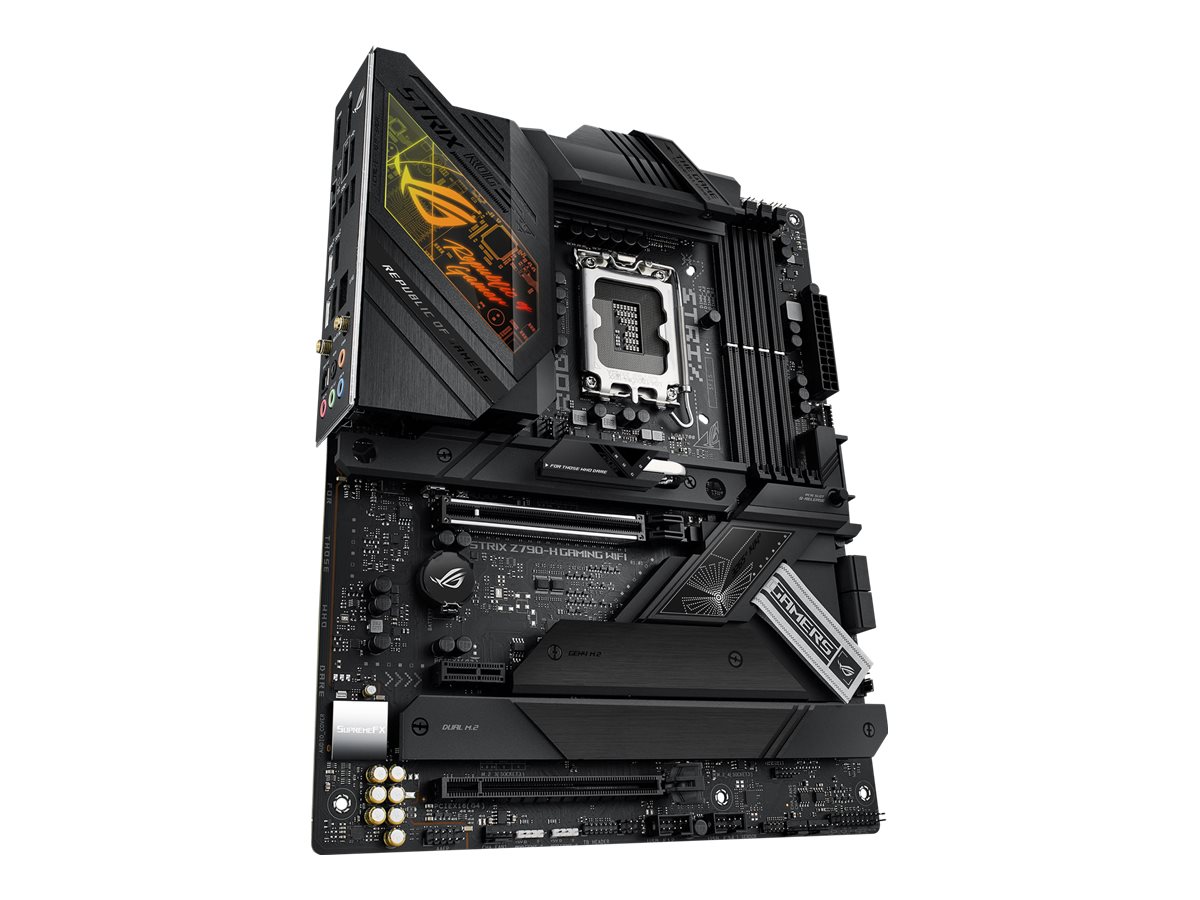

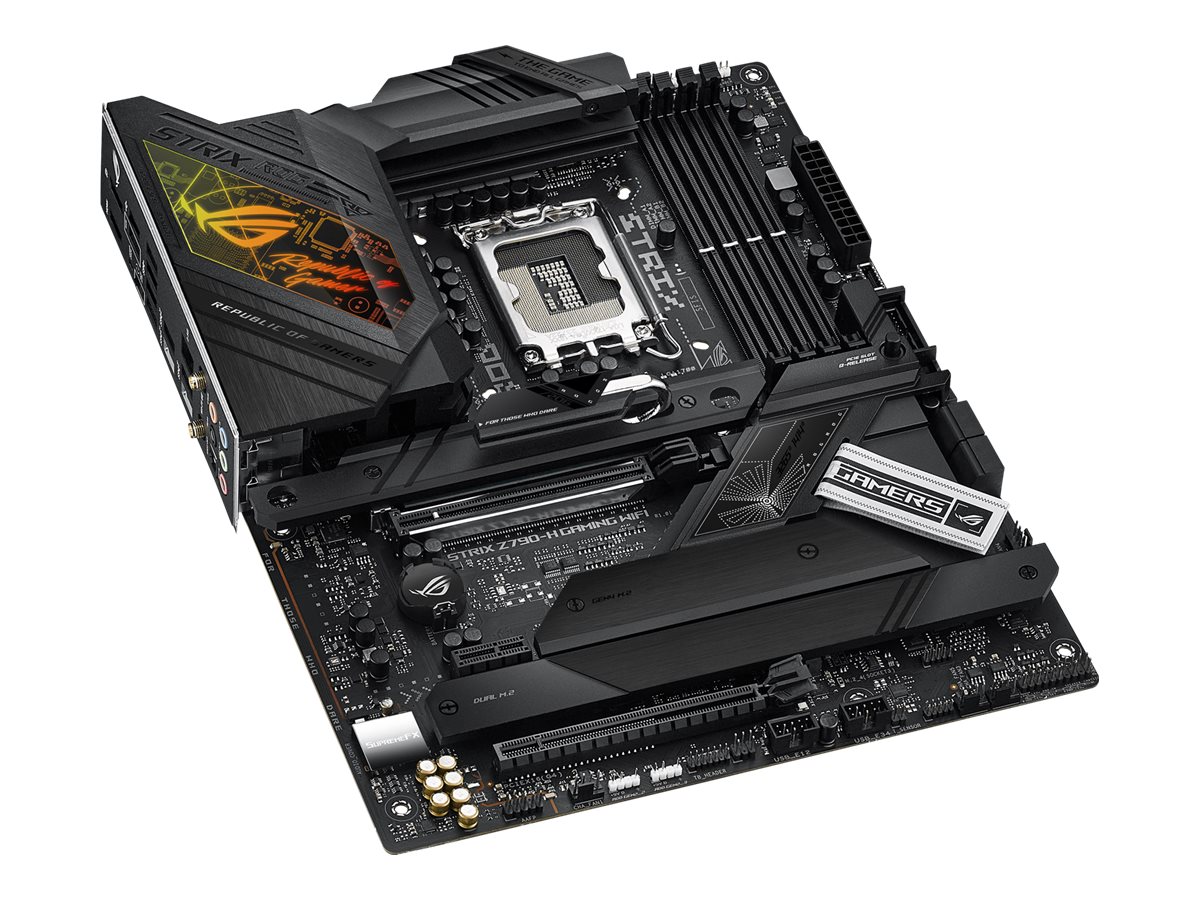

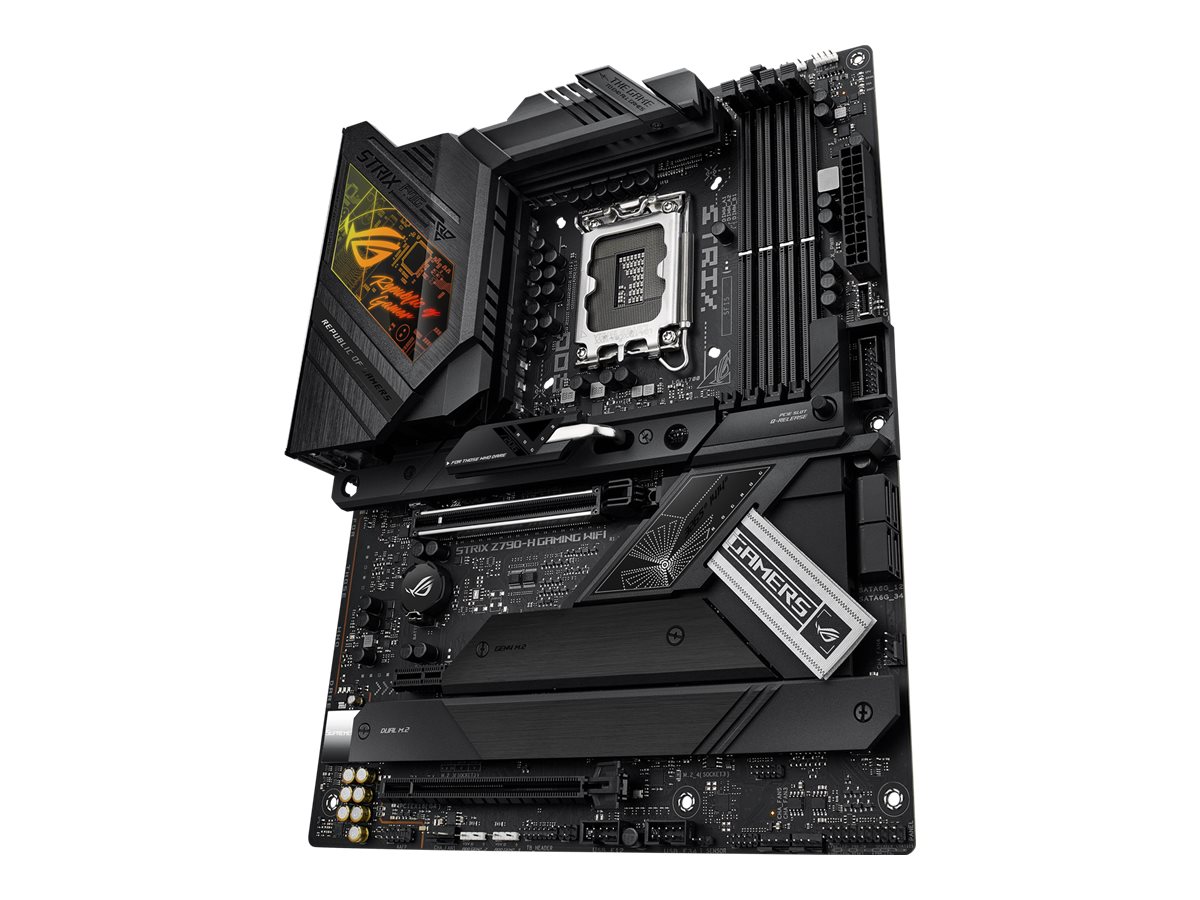

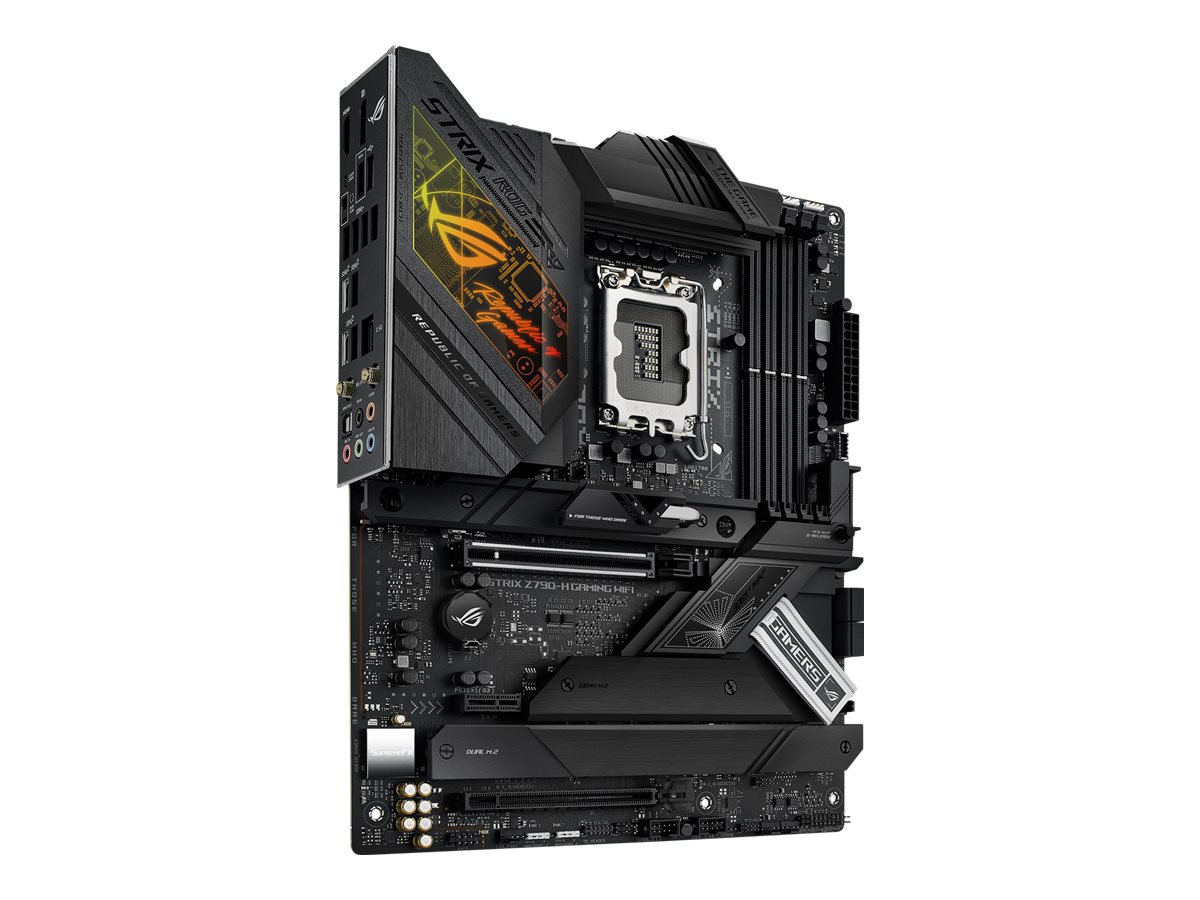

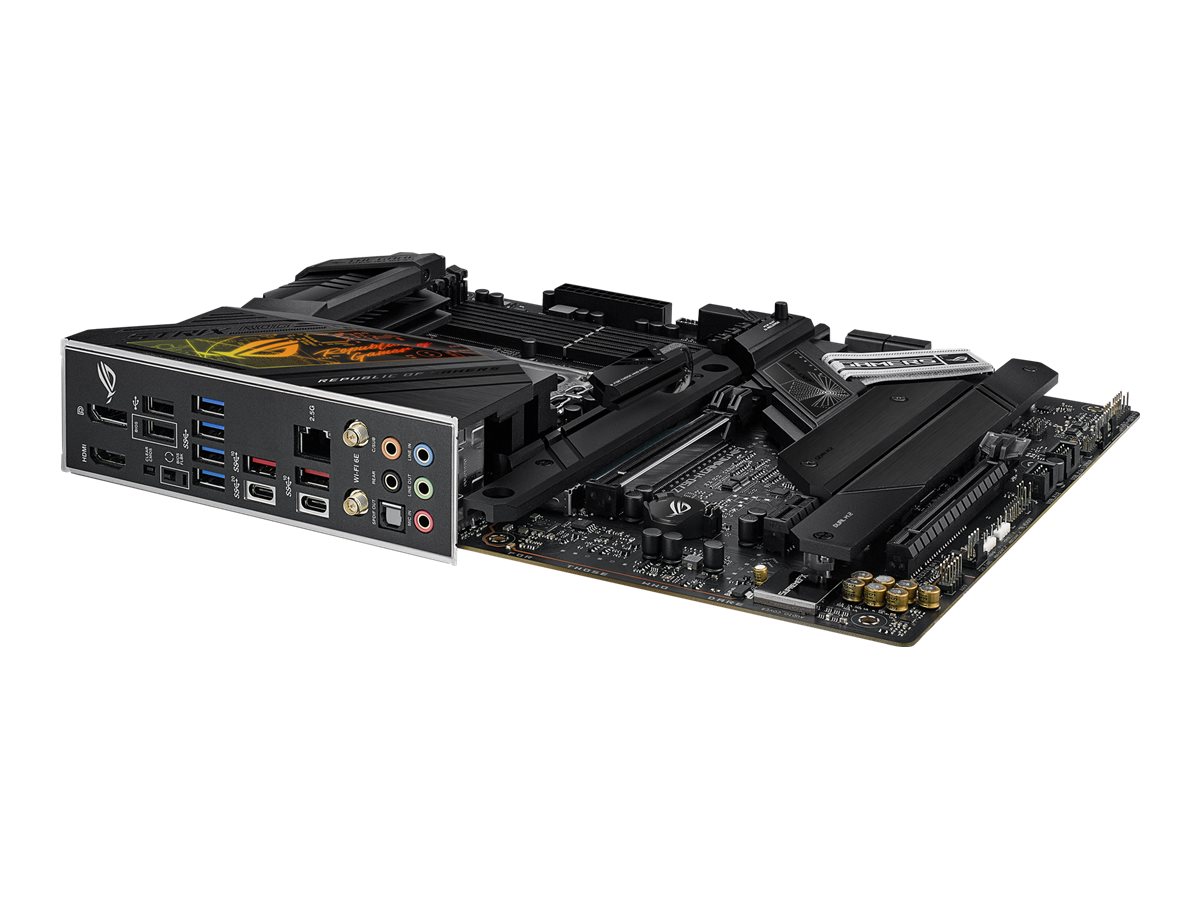

ASUS ROG STRIX Z790-H GAMING WIFI


$345.00
ASUS ROG STRIX Z790-H GAMING WIFI

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
ASUS ROG STRIX Z790-H GAMING WIFI
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
  • 2.5 Gigabit LAN, Bluetooth, Wi-Fi
  • onboard graphics (CPU required)
  • HD Audio (8-channel)
  Additional Details
Price: $345.00
Mfr Part #: ROG STRIX Z790-H GAMING WIFI
SHI Part #: 45723915
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: ASUS
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionASUS ROG STRIX Z790-H GAMING WIFI - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
ManufacturerASUS
MSRP$299.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.4 cm
Dimensions & Weight / Width30.5 cm
Header / BrandASUS
Mainboard / Chipset TypeIntel Z790
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.3
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecSupremeFX (S1220A)
Compliant StandardsHigh Definition Audio, DTS Sound Unbound
TypeHD Audio (8-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x PCIe 3.0 x1
  • 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
  • 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Interfaces
  • 1 x HDMI
  • 1 x DisplayPort
  • 1 x USB-C 3.2 Gen2x2
  • 1 x USB-C 3.2 Gen 2
  • 2 x USB 3.2 Gen 2
  • 2 x USB 2.0
  • 4 x USB 3.2 Gen 1
  • 1 x microphone - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x SPDIF out
  • 1 x audio line-out - mini-jack
  • 1 x LAN (2.5Gigabit Ethernet)
  • 2 x antenna
Internal Interfaces
  • 1 x USB-C 3.2 Gen 2x2 - header
  • 2 x USB 3.2 Gen 1 - header
  • 4 x USB 2.0 - header
  • 1 x audio - header
  • 1 x Thunderbolt - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
RAID FeaturesIntel Rapid Storage Technology
Storage Interfaces
  • SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesUEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
BIOS TypeAMI
Hardware FeaturesJack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, SupremeFX Shielding technology, Gold Plated Audio Hardware, Preboot eXecution Environment (PXE), Clear CMOS Button, 6 Layer PCB, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, ASUS ProCool II, 16+1 Phase Power Design, Savitech SV3H712 amplifier, M.2 Q-Latch, 5K Black Metallic Capacitors, Windows 11 compatible, PCIe Slot Q-Release, BIOS FlashBack button, BIOS FlashBack LED
Sleep / Wake UpWake on LAN (WOL), wake on PME
General
Chipset TypeIntel Z790
Compatible Processors(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network Interfaces2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsVCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
Depth24.4 cm
Included AccessoriesCable ties, STRIX stickers, ROG thank you card, thermal pad for M.2 SSD, ROG key chain, ASUS Wi-Fi moving antenna, M.2 Q-Latch, 2 x M.2 rubber package, M.2 backplate rubber package, M.2 backplate Q-Latch
Software IncludedROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4, Norton 360 for Gamers
Width30.5 cm
Supported RAM
Bus Clock5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)
FeaturesDual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC, on-die ECC
TechnologyDDR5
