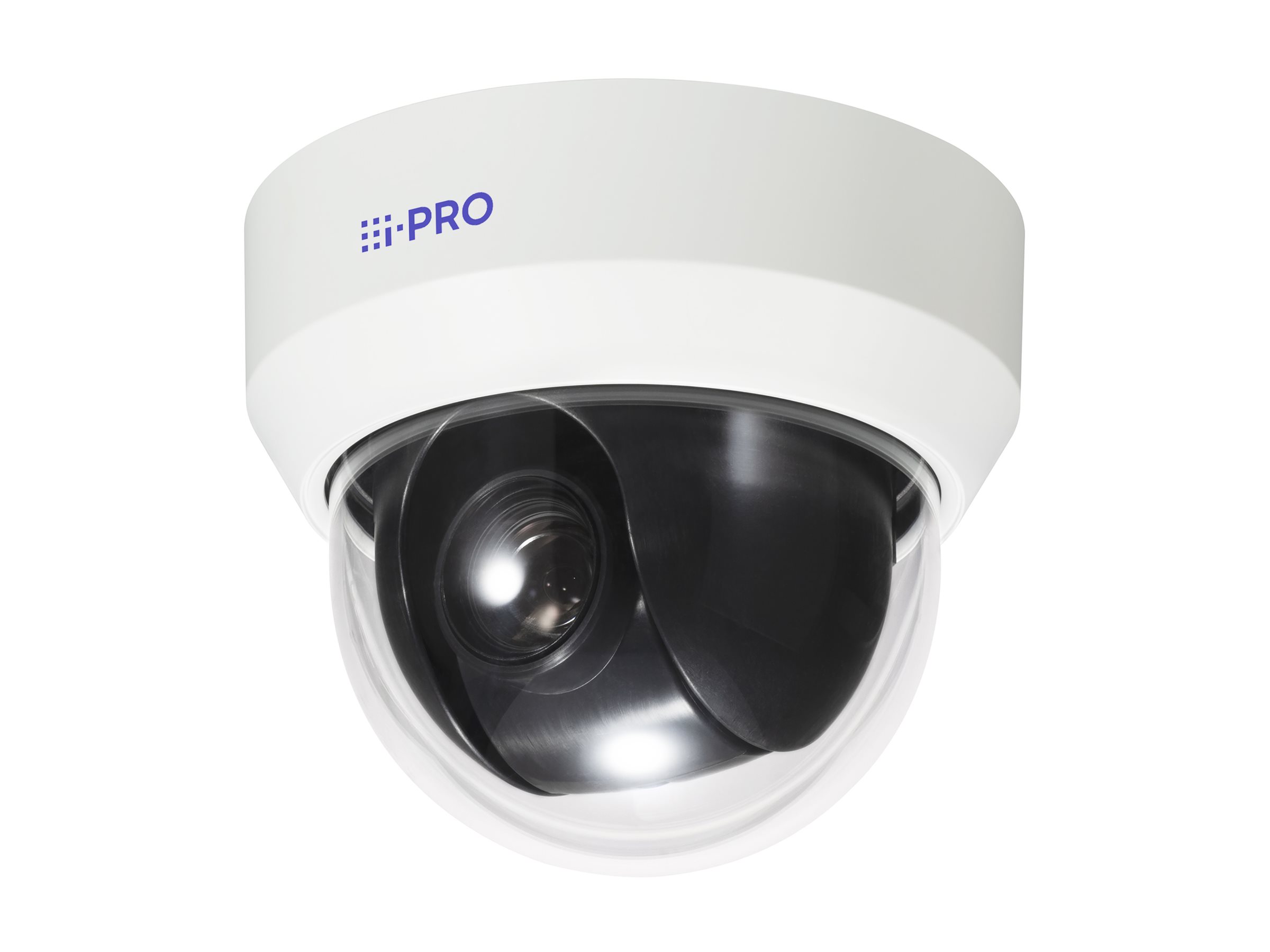

i-PRO S-Series WV-S65501-Z1
MSRP$2,811.38
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
i-PRO S-Series WV-S65501-Z1
- Network surveillance camera
- PTZ
- dome
- outdoor
- dust resistant / water resistant / shock resistant / wind resistant
- color (Day&Night)
- 5 MP
- 3072 x 2304
- motorized
- audio
- LAN 10/100
- MJPEG, H.264, H.265
- DC 12 V / PoE Plus Class 4
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,811.38 |
| Mfr Part #: | WV-S65501-Z1 |
| SHI Part #: | 45674711 |
| Category: | Digital cameras |
| UNSPSC: | 45121504 |
| Manufacturer: | i-Pro Americas Inc. |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Digital cameras |
| Description | i-PRO S-Series WV-S65501-Z1 - Network surveillance camera - PTZ - dome - outdoor - dust resistant / water resistant / shock resistant / wind resistant - color (Day&Night) - 5 MP - 3072 x 2304 - motorized - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE Plus Class 4 |
| Manufacturer | i-Pro Americas Inc. |
| MSRP | $2,811.38 |
| UNSPSC | 45121504 |
| Main Specifications | |
| Dimensions & Weight / Depth | 16.5 cm |
| Dimensions & Weight / Height | 13.9 cm |
| Dimensions & Weight / Weight | 1.6 kg |
| Dimensions & Weight / Width | 16.5 cm |
| Header / Brand | i-Pro |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Service & Support / Type | 7-year warranty |
| Camera | |
| Digital Video Capture Resolution | 3072 x 2304, 3072 x 1728, 2560 x 1440, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180, 2560 x 1920, 1280 x 960, 800 x 600, 400 x 300, 320 x 240 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Exposure Range | 1/30 sec - 1/10000 sec |
| Features | ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Intelligent Auto (iA), Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Super Dynamic technology, Adaptive Black Stretch (ABS), Backlight Compensation (BLC), Highlight Compensation (HLC), fog compensation, digital noise reduction, Scene Change Detection (SCD), Audio Detection, AI Sound Classification, AI Analytics, 32 privacy zones, Variable Image Quality on Specified area (VIQS), built-in gyroscope, Ambarella CV22 CPU, 256 preset positions, auto tracking, auto pan function, preset sequence, Patrol Mode, self return, Constant Bitrate (CBR), Variable Bitrate (VBR), Unicast Streaming, Multicast Streaming, Group of Pictures (GOP), Device Certificate GlobalSign pre-installed, user authentication, digest authentication, host authentication, system log, image transmission log, brute force delay protection, alteration detection, signed firmware, e-mail alerts, temish element, Color Night Vision |
| Frame Rate (max) | 30 frames per second |
| Max Digital Video Resolution | 3072 x 2304 |
| Minimum Illumination |
|
| Motion Detection | Yes |
| Supported Image Formats | JPEG |
| Type | Color - Day&Night - pan / tilt / zoom - outdoor - dust resistant / water resistant / shock resistant / wind resistant |
| Video Format | NTSC, PAL |
| Environmental Parameters | |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Relative Humidity (operating) | 10 - 100% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| General | |
| Audio Formats | G.726, ADPCM, G.711, AAC-LC |
| Audio Support | Yes: two-way audio capability |
| Connectivity Technology | Wired |
| Depth | 16.5 cm |
| Device Type | Network surveillance camera |
| Form Factor | Dome |
| Height | 13.9 cm |
| Weight | 1.6 kg |
| Width | 16.5 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/2.8" |
| Interfaces | |
| Alarm Inputs Qty | 3 |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | IPv6, TCP/IP, UDP/IP, HTTP, HTTPS, SSL, TLS, SMTP, DNS, NTP, SNMP 1, SNMP 2, SNMP 3, DHCPv6, RTP, MLD, ICMP, ARP, SFTP, MQTT, LLDP, RTSP, RTCP, DHCP, DDNS, UPnP, IGMP, SRTP, NTCIP |
| Lens Construction | |
| Focal Length | 4.7 mm - 47 mm |
| Focus Adjustment | Automatic |
| Horizontal Field of View (degree) | 6.2 - 58 |
| Lens Iris | F/1.6-3.0 |
| Min Focus Distance | 1.5 m |
| Optical Zoom | 10 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 3.5 - 44 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 7 years |
| Miscellaneous | |
| Color | Black, white |
| Compliant Standards | FIPS 140-2 Level 3, IEEE 802.1x, UL 62368-1, CSA C22.2 No. 62368-1, IEC 62368-1, FCC Part 15 A, ICES-003 issue 7 Class A, EN 55032 Class A, EN 55035, IEEE 802.3af, IEEE 802.3at, IEC 60529 IP66, UL 50E Type 4X, NEMA Type 4X, IEC 62262 IK10, NEMA TS-2 (2.2.7-2.2.9), NDAA |
| Panning | |
| Range (degree) | 360 |
| Speed (degree/sec) | Up to 500 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus Class 4 |
| Tilting | |
| Range (degree) | -15 to +195 |
| Speed (degree/sec) | Up to 500 |
