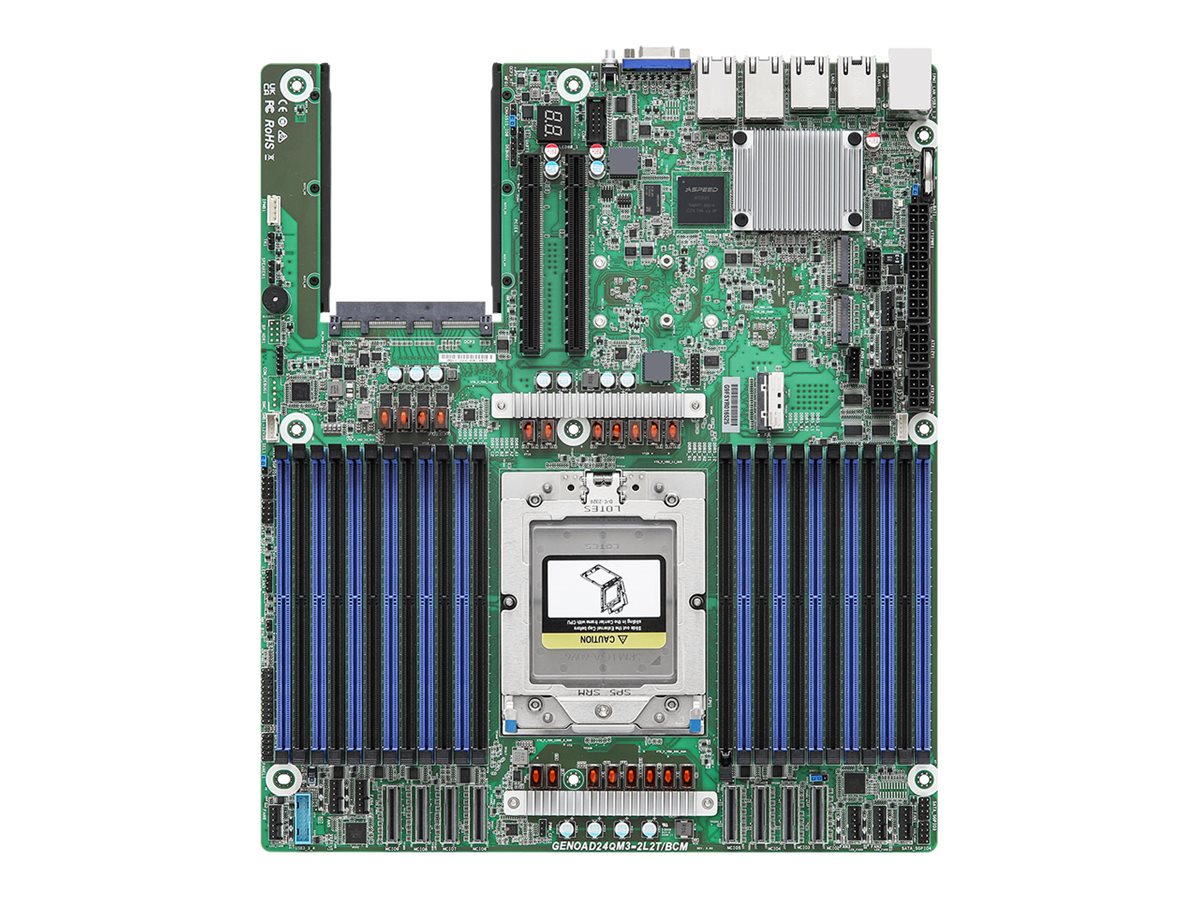

ASRock Rack GENOAD24QM3-2L2T/BCM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ASRock Rack GENOAD24QM3-2L2T/BCM
- Motherboard
- SSI CEB
- LGA6096 Socket
- USB 3.2 Gen 1
- 2 x 10 Gigabit LAN, 2 x Gigabit LAN
- onboard graphics (CPU required)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | GENOAD24QM3-2L2T/BCM |
| SHI Part #: | 45649263 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Rack GENOAD24QM3-2L2T/BCM - Motherboard - SSI CEB - LGA6096 Socket - USB 3.2 Gen 1 - 2 x 10 Gigabit LAN, 2 x Gigabit LAN - onboard graphics (CPU required) |
| Manufacturer | ASRock |
| MSRP | $1,150.00 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 35.6 cm |
| Dimensions & Weight / Width | 30.5 cm |
| Header / Brand | ASRock Rack |
| Mainboard / Compatible Processors | EPYC 9004 series |
| Mainboard / Processor Socket | LGA6096 Socket |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Graphics Processor | ASPEED AST2600 |
| Video Output / Type | Graphics adapter (CPU required) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 3 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS, SMBIOS 3.5 support, PnP support, ACPI 6.4 support, IPMI support |
| BIOS Type | AMI |
| Hardware Features | ASRock Rack Instant Flash |
| Hardware Monitoring | Temperature detection, fan control, system voltage |
| General | |
| Compatible Processors | EPYC 9004 series |
| Max Processors Qty | 1 |
| Processor Socket | LGA6096 Socket |
| Product Type | Motherboard - SSI CEB |
| Graphics | |
| Graphics Controller | ASPEED AST2600 |
| LAN | |
| Network Controller | Broadcom BCM57416 / Intel I210 |
| Network Interfaces | 2 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet |
| Miscellaneous | |
| Cables Included | 1 x MCIO x8 to 8 x SATA 6Gb/s cable |
| Depth | 35.6 cm |
| Included Accessories | IO shield, 2 x M.2 screws |
| Width | 30.5 cm |
| Supported RAM | |
| Bus Clock | 3600 MHz, 4000 MHz, 4800 MHz |
| Features | Registered, 3DS registered |
| Max Size | 12.288 TB |
| Technology | DDR5 |
