NEW 4K/60P PTZ W/ OLPF IN BLACK
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

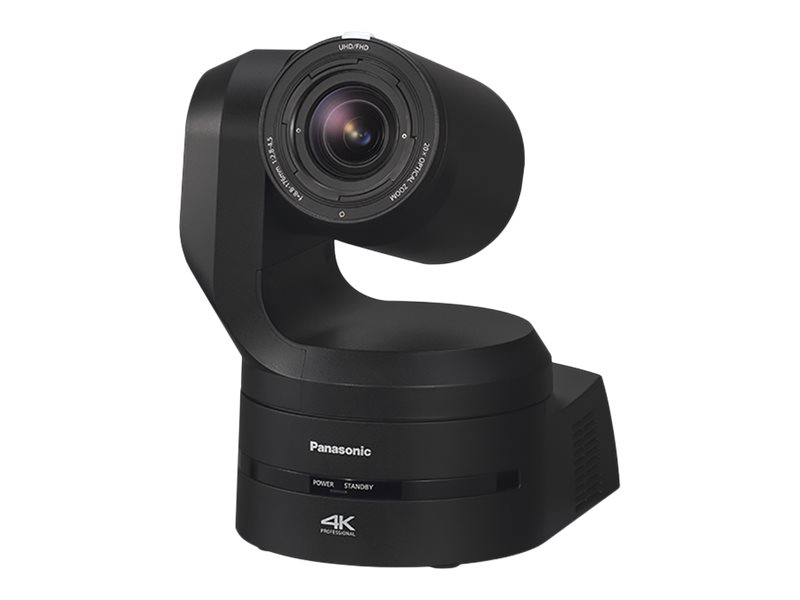

NEW 4K/60P PTZ W/ OLPF IN BLACK
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | AW-UE160KPJ |
| SHI Part #: | 45641378 |
| Category: | Security cameras |
| UNSPSC: | 46171610 |
| Manufacturer: | Panasonic |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Security cameras |
| Description | NEW 4K/60P PTZ W/ OLPF IN BLACK |
| Manufacturer | Panasonic |
| MSRP | $17,603.53 |
| UNSPSC | 46171610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 27.7 cm |
| Dimensions & Weight / Height | 24 cm |
| Dimensions & Weight / Weight | 4.6 kg |
| Dimensions & Weight / Width | 21.3 cm |
| Header / Brand | Panasonic |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| System Requirements / OS Required |
|
| Camera | |
| Digital Video Capture Resolution | 3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360 |
| Digital Video Format | MJPEG, H.264, H.265 |
| Digital Zoom | 32 |
| Exposure Range | 1/48 sec - 1/2000 sec |
| Features | BT.2020 compatible, BT.709 compatible, cropping function, Crop Zoom, image stabilizer, Privacy mode, Unicast Streaming, Multicast Streaming, tally light, FreeD protocol support, Constant Bitrate (CBR), Variable Bitrate (VBR), white balance, gamma control, Gain Control |
| Frame Rate (max) | 120 frames per second |
| Horizontal Resolution (TV Lines) | 1600 |
| Max Digital Video Resolution | 3840 x 2160 |
| Supported Image Formats | JPEG |
| Type | Color - Day&Night - pan / tilt / zoom |
| Video Modes | 1080/100p, 1080/120p, 1080/23.98p, 1080/24p, 1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60p, 2160/23.98p, 2160/24p, 2160/25p, 2160/29.97p, 2160/50p, 2160/59.94p, 2160/60p, 720/50p, 720/59.9p |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Relative Humidity (operating) | 20 - 90% (non-condensing) |
| Expansion / Connectivity | |
| Ports |
|
| General | |
| Audio Formats | AAC-LC |
| Audio Support | Yes |
| Camera Mount Type | Ceiling mount, surface mount |
| Connectivity Technology | Wired |
| Depth | 27.7 cm |
| Device Type | Conference camera |
| Height | 24 cm |
| Weight | 4.6 kg |
| Width | 21.3 cm |
| Image Sensor | |
| Type | 9.6 MP MOS 1" |

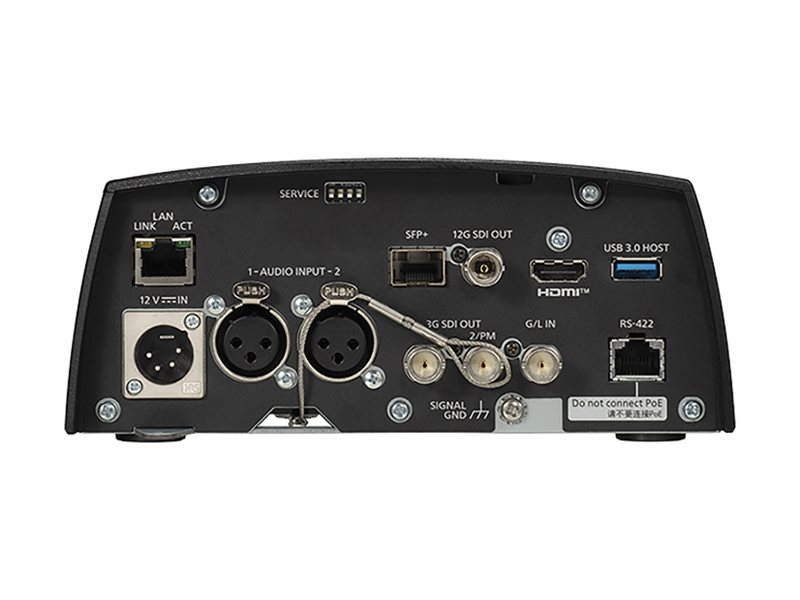

| Interfaces | |
| Computer Interface | USB |
| Control Interface | RS-422A |
| Network Interface | LAN |
| Network Protocols | ICMP, ARP, MLD, TCP/IP, UDP/IP, IPv4, IPv6, HTTP, HTTPS, DNS, NTP, DHCP, SNMP, MDNS, GARP, NDI HX2 |
| Video | HDMI, 3G-SDI, 12G-SDI |
| Lens Construction | |
| Diagonal Field of View (degree) | 4.6 - 82.8 |
| Focal Length | 8.8 mm - 176 mm |
| Focus Adjustment | Automatic, manual |
| Horizontal Field of View (degree) | 4 - 75.1 |
| Lens Iris | F/2.8-4.5 |
| Min Focus Distance | 10 cm |
| Optical Zoom | 20 x |
| Type | Motorized zoom |
| Vertical Field of View (degree) | 2.3 - 46.7 |
| Miscellaneous | |
| Color | Black |
| Compliant Standards | IEEE 802.3bt |
| Panning | |
| Range (degree) | -175 to +175 |
| Speed (degree/sec) | Up to 180 |
| Power | |
| Power Requirements | DC 12 V / PoE Plus |
| Software / System Requirements | |
| OS Required | Windows 10, Apple macOS 10.13, Apple macOS 10.14, Apple macOS 10.15, Apple iOS, Android, Google Chrome OS |
| Tilting | |
| Range (degree) | -30 to +210 |
| Speed (degree/sec) | Up to 180 |
