ASRock Phantom Gaming B650M Riptide WiFi
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

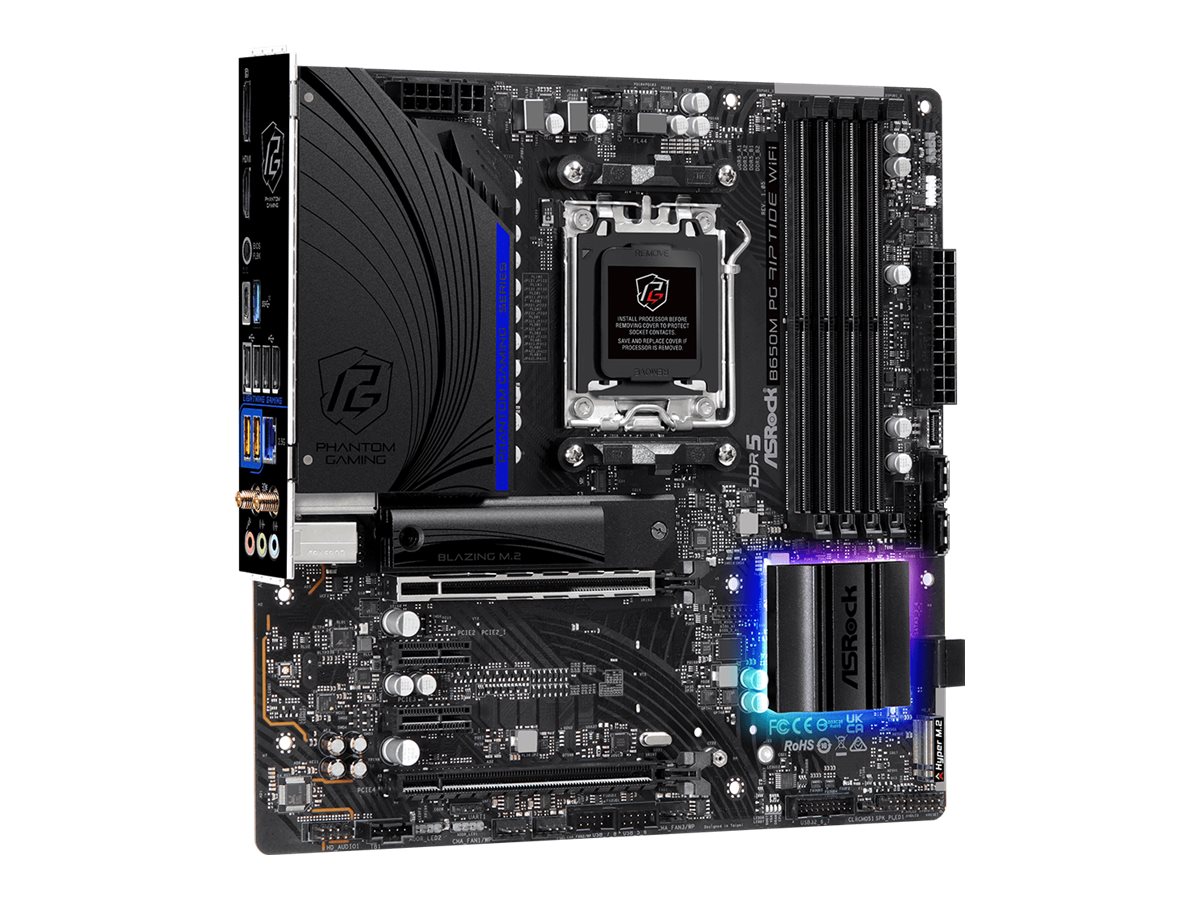

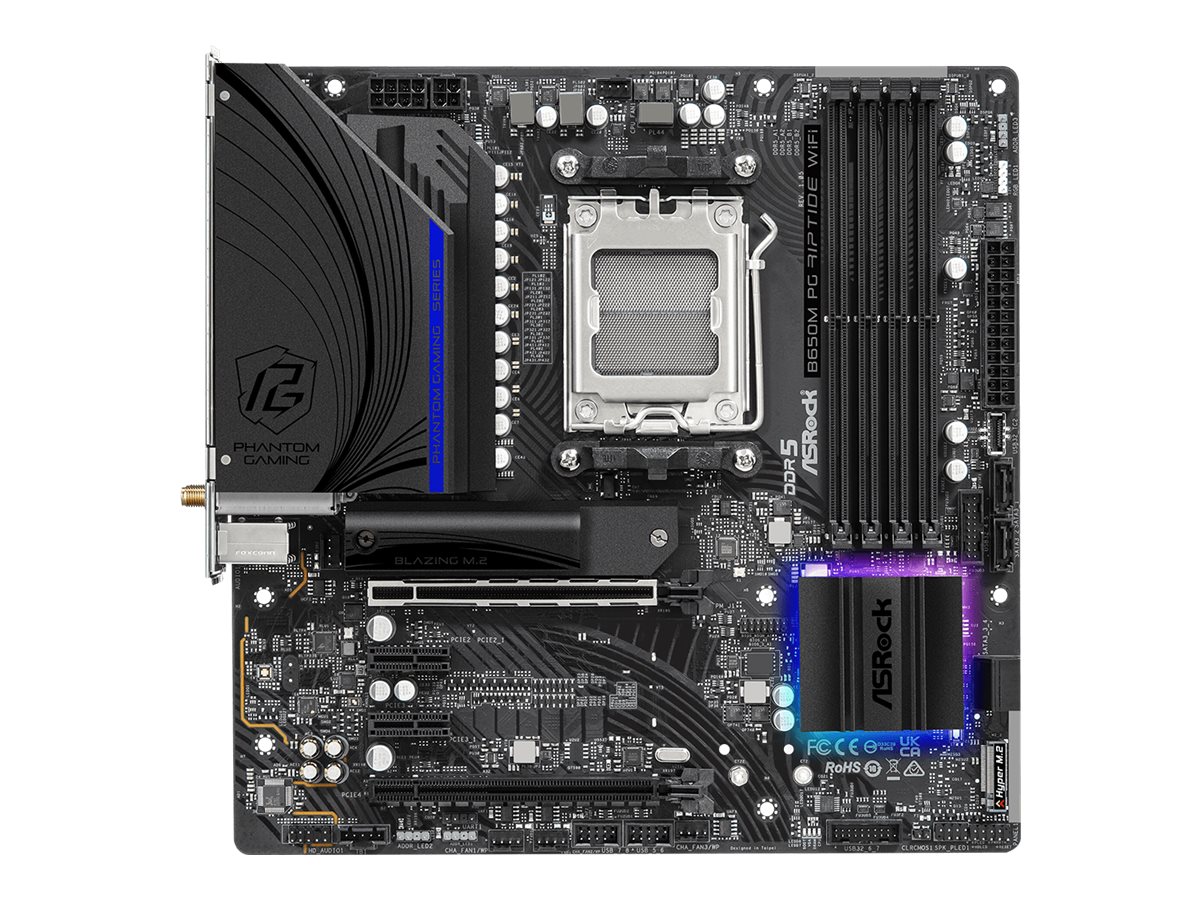

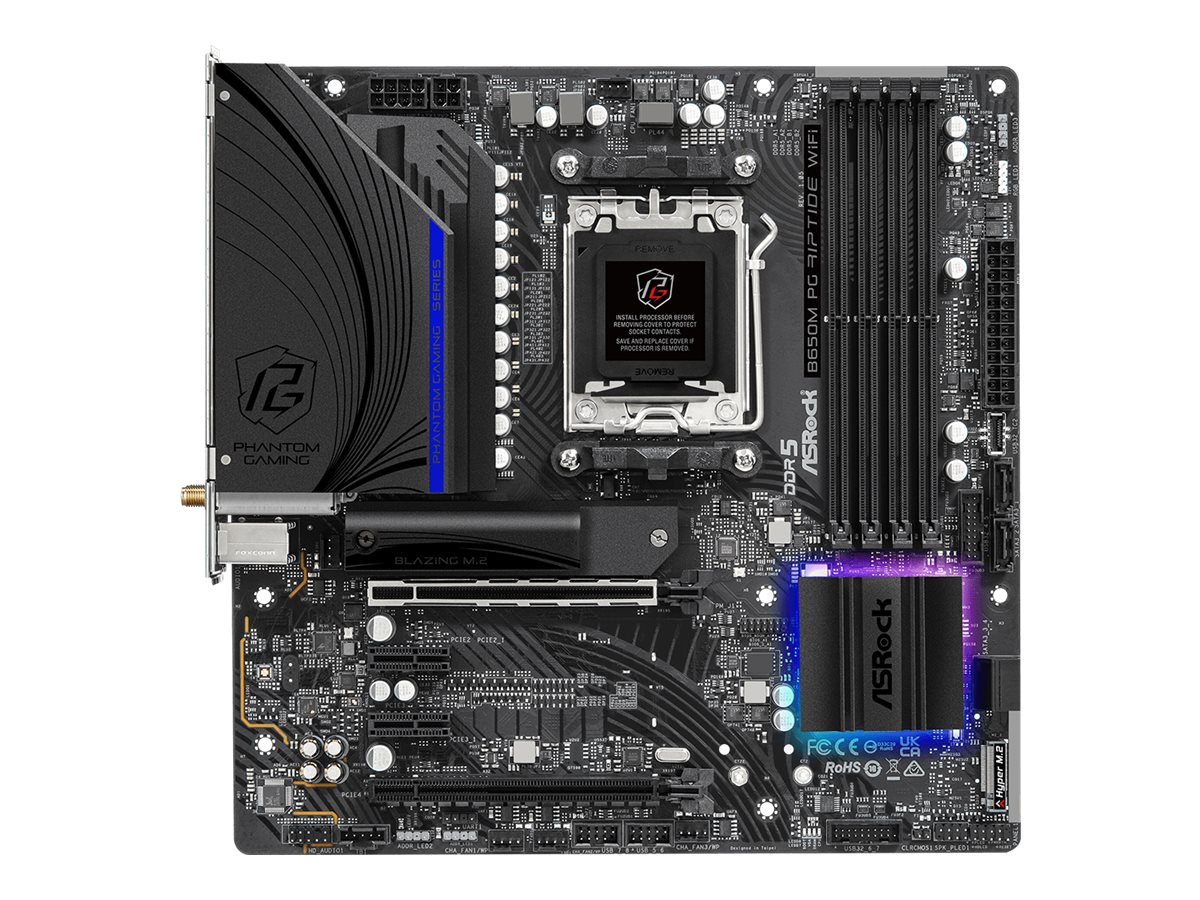

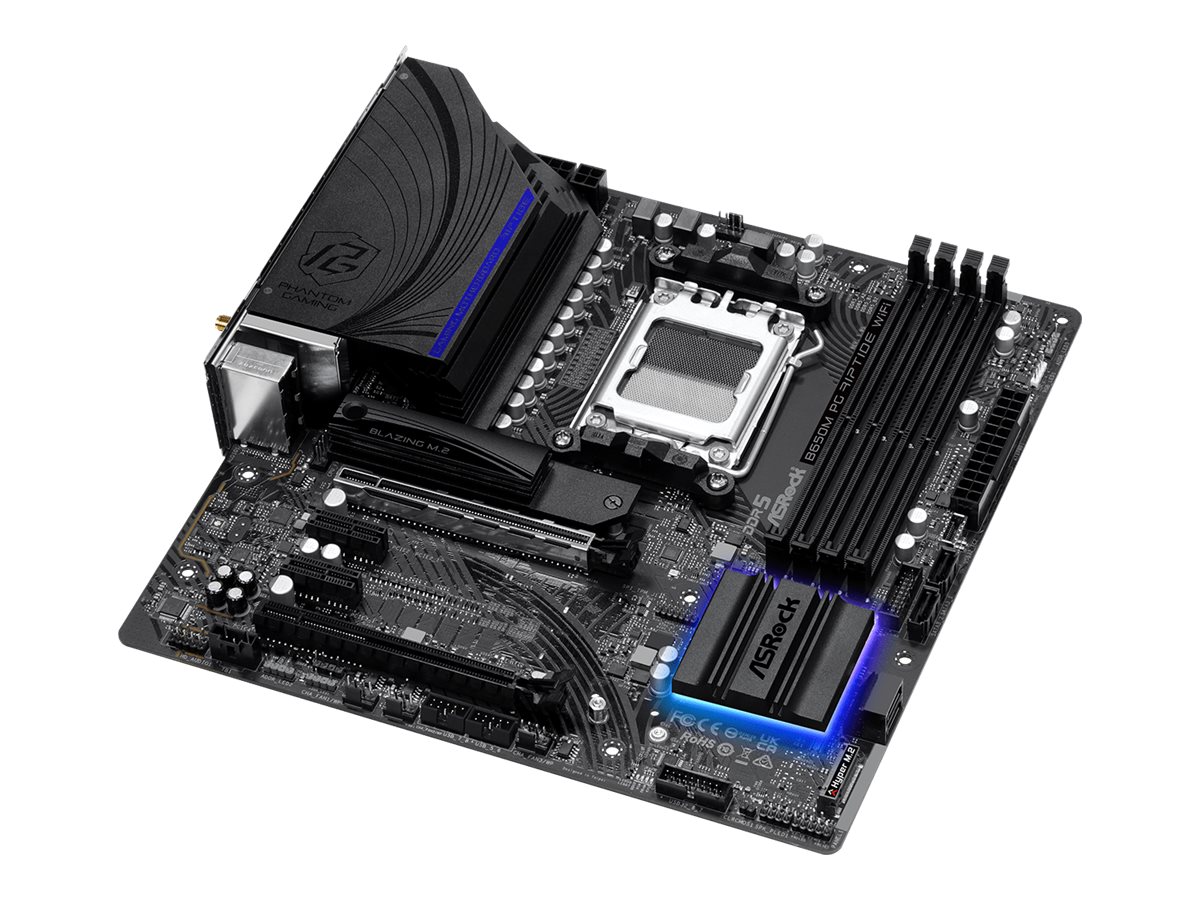

ASRock Phantom Gaming B650M Riptide WiFi
- Motherboard
- micro ATX
- Socket AM5
- AMD B650 Chipset
- USB-C 3.2 Gen2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1
- 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | B650M PG RIPTIDE WIFI |
| SHI Part #: | 45483192 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | ASRock |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | ASRock Phantom Gaming B650M Riptide WiFi - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | ASRock |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.4 cm |
| Dimensions & Weight / Width | 24.4 cm |
| Header / Brand | ASRock |
| Mainboard / Chipset Type | AMD B650 |
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket | Socket AM5 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Storage Interfaces |
|
| Features | |
| BIOS Features | UEFI BIOS |
| BIOS Type | AMI |
| Hardware Features | 12+2+1 Phase Power Design, Dr.MOS MOSFET, Enlarged Heatsink Armor, pre-mounted I/O shield, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), BIOS FlashBack button, 15µ Gold Contact, AMD CrossFire technology support, Water Pump Header, ASRock Full HD UEFI, ASRock Instant Flash, 2oz Copper PCB, 6 Layer PCB, RGB Lighting, M.2 heatsink |
| General | |
| Chipset Type | AMD B650 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - micro ATX |
| LAN | |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Compliant Standards | HDCP 2.3, DisplayPort 1.4, FCC, ErP Ready, EuP Ready |
| Depth | 24.4 cm |
| Included Accessories | 2 x ASRock WiFi 2.4/5/6 GHz Antennas, 2 x M.2 screws, standoff for M.2 socket |
| Software Included | ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software |
| Width | 24.4 cm |
| Supported RAM | |
| Bus Clock | 6200 MHz (O.C.) |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Max Size | 128 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
