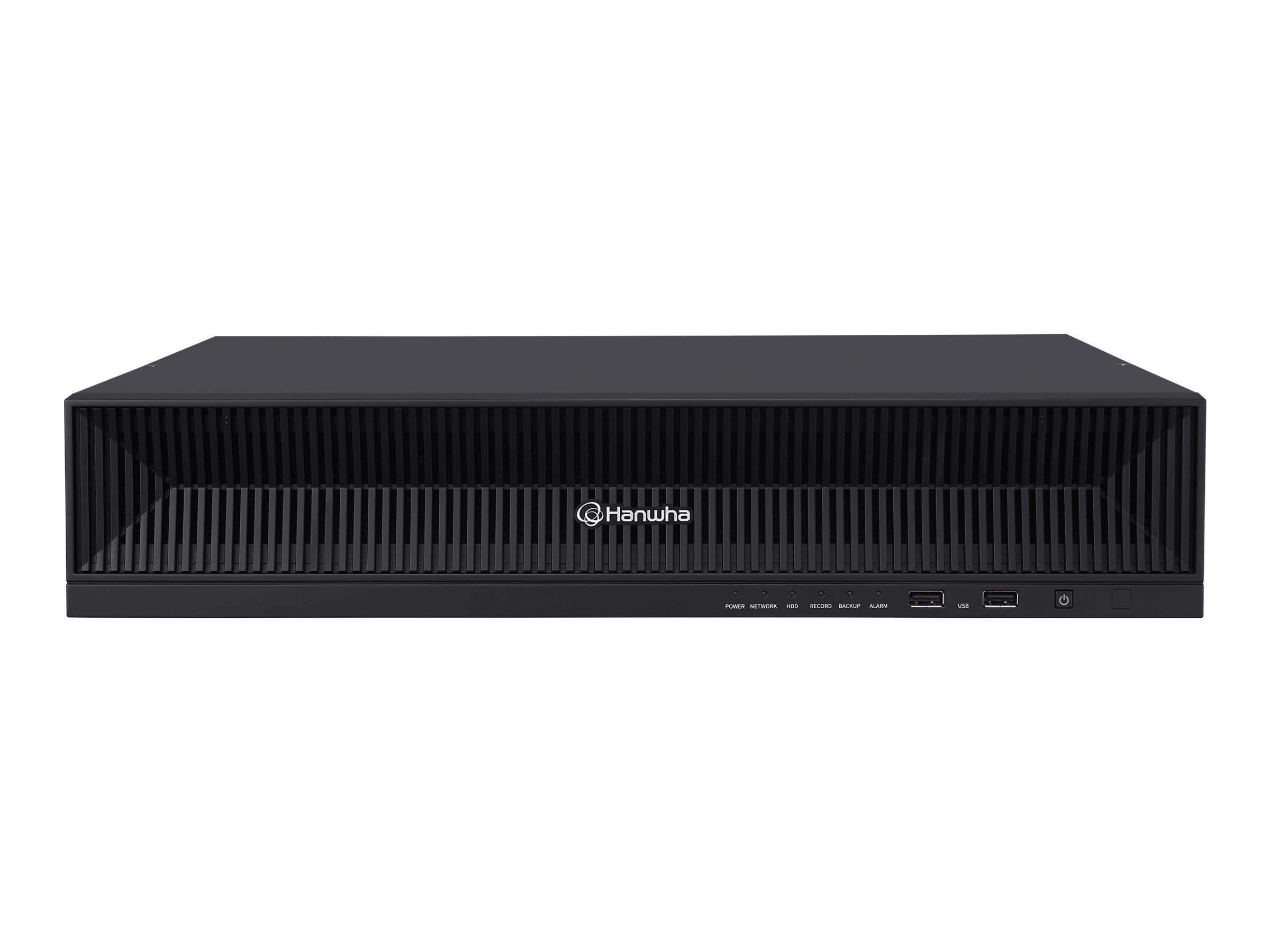

Hanwha Vision WiseNet P PRN-1600B2
MSRP$20,600.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Hanwha Vision WiseNet P PRN-1600B2
- NVR
- 16 channels 80 TB
- networked
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $20,600.00 |
| Mfr Part #: | PRN-1600B2-80TB |
| SHI Part #: | 45444544 |
| Category: | Surveillance video or audio recorders |
| UNSPSC: | 46171621 |
| Manufacturer: | HANWHA VISION |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Surveillance video or audio recorders |
| Description | Hanwha Vision WiseNet P PRN-1600B2 - NVR - 16 channels 80 TB - networked |
| Manufacturer | HANWHA VISION |
| MSRP | $20,600.00 |
| UNSPSC | 46171621 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43.49 cm |
| Dimensions & Weight / Height | 8.6 cm |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | Hanwha Techwin |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Connections | |
| Alarm Ports | Alarm output x 4, alarm input x 8 |
| Audio Output Ports | Mini-phone 3.5 mm x 1 |
| Network Port | 10/100/1000Base-T x 3 |
| Other Ports | USB 2.0 x 2, USB 3.0 x 2, iSCSI |
| Video Output Ports | HDMI x 2 |
| Dimensions & Weight | |
| Depth | 43.49 cm |
| Height | 8.6 cm |
| Width | 43.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Audio Channels | 16 |
| Color | Black |
| Compliant Standards | Plug and Play, FCC, NDAA, CE/EAC |
| Compression Format | JPEG, MJPEG, G.711, G.726, H.264, AAC, AVI, H.265 |
| Device Type | NVR |
| Image Resolution | 1920x1080, 3840x2160 |
| IP Cameras Supported | 16 |
| OS Provided | Linux |
| Video Channels | 16 |
| Hard Drive | |
| Capacity | 80 TB |
| Interface | Serial ATA |
| Quantity Supported | 8 |
| Supported Max Total Capacity | 80 TB |
| Networking | |
| DDNS Support | Yes |
| Features | IP address filtering, ONVIF support, 802.1x authentication, GOP control, Hallway view, Hanwha DDNS |
| Network Interfaces | Ethernet 10Base-T/100Base-TX/1000Base-T |
| Supported Protocols | DDNS, DHCP, DNS, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, IGMP, SSM, CGI |
| Power | |
| Frequency | 50/60 Hz |
| Voltage | 100 - 240 V |
| Security DVR | |
| Display Modes | 6 split screens, 9 split screens, 8 split screens, 4 split screens, 3 split screens, 2 split screens |
| Features | RAID 5 support, RAID 6 support, Pan/Tilt/Zoom support, SmartViewer, Webviewer, smartphone support, Mobile Viewer, brightness adjustment, contrast adjustment, Fisheye Dewarp function, Auto Recovery Backup (ARB), 300 PTZ position presets, metal housing, recording data rate up to 250 Mbps |
| Frame Rate (Playback) | 480 fps, 30 fps, 120 fps, 15 fps, 960 fps, 1920 fps |
| Networked | Yes |
| Playback Search | Date/time, event, text, smart search |
| Record Events | Alarm, motion detection, scheduled, event, continuous, video loss |
| Video Server | |
| Features | Dual stream support |
