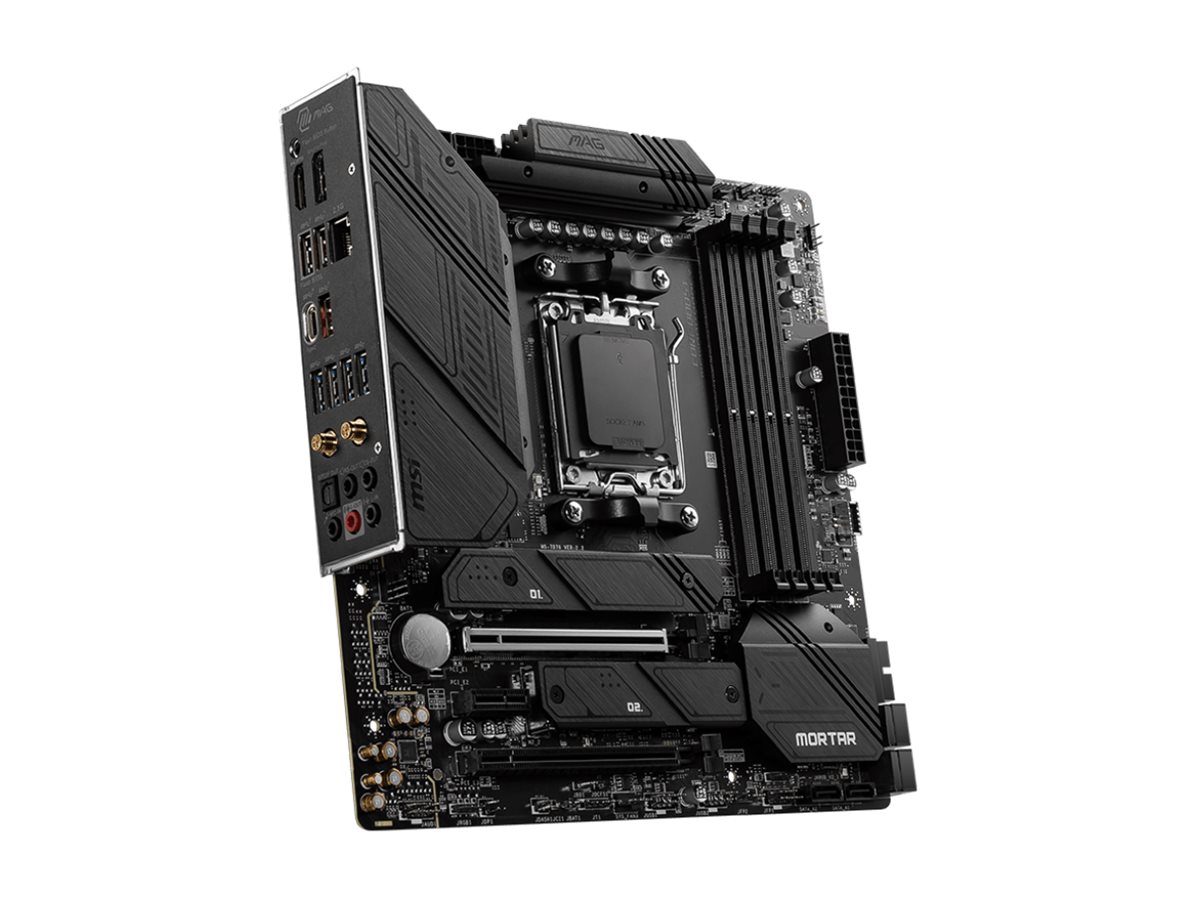

MSI MAG B650M MORTAR WIFI
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
MSI MAG B650M MORTAR WIFI
- Motherboard
- micro ATX
- Socket AM5
- AMD B650 Chipset
- USB 3.2 Gen 1, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2
- 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
- onboard graphics (CPU required)
- HD Audio (8-channel)
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | B650MMOTARWIFI |
| SHI Part #: | 45437645 |
| Category: | motherboards or daughterboards |
| UNSPSC: | 43201513 |
| Manufacturer: | MSI |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | motherboards or daughterboards |
| Description | MSI MAG B650M MORTAR WIFI - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| Manufacturer | MSI |
| MSRP | $199.99 |
| UNSPSC | 43201513 |
| Main Specifications | |
| Dimensions & Weight / Depth | 24.384 cm |
| Dimensions & Weight / Width | 24.384 cm |
| Header / Brand | MSI |
| Mainboard / Chipset Type | AMD B650 |
| Mainboard / Compatible Processors | Ryzen |
| Mainboard / Processor Socket | Socket AM5 |
| Networking / Data Link Protocol |
|
| Packaged Quantity | 1 |
| Video Output / Type | Graphics adapter (CPU required) |
| Audio | |
| Audio Codec | Realtek ALC4080 |
| Compliant Standards | High Definition Audio |
| Type | HD Audio (8-channel) |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| Internal Interfaces |
|
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Storage Interfaces |
|
| Features | |
| BIOS Features | MSI ClickBIOS 5, M-Flash |
| BIOS Type | AMI |
| Hardware Features | Debug LED, MSI Core Boost, 12+2+1 Phase Power Design, 80A Smart Power Stage, MSI Steel Armor, M.2 Shield FROZR, Extended Heatsink Design, MSI Mystic Light, MSI Audio Boost 5, Game Boost, 6 Layer PCB, 2oz Copper PCB, Digital PWM, DIY Friendly Design, Surface Mount Technology (SMT), MSI Memory Boost, flash BIOS button, Water Pump Header, Trusted Platform Module (TPM) 2.0 |
| General | |
| Chipset Type | AMD B650 / Nuvoton NCT6687-R |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Max Processors Qty | 1 |
| Processor Socket | Socket AM5 |
| Product Type | Motherboard - micro ATX |
| LAN | |
| Network Controller | Realtek RTL8125B |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2 |
| Miscellaneous | |
| Cables Included | 2 x Serial ATA cable |
| Depth | 24.384 cm |
| Included Accessories | Wi-Fi antenna, 2 x EZ M.2 clips, cable stickers |
| Width | 24.384 cm |
| Supported RAM | |
| Bus Clock | 7600 MHz (O.C.), 7400 MHz (O.C.), 7200 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 6600 MHz (O.C.), 6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 5400 MHz (O.C.), 5200 MHz (O.C.), 5000 MHz (O.C.), 4800 MHz |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Max Size | 256 GB |
| Registered or Buffered | Unbuffered |
| Supported RAM Integrity Check | Non-ECC |
| Technology | DDR5 |
