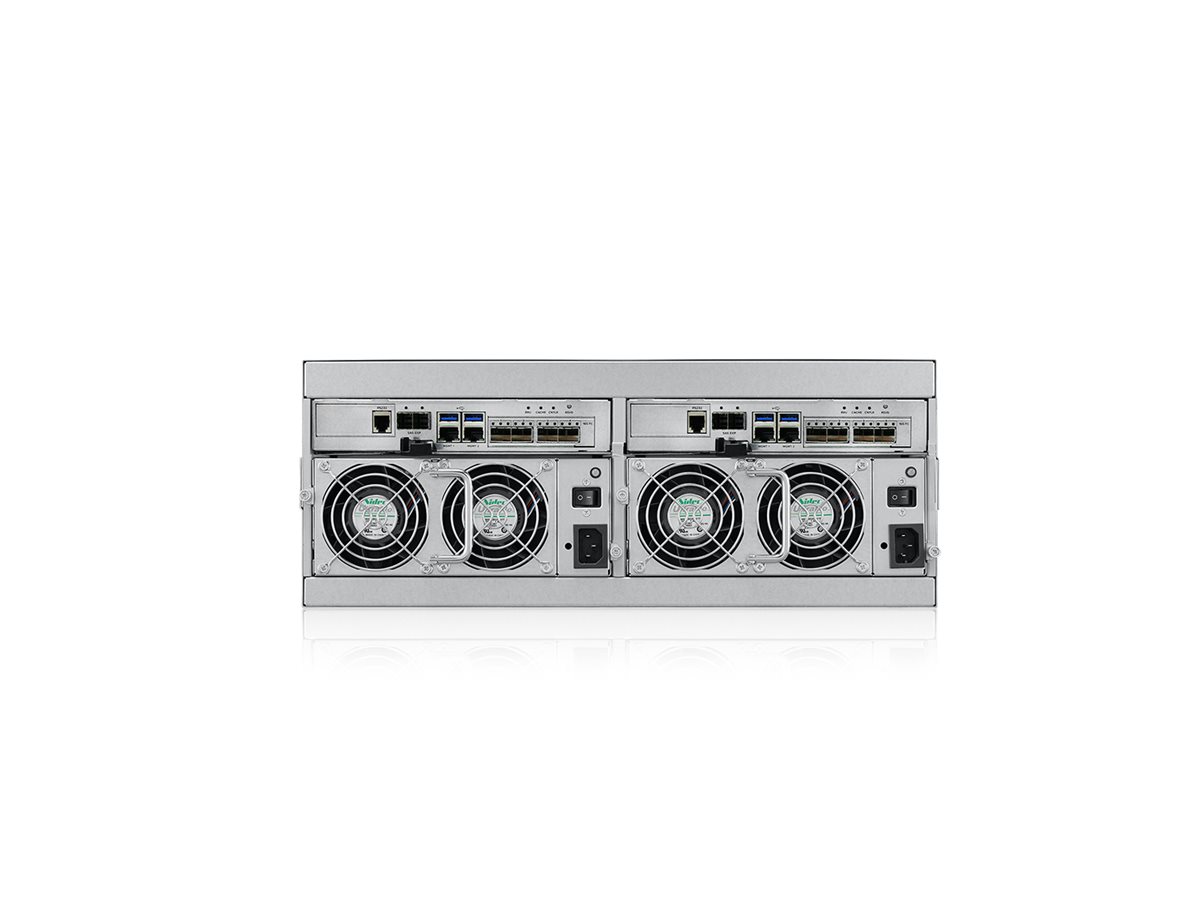

Promise VTrak D5800fxD
MSRP$56,329.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Promise VTrak D5800fxD
- NAS server
- 24 bays
- 384 TB
- rack-mountable
- SATA 6Gb/s / SAS 12Gb/s
- SSD 16 TB x 24
- RAID 0, 1, 5, 6, 10, 50, 60
- RAM 32 GB
- 10 Gigabit Ethernet / 32Gb Fibre Channel
- iSCSI support
- 4U
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $56,329.00 |
| Mfr Part #: | VTD5800FXD16TU |
| SHI Part #: | 45437486 |
| Category: | Electronic data storage equipment |
| UNSPSC: | 43201800 |
| Manufacturer: | Promise Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Electronic data storage equipment |
| Description | Promise VTrak D5800fxD - NAS server - 24 bays - 384 TB - rack-mountable - SATA 6Gb/s / SAS 12Gb/s - SSD 16 TB x 24 - RAID 0, 1, 5, 6, 10, 50, 60 - RAM 32 GB - 10 Gigabit Ethernet / 32Gb Fibre Channel - iSCSI support - 4U |
| Manufacturer | Promise Technology |
| MSRP | $56,329.00 |
| UNSPSC | 43201800 |
| Main Specifications | |
| Dimensions & Weight / Depth | 50.7 cm |
| Dimensions & Weight / Height | 17.4 cm |
| Dimensions & Weight / Weight | 43.8 kg |
| Dimensions & Weight / Width | 44.67 cm |
| Hard Drive / Capacity | 16 TB |
| Hard Drive / Form Factor | 3.5" |
| Hard Drive / Interface | Serial Attached SCSI |
| Hard Drive / Interface Type | Serial Attached SCSI |
| Header / Brand | Promise |
| Miscellaneous / Product Color | Silver |
| Networking / Data Link Protocol |
|
| Optical Storage / Type | None |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / Rack-mountable | Rack-mountable |
| System Requirements / OS Required |
|
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 5 °C |
| Sound Emission | 60 dB |
| Expansion / Connectivity | |
| Expansion Bays |
|
| Interfaces |
|
| General | |
| Depth | 50.7 cm |
| Device Type | NAS server |
| Enclosure Type | Rack-mountable - 4U |
| Height | 17.4 cm |
| Host Connectivity | 10 Gigabit Ethernet / 32Gb Fibre Channel |
| Installed Devices / Modules Qty | 24 (installed) / 24 (max) |
| Total Storage Capacity | 384 TB |
| Weight | 43.8 kg () |
| Width | 44.67 cm |
| Hard Drive | |
| Capacity | 24 x 16 TB |
| Interface Type | SAS |
| Type | SSD - 3.5" |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | EMC Class A, FCC, VCCI, BSMI, RCM, CB, cTUVus, RoHS2, WEEE |
| Features | Intelligent Bad Sector Remapping, NVRAM error logging, drive power management (MAID), SMART error handling and write hole table, Background Synchronization, Media Patrol, Redundancy Check, Partial Rebuild, task scheduler, permission management, quota management, online expansion, Asymmetric LUN Unit Access (ALUA), Advanced Cache Mirroring, thin provision, Snapshot function, thin clone, thick clone, SSD cache, local replication, JBOD support, Predictive Data Migration (PDM) |
| Networking | |
| Data Link Protocol | 10GbE, 32Gb Fibre Channel |
| Features | Manageable, firmware upgradable, WebDAV server support |
| Network / Transport Protocol | TCP/IP, iSCSI, SMB, CIFS, FTP, NFS |
| Network Services Compatibility | Microsoft CIFS, Network File System (NFS), Server Message Block (SMB), Web-based Distributed Authoring and Versioning (WebDAV) |
| Performance |
|
| Remote Management Protocol | SNMP, SSH, CLI, LDAP |
| Power | |
| 80 PLUS Certification | 80 PLUS |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
| Processor / Memory | |
| RAM | 32 GB |
| Software / System Requirements | |
| OS Required | Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Apple macOS Sierra 10.12.6, Apple macOS Ventura 13.1, Red Hat Enterprise Linux 6.6, Red Hat Enterprise Linux 6.7, Red Hat Enterprise Linux 6.8, Red Hat Enterprise Linux 7, Red Hat Enterprise Linux 7.2, Red Hat Enterprise Linux 7.4, SuSE Linux Enterprise Server 11 SP4, SuSE Linux Enterprise Server 12 SP1, Citrix Hypervisor 7.0 LTSR, Citrix Hypervisor 7.1 LTSR, Citrix Hypervisor 8.0, Citrix Hypervisor 8.1, Citrix Hypervisor 8.2 LTSR, VMware ESXi 6.0, VMware ESXi 6.5, VMware ESXi 6.7, VMware ESXi 7.0, VMware ESXi 8.0 |
| Software Included | Drivers & Utilities |
| Storage Controller | |
| Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60 |
| Type | 2 x RAID |
