Hardware Computer Components Motherboards
Add to My Favorites
Motherboards

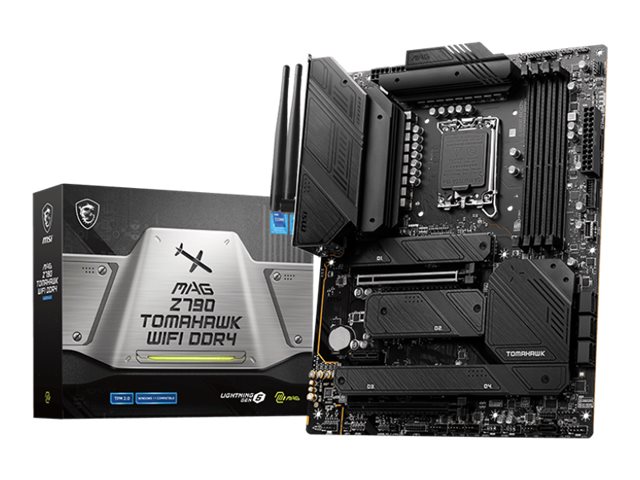

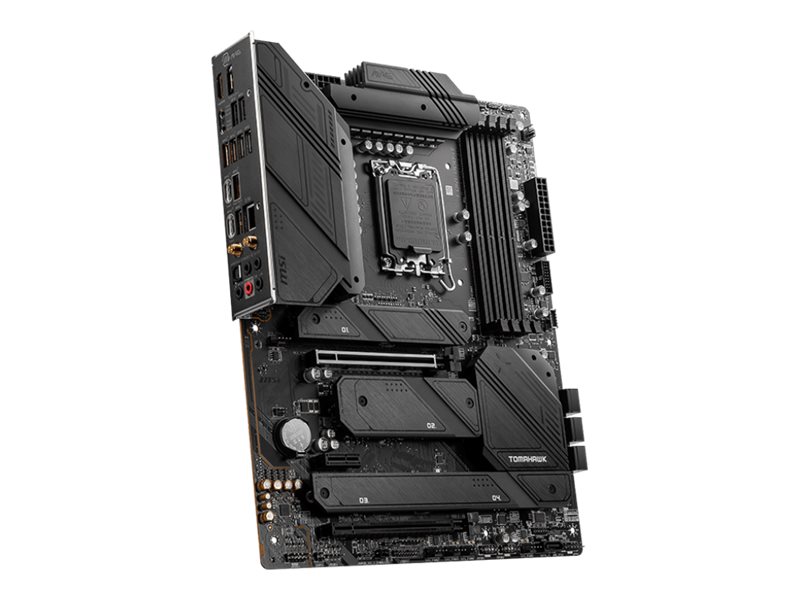

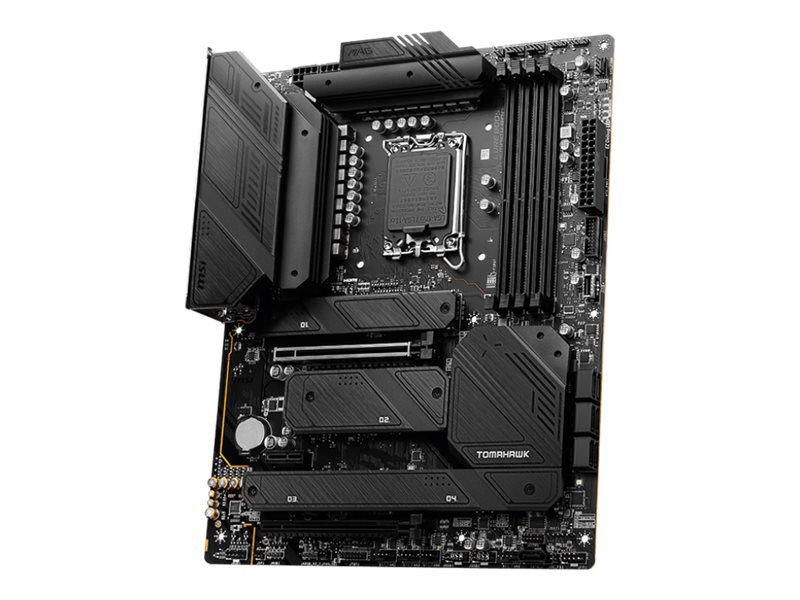

MSI MAG Z790 TOMAHAWK WIFI DDR4

$343.00
MSI MAG Z790 TOMAHAWK WIFI DDR4
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1
MSI MAG Z790 TOMAHAWK WIFI DDR4
  • Motherboard
  • ATX
  • LGA1700 Socket
  • Z790 Chipset
  • USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1
  • 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth
  • onboard graphics (CPU required)
  • High Definition Audio (7.1-channel)
  Additional Details
Price: $343.00
Mfr Part #: Z790TOMWID4
SHI Part #: 45426524
Category: motherboards or daughterboards
UNSPSC: 43201513
Manufacturer: MSI
Product Type: Hardware
General Information
Categorymotherboards or daughterboards
DescriptionMSI MAG Z790 TOMAHAWK WIFI DDR4 - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - High Definition Audio (7.1-channel)
ManufacturerMSI
MSRP$289.99
UNSPSC43201513
Main Specifications
Dimensions & Weight / Depth24.384 cm
Dimensions & Weight / Width30.48 cm
Header / BrandMSI
Mainboard / Chipset TypeIntel Z790
Mainboard / Processor SocketLGA1700 Socket
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Bluetooth 5.3
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax (Wi-Fi 6E)
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Packaged Quantity1
Video Output / TypeGraphics adapter (CPU required)
Audio
Audio CodecRealtek ALC4080
Compliant StandardsHigh Definition Audio
TypeHigh Definition Audio (7.1-channel)
Expansion / Connectivity
Expansion Slots
  • 1 x CPU
  • 4 x DIMM 288-pin
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (x4 mode)
  • 1 x PCIe 3.0 x1
  • 1 x M.2 socket (2260/2280/22110 M.2 Key M slot)
  • 1 x M.2 socket (2260/2280 M.2 Key M slot)
  • 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
  • 1 x M.2 socket (Key E)

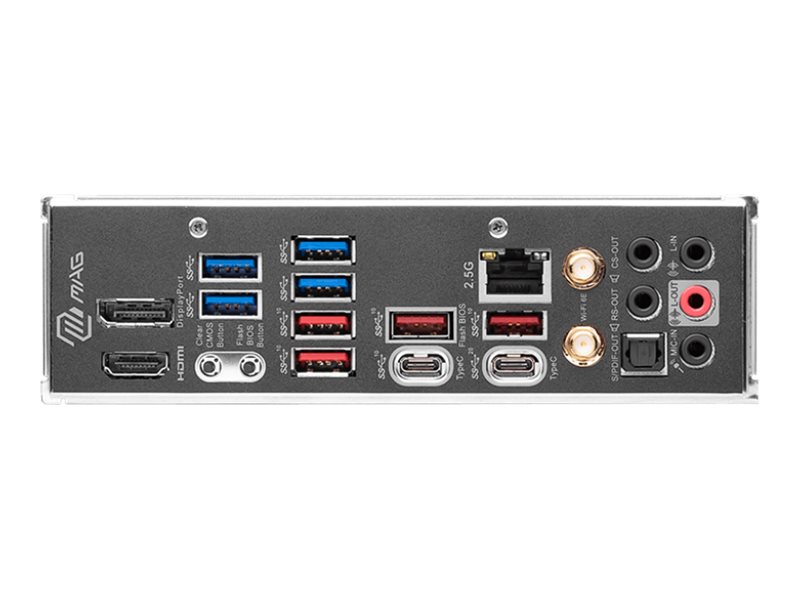

Interfaces
  • 1 x HDMI
  • 1 x DisplayPort
  • 4 x USB 3.2 Gen 1
  • 4 x USB 3.2 Gen 2
  • 1 x USB-C 3.2 Gen2x2
  • 1 x USB-C 3.2 Gen 2
  • 1 x audio line-out - mini-jack
  • 1 x microphone - mini-jack
  • 1 x audio line-out (center/subwoofer) - mini-jack
  • 1 x audio line-out (rear) - mini-jack
  • 1 x audio line-in - mini-jack
  • 1 x SPDIF out
  • 2 x antenna
  • 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces
  • 4 x USB 2.0 - header
  • 2 x USB 3.2 Gen 1 - header
  • 1 x USB-C 3.2 Gen 2 - header
  • 1 x audio - header
  • 1 x Thunderbolt - header
  • 1 x SPI - header
Power Connectors24-pin main power connector, 2 x 8-pin ATX12V connectors
Storage Interfaces
  • SATA-600 -connectors: 7 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
  • SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Features
BIOS FeaturesMSI ClickBIOS 5
Hardware FeaturesDebug LED, Clear CMOS Button, M.2 Shield FROZR, MSI Core Boost, MSI Memory Boost, MSI Audio Boost 5, 6 Layer PCB, 2oz Copper PCB, 16+1+1 Phase Power Design, Extended Heatsink Design, MSI Steel Armor, Water Pump Header, 90A Smart Power Stage, Surface Mount Technology (SMT), DIY Friendly Design, flash BIOS button, MSI Mystic Light
General
Chipset TypeIntel Z790
Compatible Processors(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max Processors Qty1
Processor SocketLGA1700 Socket
Product TypeMotherboard - ATX
LAN
Network Interfaces2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Miscellaneous
Cables Included2 x Serial ATA cable
Compliant StandardsDisplayPort 1.4, FISMA, FIPS
Depth24.384 cm
Included Accessories2 x EZ M.2 clips, USB drive, cable stickers, Wi-Fi antenna
Software IncludedMSI Center, AIDA64 Extreme (60 days trial), Norton 360 Deluxe (60 days trial)
Width30.48 cm
Supported RAM
Bus Clock2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4533 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5066 MHz (O.C.), 5200 MHz (O.C.), 5333 MHz (O.C.)
FeaturesIntel Extreme Memory Profiles (XMP), dual channel memory architecture
Max Size128 GB
Registered or BufferedUnbuffered
Supported RAM Integrity CheckNon-ECC
TechnologyDDR4
