Lenovo ThinkStation P360 Ultra 30G0
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

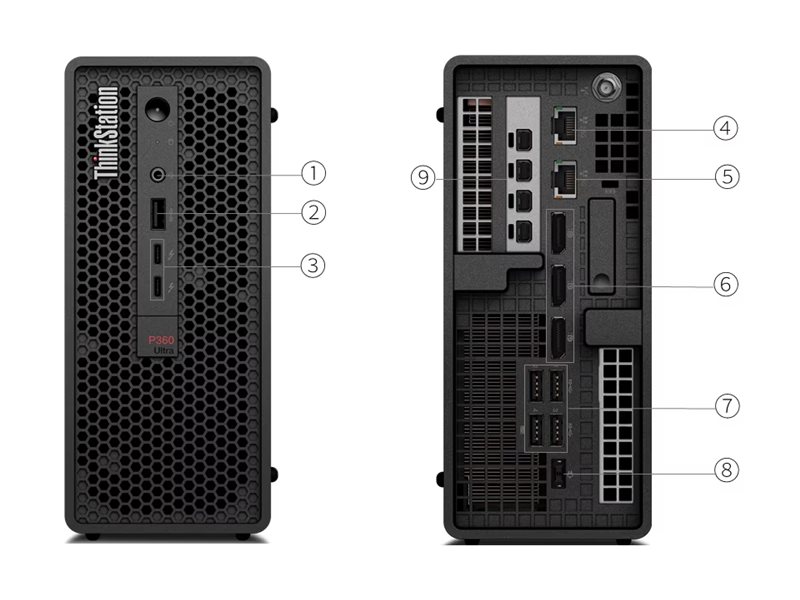

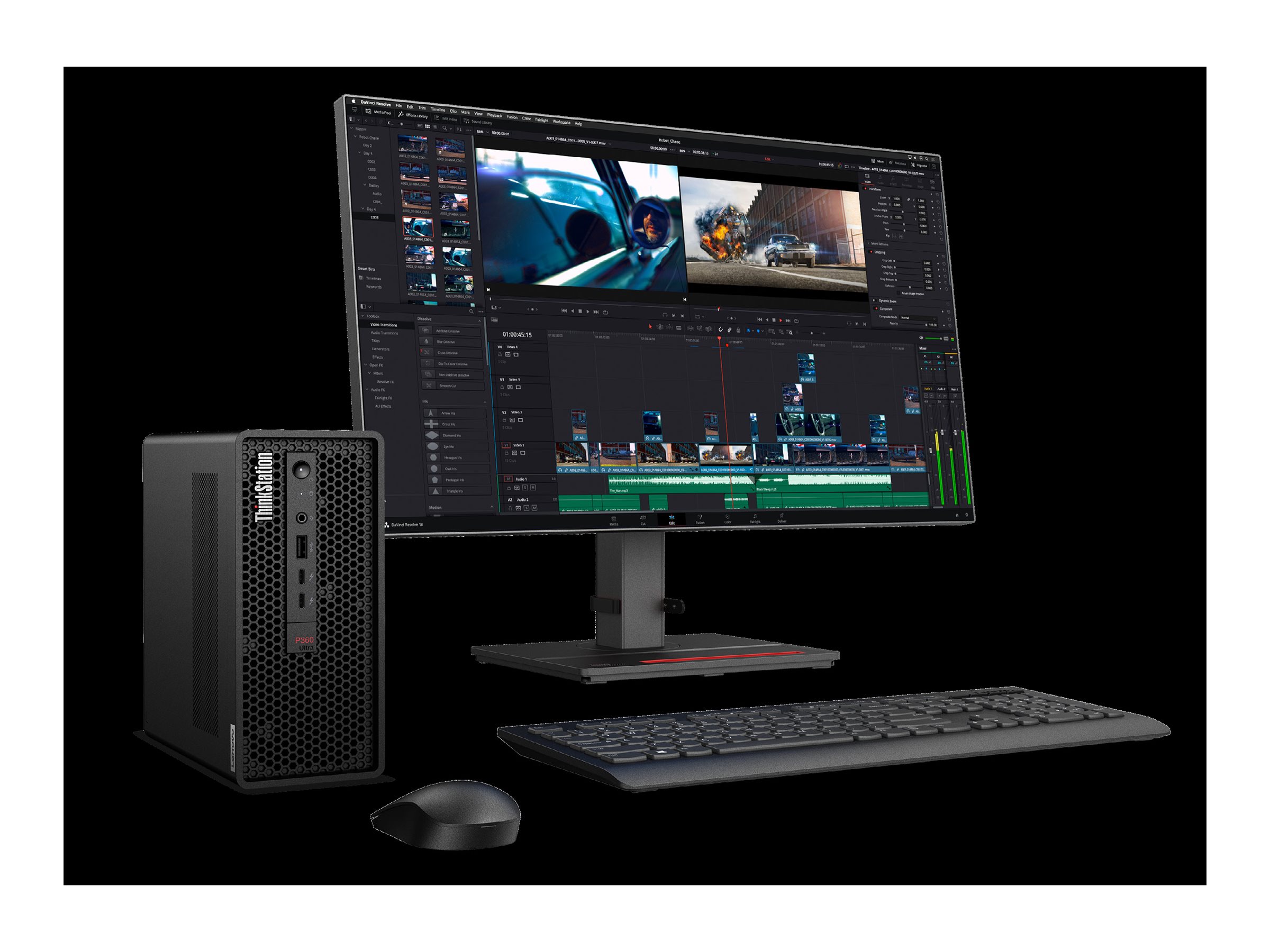

Lenovo ThinkStation P360 Ultra 30G0
- MT 1 x Core i5 12500 / up to 4.6 GHz
- RAM 16 GB
- SSD 1.024 TB
- TCG Opal Encryption
- UHD Graphics 770
- Gigabit Ethernet, 2.5 Gigabit Ethernet
- Win 10 IoT Enterprise 64-bit
- monitor: none
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 30G0S01X00 |
| SHI Part #: | 45392960 |
| Category: | Desktop computers |
| UNSPSC: | 43211507 |
| Manufacturer: | Lenovo |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Desktop computers |
| Description | Lenovo ThinkStation P360 Ultra 30G0 - MT 1 x Core i5 12500 / up to 4.6 GHz - RAM 16 GB - SSD 1.024 TB - TCG Opal Encryption - UHD Graphics 770 - Gigabit Ethernet, 2.5 Gigabit Ethernet - Win 10 IoT Enterprise 64-bit - monitor: none |
| Manufacturer | Lenovo |
| UNSPSC | 43211507 |
| Main Specifications | |
| Chassis / Form Factor | Small form factor |
| Dimensions & Weight / Depth | 22.3 cm |
| Dimensions & Weight / Height | 20.2 cm |
| Dimensions & Weight / Weight | 3.6 kg |
| Dimensions & Weight / Width | 8.6 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 1.024 TB |
| Hard Drive / Interface | PCI Express 4.0 x4 |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Header / Brand | Lenovo |
| Mainboard / Chipset Type | Intel W680 |
| Mainboard / Processor Socket | FCLGA1700 Socket |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 IoT Enterprise 64-bit Edition |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 3 GHz |
| Processor / Generation | 12 |
| Processor / Manufacturer | Intel |
| Processor / Number of Cores | 6-core |
| Processor / Processor Number | I5-12500 |
| Processor / Type | Core i5 |
| RAM / Form Factor | SO-DIMM 262-pin |
| RAM / Memory Speed | 4800 MHz |
| RAM / Technology | DDR5 SDRAM |
| System / Hard Drive Capacity | 1.024 TB |
| System / Type | Workstation |
| Video Output / Graphics Processor | Intel UHD Graphics 770 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Cache Memory | |
| Cache Per Processor | 18 MB |
| Installed Size | 18 MB |
| Dimensions & Weight | |
| Depth | 22.3 cm |
| Height | 20.2 cm |
| Weight | 3.6 kg |
| Width | 8.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots |
|
| General | |
| Embedded Security | Discrete Trusted Platform Module (TPM 2.0) Security Chip |
| Product Form Factor | MT |
| Type | Workstation |
| Graphics Controller | |
| Graphics Processor | Intel UHD Graphics 770 shared video memory (UMA) |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 1.024 TB |
| Features | TCG Opal Encryption |
| Interface Type | PCI Express 4.0 x4 |
| Manufacturer | Western Digital |
| Type | SSD - M.2 2280 |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Miscellaneous | |
| Compliant Standards | RoHS, TCG Certified, MIL-STD-810H |
| Included Accessories | PCI Express riser card |
| Security Slot Type | Kensington security slot |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately), chassis intrusion switch |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Mouse Name | Lenovo Calliope Mouse |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.1 |
| Ethernet Controller | Intel I225-LM, I210-AT |
| Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Features | Wake on LAN (WoL) |
| Interface (Bus) Type | M.2 Card |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6 AX 201 |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 64-bit Edition |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Efficiency | 90% |
| Power Provided | 230 Watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Chipset Type | Intel W680 |
| Clock Speed | 3 GHz |
| CPU | Intel Core i5 (12th Gen) 12500 |
| CPU Qty | 1 |
| CPU Socket | FCLGA1700 Socket |
| Max CPU Qty | 1 |
| Max Turbo Speed | 4.6 GHz |
| Number of Cores | 6-core |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 4800 MT/s |
| Features | Dual channel memory architecture |
| Form Factor | SO-DIMM 262-pin |
| Installed Size | 16 GB (installed) / 128 GB (max) |
| Slots | 4 (total) / 3 (empty) |
| Technology | DDR5 SDRAM |
| Storage Controller | |
| Channel Qty | 1 |
| Controller Interface Type | SATA 6Gb/s |
| Type | 1 x SATA |
| Storage Controller (2nd) | |
| Controller Interface Type | PCI Express |
| RAID Level | RAID 0, RAID 1 |
| Type | 1 x NVMe |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 8.0 |
| EPEAT Compliant | EPEAT Gold |
| TCO Certified | TCO Certified Desktops 9 |
