EVGA SuperNOVA 850 G7
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
EVGA SuperNOVA 850 G7
- Power supply (internal)
- ATX12V / EPS12V
- 80 PLUS Gold
- AC 100-240 V
- 850 Watt
| Additional Details | |
|---|---|
| Mfr Part #: | 220-G7-0850-X1 |
| SHI Part #: | 45332026 |
| Category: | Power supply units |
| UNSPSC: | 39121004 |
| Manufacturer: | EVGA |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power supply units |
| Description | EVGA SuperNOVA 850 G7 - Power supply (internal) - ATX12V / EPS12V - 80 PLUS Gold - AC 100-240 V - 850 Watt |
| Manufacturer | EVGA |
| UNSPSC | 39121004 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13 cm |
| Dimensions & Weight / Height | 8.5 cm |
| Dimensions & Weight / Weight | 3.22 kg |
| Dimensions & Weight / Width | 15 cm |
| General / Subcategory | Power supplies |
| Header / Brand | EVGA |
| Miscellaneous / Product Color |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Internal |
| Power Device / Power Supply Compatibility | PC/Server |
| Power Device / Voltage Required | AC 100-240 V |
| Product Type | Power supply |
| Service & Support / Type | 10-year warranty |
| Dimensions & Weight | |
| Depth | 13 cm |
| Height | 8.5 cm |
| Weight | 3.22 kg |
| Width | 15 cm |
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Device Type | Power supply - internal |
| PSU Form Factor | ATX |
| Specification Compliance | ATX12V / EPS12V |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years with product registration |
| Miscellaneous | |

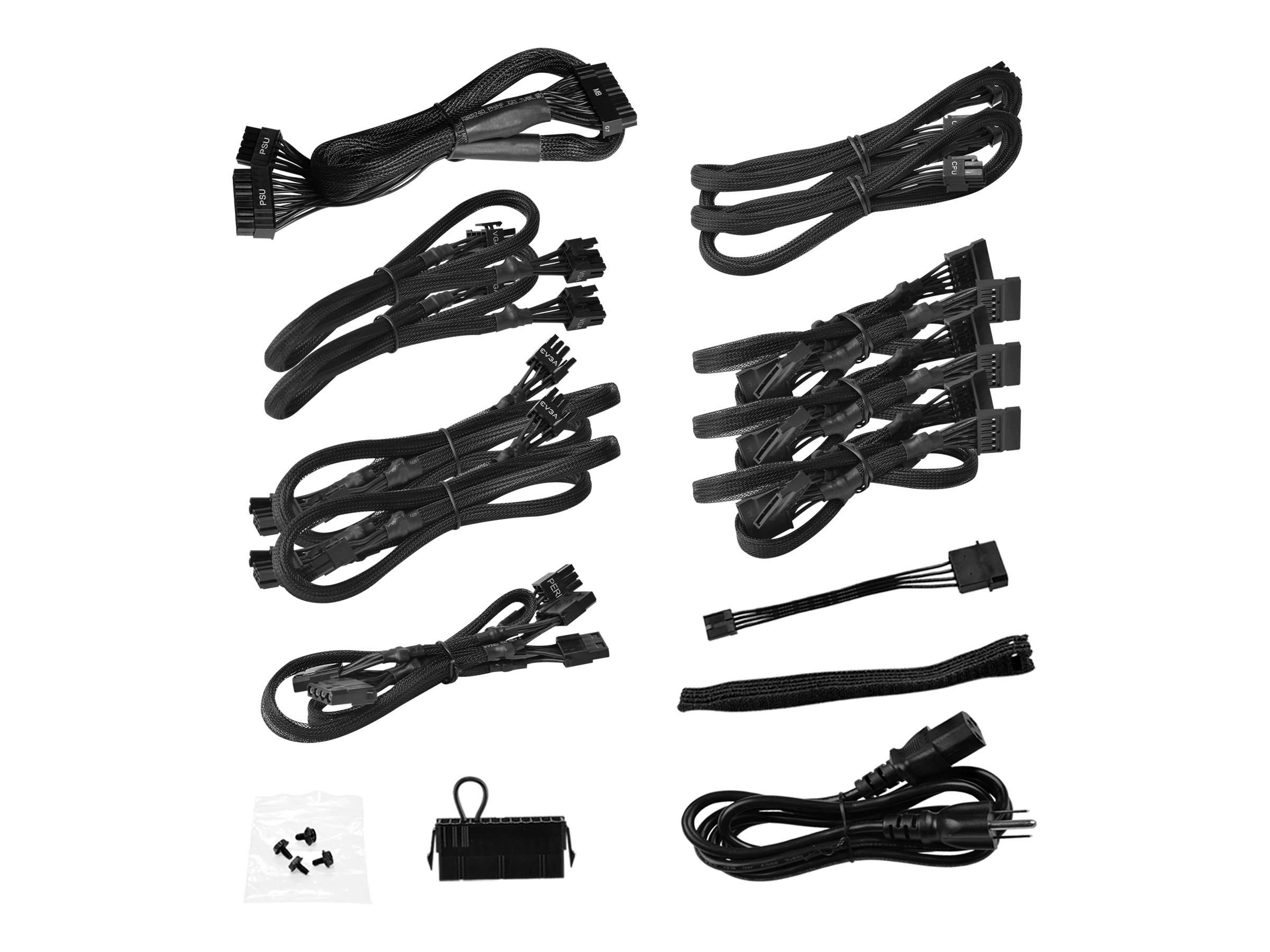

| Cables Included |
|
| Compliant Standards | TUV, CB, FCC, RoHS, WEEE, cTUVus, RCM, ErP Lot 3 2014 Ready |
| Cooling System | 120 mm fan |

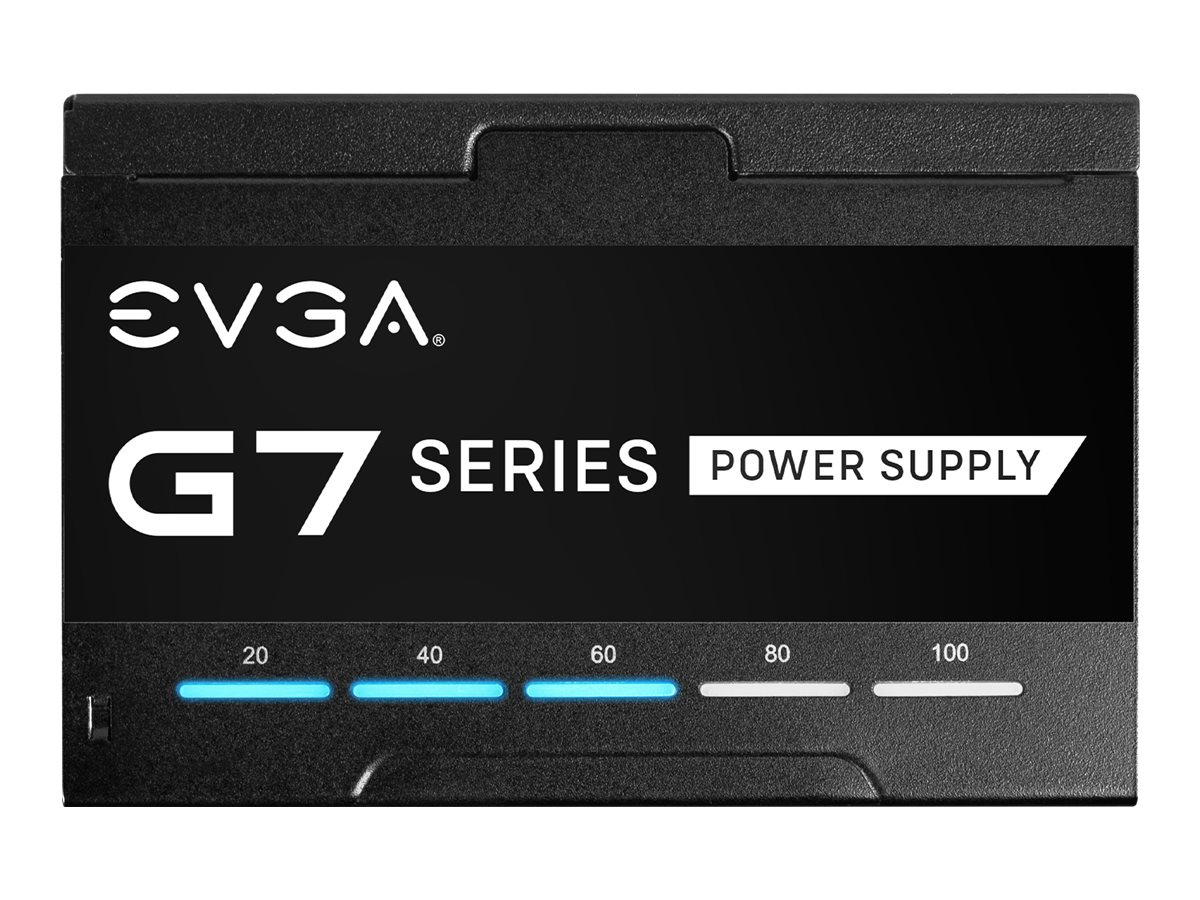

| Features | Overheat protection, overcurrent protection, overvoltage protection, overpower protection, undervoltage protection, short-circuit protection, Eco-Mode, fluid dynamic bearing cooling fan, load diagnostic LED, Power-On Self-Test (POST), fully modular, LLC Half Bridge Topology |
| MTBF | 100,000 hour(s) |
| Power Device | |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 92% (115VAC) / 93% (220-240VAC) |
| Frequency Required | 50/60 Hz |
| Input Voltage | AC 100-240 V |

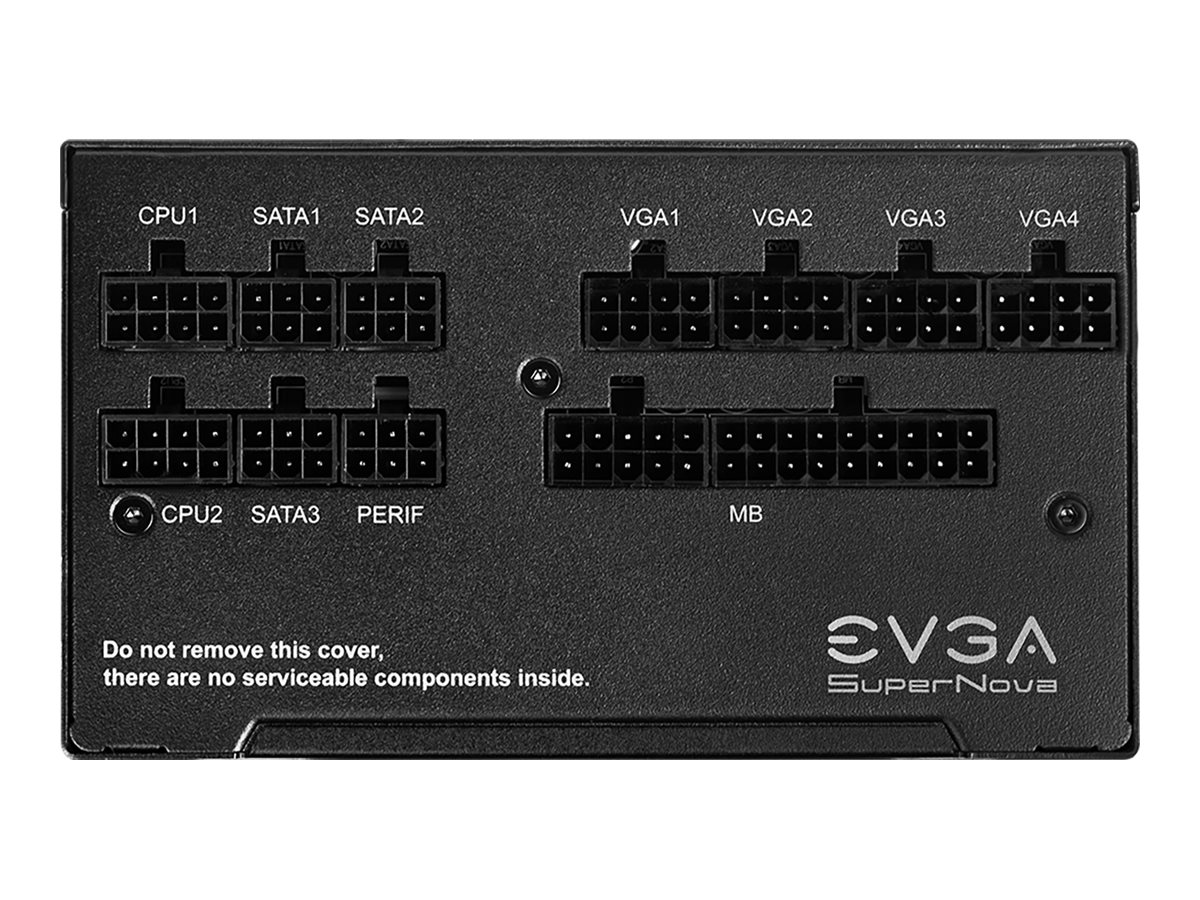

| Modular Cable Management | Yes |
| Output Current |
|
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Power Output Connectors Details |
|
