Hardware Data Storage
Add to My Favorites
Data Storage

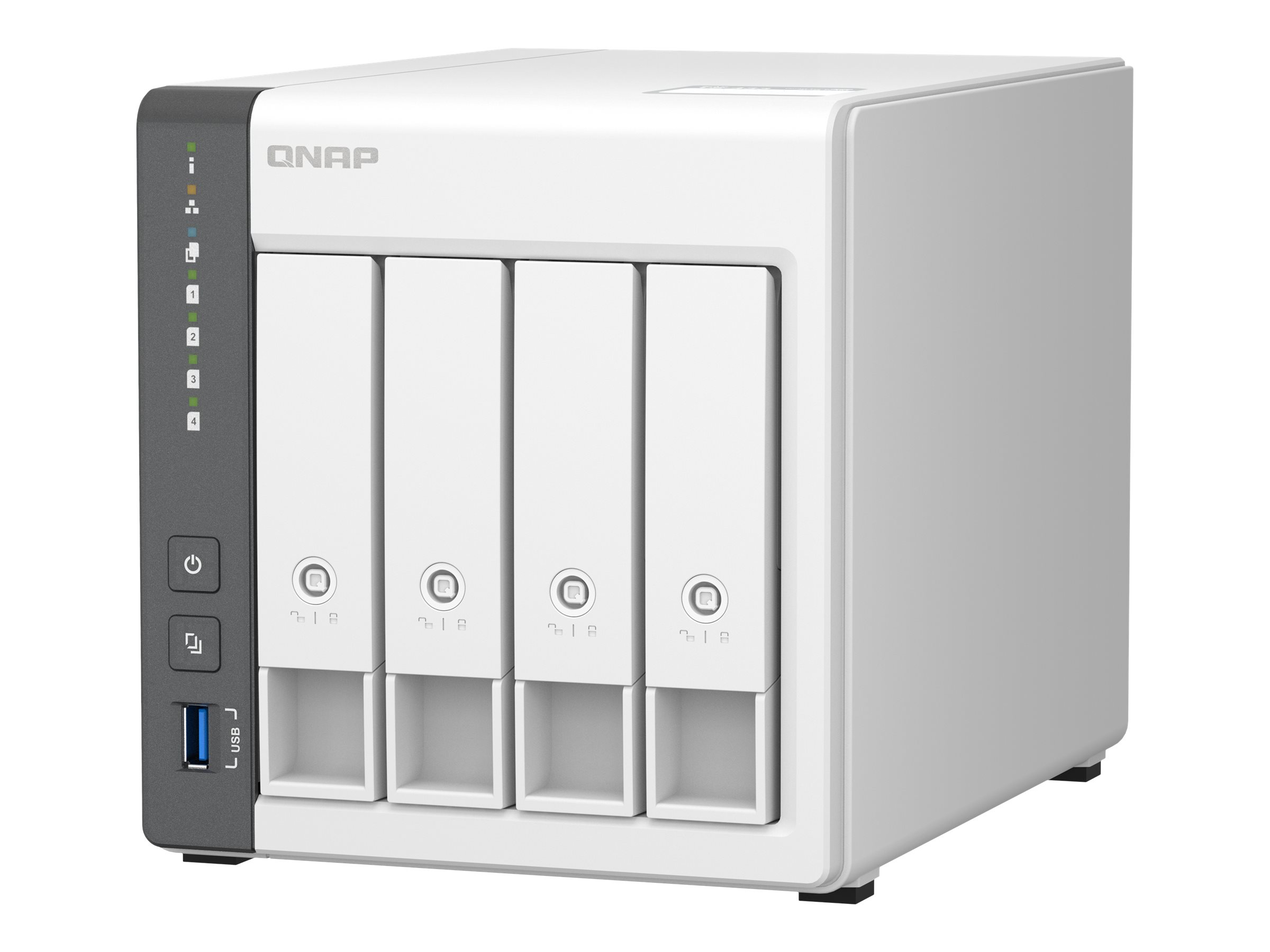

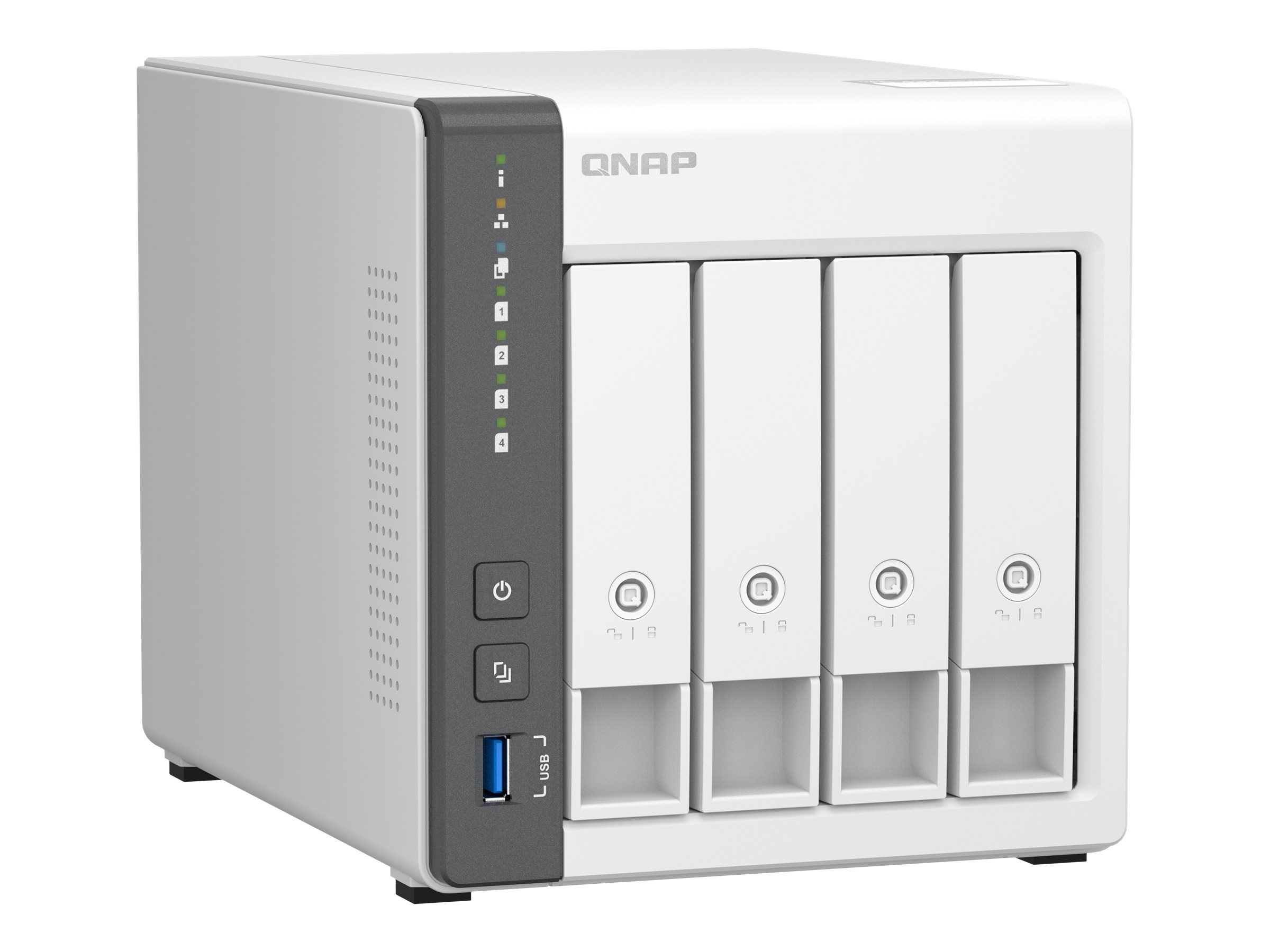

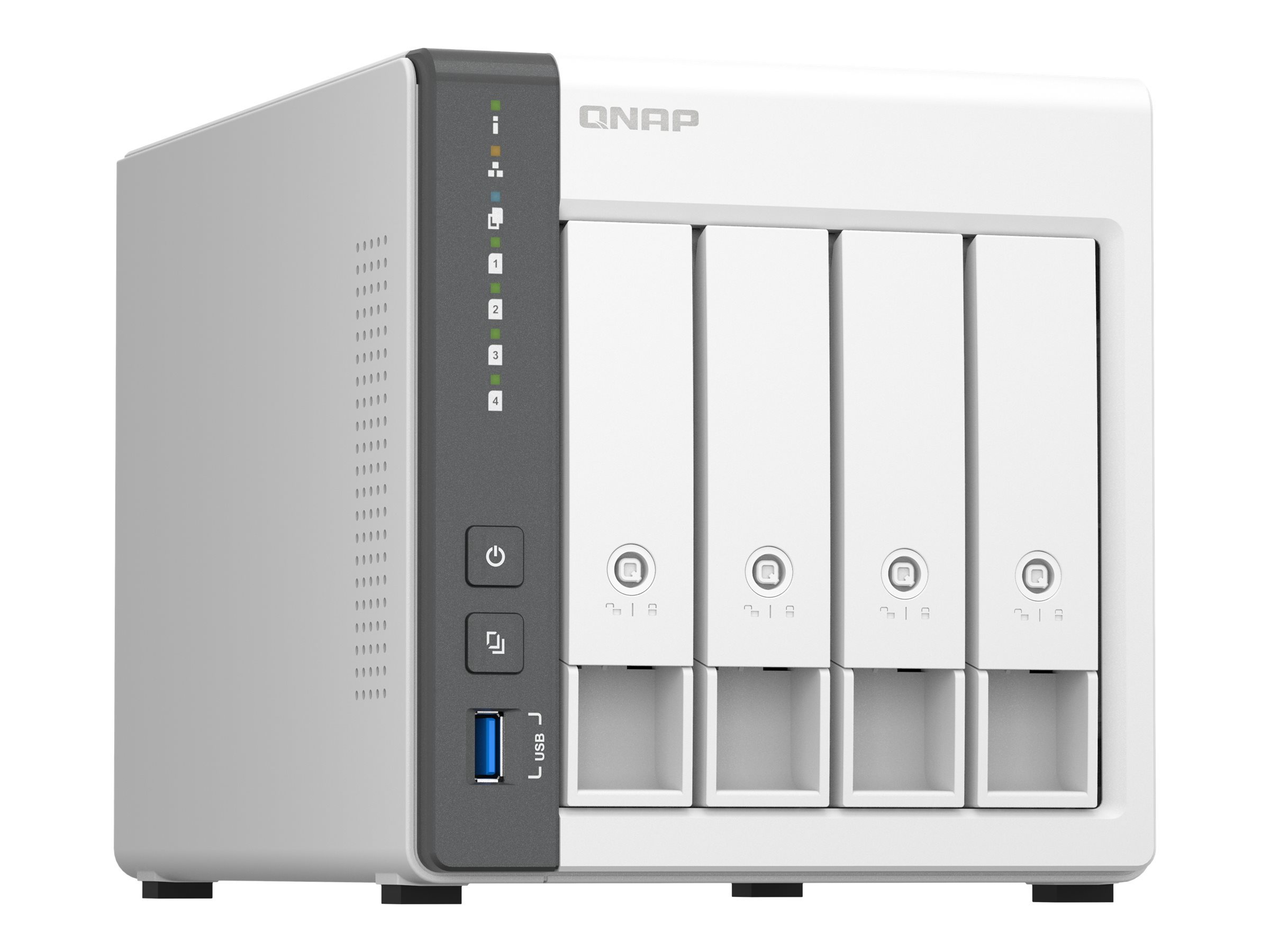

QNAP TS-433 - NAS server

$518.00
QNAP TS-433 - NAS server
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • 4 bays
  • SATA 6Gb/s
  • RAID 0, 1, 5, 6, 10, JBOD, 50, 60
  • RAM 4 GB
  • Gigabit Ethernet / 2.5 Gigabit Ethernet
QNAP TS-433 - NAS server
  • 4 bays
  • SATA 6Gb/s
  • RAID 0, 1, 5, 6, 10, JBOD, 50, 60
  • RAM 4 GB
  • Gigabit Ethernet / 2.5 Gigabit Ethernet
  • iSCSI support
  Additional Details
Price: $518.00
Mfr Part #: TS-433-4G-US
SHI Part #: 45321715
Category: Electronic data storage equipment
UNSPSC: 43201800
Manufacturer: QNAP
Product Type: Hardware
General Information
CategoryElectronic data storage equipment
DescriptionQNAP TS-433 - NAS server - 4 bays - SATA 6Gb/s - RAID 0, 1, 5, 6, 10, JBOD, 50, 60 - RAM 4 GB - Gigabit Ethernet / 2.5 Gigabit Ethernet - iSCSI support
ManufacturerQNAP
MSRP$429.00
UNSPSC43201800
Main Specifications
Dimensions & Weight / Depth21.9 cm
Dimensions & Weight / Height16.9 cm
Dimensions & Weight / Weight2.07 kg
Dimensions & Weight / Width16 cm
Header / BrandQNAP
Header / Country KitsUnited States
Miscellaneous / Product ColorWhite
Networking / Data Link Protocol
  • 2.5 Gigabit Ethernet
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Optical Storage / TypeNone
Packaged Quantity1
Processor / TypeA55
Service & Support / Type2-year warranty
System Requirements / OS Required
  • Apple MacOS X 10.10 or later
  • CentOS 7.0
  • IBM AIX 7
  • Microsoft Windows 7 / 8 / 10 / 11
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2012
  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2016
  • Microsoft Windows Server 2019
  • Oracle Solaris 10 or later
  • Red Hat Enterprise Linux 6.6
  • SuSE Linux 12 or later
  • Ubuntu 14.04
Dimensions & Weight (Shipping)
Shipping Weight3.5 kg
Environmental Parameters
Humidity Range Operating5 - 95% RH (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Bays4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"
Interfaces
  • 1 x 2.5 Gigabit Ethernet - RJ-45
  • 1 x USB 3.2 Gen 1 - Type A
  • 1 x Ethernet 1000 - RJ-45
  • 2 x USB 2.0 - Type A
General
Built-in DevicesLED display, 1 x 120 mm fan
Depth21.9 cm
Device TypeNAS server
Height16.9 cm
Host ConnectivityGigabit Ethernet / 2.5 Gigabit Ethernet
Installed Devices / Modules Qty0 (installed) / 4 (max)
LocalizationUnited States
Total Storage Capacity0 GB
Weight2.07 kg ()
Width16 cm
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables Included1 x network cable
FeaturesSecurity lock slot (cable lock sold separately), dual boot, alarm buzzer
Included Accessories16 x flat head screws (for 3.5" HDD), 12 x flat head screws (for 2.5" HDD), 2 x drive tray keys, power cable
Security Slot TypeKensington security slot
Networking
Data Link Protocol10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
Encryption Algorithm256-bit AES, FIPS 140-2, TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3
FeaturesFloating point unit, Encryption Engine, WOL, Jumbo Frames support, Storage Pool, SED Storage Pool, JBOD Expansion, VJBOD Cloud, iSCSI service, fibre channel service, file-based iSCSI LUN, block-based iSCSI LUN, LUN mapping, LUN masking, WWPN Aliases Import/Export, FC Port Group, FC Port Binding, MPIO, online LUN capacity expansion, LUN snapshot, LUN snapshot replication and clone, auto tiering, RAID Group, RAID Level Migration, RAID Expansion, Storage Pool Expansion, RAID Hot Spare, RAID Sync/Rebuild/Scrubbing, EXT4 file system, Disk, Enclosure Locate, Disk S.M.A.R.T. Scan, Disk S.M.A.R.T. Data Migration, Secure Erase, SSD trim, SSD life estimation, Disk Roaming, Disk Standby, Volume Snapshot, Snapshot Retention Policy, Self-serve Snapshot Recovery, Application Consisted Snapshot, Snapshot Full Clone, Snapshot Replica / Vault, SSD profiling tool, External Device Management, MTP, External RAID Device Management, file station, Object Storage, domain security, Domain Controller, shared folder permission, advanced folder permission, Windows ACL, user quota, group quota, folder quota, home folder, Resource Monitor, Smart Fan, schedule on/off, Virtual Switch, VLAN support, DHCP server, DDNS, security counselor, malware remover, 2-step verification, Allow/Deny List, Access Protection, Service binding, firewall protection, Windows ODX, Qsync, HybridMount, hybrid backup sync, Boxafe, Qsirch, QuMagie, antivirus analysis, QVPN Service, Qfiling, LDAP server, SQL Server, media streaming add-on, QmailAgent, QuWAN, DA Driver Analyzer, FXP support
Network / Transport ProtocolDHCP, DDNS, PPTP, L2TP, IPSec, Telnet, FTP, HTTP, HTTPs, IPv4, IPv6, OpenVPN, QBelt, TFTP
Network Services CompatibilityApple File Protocol (AFP), Microsoft CIFS, Server Message Block (SMB), DHCP, DDNS, HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), Network File System v3 (NFS v3), Network File System v4 (NFS v4)
Performance
  • Maximum volume size: 250 TB
  • Maximum number of volume: 128
  • Maximum shared folder size: 250 TB
  • Maximum number of shared folder: 512
  • Maximum pool size: 308 TB
  • Maximum number of storage pool: 128
  • Maximum LUN size: 250 TB
  • Maximum number of targets LUN: 128
  • Minimum snapshot interval: 5 min
  • Maximum FTP connection: 1024
  • Domain user/group account: 200000
  • Local user account: 4096
  • Local group account: 512
  • Concurrent connections (CIFS): 200
  • System log & notification center: 3000 events per second
  • Virtual hosts: 32
  • Maximum number of version control: 64
Remote Management ProtocolSNMP 2, SNMP 3, SSH, HTTP, HTTPS, Telnet, TFTP
Power
Power Consumption Operational22.54 watt
Power Consumption Stand by8.45 watt
Power DeviceExternal power adapter
Power Provided90 watt
Voltage RequiredAC 100-240 V
Processor / Memory
Flash Memory Installed4 GB
Max Supported Qty1
Number of CoresQuad-Core
Processors Installed1 x ARM A55 2 GHz
RAM4 GB (installed) / 4 GB (supported)
Software / System Requirements
OS RequiredApple MacOS X 10.10 or later, Ubuntu 14.04, CentOS 7.0, Red Hat Enterprise Linux 6.6, SuSE Linux 12 or later, IBM AIX 7, Oracle Solaris 10 or later, Microsoft Windows 7 / 8 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019
Software IncludedIronWolf Health Management
Storage Operating SystemQNAP QTS 5.0.1
Storage Controller
Interface TypeSATA 6Gb/s
RAID LevelRAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 50, RAID 60
TypeRAID
