Micron 5400 PRO - SSD
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

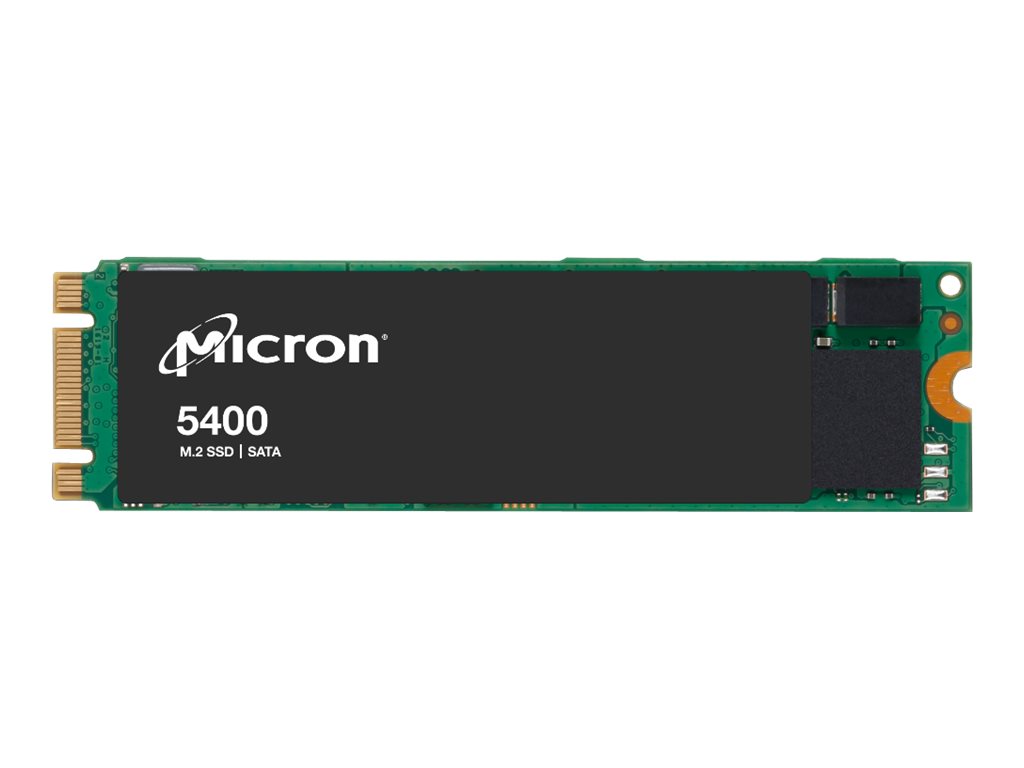

Micron 5400 PRO - SSD
- encrypted
- 480 GB
- internal
- M.2 2280
- SATA 6Gb/s
- 256-bit AES
- Self-Encrypting Drive (SED), TCG Enterprise SSC
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | MTFDDAV480TGA-1BC16ABYYR |
| SHI Part #: | 45192189 |
| Category: | Hard drives |
| UNSPSC: | 43201803 |
| Manufacturer: | Micron Technology |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hard drives |
| Description | Micron 5400 PRO - SSD - encrypted - 480 GB - internal - M.2 2280 - SATA 6Gb/s - 256-bit AES - Self-Encrypting Drive (SED), TCG Enterprise SSC |
| Manufacturer | Micron Technology |
| UNSPSC | 43201803 |
| Main Specifications | |
| Dimensions & Weight / Depth | 80 mm |
| Dimensions & Weight / Height | 3.8 mm |
| Dimensions & Weight / Weight | 10 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 480 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | Micron |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x SATA 6 Gb/s - M.2 Card |
| General | |
| Bytes per Sector | 512 |
| Capacity | 480 GB |
| Depth | 80 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | 176-layer NAND technology, power loss data protection, RAIN technology, Read Intensive, Hot-Plug Support, Adaptive thermal monitoring, Enterprise Data Path Protection |
| Form Factor | M.2 2280 |
| Hardware Encryption | Yes |
| Height | 3.8 mm |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Weight | 10 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | AES-256 |
| Performance | |
| 4KB Random Read | 95000 IOPS |
| 4KB Random Write | 37000 IOPS |
| Drive Transfer Rate | 600 MBps (external) |
| Drive Writes Per Day (DWPD) | 1.5 |
| Internal Data Rate | 540 MBps (read) / 520 MBps (write) |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 3,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
