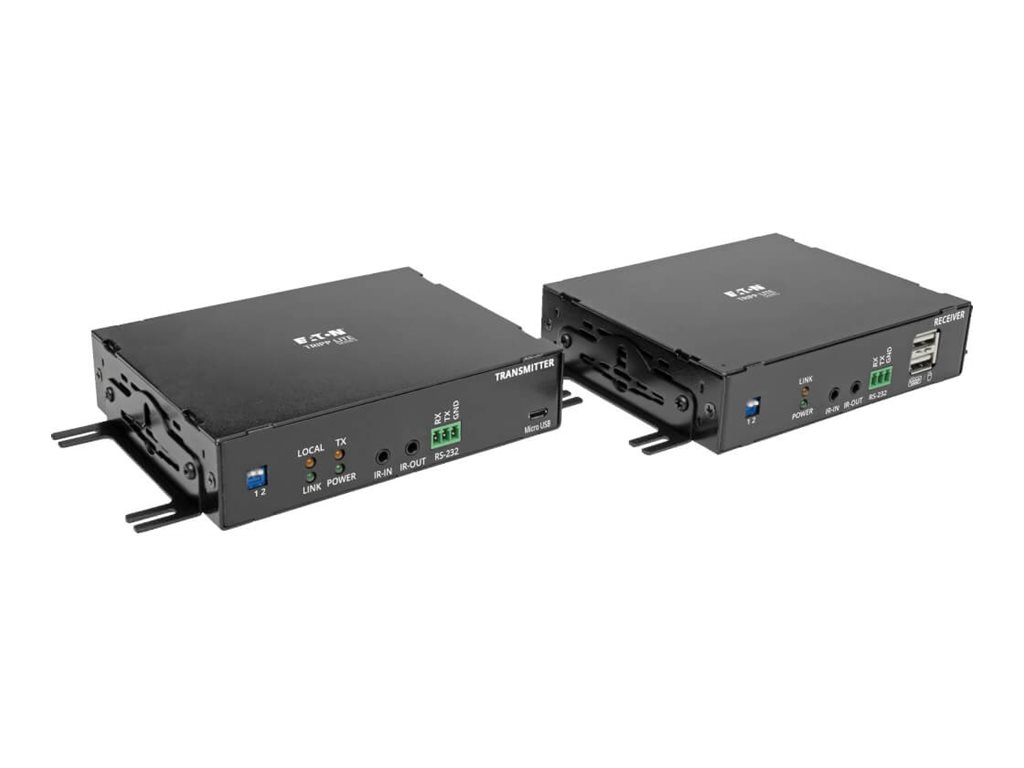

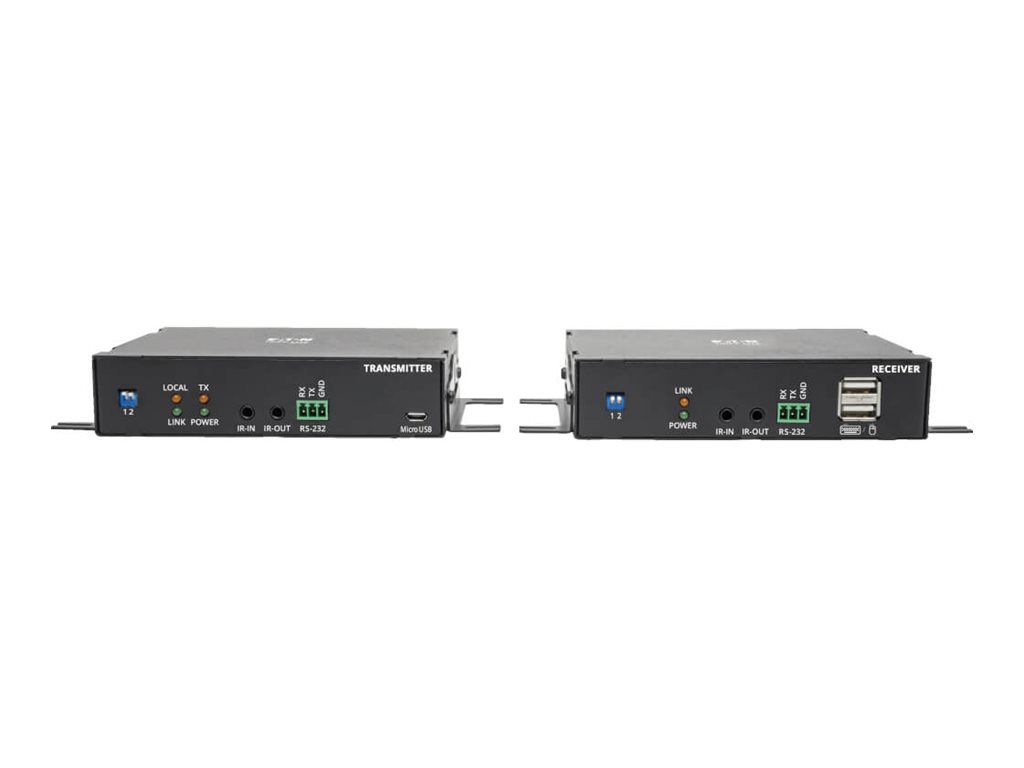

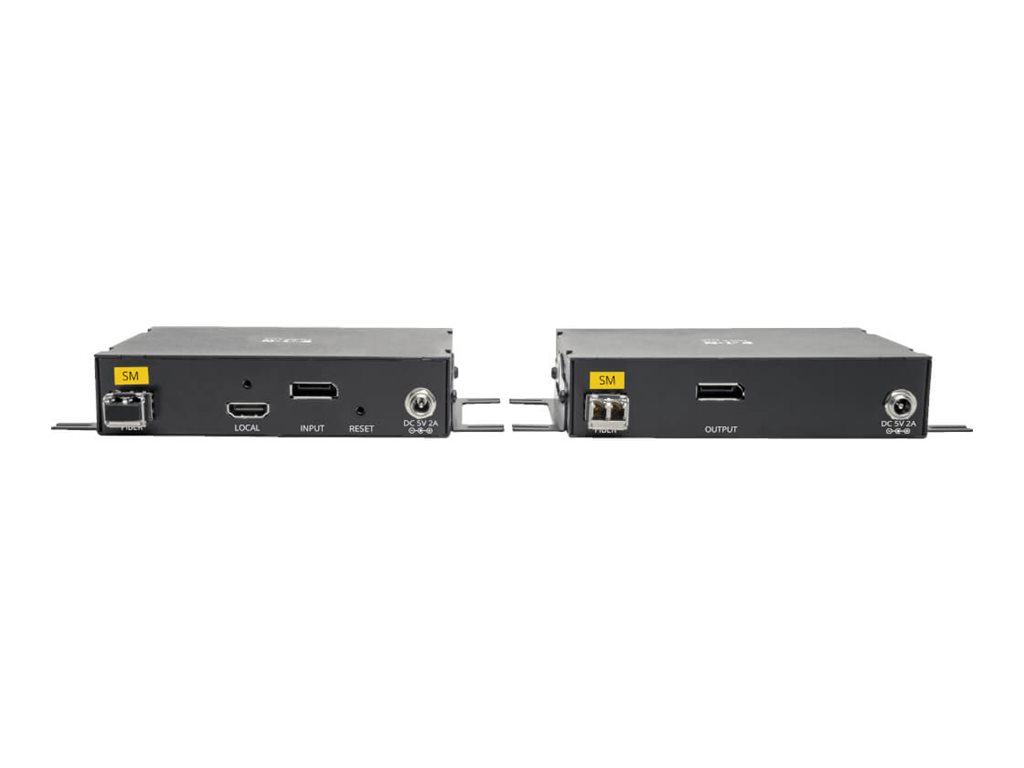

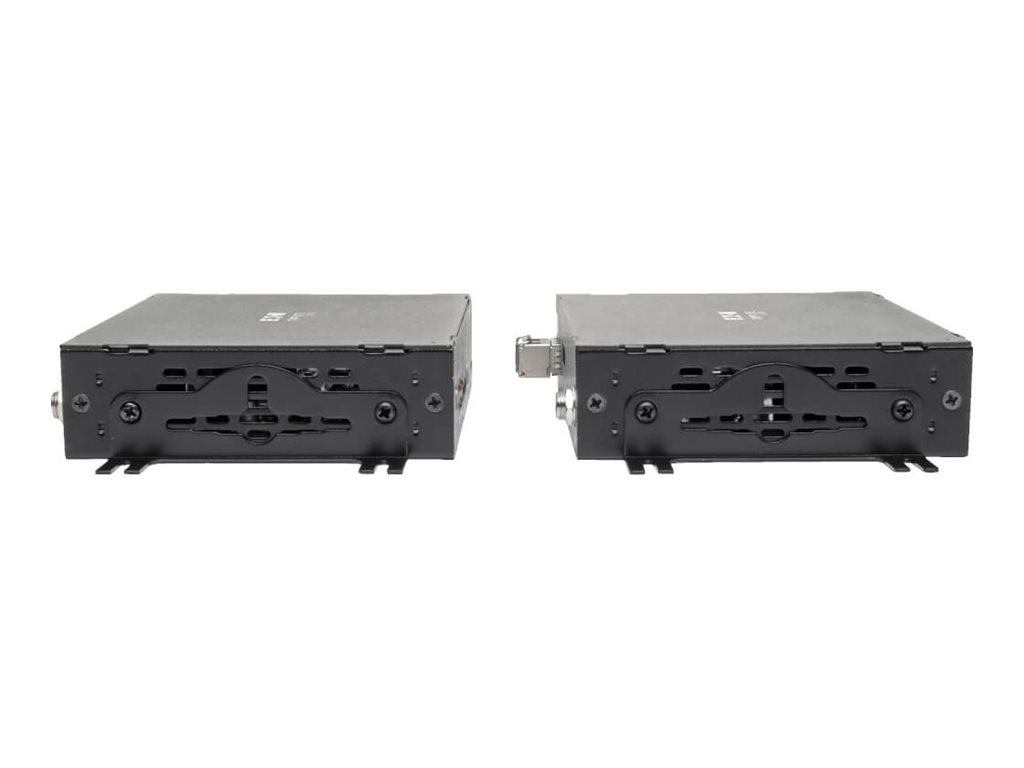

Eaton Tripp Lite Series DisplayPort over Fiber Extender Kit
MSRP$1,365.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton Tripp Lite Series DisplayPort over Fiber Extender Kit
- 4K @ 30 Hz, RS-232, IR, USB, Duplex Singlemode LC, 6.2 mi., TAA
- Transmitter and receiver
- video/audio/infrared/USB extender
- DisplayPort
- over fiber optic
- up to 10 km
- 1310 nm
- TAA Compliant
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,365.00 |
| Mfr Part #: | B127F-1A1-SM-DD |
| SHI Part #: | 45182018 |
| Category: | Serial port cards |
| UNSPSC: | 43201559 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
Audio/Video Cables
- DisplayPort cable
- DisplayPort (M) to DisplayPort (M)
- 1.8 m
- black
MSRP $32.35
$14.00
- DisplayPort cable
- DisplayPort (M) to DisplayPort (M)
- 91 cm
- black
MSRP $29.40
$12.00
Network Cables
- Patch cable
- LC single-mode (M) to LC single-mode (M)
- 1 m
- fiber optic
- duplex
- 9 / 125 micron
MSRP $22.00
$16.00
- Patch cable
- LC single-mode (M) to LC single-mode (M)
- 2 m
- fiber optic
- duplex
- 9 / 125 micron
MSRP $23.00
$17.00
| General Information | |
|---|---|
| Category | Serial port cards |
| Description | Eaton Tripp Lite Series DisplayPort over Fiber Extender Kit - 4K @ 30 Hz, RS-232, IR, USB, Duplex Singlemode LC, 6.2 mi., TAA - Transmitter and receiver - video/audio/infrared/USB extender - DisplayPort - over fiber optic - up to 10 km - 1310 nm - TAA Compliant |
| Manufacturer | Eaton |
| MSRP | $1,365.00 |
| UNSPSC | 43201559 |
| Main Specifications | |
| Header / Brand | Tripp Lite |
| Header / Country Kits |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | DisplayPort |
| Networking / Form Factor | Desktop |
| Networking / Type | Video/audio/infrared/USB extender |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Dimensions (WxDxH) / Weight Details |
|
| Environmental Parameters | |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | Video/audio/infrared/USB extender |
| Form Factor | Desktop |
| Localization | Australia, North America, United Kingdom, Europe |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC, RoHS, REACH, DisplayPort 1.2a |
| Included Accessories | 8 power plug adapters |
| Mounting Kit | Included |
| TAA Compliant | Yes |
| Networking | |
| Compliant Standards | HDCP 2.2 |
| Connectivity Technology | Wired |
| Data Link Protocol | DisplayPort |
| Features | 4K resolution support, metal housing, LPCM 7.1 support, DTS-HD support, HDR support |
| Max Resolution | 3840 x 2160 @ 30 Hz |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Power, link/activity, local |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
