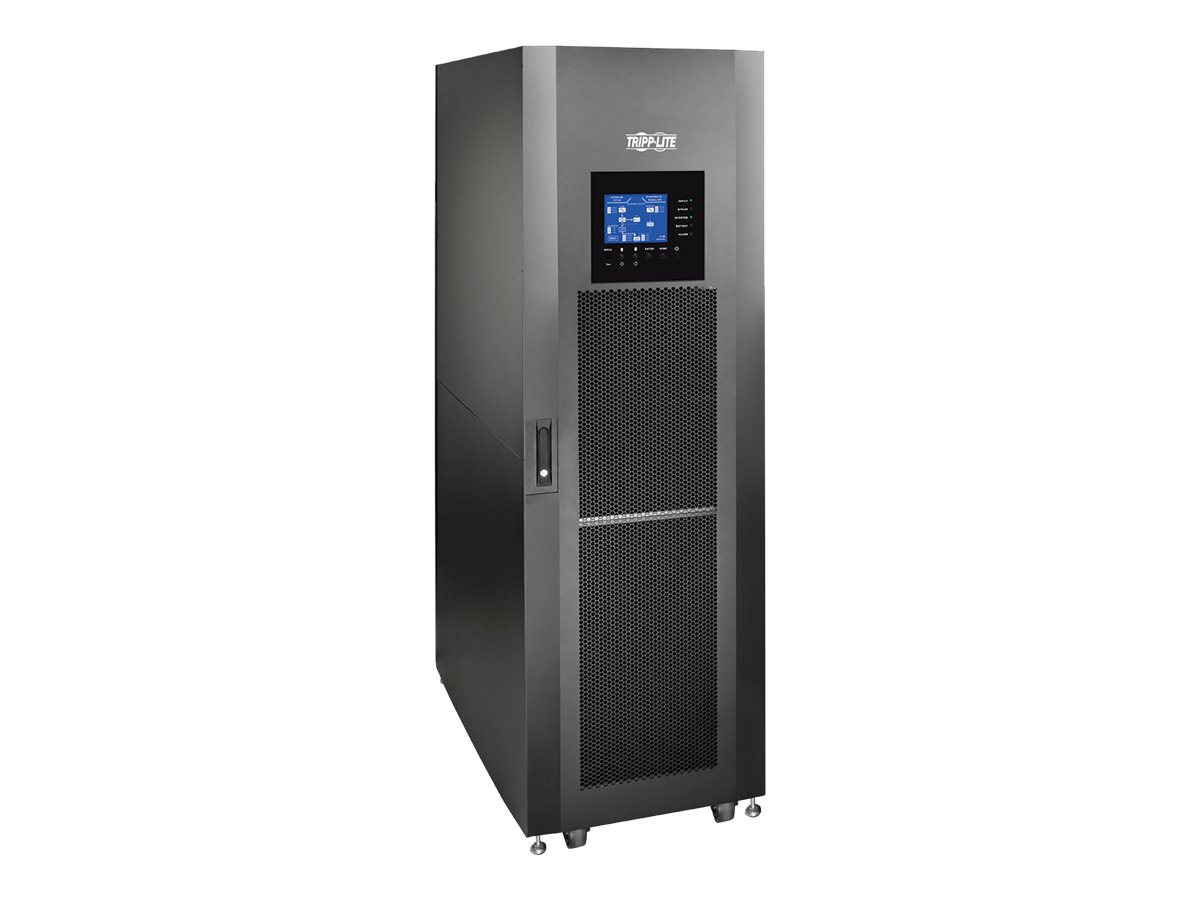

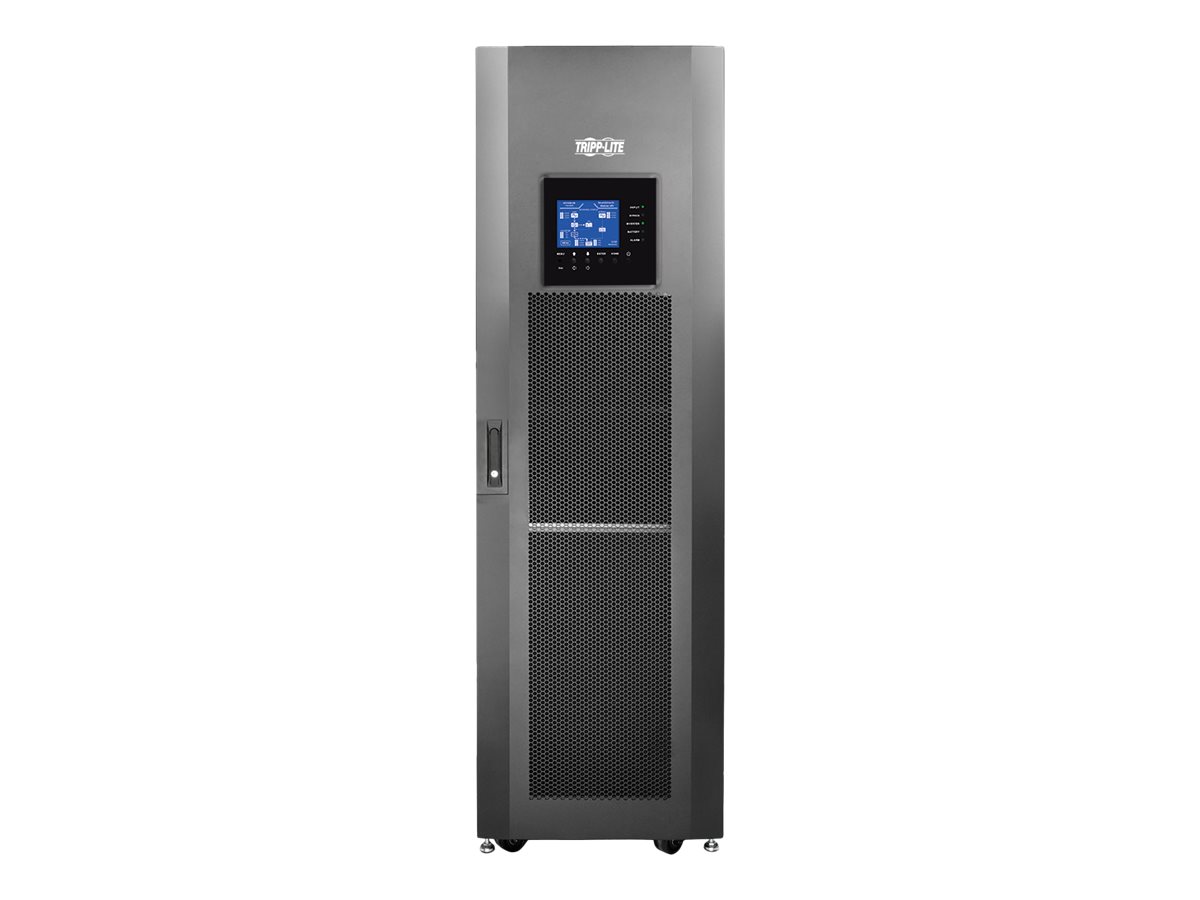

80kVA Smart Online 3-Phase UPS
MSRP$71,748.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
80kVA Smart Online 3-Phase UPS
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $71,748.00 |
| Mfr Part #: | SV80KL |
| SHI Part #: | 45181641 |
| Category: | Computer cables and accessories |
| UNSPSC: | 43202222 |
| Manufacturer: | Eaton |
| Product Type: | Other |
| General Information | |
|---|---|
| Category | Computer cables and accessories |
| Description | 80kVA Smart Online 3-Phase UPS |
| Manufacturer | Eaton |
| MSRP | $71,748.00 |
| UNSPSC | 43202222 |
| Main Specifications | |
| Dimensions & Weight / Depth | 110 cm |
| Dimensions & Weight / Height | 201 cm |
| Dimensions & Weight / Weight | 411 kg |
| Dimensions & Weight / Width | 60 cm |
| General / Subcategory | UPS |
| Header / Brand | Tripp Lite |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | RS-232 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Power Capacity (VA) | 80000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 120/127/208/220 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Transfer Time | 0 ms |
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 110 cm |
| Height | 201 cm |
| Weight | 411 kg |
| Width | 60 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 122 cm |
| Shipping Height | 217.5 cm |
| Shipping Weight | 487 kg |
| Shipping Width | 75 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 73 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 expansion slot |
| Interfaces |
|
| General | |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | RoHS, UL 1778 5th edition, CSA C22.2 No. 107.3.14, FCC Part 15 A, CSA, NOM |
| Features | Overload protection, hot-swappable batteries, overvoltage protection, LCD display, audible alarm, LED indicators, cold-start function, cooling fan, DSP technology, IGBT rectifier, hot swappable PSU, undervoltage protection |
| Networking | |
| Remote Management Interface | RS-232 |
| Remote Management Protocol | SNMP 1, SSH, Telnet, SNMP 2, SNMP 3, HTTP, HTTPS |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | Hardwire |
| Input Voltage | AC 120/127/208/220 V |
| Input Wiring | 3-phase WYE (star) |
| Output Voltage | AC 120/127/208/220 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 72 kW / 80000 VA |
| Power Factor (PF) | 0.99 |
| Power Modules Qty | 4 |
| Power Output Connectors Details | Hardwire |
| Surge Energy Rating | 2496 Joules |
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 3 % |
| UPS Technology | On-line |
