80KVA SMART3PH UPS MED

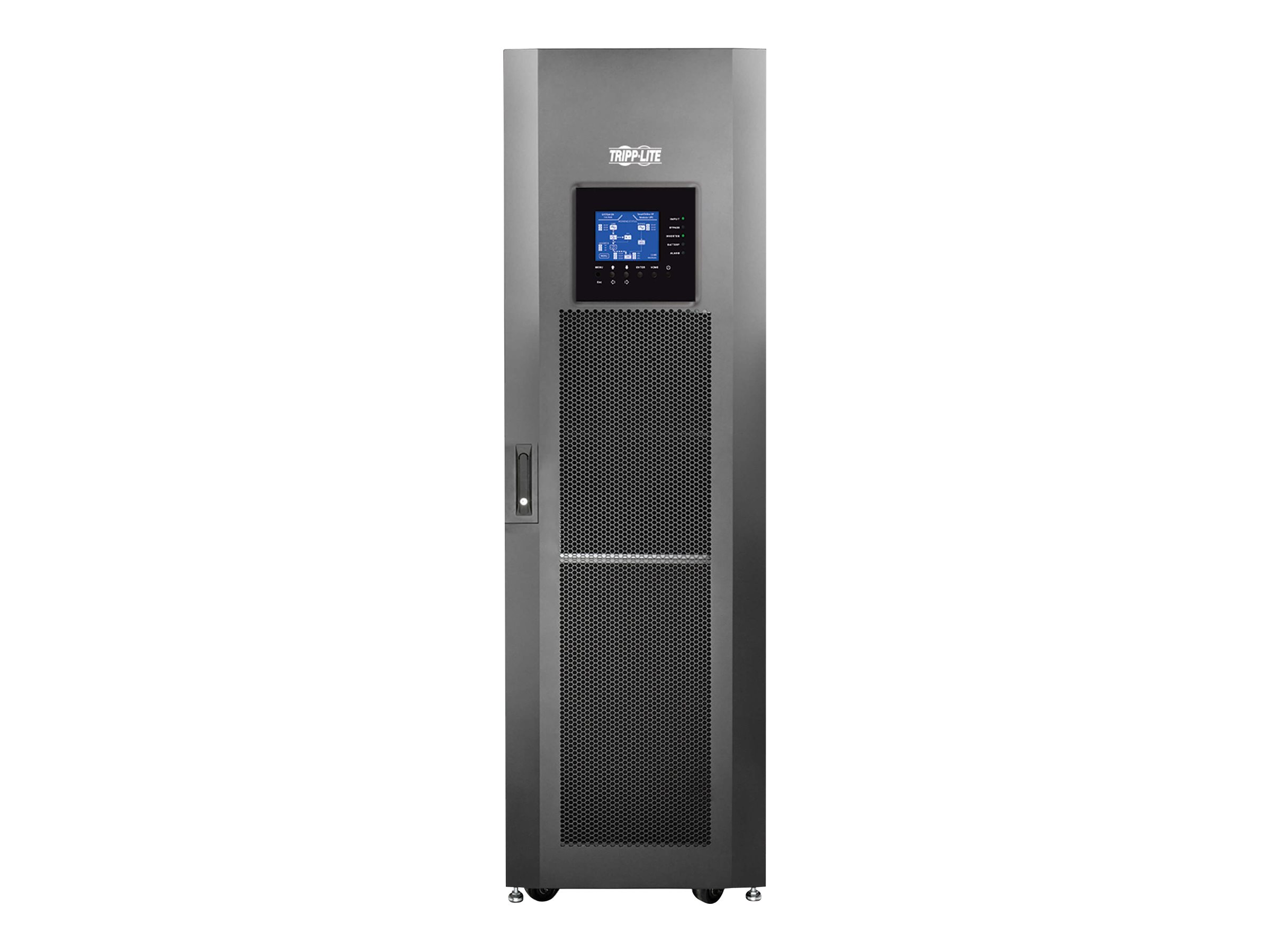

80kVA 72kW 3-Phase Medium-Chassis UPS System

? Supports 208/120V or 220/127V AC 50/60Hz Wye 4-wire plus Earth hardwire input and output wiring

? Dual hardwire input design enables operation from up to 2 power sources

? Network-grade sine-wave AC output with 1% output voltage regulation and less than 1% output total harmonic distortion

? Tested to UL 1778 (U.S.), CSA (Canada) and NOM (Mexico) standards

? High 0.9 power factor for maximum power to the connected load

Pre-Installed WEBCARDLX Network Interface

? Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH

? Supports 10/100 Mbps auto-sensing for communication with an Ethernet network

? Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status

? No Java required

Modular, Scalable Design for Maximum Flexibility

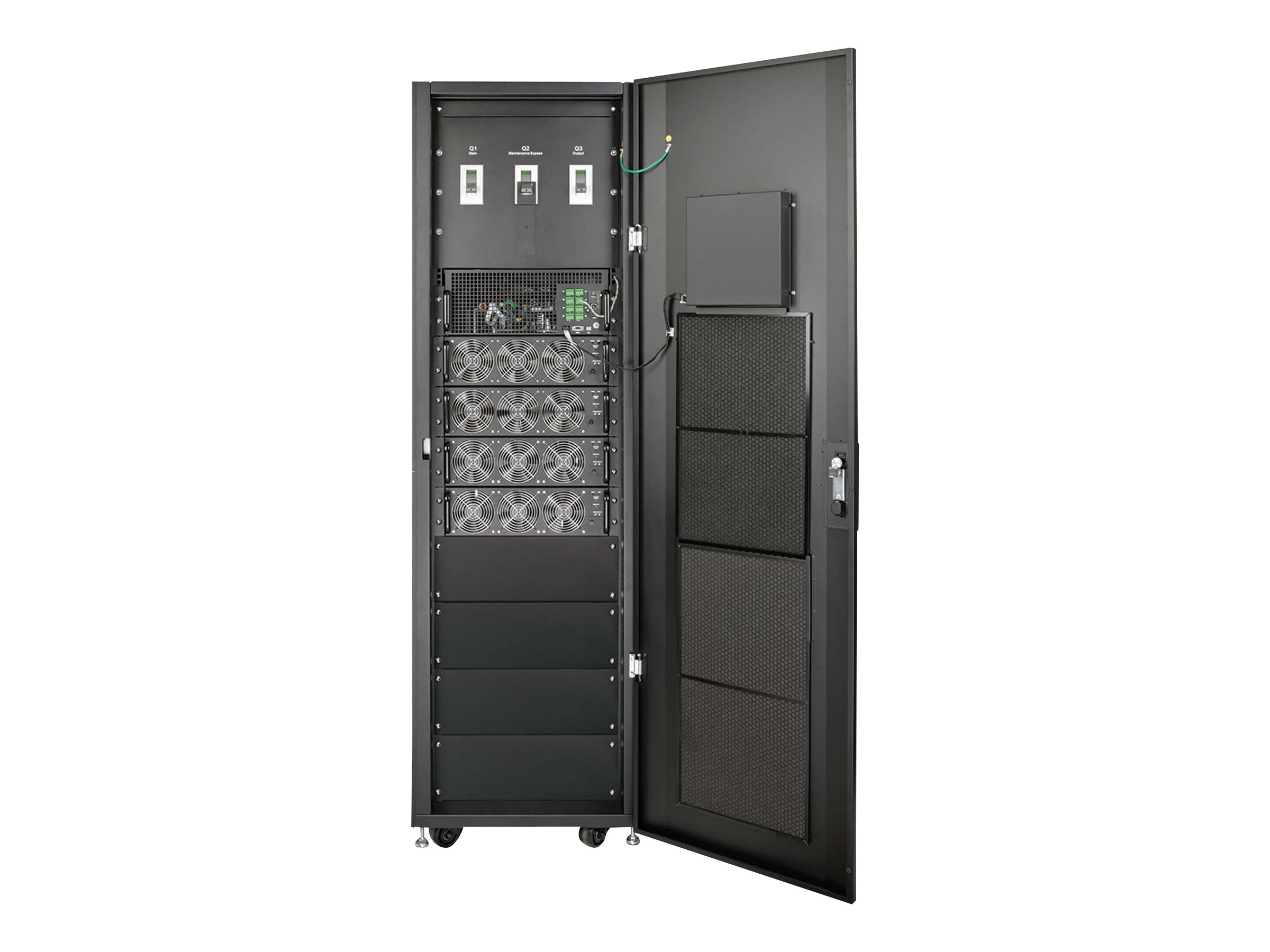

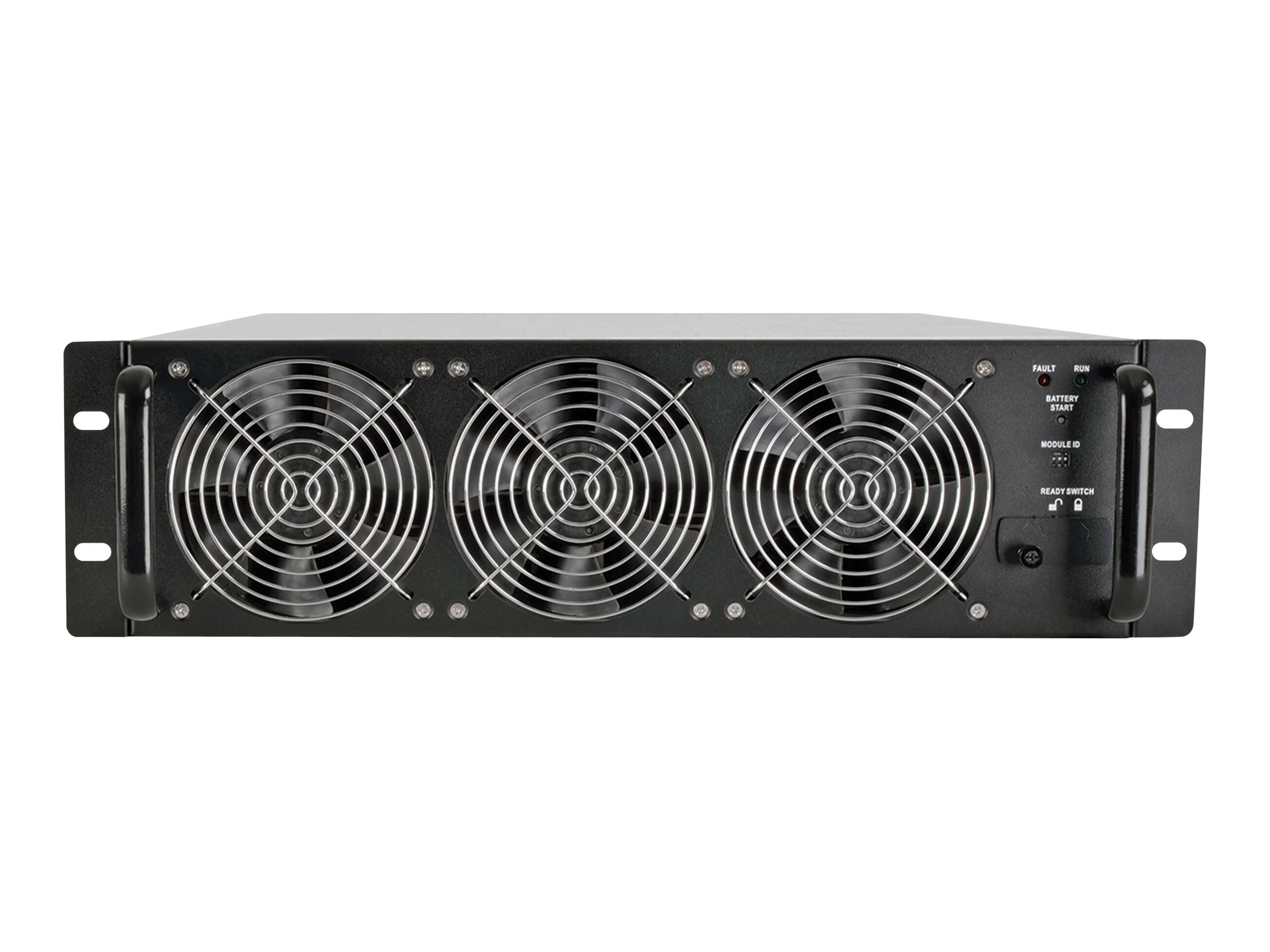

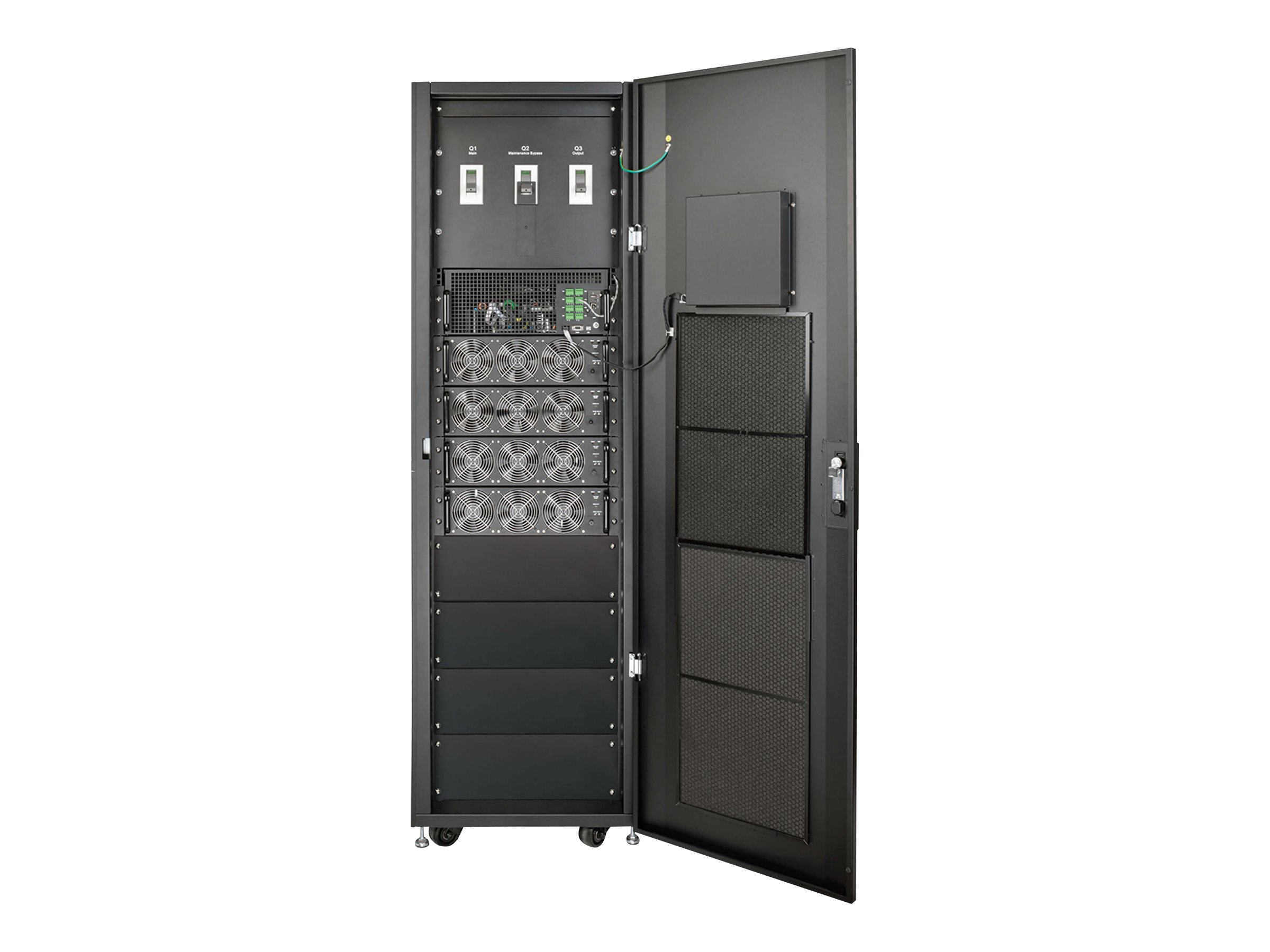

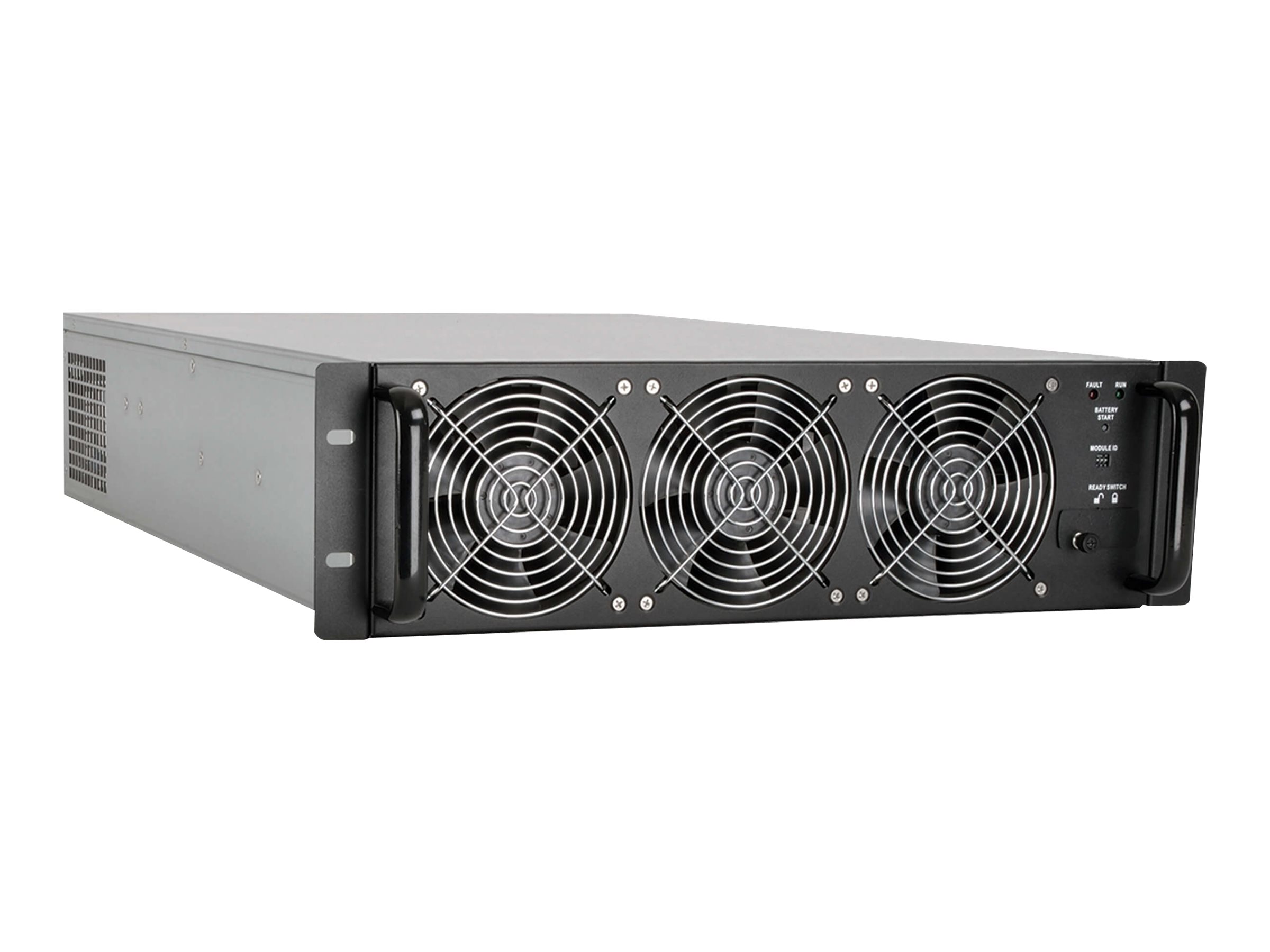

? Modular configuration with hot-swappable power modules, and fast maintenance with zero downtime

? Comes fully configured for 80kVA total capacity or 60kVA with N+1 fault tolerance

? Supports external ±120VDC battery options for extended runtimes

Optional Economy Mode

? Up to 99% efficient in optional economy mode to lower operating and cooling costs

Wide Input/Narrow Output Voltage Operating Range

? Enables full continuous online operation during brownouts as low as 121V and overvoltages up to 253V

? Regulates output voltage within 1% of the selected nominal output voltage in on-line double-conversion mode

Advanced IGBT Inverter with Digital Signal Processor (DSP) Technology

? Provides for less than 2% input total harmonic distortion (THDi) to support 1:1 generator sizing and prevent the need to oversize generator systems relative to UPS capacity

Automatic and Manual Bypass Options

? Keep connected equipment operational during routine maintenance or critical power module failure.
