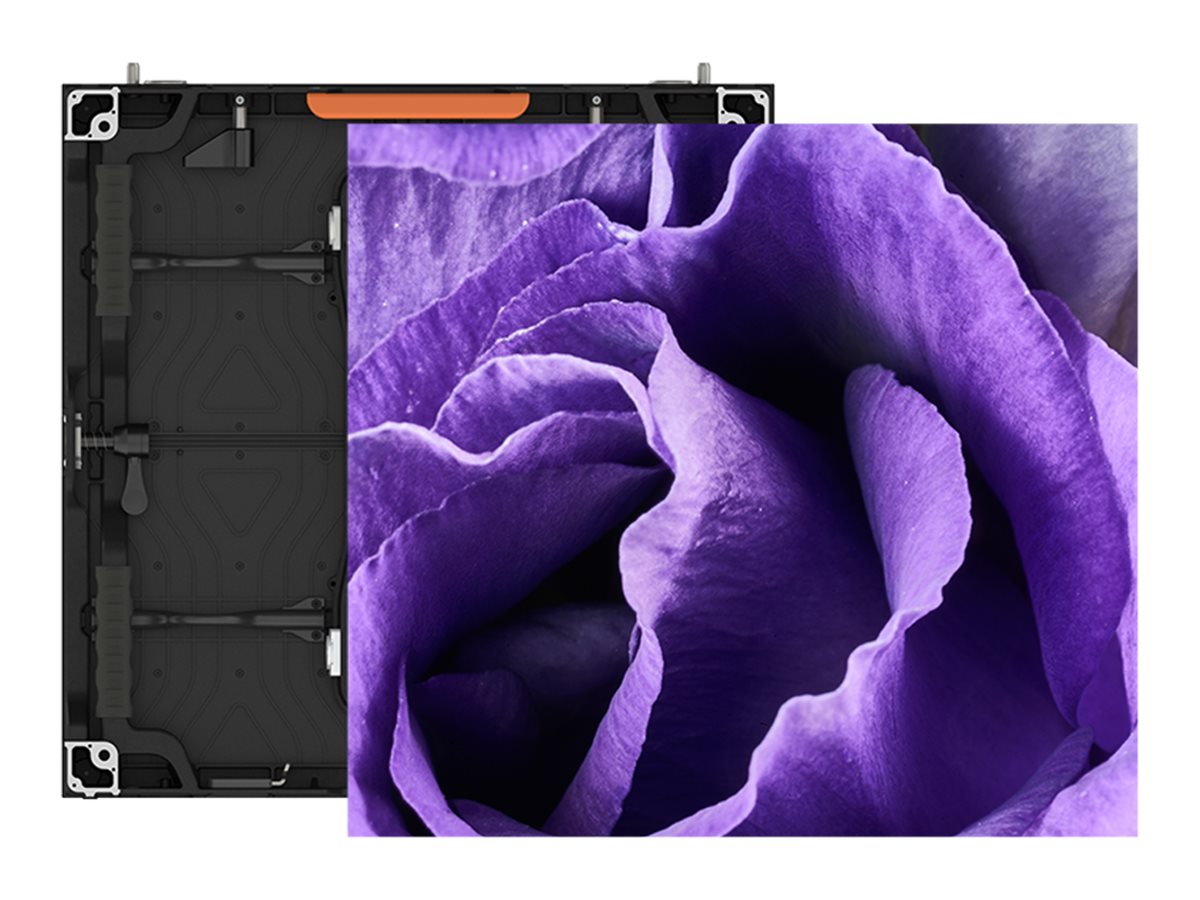

Planar VPI-1.9 - Venue Pro Series LED display unit
MSRP$2,333.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Planar VPI-1.9 - Venue Pro Series LED display unit
- digital signage 27.83" 128 x 128 (LED unit) / 256 x 256 (cabinet) per unit
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $2,333.00 |
| Mfr Part #: | 998-3109-00 |
| SHI Part #: | 44881754 |
| Category: | Televisions |
| UNSPSC: | 52161505 |
| Manufacturer: | Planar |
| Product Type: | Hardware |
| Product Line: | Planar Systems |
| General Information | |
|---|---|
| Category | Televisions |
| Description | Planar VPI-1.9 - Venue Pro Series LED display unit - digital signage 27.83" 128 x 128 (LED unit) / 256 x 256 (cabinet) per unit |
| Manufacturer | Planar |
| MSRP | $2,333.00 |
| UNSPSC | 52161505 |
| Main Specifications | |
| Dimensions & Weight / Height | 25 cm |
| Dimensions & Weight / Width | 25 cm |
| Header / Brand | Planar |
| Miscellaneous / Product Color | Black |
| Television / Brightness | 1000 cd/m² |
| Television / Image Contrast Ratio | 6000:1 |
| Television / Type | LED display unit |
| Television / Viewing Angle | 150° |
| Dimensions & Weight Details | |
| Dimensions & Weight Details |
|
| Display | |
| Brightness | 1000 cd/m² |
| Color Temperature | 3000 - 10000K |
| Commercial Features | Constant current drive, quick-lock system, magnetically-attachable cabinets |
| Frame Rate & Enhancement Technology | 60 Hz Frame Rate, 50 Hz Frame Rate, 3840 Hz Refresh Rate |
| Image Contrast Ratio | 6000:1 |
| Viewing Angle | 150° |
| Viewing Angle (Vertical) | 130° |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 80% RH (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -20 °C |
| General | |
| Commercial Use | Yes - digital signage |
| Dimensions | Display unit |
| Height | 25 cm |
| Product Type | LED display unit |
| Series | Venue Pro Series |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Width | 25 cm |
| Miscellaneous | |
| Compliant Standards | IP30 |
| Power | |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Video Wall Display Unit Power Consumption (Max) | 160 W |
| Video Wall Display Unit | |
| Cabinet Diagonal Size | 27.83" |
| LED Lifetime | 100000 hours |
| Maintenance | Front or rear |
| Modules Configuration (Per Cabinet) | 2x2 |
| Pixel Density | 262144 pixels/m² |
| Pixel Pitch | 1.95 mm |
| Resolution | 128 x 128 (LED unit) / 256 x 256 (cabinet) |
