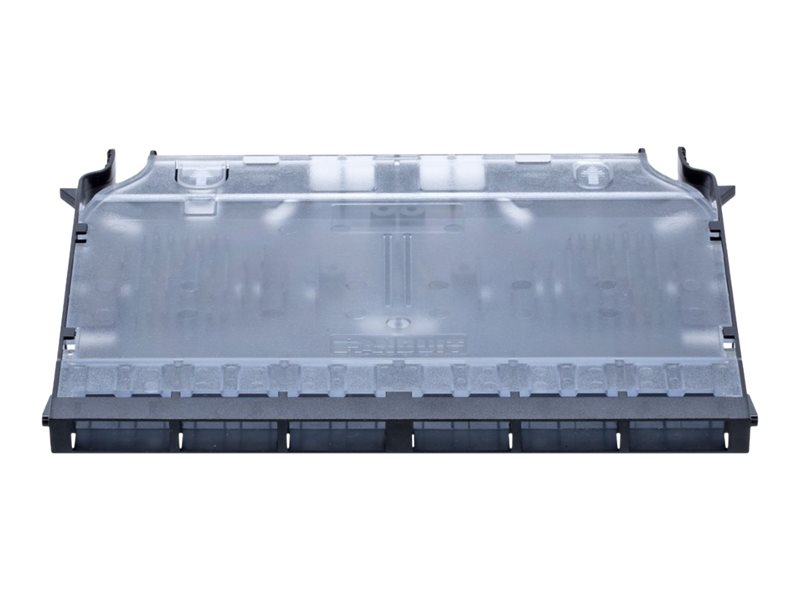

24F OM4 HD FLX LC SPLICE CASSET

MSRP$1,441.00
$1,022.00
24F OM4 HD FLX LC SPLICE CASSET
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
24F OM4 HD FLX LC SPLICE CASSET
  Additional Details
Price: $1,022.00
MSRP: $1,441.00
Mfr Part #: FHSZA-24-10R
SHI Part #: 44866112
Category: Network cable
UNSPSC: 26121609
Manufacturer: Panduit
Product Type: Hardware
General Information
CategoryNetwork cable
Description24F OM4 HD FLX LC SPLICE CASSET
ManufacturerPanduit
MSRP$1,441.00
UNSPSC26121609
Main Specifications
Cabling & Wiring / Port Qty12 ports
Dimensions & Weight / Depth17.23 cm
Dimensions & Weight / Height1.17 cm
Dimensions & Weight / Weight170 g
Dimensions & Weight / Width19.04 cm
Header / BrandPanduit
Miscellaneous / Product Color
  • Black
  • Blue
Packaged Quantity1
Product TypeFiber optic cassette
Service & Support / Type1-year warranty
Cabling & Wiring
Compliant StandardsOM4
Connector Provided24 x LC multi-mode female
Core / Cladding Diameter50 / 125 micron
FeaturesAqua adapter color, Standard IL
Port Qty12 ports
TechnologyFiber optic
Environmental Parameters
Max Operating Temperature70 °C
Min Operating Temperature0 °C
General
Depth17.23 cm
Enclosure ColorAqua
Height1.17 cm
Product TypeFiber optic cassette
Weight170 g
Width19.04 cm
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
Compliant StandardsRoHS, ISO/IEC 11801, ANSI/TIA-568-C.3, TIA-604-10, TIA-604-5
FeaturesZirconia ceramic sleeves, ultra low loss, pre-loaded with flat ribbon pigtails and splice sleeve(s), min return loss (26 dB), max insertion loss (0.1 dB)
